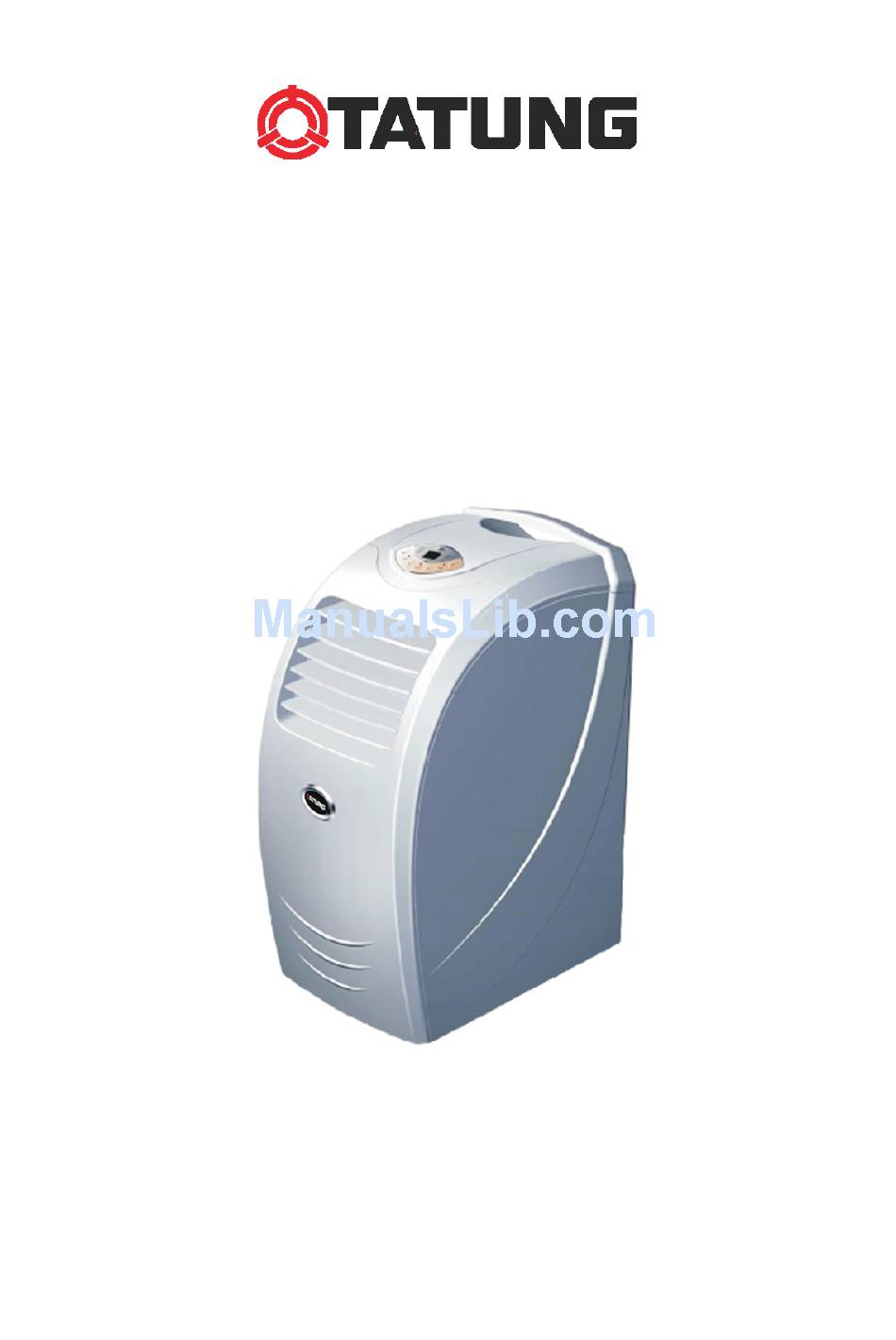

INSTRUCTION MANUAL 大同移動 冷氣 機 使用手冊 TPAC-09K TPAC-12K Please read the instructions completely before using this product This product is designed for household use only. 使用前請詳閱使用手冊 本產品只限家庭使用...
INTRODUCTION Thank you for choosing T atungs Portable Air Conditioner . We hope you enjoy this instant cooling portable air Please read this manual carefully before using this product . conditioner. The following tips may help to maximize the efficiency of your air conditioner: When the air conditioner is on , keep doors and windows closed .
16. Attachments not recommended by the manufacturer may cause injuries. 17. Do not expose skin, face and eyes directly to cool air for a long period of time. 18. If an abnormal odor or smoke comes from the product, disconnect the unit immediately and contact Tatung Service Department.
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption power cord and plug. The LCDI power cord and plug will shut off the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
PARTS NAMES Front view Back view 11. Power cord hook Control panel Castor Air outlet grille 12. Air filter Horizontal louver Air Exhaust hose Power cord Vertical louver Moving handle Water filling Air inlet grille drawer Accessories - 6 -...
INSTALLATION Select a proper installation location Place the portable air conditioner on a flat and dry location where the air outlets cannot be obstructed. Leave a 20 inch (50 cm) minimum space between the product and the wall. Adapter B 2.
Page 8
INSTALLATION 5. The correct way of bending the hose (51") (17") Correct bending Wrong bending CAUTION: This length has been designed especially according to the specifications of the air conditioner. Do not replace or extend it with your own hose as this could cause the unit to malfunction - 8 -...
OPERATING INSTRUCTION Control panel Press this button to enter time-setting status. Timer Timer Press this button to make the vertic al louver swing automatically. T o Swing Swing stop swing, press the swing button again. Speed Speed Press this button for 5 seconds to select high, middle or low fan Speed.
OPERATING INSTRUCTION 2. LED Indicator COOL: On cooling mode the led will illuminate FAN: inate. On fan mode the led will illum DRY: On dehumidifying mode the led will illuminate COMP: When compressor is working the led will illuminate FULL: When water is full in the machine the led will illuminate , the user can put some...
OPERATING INSTRUCTION 5. Simple steps to use cooling mode *Plug in the power cord and press the “POWER” button *Press “MODE” to chose COOLING mode. *Press “UP” or “DOWN“ to set the desired temperature. The temperature ranges from 64F to 84F(18C~31C) *Press, “SPEED”...
Page 12
modes. Each fan speed corresponds to one indicator on LED control panel.Please note: when unit is in dehumidifier mode, the fan speed cannot be adjusted. 10. About water adding function Some portable air conditioners in the market can self-evaporate the condenser water, by using water pump to extract the condenser water collected from the air to cool the condenser in order to increase the cooling efficiency.
WATER DRAINAGE During the cooling or dehumidifying mode, the condenser water will be drained into the internal water tank. Since this unit is equipped with a self-evaporative system,the condenser water will be used to cool the condenser making the unit run more efficiently. However, if the unit is used in high humidity areas, the water may need to be drained out.
MAINTENANCE AND CLEANING Attention: unplug the power from the wall outlet before cleaning. 1. Clean the air filters Clean the filters regularly to optimize the airflow. (1) Unplug the power (2) Pull out the air filters as shown at right figure (3) Wash the filters by immersing them gently into warm water (no hotter than 104F).
E5- Unit faults Contact Tatung Service Center. If you cannot solve the problem or the problem is not listed on above,unplug the power and contact Tatung Service Department at 1-800-827-2850. When one the following situations happen,stop running the unit and contact T atung Service Center:...
" SPECIFICATION Model number TPAC-09K TPAC-12K Cooling capacity 9000 BTU 12000BTU Power supply 115V/60 Hz 115V/60 Hz Power consumption Cooling: 1050W Cooling: 1380 W Dehumidifying: 750 W Dehumidifying: 750 W Control Digital LCD control panel / remote Digital LCD control panel / remote...
Tatung Company of America, Inc. (“Tatung”), 2850 El Presidio Street, Long Beach, California 90810, warrants to you, the original owner of this new Tatung product that all parts of this product are free from defects in material and workmanship,for one year from the date of purchase under normal use and service.
