Summary of Contents for Kennmex MT-1200

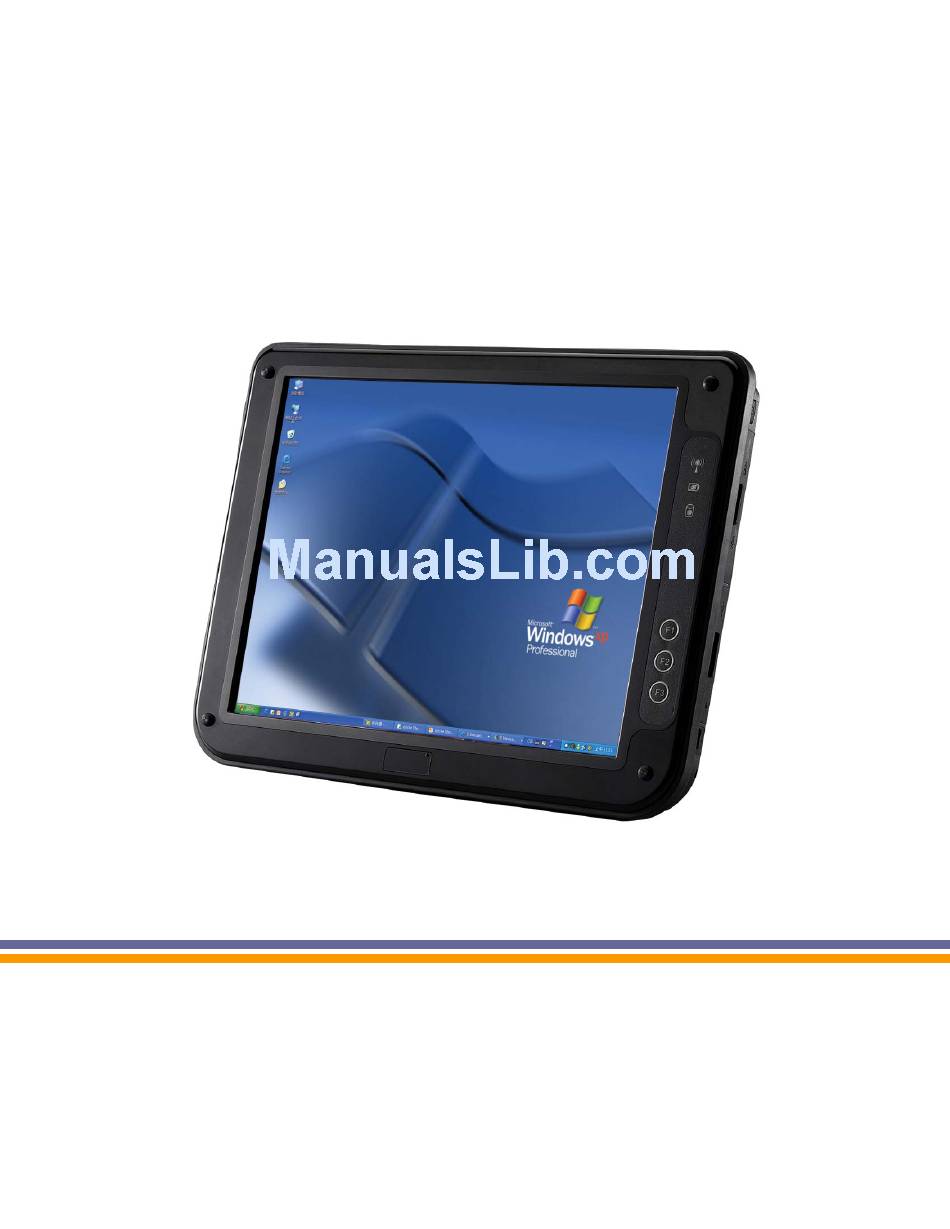

  • Page 1 MT-1200 User Manual 2007 January V0.9j...
  • Page 2 Copyright 2007 January All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 3 Safety CE MARK This device complies with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/EEC “Low Voltage Directive”. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
  • Page 4 LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components. The crossed dustbin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life.
  • Page 5 Safety Statements The following safety statements will increase the life of the MT-1200. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

  • Page 6: Table Of Contents

    3.1. Installing the Hand Strap (option)............10 3.2. Installing the Kick Stand (option)............10 3.3. Installing the Battery Pack ..............11 3.4. Connecting the AC Power Adapter ............11 3.5. Turning ON the MT-1200 ..............12 3.6. Suspend Mode..................12 3.7. Using the Stylus Pen................12 Drivers Installation ..................13 4.1.

  • Page 7: Item Checklist

    1. Item Checklist Take out the system unit from the carton. Remove the unit by carefully clutching the foam inserts and remove slowly to protect the system. The following contents should be found in the carton: a. System b. Power Cord c.

  • Page 8: System View

    2. System View Refer to the pictures below to identify the components. 2.1. Front View Function Remark Blue color – Connected to Access Point Flash – Searching Access Point Wireless LAN Indicator Green Color – Battery Mode Orange color – Charging Battery Charge Indicator Flash –...

  • Page 9: Side View

    2.2. Side View 2.2.1. Left Side View HDD or CF Lock Port PCMCIA & SD 2.2.2. Right Side View Power Switch USB (2) Power Input Headphone...

  • Page 10: Bottom View

    2.3. Bottom View VESA Holes Air Vents Holder Memory Compartment Battery Lock Battery Lock Battery Pack...

  • Page 11: Basic Operations

    3. Basic Operations This section helps you to start using your MT-1200. 3.1. Installing the Hand Strap (option) a. Place the holders (R&L) in the circled b. Place the strap rings on the holders on positions and fasten them with the each side and press toward the direction screws(2), one on each side .

  • Page 12: Installing The Battery Pack

    IMPORTANT! Damage may occur if you use a different adapter to power the MT-1200 or use the MT-1200’s adapter to power other electrical devices. You may damage both your battery pack(s) and the MT-1200 with a faulty AC-DC adapter. (1) Connect this...

  • Page 13: Turning On The Mt-1200

    It can damage the screen. The MT-1200 has a touch-sensitive screen. It allows you to use your stylus pen or finger to interact with the device. With the MT-1200, you can input data using the full screen area.

  • Page 14: Drivers Installation

    4. Drivers Installation 4.1. Driver List Folder/File File Description <CD>:\K292.htm K292 (MT-1200) Series Driver List <CD>:\COMMON\INTEL\Chipset Chipset Driver <CD>:\COMMON\INTEL\USB20 USB 2.0 Driver <CD>:\COMMON\INTEL\VGA\i85x VGA Driver <CD>:\K292\Rotation Rotation Application Driver <CD>:\COMMON\AC97_Codec\Vinyl Audio Driver <CD>:\K292\Button_Driver Button Driver <CD>:\COMMON\Fujitsu_Touch Fujitsu Touch Screen Driver <CD>:\COMMON\Lan_driver\Intel_PRO_1000...
  • Page 15 c. Click the “Yes” button on the Setup d. Click the “Next” button on the Setup window. window. e. Select “Yes, I want to restart my computer now” and click the “Finish” button on the Setup window.

  • Page 16: Usb Driver Installation

    4.3. USB Driver Installation OS Requirements USB 2.0 requirements Windows USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows XP, which is available through Windows Update. Windows USB 2.0 drivers are available through Windows Update or Service 2000 Pack 4.
  • Page 17 c. Select ”Other Devices” “Universal Serial Bus (USB) Controller” ”Properties” on Device Manager. d. Select “Device” “Update Driver…”. e. Click the ”Next” button on the welcome window.
  • Page 18 Select “Search for a suitable…”and g. Select “Specify a location” and click the click the “Next” button on the Install “Next” button on the Locate Driver Files Hardware Device Drivers window. window. h. Press “Browse” to select driver and Click the “Next” button on Driver Files then click the “OK”...

  • Page 19: Vga Driver Installation

    4.4. VGA Driver Installation a. Click the “Win2K_XP” on the My b. Click the “v14.19.50” on the My Computer window. Computer window. c. Select “win2K_xp141950” on the d. Click the “Next” button on the Intel(R) v14.19.50 window. Chipset Graphics Driver Software- InstallShield(R) Wizard window.

  • Page 20: Rotation Application Driver Installation

    g. Select “Yes, I want to restart my computer now” and click the “Finish” button on the Intel(R) Graphics Media Accelerator Driver window. 4.5. Rotation Application Driver Installation a. Select “Disk 1” on the My Computer b. Select “Setup” on the My Computer window.
  • Page 21 c. Click the “Next” button on the d. Click the “Install” button. IP1_Rotate Utility – InstallShield Wizard window. e. Select “Yes, I want to restart my computer now” and click the “Finish” button.

  • Page 22: Audio Driver Installation

    4.6. Audio Driver Installation a. Select “Setup “ on my computer b. Click the “Next” button on the VIA Vinyl window. Audio Codecs Driver Setup Wizard v6.50d window. c. Select “I Agree” and click the “Next” d. Click the “Next” button. button on the VIA Vinyl Audio Codecs Driver Setup Wizard v6.50d window.

  • Page 23: Button Driver Installation

    4.7. Button Driver Installation a. Select “Setup” on the My Computer b. Click the “Next” button on the Button window. Driver – InstallShield Wizard window. c. Click the “Install” button on the Button d. Click the “Continue Anyway” button on Driver –...

  • Page 24: Software Application

    4.7.1. Software Application F2 – On Screen Keyboard a. Click the Tablet PC icon and select b. Select “Tablet Buttons” and click the “Properties…” on the desktop. “Change…” button on the Tablet and Pen Settings window. c. Select the “Action: Launch an application”...
  • Page 25 F3 – Screen Rotation a. Click the Tablet PC icon and select b. Select “Display” and click the “Change” “Properties…” on the desktop. button on the Tablet and Pen Settings window. c. Select the “screen orientation – 1: Primary landscape; 2: Primary portrait; 3: [None];...

  • Page 26: Fujitsu Touch Driver Installation

    Brightness Setup a. Click the My Computer icon and select b. Adjust brightness by moving the cursor “Tablet and Pen Settings…” on the “then click the “Apply” button within the desktop. “Display” category on the Tablet and Pen Settings window. 4.8.
  • Page 27 c. Select “Next” on the Touch d. Select “Install” on the Touch Panel-InstallShield Wizard window. Panel-InstallShield Wizard window. e. Click the “Continue Anyway” button on f. Click the “Finish” button on the Touch the Hardware Installation window. Panel-InstallShield Wizard window. g.

  • Page 28: Lan Driver Installation

    i. Select “Calibration DO NOT click j. After calibration, select “Update” on the Use onboard EEPROM to store calibration window. calibration result Apply Calibration Now” on the Touch Panel Settings. 4.9. LAN Driver Installation a. Select “Win2K_XP” on the My b.
  • Page 29 c. Select “I accept the terms in the d. Click the “Next” button. license agreement” and click the “Next” button on the DriverInstaller-InstallShield Wizard window. e. Select “Install Base Driver”.

  • Page 30: Pcmcia/Sd Card Reader Driver Installation

    4.10. PCMCIA/SD Card Reader Driver Installation a. Click the “WinNT4_9X_ME_2K_XP” b. Select “Setup” on the My Computer icon on the My Computer window. window. c. Click the “Next” button on the d. Select “Yes, I want to restart my InstallShield Wizard window. computer now”...

  • Page 31: Wireless Lan Driver Installation

    4.11. Wireless LAN Driver Installation a. Click the “Win98_ME_2K_XP” icon on b. Click the “v1.0.43.17” icon on the My the My Computer window. Computer window. c. Click the “w89c35” icon on the My d. Click the “Next” button on the Winbond Computer window.
  • Page 32 g. Select “Continue Anyway” on the h. Click the “OK” button on the “Winbond Hardware Installation window. Wireless Utility window”. i. Click the “Finish” button.

  • Page 33: Replacing Components

    5. Replacing Components 5.1. Removing the Battery Pack IMPORTANT! Never attempt to remove the battery pack while the MT-1200 is turned ON, as this may result in the loss of working data. a. Slide both battery release tabs to the b.

  • Page 34: Replacing The Hdd

    c. Remove the memory module from the slot. 5.3. Replacing the HDD a. Remove the screws (2) that secure the b. Slide the HDD towards you. HDD cover. c. Disconnect the HDD cable carefully. d. Replace the 1.8” HDD.

  • Page 35: Specification

    6. Specification Model Name MT-1200 (12.1” Tablet PC) Motherboard Intel Celeron M or Pentium M @ 800 MHz ~ 1.1GHz (BGA Type) Core Logic Intel 852GM Memory SO-DIMM x 1, up to 1 GB Graphic UMA Share Memory up to 64MB LCD &...
  • Page 36 Environmental Thermal Management Fanless, Passive Cooling IR Rating IP53 (Front Bezel) Drop Test 32 inch high free fall (For C/F card only) Wireless Wi-Fi 802.11 b/g Dimension (W x H x D) 313 x 235 x 35.7 mm Net Weight 1.7 kgs (With Battery) Operating System Windows XP-P, XP-embedded...
