Summary of Contents for Nady Audio ENC II

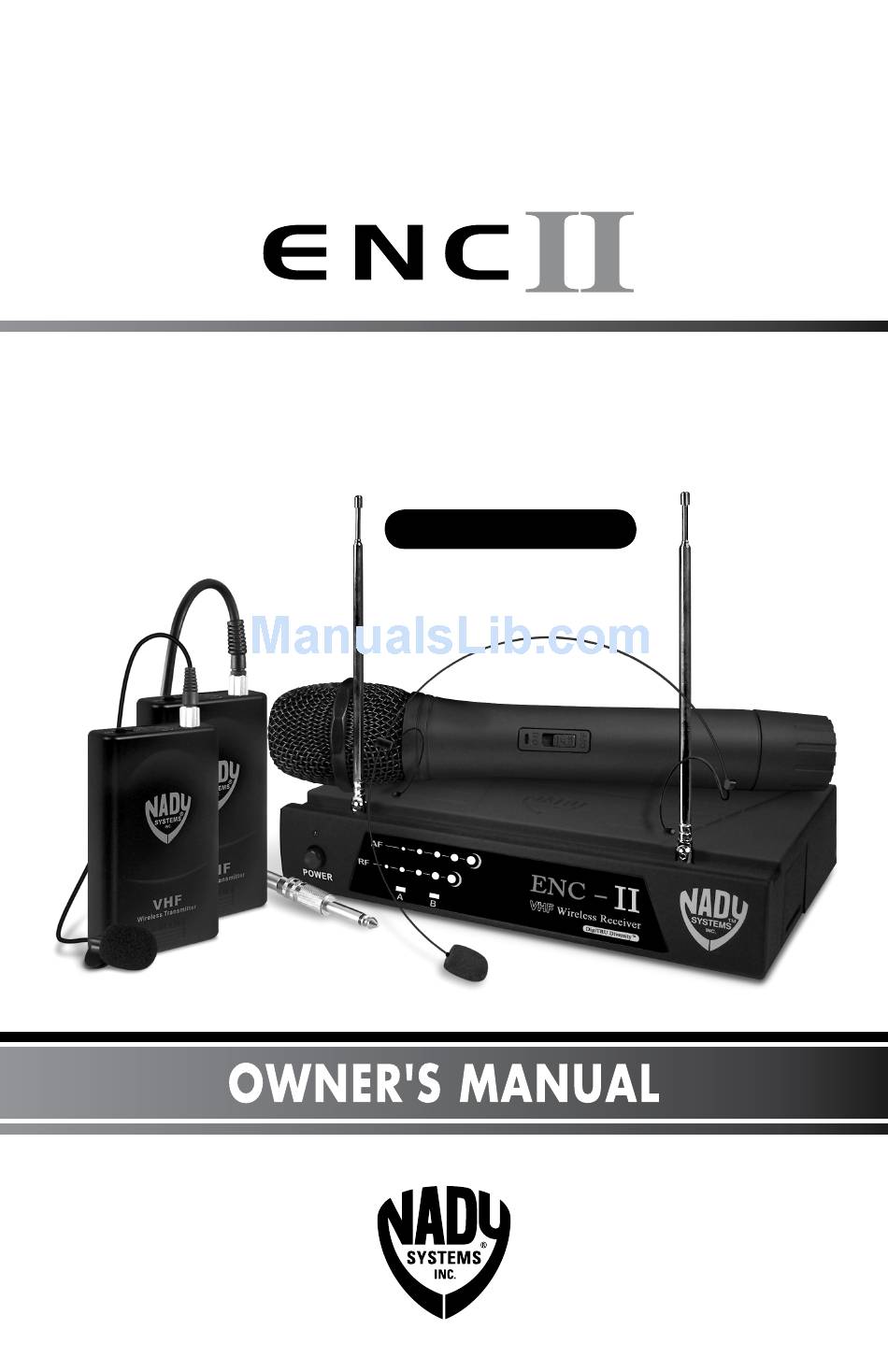

- Page 1 VHF Wireless Microphone System DigiTRU Diversity ™...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ....................2 INTRODUCTION .....................2 USING THIS MANUAL ..................2 SYSTEM FEATURES ..................3 EN C- II RECEIVER ....................4 WHT HANDHELD MICROPHONE TRANSMITTER ..........7 WLT LAVALIER/LAPEL OR HEADWORN MICROPHONE BODYPACK TRANSMITTER................9 WGT INSTRUMENT BODYPACK TRANSMITTER ..........11 SPECIFICATIONS ...................13 SERVICE INFORMATION ................14 WARRANTY ....................15 INTRODUCTION Thank you for choosing the Nady Enc-II diversity wireless microphone system, we... -
Page 3: System Features
SYSTEM FEATURES • Available on selected frequencies in the VHF high band (171‑216 MHz) for interference‑free, long‑range performance • Proprietary companding circuitry for an industry-best 120dB Dynamic Range, and the clearest, most natural sound available • Operating Range: Up to 250 feet typical (depending on site conditions)— up to 500+ feet line- of-sight • Noise-free transmitter ON-OFF operation ENC- - - II RECEIVER • Half-rack receiver design with retractable front panel dual antennas • Proprietary DigiTRU Diversity digital processing circuitry to eliminate ™ dropouts and maximize operating range • RF and AF 5-LED displays for monitoring incoming signal strength and audio level • Balanced XLR and unbalanced adjustable 1/4” jack outputs • Mute (squelch) adjust control... -
Page 4: Enc-Ii Receiver
ENC-II RECEIVER 1. Rackmounting the Receiver There are two options available for rackmounting the Enc-II receiver: singly or side‑by‑side with another Enc Series receiver. Single mounting: Remove the receiver SIDE MOUNT CLIP (1) from each side of the receiver (as shown) and slide in the optional ERM-12 RACK EARS (9). Side-by-side double mounting: After removing the SIDE MOUNT CLIPS (1) from both Encore receivers, join the two receivers with the EJC-2 JOINING CLIP (10) and attach the ERM-22 RACK EARS (12) as shown. - Page 5 5. Connecting the Audio Output The Enc-II receiver provides both a fixed mic level BALANCED AUDIO OUTPUT XLR (14) and an adjustable line level UNBALANCED AUDIO OUTPUT 1/4” JACK (13). The level from the UNBALANCED OUTPUT is controlled by the rear panel VOLUME CONTROL (6). (Note: As when making any connection, make sure the amplifier or mixing board volume is at the minimum level before plugging in the receiver to avoid possible sound system damage.
- Page 6 POWER 12-15V VOLUME MUTE UNBALANCED OUT DC INPUT BALANCED OUT...
-
Page 7: Wht Handheld Microphone Transmitter
WHT HANDHELD MICROPHONE TRANSMITTER 1. Unscrew the BATTERY COMPARTMENT COVER (17) and remove, exposing the BATTERY HOLDER (18). Insert a fresh 9V ALKALINE BATTERY (19), observing the correct polarity as marked, and screw the cover back on to the microphone. Make sure the cover is screwed on completely. -
Page 9: Wlt Lavalier/Lapel Or Headworn Microphone Bodypack Transmitter
WLT LAVALIER/LAPEL OR HEADWORN MICROPHONE BODYPACK TRANSMITTER 1. Snap open the BATTERY COMPARTMENT (22) and insert a fresh 9V BATTERY (23), observing the correct polarity. Close the compartment. 2. The WLT is provided with a 3.5 mm LOCKING JACK (24) for connecting the microphone. - Page 10 Opening Battery Compartment...
-
Page 11: Wgt Instrument Bodypack Transmitter
WGT INSTRUMENT BODYPACK TRANSMITTER 1. Snap open the BATTERY COMPARTMENT (30) and insert a fresh 9V BATTERY (31), observing the correct polarity. Close the compartment. The WGT is provided with a 3.5 mm LOCKING JACK (32) for connecting the INSTRUMENT CABLE (35). To secure the connection, turn the metal slip ring on the plug clockwise to thread it on to the jack. To unplug, reverse the process. Slip the transmitter into a pocket or clip on to your clothes or instrument strap. - Page 12 Opening Battery Compartment...
-
Page 13: Specifications
SPECIFICATIONS ENC-II OVERALL SYSTEM PERFORMANCE DigiTRU Diversity Reception Mode ™ Power ON/OFF, volume control, mute control Controls Balanced XLR and unbalanced adjustable Connectors 1/4” audio out jacks, 2.1 mm barrel-type DC input jack Power ON, 5‑LED RF & AF level displays, A/B Diversity LED Indicators 1.75” x 7.5” x 8.1” (4.4 x 19 x 20.7 cm) Dimensions (Max.) 1.6 lbs (.73 kg) Weight 12V @ 400mA, nominal, AC/DC adapter supplied Power Requirements 11.2” (28.5 cm), dual telescopic... -
Page 14: Service Information
SERVICE INFORMATION In the U.S. If you are experiencing operational problems with your system, please refer to the Support page at www.nady.com for assistance. Should your wireless system require service, please contact the Nady Service Department at (510) 652‑2411 to obtain a Return Authorization (R/A) Number and service quote (if out of warranty). -
Page 15: Warranty
ONE-YEAR LIMITED WARRANTY Nady Systems, Inc. warrants to the original consumer purchaser that the unit is free from any defects in material or workmanship for a period of one year from the date of original retail purchase. If any such defect is discovered within the warranty period, Nady Systems, Inc. will repair or replace the unit free of charge, subject to verification of the defect or malfunction upon return to Nady Systems. - Page 16 Nady Wireless Systems are type accepted under FCC rules parts 90, 74 and 15. The device complies with RSS-210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 6701 Shellmound Street | Emeryville, CA USA 94608 T 510.652.2411 | F 510.652.5075 | www.nady.com...
