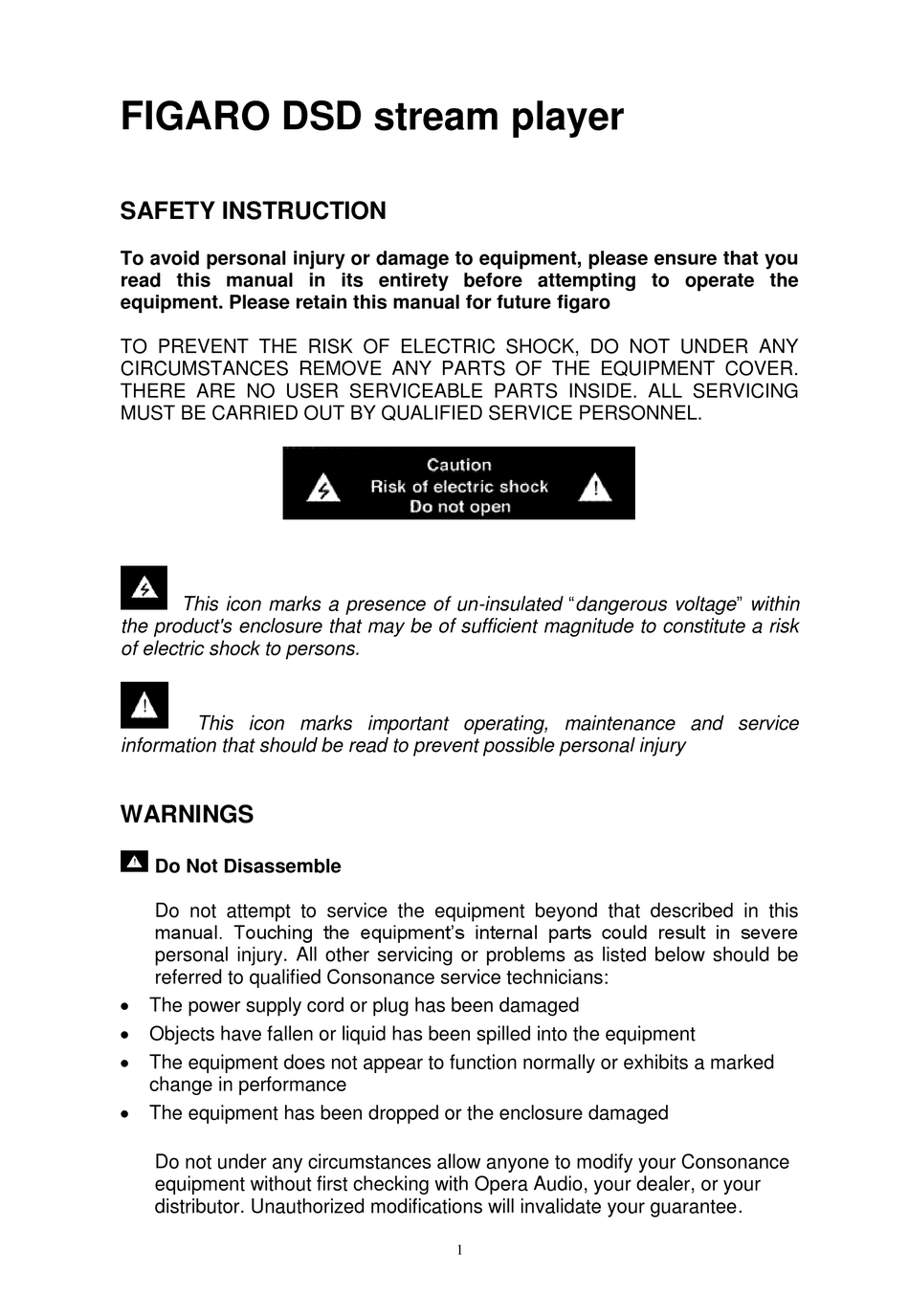

FIGARO DSD stream player

SAFETY INSTRUCTION

To avoid personal injury or damage to equipment, please ensure that you
read this manual in its entirety before attempting to operate the
equipment. Please retain this manual for future figaro
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT UNDER ANY
CIRCUMSTANCES REMOVE ANY PARTS OF THE EQUIPMENT COVER.
THERE ARE NO USER SERVICEABLE PARTS INSIDE. ALL SERVICING
MUST BE CARRIED OUT BY QUALIFIED SERVICE PERSONNEL.
This icon marks a presence of un-insulated "dangerous voltage" within
the product's enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
This icon marks important operating, maintenance and service
information that should be read to prevent possible personal injury
WARNINGS
Do Not Disassemble
Do not attempt to service the equipment beyond that described in this
manual. Touching the equipment's internal parts could result in severe
personal injury. All other servicing or problems as listed below should be
referred to qualified Consonance service technicians:
 The power supply cord or plug has been damaged
 Objects have fallen or liquid has been spilled into the equipment
 The equipment does not appear to function normally or exhibits a marked
change in performance
 The equipment has been dropped or the enclosure damaged
Do not under any circumstances allow anyone to modify your Consonance
equipment without first checking with Opera Audio, your dealer, or your
distributor. Unauthorized modifications will invalidate your guarantee.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FIGARO and is the answer not in the manual?

Questions and answers

Summary of Contents for Opera Audio FIGARO

  • Page 1: Safety Instruction

     The equipment has been dropped or the enclosure damaged Do not under any circumstances allow anyone to modify your Consonance equipment without first checking with Opera Audio, your dealer, or your distributor. Unauthorized modifications will invalidate your guarantee.
  • Page 2 Power Source The equipment should be connected to a power supply only of the type described in this manual or as marked on the equipment. Grounding or Polarization Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the amplifier.
  • Page 3: Table Of Contents

    Table of Contents Introduction……………………………………………………………………… 5 How to Use ……………………………………………………………………… 6 IR remote control shortcut function…………………………………………12 FIGARO Specification………………………………………………………… 13 Warranty ………………………………………………………………………… 14...
  • Page 4 Please check the following Appendix ments are complete:  Remote control 1pcs  Power Cable 1pcs  Instructions for use 1pcs...
  • Page 5: Introduction

    Introduction 1. Power switch:CW “ ” is Power ON 2. Display screen 3. Remote sensor 4. The multifunction knob 5. AC Power Socket 6. Fuse 7. USB 1.1 jack 8. USB 2.0 jack 9. USB DC5V power port 10. Serial port 11.
  • Page 6: How To Use

    How to Use Switch on. Allow about 1 minute. For proper warm up Wait until the network logo turns green then you may begin. We suggest the use of an Apple/Android phone or ipad as a suitable remote control for the player. iOS: 8Player (We recommend you purchase the official version) Android:...
  • Page 7 Press EXIT on the remote control or press the multifunction knob to quit the normal mode. The remote control will be useful even without Apple/Android devices. Control the FIGARO by rotating the multifunction knob or using the remote control Rotate the multifunction knob or press the buttons on the remote control to scan for options.
  • Page 8 Note: If you switch out any USB storage device, please restart the player. If it is a hard disk, there are USB-1 and USB-2. Rotate the multifunction knob or press the buttons on the remote control to choose the folders. Means the current selection is a folder Means the current selection is a music file.
  • Page 9: Internet Radio

    Mute Internet Radio There are some pre-programmed internet radio stations already in the FIGARO Rotate the multifunction knob or press the buttons on the remote control to play. After a few seconds of buffering time the internet radio selection will begin play.
  • Page 10: Volume Control

    The following operation can ONLY be performed by remote control or the multifunction knob DAC Mode The FIGARO can be used as a high quality DAC. This can be done through the AES and coaxial inputs used for receiving external PCM sources.
  • Page 11 Set Up SETUP OPTION: Brightness, Update and About. 1. Brightness There are 3 levels of adjustment. 2. Update The system supports firmware upgrade. Copy the update firmware document (ending with *.pkg) when using a USB stick. Plug the USB into USB HOST port, choose it through the Fraxel 3.
  • Page 12: Ir Remote Control Shortcut Function

    IR remote control shortcut function F1: Screen Brightness adjustment; F2: DirectDSD - Skip the DAC digital filter. The volume control will be blocked; F3: Enter the DAC mode; F4: Show the cover picture on the screen F6: Enter the local USB mode @:Enter the internet radio;...
  • Page 13: Figaro Specification

    FIGARO Specification 1. 32Bit/192KHz digital stream music player 1Bit/5.64MHz DSD128 digital stream playback 2. Internet radio and fix the radio name 3. Upgradeable firmware through USB memory device 4. Support play DSD DFF/WAV/FLAC/ALAC/ACCetc, digital music format 5. 10/100Mbps LAN,RJ-45 port, support TCP/IP,UPnP, UDP, RTSP, DHCP,...
  • Page 14: Warranty

    This warranty shall not apply to any Opera audio product which shall have been repaired or altered outside of our factory in any way so as to affect its stability, nor which has been subject to misuse, negligence or accident.
