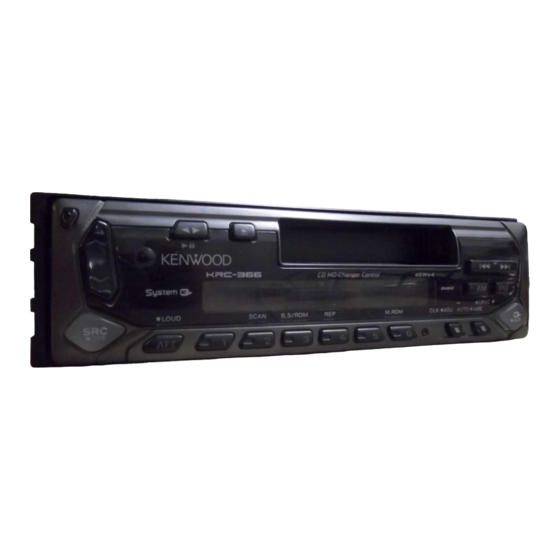

- Page 1 KRC-565 KRC-465 KRC-365 CASSETTE RECEIVER INSTRUCTION MANUAL ©B64-2126-00 (M)
-
Page 2: Table Of Contents
Contents Safety precautions...3 About Cassette tape ...4 General features ...5 Power Selecting the Source Volume Attenuator Loudness System Q Audio Control Speaker Setting Clock Display Adjusting Clock DSI (Disabled System Indicator) Theft Deterrent Faceplate Tuner features ...8 Tuning Mode Tuning Station Preset Memory Auto Memory Entry Preset Tuning... -
Page 3: Safety Precautions
Note that none of the KDC-C100, KDC-C302, C205, C705, and non-Kenwood CD changers can be connected. You can damage both your unit and the CD changer if you connect them incorrectly. -
Page 4: About Cassette Tape
Safety precautions NOTE • If you experience problems during installation, consult your Kenwood dealer. • If the unit does not seem to be working right, try pressing the reset button first. If that does not solve the problem, consult your Kenwood dealer. -
Page 5: General Features
General features Release button ATT / LOUD Clock display Clock indicator SYSTEM Q ATT indicator LOUD indicator indicator Power Turning ON the Power Press the [SRC] button. ¢ Turning OFF the Power Press the [SRC] button for at least 1 second. Selecting the Source Press the [SRC] button. -
Page 6: Loudness
General features Attenuator Turning the volume down quickly. Press the [ATT] button. Each time the button is pressed the Attenuator turns ON or OFF. When it’s ON, the "ATT" indicator blinks. Loudness Compensating for low and high tones during low volume. Press the [LOUD] button for at least 1 second. -
Page 7: System Q
Speaker Setting Fine-tuning so that the System Q value is optimal when setting the speaker type. Enter Standby Press the [SRC] button. Select the "OFF" display. Enter Speaker Setting mode Press the [Q] button. Select the Speaker type Press the [4] or [¢] button. Each time the button is pressed the setting switches as shown below. -
Page 8: Theft Deterrent Faceplate
General features Theft Deterrent Faceplate The faceplate of the unit can be detached and taken with you, helping to deter theft. Removing the Faceplate Press the Release button. The faceplate is unlocked, allowing you to detach it. • The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. -
Page 9: Tuning Mode
Tuning Mode Choose the tuning mode. Press the [AUTO] button. Each time the button is pressed the Tuning mode switches as shown below. Tuning mode Display Operation Auto seek "AUTO 1" Automatic search for a station. indicator Preset station "AUTO 2" Search in order of the stations seek indicator... -
Page 10: Crsc (Clean Reception System Circuit)
Tuner features CRSC (Clean Reception System Circuit) Temporarily have reception switched from stereo to mono to reduce multi-path noise when listening to the FM station. Press the [CRSC] button for at least 1 second. Each time the button is pressed CRSC turns ON or OFF. When it's ON, the CRSC indicator is ON. -
Page 11: Playing Cassette Tapes
Playing Cassette Tapes When the Cassette Tape is inserted Press the [SRC] button. Select the "TAPE" display. When you want to listen to the reverse side Press the [23] button. Eject the Cassette Tape Press the [0] button. Fast Forwarding and Rewinding Fast Forwarding Press the [FM] button. -
Page 12: External Disc Control Features
Release your finger to play the disc at that point. Track number Reversing Hold down on the [4] button. Release your finger to play the disc at that point. — 12 — Disc player CD player CD changer MD changer... -
Page 13: Track Search
Track Search Selecting the song you want to hear. Press the [4] or [¢] button. Album Search (Function of disc changer) Selecting the disc you want to hear. Press the [DISC–] or [DISC+] button. Track/Album Repeat Replaying the song/disc you're listening to. Press the [REP] button. -
Page 14: Basic Operations Of Remote
Basic Operations of remote Accessory of the KRC-565 – FM/AM/DISC /DISC Loading and Replacing the battery Use one lithium battery (CR2025). Insert the batteries with the + and – poles aligned properly, following the illustration inside the case. 4/¢ 2WARNING Store unused batteries out of the reach of children. -
Page 15: In Tuner Source
In Tuner source [FM]/ [AM] buttons Select the band. Each time the [FM] button is pressed it switches between the FM1, FM2, and FM3 bands. [4]/ [¢] buttons Tune up or down band. In Cassette tape source [4]/ [¢] buttons Do <Tape Advance)>... -
Page 16: Accessories
Accessories External view External view ... Number of items ...1 ...2 The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above. Installation Procedure 1. -
Page 17: Connecting Wires To Terminals
Ignition key switch Car fuse box (Main fuse) – Battery KENWOOD disc changer control input To connect the Disc changer, consult your Disc changer manual. Fuse (10A) Wiring harness (Accessory1)25 P.CONT Power control wire (Blue/White) ANT. -
Page 18: Installation
Installation ■ Installation Firewall or metal support Screw (M4X8) (commercially available) Metal mounting strap Self-tapping screw (commercially available) (commercially available) Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). ■... -
Page 19: Removing The Unit
■ Removing the hard rubber frame Engage the catch pins on the removal tool and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Accessory2 Removal tool When the lower level is removed, remove the upper two locations. -
Page 20: Troubleshooting Guide
Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. General The power does not turn ON.01 ✔... - Page 21 Blank Skip functions at places that are recorded.48 ✔ Because the recording level is low, it’s recognized as not recorded. ☞ Turn Blank Skip OFF. Disc source "AVin" is displayed without achieving External disc control ✔ O-N switch is set to "O" side. ☞...
- Page 22 Troubleshooting Guide The following messages are displayed when your system condition. E-01: No disc magazine has been loaded in the changer. The disc magazine is not completely loaded. ➪ Load the disc magazine properly. No CD in the unit. ➪ Insert the CD.
-
Page 23: Specifications
Specifications Specifications subject to change without notice. FM tuner section Frequency range (50 kHz space) ...87.5 MHz –108.0 MHz (200 kHz space) ...87.9 MHz –107.9 MHz Usable sensitivity (S/N = 30dB) ...9.3 dBf (0.8 µV/75 Ω) Quieting Sensitivity (S/N = 50dB) ...15.2 dBf (1.6 µV/75 Ω) Frequency response (±3 dB) ...30 Hz –...
