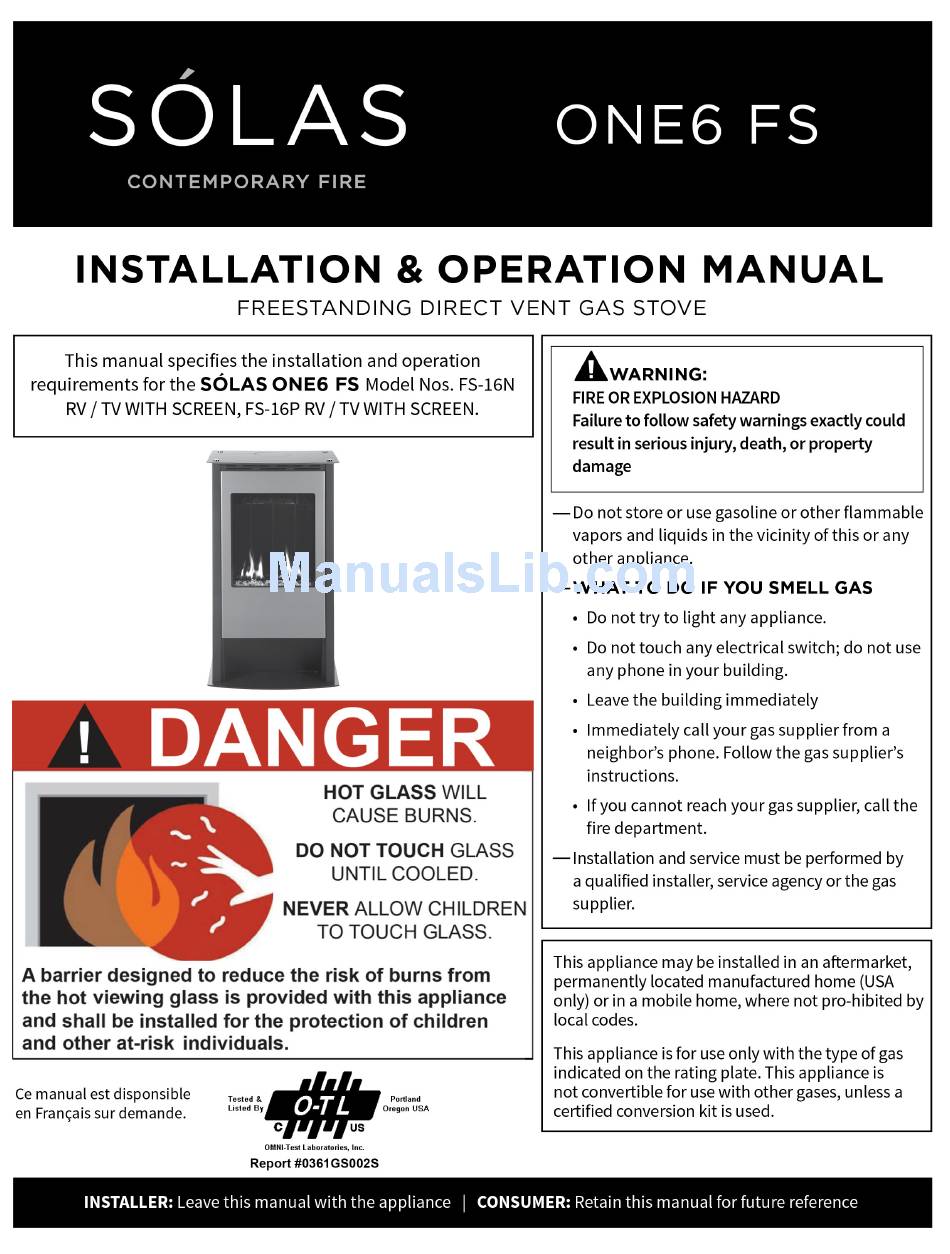

Solas ONE6 FS Installation & Operation Manual

Freestanding direct vent gas stove
Hide thumbs Also See for ONE6 FS:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONE6 FS and is the answer not in the manual?

Questions and answers

Related Manuals for Solas ONE6 FS

Summary of Contents for Solas ONE6 FS

  • Page 2 : Assurez-vous de bien suivre AVERTISSEMENT les instructions données dans cette notice pour réduire au minimum le risque d’incindie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort. Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre appareil.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION SPECIFICATIONS INSTALLATION REQUIREMENTS MASSACHUSETTS REQUIREMENTS VENTING ASSEMBLY & INSTALLATION GAS CONNECTION LIGHTING AND OPERATION MAXITROL CONTROL SYSTEM MAINTENANCE MAINTENANCE LOG FORM REPLACEMENT PARTS LIST CONTROL SCHEMATIC INSTALLATION RECORD FORM WARRANTY INFORMATION WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE BEGININNG THE INSTALLATION OF THE FREESTANDING DIRECT VENT GAS STOVE.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1. A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applica- ble, the Standard for Manufactured Home Installations, A NSI/BCSBCS A 225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.

  • Page 5: Specifications

    SPECIFICATIONS INPUT Natural Gas Propane (LP) Input Rating-Btu/hr 13,500 13,500 Min. Input-Btu/hr 7,500 7,500 Orifice-DMS GAS SUPPLY Manifold Pressure 4.8”w.c. / 1.2kPa 10.0”w.c. / 2.5kPa Min. Supply Pressure 5.5”w.c. / 1.4kPa 11.0”w.c. / 2.8kPa Max. Supply Pressure 10.0”w.c. / 2.5kPa 13.0”w.c.

  • Page 6: Installation Requirements

    INSTALLATION REQUIREMENTS Several issues must be addressed when selecting a suitable location for your Freestanding Stove. The minimum clearances to combustible construction are listed below. In addition, access to the gas supply must be considered. The location of the stove will also affect the venting requirements and you must be certain the location will allow compliance with the venting requirements shown on page You must also insure that your installation provides adequate accessibility clearance for servicing and proper opera-...

  • Page 7: Requirements For The Commonwealth Of Massachusetts

    INSTALLATION REQUIREMENTS The gas fireplace is shipped with a plugged 3/8” Stainless Steel Flex Connector exiting the bottom rear of the stove. The gas supply piping should have a separate gas shutoff valve and a 1/8” NPT plugged tapping upstream of the valve. The stove and its main control valve must be disconnected from the gas supply pip- ing system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).

  • Page 8: Venting

    VENTING Freestanding Direct Vent Gas Stove has been tested and listed for installation with 4” X 6 ® ® 5/8” Simpson DuraVent GS/Pro Selkirk Direct-Temp , Security Secure Vent™, AmeriVent Direct™ Metal t venting components. Although you may use the pipe components Fab Direct Vent and ICC EXCEL Direc (straight pipe, elbows, etc.) from any of the listed manufacturers, you may only use the vent terminations (caps) listed in the chart on page 8.
  • Page 9 6. The maximum vertical vent rise can not exceed 20 feet. 7. There are two exhaust restrictors that are provided with your Solas Nua Stove . They are labeled “A” and “B”. The A restrictor provides less exhaust restriction than B.
  • Page 10 NATURAL GAS VENTING CHART AIR RESTRICTOR EXHAUST RESTRICTOR 1— 6 TABS OPEN A or B NU = NOT USED NU = NOT USED VERTICAL TERMINTIONS NOT ALLOWED VERTICAL RISE IN FEET...
  • Page 11 LP GAS VENTING CHART AIR RESTRICTOR EXHAUST RESTRICTOR 1— 6 TABS OPEN A or B NU = NOT USED NU = NOT USED VERTICAL TERMINATIONS NOT ALLOWED VERTICAL RISE (FEET)
  • Page 12 VENTING CHART WORKSHEET A. FUEL TYPE: NATURAL GAS LP GAS (PROPANE) B. TOTAL VERTICAL VENT RISE (MEASURED FROM HORIZONTAL CENTERLINE OF VENT OPENING ON THE BACK OF THE STOVE FOR REAR VENT APPLICATIONS, OR FROM THE STOVE TOP FOR VERTICAL VENT AP- PLICATIONS, TO THE HORIZONTAL CENTERLINE OF THE VENT CAP (FOR HORIZONTAL VENT CAPS) OR TO THE FLANGE ON THE CAP (FOR VERTICAL CAPS): _____________ FEET C.
  • Page 13 VENTING CHART WORKSHEET EXAMPLES A. Fuel: Natural Gas A. Fuel: LP Gas B. Total Vertical Vent Rise: 0 feet B. Total Vertical Vent Rise: 1 feet C. Total Horiz. Vent Run (Actual): 0 feet C. Total Horizontal Vent Run (Actual): 3 feet D.
  • Page 14 VENT TERMINAL CLEARANCES Venting terminals shall not be recessed into a wall or siding.

  • Page 15: Assembly & Installation

    ASSEMBLY & INSTALLATION UNPACKING AND INSTALLING THE FREESTANDING STOVE By now, you will have removed the packaging from around the Stove. Locate the box containing the mis- cellaneous components required to complete the unit. This box will contain the following items: 1) Installation and operation Manual 2) A/C Adapter 3) Vent Restrictor Kit...
  • Page 16 Freestanding Stove is shipped with a custom Simpson DuraVent GS® starter section that is specifically designed for the Solas Nua. Regardless of the venting brand you chose, you must use the starter section provided . All of the venting br ands listed for use with the Freestanding are compatible with the starter section provided .
  • Page 17 ASSEMBLY & INSTALLATION 5. If the air restrictor ring is required, first GASKET determine the number of tabs that must be bent open. Before bending any tabs, align the mounting holes in the ring over the four mounting holes on the back of the stove. When selecting the tabs to bend, it is im- portant to maintain the most symmetrical pat- TABS FACING...
  • Page 18 ASSEMBLY & INSTALLATION Final Firebox Assembly 1. Remove the front stove panel as shown. 2. Using a 7/16” socket or wrench loosen and remove the 3 hex retaining bolts at the top of the glass frame. 3. While holding the glass panel and glass frame along the outer edges, tip the top of the glass frame forward a few inches.
  • Page 19 ASSEMBLY & INSTALLATION Relief Door Installation 1. The top relief door is shipped separated from the fireplace and must be installed on the top of the fire- box at this point in the installation. Note: The relief door includes a gasket that covers the full bottom surface.
  • Page 20 ASSEMBLY & INSTALLATION Installing or Replacing the Batteries 1. The valve control module is powered by four “AA” batteries. The batteries are mounted within the Valve Receiver Module located underneath the fireplace, behind the surround, attached to a slide- out mounting bracket for easy accessibility. 2.
  • Page 21 ASSEMBLY & INSTALLATION Installing the Front Glass Panel and Frame with Integrated Screen After burner media, batteries, and relief doors been installed, the next step is to replace the front glass panel and frame. 1. Carefully pick up the glass and glass frame with integrated screen assem- bly by grasping the sides of the frame and using your thumbs and fingers to hold the glass in place within the gasket and frame.

  • Page 22: Gas Connection

    GAS CONNECTION Gas Supply Line The stove is supplied with a 3/8” Stainless Steel Flex connector exiting the bottom rear of the stove. We suggest the installation of a shut-off valve in the supply line between the wall and the connection to the stove.

  • Page 23: Lighting And Operation

    LIGHTING AND OPERATION LIGHTING THE FIRE FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. When lighting this appliance, follow these instructions exactly. A.
  • Page 24 LIGHTING AND OPERATION OPERATING YOUR FIREPLACE FOR THE FIRST TIME When operating your new fireplace for the first time, some vapors may be released due to the burning of curing compounds used in the manufacture of the appliance. They may cause a slight odor and could cause the flames to be the full height of the firebox, or even slightly higher, for the first few hours of operation.

  • Page 26: Maxitrol Control System

    MAXITROL GV60 CONTROL SYSTEM HOW TO TURN YOUR FIREPLACE OFF (including pilot) Familiarize yourself with each of these methods before operating your fireplace. Handset and Wall Switch: Press and hold the OFF button for a second (either on the handset or the wall switch).
  • Page 27 MAXITROL GV60 CONTROL SYSTEM Current Handset temperature sensor (F or C) Period start or end Battery status (Temp, Timer Current time (12 or 24 hour clock) Current programmed Modes (Manual, period (Timer) MANTEMPTIMER Temperature, Timer) Display Overview Note: In the TEMP or TIMER modes, the remote handset senses the room temperature and adjusts the (returns to set flame accordingly.
  • Page 28 MAXITROL GV60 CONTROL SYSTEM MAXITROL GV60 CONTROL SYSTEM MODES OF OPERATION  Press and hold (small  Briefly pressing the SET button flame) button to decrease changes the mode of operation in flame height or to set the ap- the following order: pliance at pilot flame.
  • Page 29 MAXITROL GV60 CONTROL SYSTEM SETTING THE ON / OFF TEMPERATURES SETTING THE “DAYTIME” TEMPERATURE Default Settings: (sun), 23°C / 74°F TEMP TEMP  Briefly press SET button to  Briefly press SET button to scroll to TEMP scroll to TEMP TEMP TEMP (sun) mode.
  • Page 30 MAXITROL GV60 CONTROL SYSTEM SETTING PROGRAM TIMERS SETTING P1 OFF TIME  Briefly press SET button o scroll  You can program two periods of time between to TIMER P1 (moon) while 12:00 am and 11:50 pm in each 24-hour cycle. the time flashes.
  • Page 31 MAXITROL GV60 CONTROL SYSTEM Timer Programming Example (default temper atur es shown) ☼ ☼ ☼ 6:00 a.m.—P1 8:00 a.m.—P1 4:00 p.m.—P2 10:00 p.m.—P2 6:00 a.m.—P1 Start time End time Start time End time Start time ☼ ☼ Set Temp 74°F Set Temp 40°F Set Temp...

  • Page 32: Maintenance

    MAINTENANCE A qualified service agency should conduct an annual inspection and maintenance of your Free- standing Stove, including the overall installation and venting to keep it running safely. The following pro- cedures should be performed only by a qualified service person. The gas supply should be turned off and the stove should be completely cool whenever a maintenance procedure is performed.
  • Page 33 MAINTENANCE Inspecting the Venting An inspection of both the inner and outer vent pipes and the vent terminal should be made as part of the an- nual service appointment. The venting must have no blockage and be in good repair. The vent manufactur- er’s instructions may provide specific details on vent inspection.

  • Page 34: Maintenance Log Form

    MAINTENANCE LOG We strongly recommend that you keep a log of the regular maintenance that is performed on your stove. We have provided the forms below to make it easy. Simply ask your qualified service person to fill out one of the maintenance record forms below, each time the stove is serviced. This will help insure that all of the required maintenance procedures have been completed, at least annually.

  • Page 35: Replacement Parts List

    REPLACEMENT PARTS LIST PART NAME PART NAME Pilot Head NG/LP 26-501 Burner Orifice (NG) 16N-509 Pilot Thermocouple* M26-502* Burner Orifice (LP) 16P-509 Pilot Injector (NG) 26N-503 Burner Glass Media – Clear 16-511 Pilot Injector (LP) 26P-503 Burner Module (NG) 16N-901 Receiver Module (Maxitrol) M46-504 Burner Module (LP)

  • Page 36: Control Schematic

    CONTROL SCHEMATIC Caution: Label all wir es pr ior to disconnection when ser vicing the contr ols. Wir ing er r or s can cause improper and dangerous operation. Verify proper operation after servicing.
  • Page 37 INSTALLATION RECORD The installer should complete the form below that describes the details of the installation. Having this writ- ten record of installation information available will greatly expedite trouble-shooting should any problem arise with your stove. The installer should keep a duplicate of this form for their records. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ASNI/NFPA 70, or the Canadian Electrical Code, CSA C22.1 WARNING...
  • Page 39 Model #: ________________________________ Serial #: _________________________________ Date Purchased: __________________________ Date Installed: ____________________________ Manufactured by: Progressive Manufacturing Inc. 4 Technology Drive, Suite 5 West Lebanon, NH 03784 V2 / 8-25-14...
