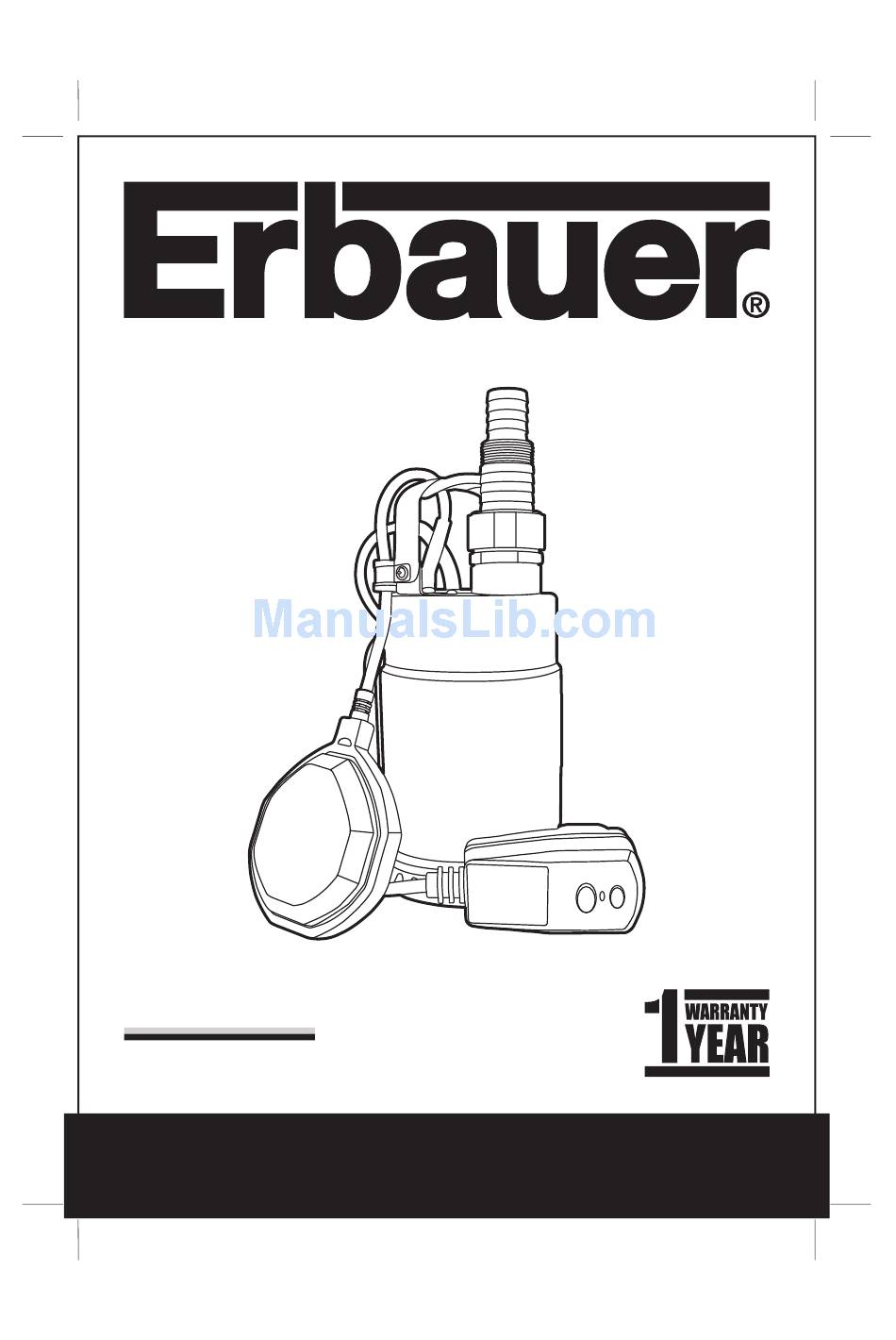

- Page 1 ERB400SWP 400W AUTOMATIC STAINLESS STEEL SUBMERSIBLE CLEAN WATER PUMP...
- Page 2 400W AUTOMATIC STAINLESS STEEL SUBMERSIBLE CLEAN WATER PUMP...
- Page 3 Congratulations on your purchase of a quality power tool from screwfix Direct Ltd. This product should give you reliable service but your peace of mind this power tool does carry a 12-month guarantee, the terms of which are detailed below. If this product develops a fault within the guarantee period contact Screwfix Direct Ltd on Freephone 0500 41 41 41.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Please note: Before assembling and putting the pump into operation, in all cases read through the operating manual. For safety reasons, those persons who have not read through the operating manual may not use the pump. The pump is intended for use ONLY by adults who have fully read and understand these instructions. -
Page 5: Electrical Safety
In the event that the pump is damaged, the repair should only be made by an authorised service agent. Only original replacement parts must be used. m) The failure to correctly use, clean and maintain the pump or to modify the pump or its accessories in any way other than that described in these instructions will prevent use for accepting any responsiblity for damages, loss or injury. - Page 6 Safety point for your RCCB Please test the instrument before you use it Notice: Insert the plug into the socket Press the “RESET” button. The working indication on light will become red. Press the “T” button. The working indication light should go out. Press the “RESET”...
- Page 7 1. ELECTRICAL CABLE 2. HANDLE 3. BRACKET FOR FLOAT SWITCH 4. UNIVERSAL CONNECTING PIECE 5. FLOAT SWITCH 6. INTAKE PORT 400W AUTOMATIC STAINLESS STEEL SUBMERSIBLE CLEAN WATER PUMP...
-
Page 8: Technical Information
TECHNICAL INFORMATION Nominal power 400 W Rated voltage /frequency: 240V-50Hz Max. pumping height: Max. flow rate: 8,000 l/h Max. particle size: 5 mm Max. immersion depth: Max. pumping pressure: 0.8 bar Cable 10 m H05RN-F 3Gx: 0.7 mm Dia pump connecting pieces: 1”&... - Page 9 PUTTING THE PUMP INTO OPERATION Attach the hose (Fig. C and D). Screw the provided accessories onto the pump as illustrated in Fig.A. 32 mm, 25 mm, 19mm and 13mm hoses can be attached to the universal connecting piece (4). The 19mm and 13mm hoses are attached with the use of special connecting pieces (Fig.C).
- Page 10 Assembly / Putting The Pump Into Operation The pump is supplied complete with a H05 RN-F electrical cable with a RCCB and 11/4 fitting for 32mm hose. Attach the necessary discharge pipe and reinforce the seal with a pipe clip. Water flow, among other things, also depends on the diameter of the discharge pipe.
-
Page 11: Maintenance And Care
MAINTENANCE AND CARE Before performing any maintenance work on the pump, one must always disconnect the electrical connection (pull the power plug out of the electrical outlet.) and make sure that that the pump does not put itself into operation. With the exception of the following described cases, the pump must be sent to authorised agent when it requires repair. -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem: Possible Causes: Remedy: The pump switches itself off The water level is too low. Submerge the pump more deeply. because of overheating. (thermal motor switch) Clogged by drawn-in particles - Check and clean the pump. Foreign matter jammed in the pump rotor. - Page 13 400W AUTOMATIC STAINLESS STEEL SUBMERSIBLE CLEAN WATER PUMP...
- Page 14 400W AUTOMATIC STAINLESS STEEL SUBMERSIBLE CLEAN WATER PUMP...
-
Page 15: Declaration Of Conformity
Declaration of Conformity We, Importer Erbauer (UK) Ltd BA22 8RT Declare that the product 400W Automatic Stainless Steel Submersible Water Pump Complies with the essential health and safety requirements of the following directives: 89/336/EEC – EMC Directive. 73/23/EEC, 93/68/EEC – Low Voltage Directive Standards and technical specifications referred to:...
