PedalSync™
NODE
4-Loop MIDI Audio Switcher
KIT

Assembly Instructions

Key Features
4-Loop Relay Bypass, MIDI-controlled
switching module for robust, scalable
pedalboard designs
Proprietary ReMute™ circuit virtually
eliminates switching noise without
sacrificing audio quality
MV-57 module with jacks simplifies scalable
pedalboard switching designs.
Power-on light show
Stores and recalls bypass status of 4
isolated audio loops
Robust, 128 program storage
Simple, intuitive user interface
MIDI-Compatible
MIDI Thru repeater for boosting the MIDI
signal and re-transmitting it downstream
info@PedalSync.com
PedalSync_NODE_KIT_Assembly_Instructions.doc
Scalable - combine NODEs like building
blocks to make elaborate designs with an
unlimited number of switches
Tough, road-ready construction
Simple to program - toggle a switch!
PedalSync design allows remote,
synchronized self-programming
True-bypass loops allow use of vintage
pedals while leaving them all-original
Easy to see pedal status at a glance with
the bright LED display
Compact design assists discrete modular
pedalboard construction
Compatible with all major MIDI controllers,
including Voodoo Lab Ground Control and
Behringer FCB1010
© 2013 - MoltenVoltage.com - All Rights Reserved.
DRAFT v0.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the PedalSync and is the answer not in the manual?

Questions and answers

Summary of Contents for MoltenVoltage PedalSync

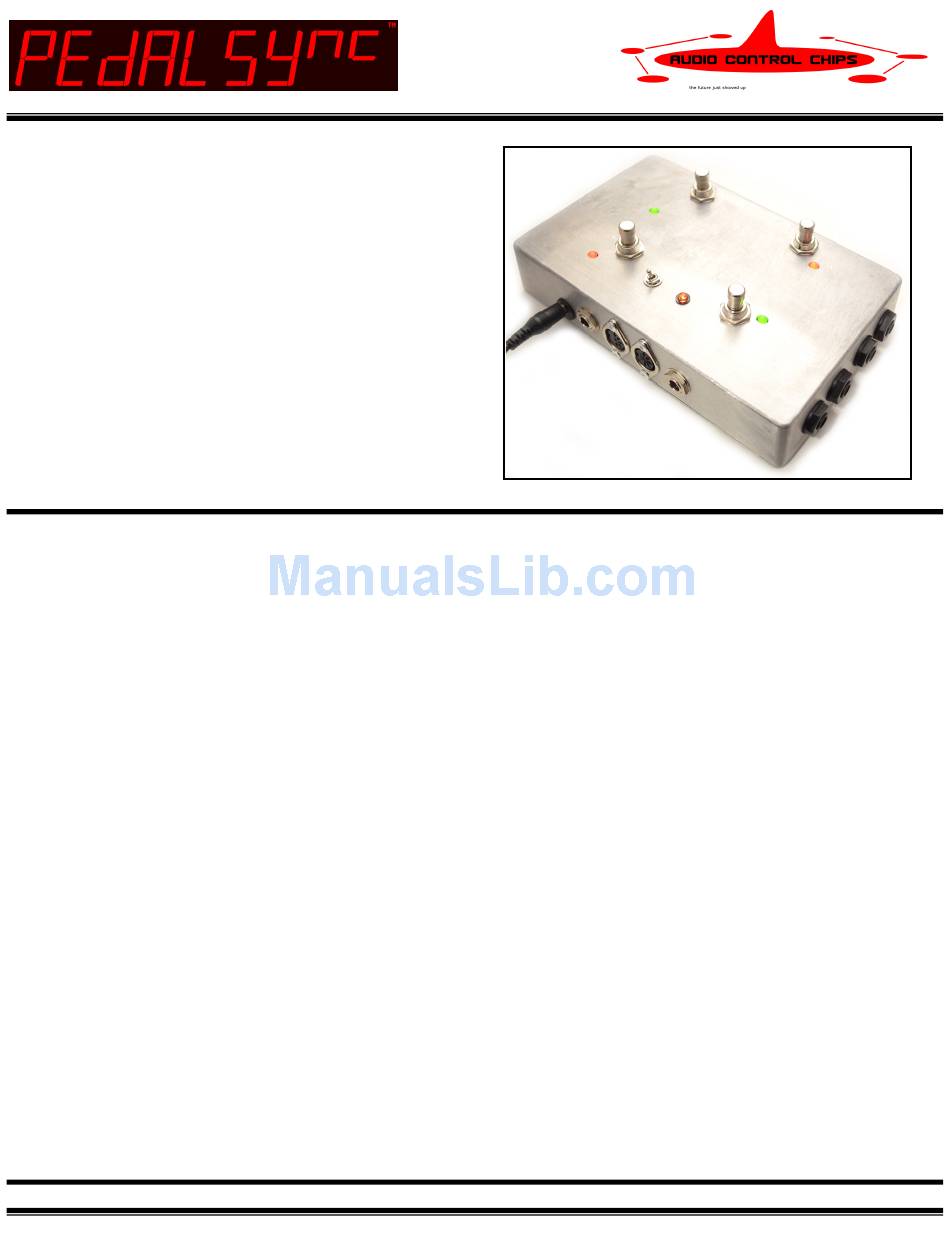

  • Page 1: Assembly Instructions
