Summary of Contents for HEPA 9079H

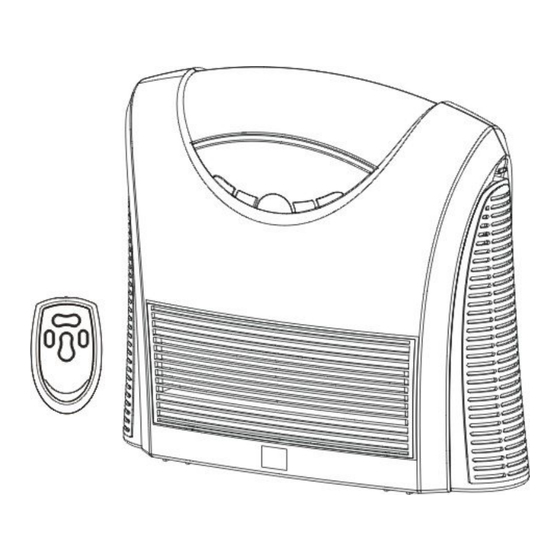

- Page 1 INSTRUCTIONS MANUAL Model No.: 9079H HEPA AIR PURIFIER with UV LAMP and IONIZER Model No.: 9079C HEPA AIR PURIFIER with OZONIZER and IONIZER Model No.: 9079D HEPA AIR PURIFIER with OZONIZER and UV LAMP READ AND SAVE THESE IMPORTANT INSTRUCTIONS...
- Page 2 When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read all instructions before using the appliance. 2. To avoid fire or shock hazard, plug the appliance into an exact electrical outlet. 3.
- Page 3 FOR 9079H FOR 9079C.9079D 9079H.9079C.9079D - 2 -...
- Page 4 (1 M) from any wall or furniture. Ensure no grilles are blocked. 3. Plug the power cord into a 120V AC outlet. 4. Always lift your air purifier by the handle of the unit. Figure 1-1 (For 9079H) Figure 1-2 (For 9079C) - 3 -...
- Page 5 Figure 1-3 (For 9079D) OPERATING INSTRUCTIONS The air purifier may be operated by the manual controls located on the air purifier (as shown in Figure 1-1,1-2,1-3) or by your remote control (shown in Figure 3-1, 3-2). 1. When the air purifier is initially plugged in, the buzzer will come on a “beep” voice indicating that there is power to the unit.
- Page 6 HEPA RESET FUNCTION: If the HEPA filter need to be replaced, HEPA Filter Reset Indicator will illuminate and flicker, also the buzzer will come on a “beep, beep” voice. After replacing the HEPA filter, RESET the HEPA Filter Reset Indicator by pressing HEPA Filter Reset Button, then the indicator will stop flickering and the buzzer will stop sounding.
- Page 7 (not need to use air pipe supplied), enter the room after the unit stops working for at least 30 minutes. It is recommended that operate the OZONE FUNCTION with TIMER FUNCTION at the same time. Figure 3-1 (For 9079H) Figure 3-2 (For 9079C, 9079D) - 6 -...
- Page 8 REMOTE CONTROL FUNCTION: All the functions performed with the Remote Control work identically to the manual controls. (Figure 3-1, 3-2) 1. Install two “AAA” batteries as shown in Figure 3-1 or Figure 3-2. 2. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
- Page 9 2. Press the spring buttons and take off the air inlet covers from the unit. 3. With the air inlet covers removed, remove the used HEPA filter and dispose of it in the garbage. Replace with new HEPA filter then insert it into the air purifier.
-
Page 10: Troubleshooting Tips
REMOVING/INSTALLING HEPA FILTERS. If the HEPA filter turns white to grey even black, replace it with a new one. If the HEPA filter is still white, please install it back to unit and reset the HEPA RESET BUTTON. 4. Use a clean, dry, soft cloth to wipe the external surface of unit. -
Page 11: Specification
SPECIFICATION 9079H 9079C Model No. 9079D Rated voltage ~ 120V / 60 Hz Rated power 40 W Air Output 85 cfm N.A. 400 mg/hr Ozone output 400 mg/hr Timer 1 hr, 2hrs, 4hrs, 8hrs Dimension 15.2 x 6.3 x 13.35 inch Net weight 7.5 lb...
