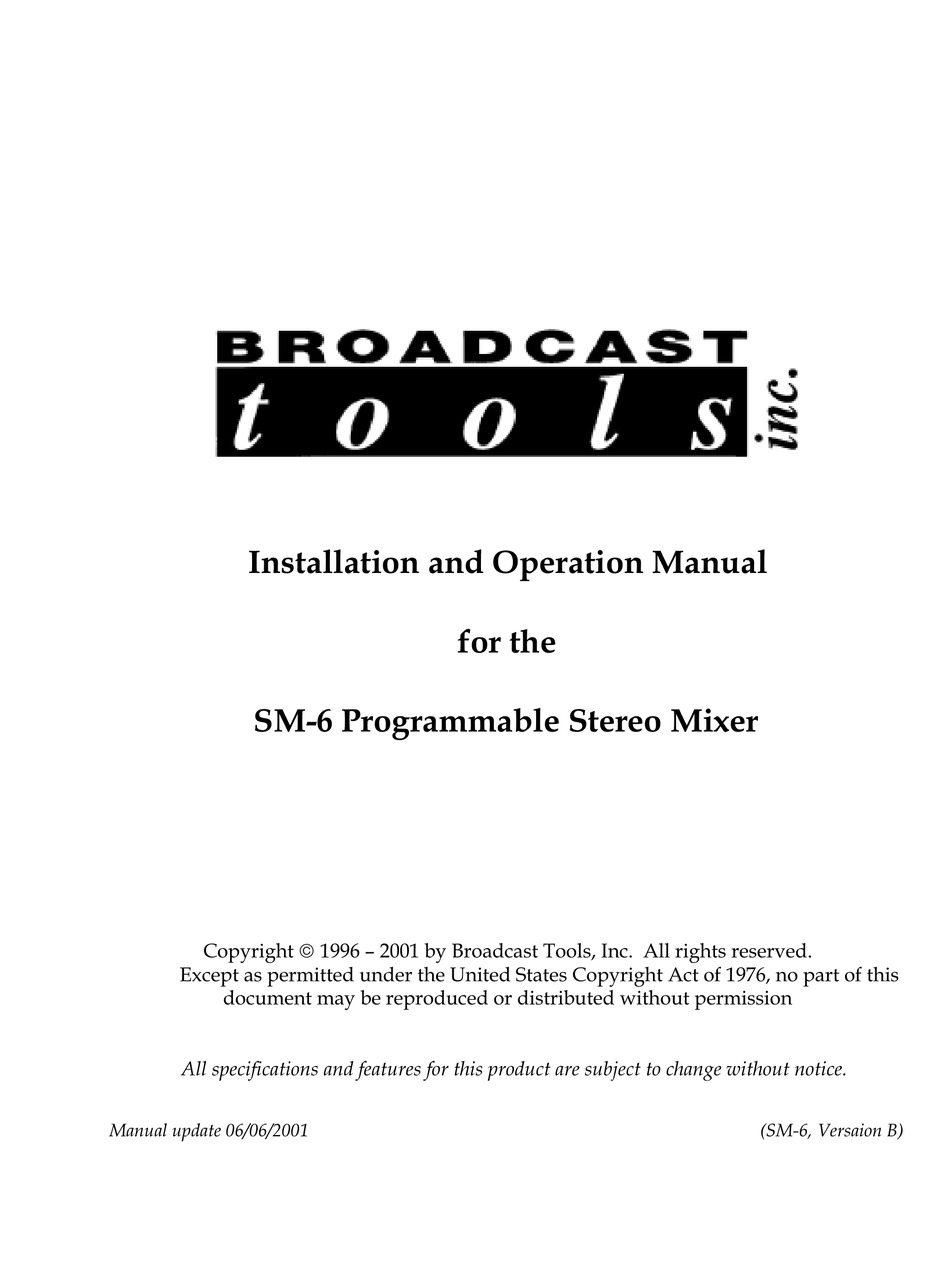

Installation and Operation Manual
for the
SM-6 Programmable Stereo Mixer
Copyright 1996 – 2001 by Broadcast Tools, Inc. All rights reserved.
Except as permitted under the United States Copyright Act of 1976, no part of this
document may be reproduced or distributed without permission
All specifications and features for this product are subject to change without notice.
Manual update 06/06/2001
(SM-6, Versaion B)
Advertisement
Table of Contents
Summary of Contents for Broadcast SM-6
-
Page 1: Installation And Operation Manual
SM-6 Programmable Stereo Mixer Copyright 1996 – 2001 by Broadcast Tools, Inc. All rights reserved. Except as permitted under the United States Copyright Act of 1976, no part of this document may be reproduced or distributed without permission All specifications and features for this product are subject to change without notice. - Page 2 Broadcast Tools, Inc. SM-6 Programmable Stereo Mixer INTRODUCTION Thank you for your purchase of a Broadcast Tools, Inc., SM-6 Programmable Stereo Mixer. We're confident that this product will give you many years of dependable service. This manual is intended to give you all the information needed to install and operate the unit.
- Page 3 SM-6 Programmable Stereo Mixer PRODUCT DESCRIPTION The SM-6 Programmable Stereo Mixer electronically mixes up to 6 balanced stereo inputs into one balanced stereo output. A jumper is provided to sum the output into monaural. Due to the low noise and hi slew rate op-amps employed, distortion and noise are almost non-existent and in no way changes the quality of the signal it is mixing oe switching.
- Page 4 Broadcast Tools, Inc. SM-6 Programmable Stereo Mixer INSTALLATION The SM-6 Programmable Stereo Mixer is very simple to install. The signal inputs and outputs are connected via wire captive terminal strips. Installation of the SM-6 Programmable Stereo Mixer consists of five steps: 1.
- Page 5 Step 5: Label the Designation Strip The designation strip is provide to write the source descriptions under each source switch. Apply power via the wall transformer to the unit. Your SM-6 Programmable Stereo Mixer is now fully functional. Installation and Operation Manual...
- Page 6 Broadcast Tools, Inc. SM-6 Programmable Stereo Mixer SPECIFICATIONS Max, + 27dbu, Stereo balanced, bridging. > 20k Ω. INPUT LEVELS: Max + 27 dbu, Stereo balanced, @ 100 Ω. OUTPUT LEVELS: GAIN: 15db. FREQ RESPONSE: 20 to 20 Khz; + .25 dB / 20 to 30 Khz; + .5 dB SIGNAL/NOISE RATIO: >85 dB nominal, unweighted, below +4dbu.
- Page 7 EXCLUSIVE REMEDIES If Broadcast Tools is notified of in writing of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned in to Broadcast Tools in accordance with Broadcast Tools’...
