A-image AWS-IR Installation Manual

Indoor alpha image wireless square network camera with ir
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation Manual
AWS-IR

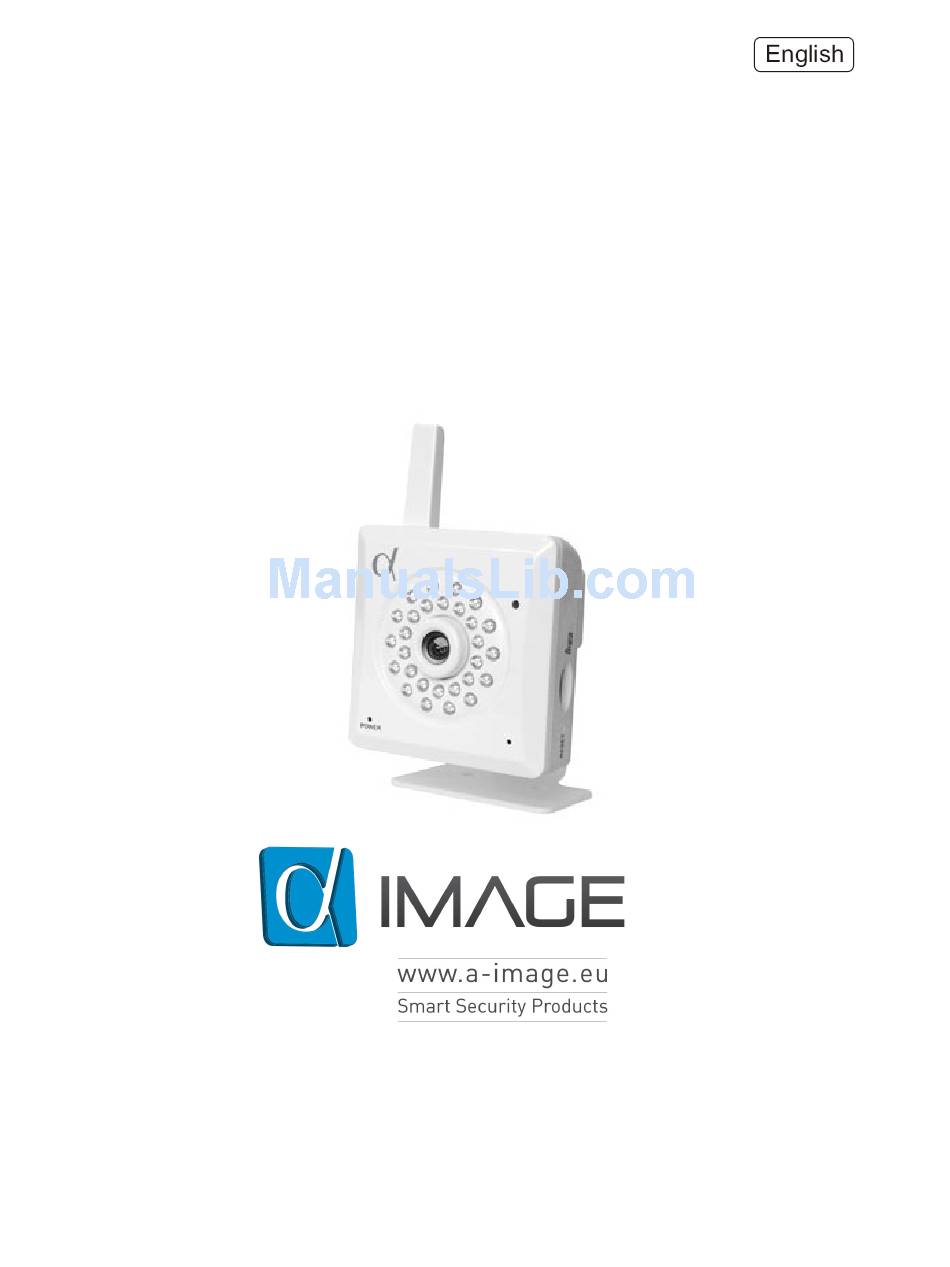

Indoor Alpha Image Wireless Square Network Camera with IR
Please read this manual carefully before you attempt to
install this product and retain it for your future reference.
1

Advertisement

Table of Contents
loading

Summary of Contents for A-image AWS-IR

  • Page 1 Installation Manual AWS-IR Indoor Alpha Image Wireless Square Network Camera with IR Please read this manual carefully before you attempt to install this product and retain it for your future reference.

  • Page 2: Table Of Contents

    Contents MAIN FEATURES ........................5 INSTALLATION .......................... 8 NETWORK CAMERA SCREEN AND SETUP WINDOW ............13 Operating Bar ........................... 15 Viewing the camera from your mobile devices ................ 17 Network Camera Setting Interface ..................18 Camera ............................ 20 Camera Setup ..........................20 Stream Setup ..........................

  • Page 3: Product Assurance

    INTRODUCTION Thank you for your interest and support in our product and purchasing this Alpha-Image wireless network camera. The camera can be accessed remotely, and controlled from any PC/laptop over the Intranet or Internet via web browser. The user-friendly installation procedure and intuitive web-based interface offer easy integration with your LAN environment or WiFi system.
  • Page 4 3. This product should be placed at least 1 foot away from any heart pacemaker. Radio waves might potentially influence heart pacemaker. 4. DO NOT use this product for any illegal activities. It is the user’s responsibility to ensure that the usage of this camera is of a legal nature.

  • Page 5: Main Features

    MAIN FEATURES Easy Installation camera comes with built-in Wireless (IEEE802.11b/g/n) capability a Web Server, therefore there is no need to install driver. setup CD-ROM includes the Camera Setup software, User Manual and Quick Installation Guide. With industry standard automatic configuration-UPnP(Universal Plug and Play), your PC will discover...
  • Page 6 Infrared Night Vision (AWS-IR Alpha Image) The camera utilizes infrared LED’s to provide high light in darks environment. When the environment is dark, the LED will be opened automatically due to a photosensitive component, and the moving images will be changed to Black and White.

  • Page 7: Pc System Requirements

    Adapter This product conforms with the authenticated AC adapter. The adapter is marked with one or more of the following: Note: When using the power adapter, make sure the rating voltage on it is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply.

  • Page 8: Installation

    INSTALLATION Connecting the camera Using a standard Ethernet network cable, connect the camera to your network (depending on your own setup, this may be to your router or switch). see figure below Connect the included power adapter to the power port on the camera and the other end into an electrical socket.
  • Page 9 1. Insert the Installation CD into your CD-ROM drive and the installation screen should appear automatically (See image below). If it does not, click “Start” then “Run”. In the text field enter “D:\autorun.exe” (if “D:” is the letter of your CD-ROM Drive) 2.
  • Page 10 4. Click Install to install Camera Setup. 5. Click Finish to end the installation. You should now find a icon on the desktop. 6. Double-click the Camera Setup icon on the Desktop to launch the program. The Camera Setup utility should automatically find your camera if is correctly connected (See image below).

  • Page 11: Network Camera Screen And Setup Window

    [Refresh] Click Refresh to search for cameras on the local network. [Setup] Select the required camera and click Setup to configure the network settings for the camera. [Open] Select the required camera and click Open to access the camera via a web browser. [Exit] Click Exit to exit the Camera Setup window.
  • Page 12 4. To obtain the IP addresses specific to your network, click “Start” then “Run” and type “cmd” in the text box and click “Ok”. The will bring up the MS-DOS prompt and in this window type “ipconfig/all” and press enter. A screen similar to the one below will be displayed.

  • Page 13: Network Camera Screen And Setup Window

    NETWORK CAMERA SCREEN AND SETUP WINDOW Review Images from the Network Camera You can select one of the three ways to review pictures from the camera. 1. Input the assigned IP address (or URL) of the camera on the Web Browser. Take 192.168. 168.100 as example.
  • Page 14 2. If your OS is Windows XP, click [My Network Places], double click the icon You will see the home page. 3. Run the Camera Setup and double-click the relevant camera item.

  • Page 15: Operating Bar

    Operating Bar Click Enter, you will see the screen.

  • Page 17: Viewing The Camera From Your Mobile Devices

    Viewing the camera from your mobile devices. iOS requires iOS4.3 version or later. Android OS requires version2.3 or later. View on iPhone, iPad, Android devices.

  • Page 18: Network Camera Setting Interface

    Network Camera Setting Interface 1. Click on settings from the home page. When connecting the camera for the first time or after resetting it to its default settings, the setup interface start page below will load. It is recommend that you change the admin password in order to avoid unauthorized access to the camera.
  • Page 19 3. You are required to re-login with the changed password. After successful login, the following page will appear.

  • Page 20: Camera

    Camera Camera Setup From the home page click settings and enter the administrator user name and password. Click on Camera Setup under the title Camera to change the image and audio parameters of the camera. [Enable privacy mode] Videos will not be seen. [Light frequency] Two options: 50Hz &...

  • Page 21: Stream Setup

    Stream Setup...
  • Page 22 The camera supports three streams: primary stream, secondary stream and mobile stream. [Image size] Three image resolutions available: 1280 x 720(HD), 512 x 288,176 x 144 and also 0.3 Megapixel [Frame rate] Twelve options: 1/2/3/4/5/6/8/10/15/20/25/30 frames per second (fps). [H.264/MPEG4 bit rate] Select H.264/MPEG4 bit rate.Eight options: 64, 128, 256, 512, 768, 1024, 1536, 2048 (kbps).
  • Page 23 A stream list page will be shown after clicking the stream name such as “Primary stream”. [Primary stream] can not be disabled. A sample of primary stream list as below: You can use RealPlayer, VLC Player or QuickTime Player to play the live stream from camera in Intranet or Internet.

  • Page 24: Osd Setup

    OSD Setup This function can display system name, date and time, or use-defined on screen. [OSD] Enable or disable OSD function. [Transparent] Users can select whether change OSD to transparent or not. [Display date and time] OSD is date and time of camera. [Display system name] OSD is system name of camera.

  • Page 25: Night Vision Setup (Ir Ipcam)

    Night Vision Setup (IR IPCAM) Only IR IPCAM have infrared LED, which can be opened automatically when camera check dark environment, your Alpha-Image camera has infrared LED’s to “see” images in the dark up to 10 meter: [Infrared LED control] When the environment is dark, the LED will be opened automatically due to a photosensitive component.

  • Page 26: Network

    Network Wireless Setup The camera corresponds to the wireless system based on IEEE802.11b/g/n. Encryption establishes the security to prevent unauthorized users to access the wireless data communication. [SSID] Type the ID of the wireless network you want to connect to using up to 32 ASC characters or click Search to search for available networks.
  • Page 27 When select Adhoc mode. See figure above. [Security mode] WEP64bit or WEP 128bit [Authentication] Select WEP authentication mode. [WEP Key type] Select the WEP key type. Either in hexadecimal or ASC characters. [WEP key Index] Specify up to 4 WEP keys. [WEP Key] Type the password.

  • Page 28: Tcp/Ip Setup

    When click search ,see figure above. [SSID] select the network name you searched . [Mode] Infrastructure mode and Adhoc mode [signal]It show out the strength of signal [Encryption ] on and off. Click Apply to save changes. Click Test to test whether connection is successful. Note: These settings have to match those of your access point or router.
  • Page 29 If your network supports a DHCP server (e.g. router) select this option to have the IP address is assigned automatically. If you select Obtain an IP address automatically you should select Obtain a DNS Server address automatically. Use the following IP address: Select this option when a fixed IP is required.

  • Page 30: Ddns Setup

    DDNS Setup Dynamic DNS (DDNS) is simply a way of using a static hostname to connect to a dynamic IP address. When connected to your ISP, you are assigned a temporary IP address. DDNS services keep track of your IP address and route your Domain name to that address when you wish to connect to the camera from a remote location.

  • Page 31: Upnp Setup

    UPNP Setup The camera supports UPnP which is enabled by default. This function requires a Windows XP/Vista operating system. It is a quick way to discover the camera on your network. Please make sure that the UPnP function is enabled on your PC. [UPnP] Enable or disable the UPnP function.
  • Page 32 If DDNS setup successfully and go into effect, Internet URL will show DDNS host name instead. See figure below for example.

  • Page 33: P2P Setup

    P2P Setup Click P2P Setup, then click Enable and apply to add P2P functions. Now we can use P2P to view cameras on PC or iPhone, iPad and Android. Only need to input UID and passward. Take viewing on PC and iPhone for example.

  • Page 34: Storage

    Storage Storage Setup [Storage] Select Enable [Store to] NAS or SD Card [Store directory] The file that Videos will be saved to. [Max Space] Unlimited (The capacity of all videos) [Max files] The Max quantity of all the videos. Click Apply to confirm your setting.

  • Page 35: Browse Storage

    Store to NAS [Store to] Select NAS [NAS remote path] IP address of the NAS. Example://192.168.168.50/ipcam_files [Authorization] Select Yes [User name] Input the NAS user name. [Password] Input NAS password [Re-type password] Re-type the NAS password. Click Apply to confirm your setting. Browse Storage When click Browse Storage and you can browse, download, delete the snapshot and recording files in it.

  • Page 36: Format Sd Card

    Format SD Card To format SD card, all files will be lost after formatting the card. Task...

  • Page 37: Motion Detection

    Motion Detection Motion Detection can trigger an alarm that sends images or video feed via e-mail or FTP (File Transfer Protocol). You can set up to four different Motion Detection windows. [Window] Check this box to enable the window. [Threshold] Set the threshold bar to the amount of motion required to trigger the alarm. [Sensitivity] Set the measurable difference between two sequential images that would indicate motion.

  • Page 39: Digital I/O Setup

    Digital I/O Setup [Digital input] Select Enable or Disable. [Digital input’s active state is] Select Low or High. [Digital output] Enable or Disable. [Digital output’s active state is] Open or Grounded. Click Apply to confirm your setting. Schedule Setup Alarm Sending, Periodical Sending and Buffer Sending sends images via e-mail or FTP according to schedule setup.

  • Page 40: Task Management

    [Except] Enable except start time to end time. Click Apply to confirm your setting. Task Management...

  • Page 41: Email Alarm Sending

    E-mail alarm sending [Snapshot from] Select Primary stream [Snapshot duration] Input the number of seconds [Snapshot frame rate] Select the frame [Alarm interval] Input the interval time [SMTP server name] Input your E-mail’s SMTP server name. [SMTP server port] 25, as default. [Secure SSL connection] Select No.

  • Page 42: Email Periodic Sending

    E-mail Period Sending [Periodic interval] Input the interval time. The rest setting is the same as E-mail Alarm Sending. Click Apply to confirm your setting.

  • Page 43: Ftp Alarm Sending

    FTP alarm sending [Snapshot from] Primary stream. [Snapshot duration] Input the duration time. [Snapshot frame rate] Select the number of frame per second. I Alarm interval] Type the interval time. [FTP server name] Input the FTP server name. [FTP server port] As default 21. [Authentication] Select Yes.

  • Page 44: Ftp Periodic Sending

    FTP periodic sending [Periodic interval] Input the interval time. The rest setting is the same as FTP Alarm Sending. Click Apply to confirm your setting.

  • Page 45: Http Alarm Sending

    HTTP alarm sending [Alarm interval] Input the FTP server name. [HTTP server name] Input the HTTP server name. [HTTP server port] As default 80. [Authentication] Select Yes. I User name] Type your HTTP user name. [Password] Type your HTTP password. [Re-type password] Re-type your HTTP password.

  • Page 46: Http Periodic Sending

    HTTP periodic sending [Period interval] Input the interval time. The rest setting is the same as HTTP Alarm Sending. Click Apply to confirm your setting.

  • Page 47: Snapshot To Storage On Alarm

    Snapshot to storage on alarm [Snapshot to storage on alarm] Select Primary stream. [Snapshot duration] Select the time. [Snapshot frame rate] Select the frame. IAlarm interval] Input the interval time. Click Apply to confirm your setting. Snapshot to storage periodically [Period interval] Input the interval time.

  • Page 48: Record To Storage On Alarm

    Record to storage on alarm [Record from] Primary stream [Record duration] Input the duration time. [Split duration] Input the split duration time.( The videos will be split.) [Record thumbnail] Select Enable or Disable. Click Apply to confirm your setting. Record to storage continuously [Record from] Select Primary stream.

  • Page 49: Send Files In Storage To Ftp Server

    Send files in storage to FTP server [FTP server name] Input the FTP server name. [FTP server port] As default 21. [Authentication] Select Yes. IUser name] Type the FTP user name. [Password] Input the FTP password. IRe-type password] Re-input the FTP password. [Passive mode] Select on or off.

  • Page 50: Tools

    Tools System Identity [System Name] Type a name to easily identify the camera. [System Contact] Type the contact name of the administrator of the camera. [System Location] Type the location of the camera. TIP: The information you fill in can be displayed on the camera. It can help to distinguish different Network Cameras in the network.

  • Page 51: User Management

    User Management [Add] Up to 64 users (including the admin) can created Note: 1. A maximum of 16 users are allowed to access the camera simultaneously. 2. As the number of simultaneously users increase, the overall performance will decrease. This is dependant on the Network bandwidth.

  • Page 52: Date & Time

    Date & Time [Current device time] Internal time for camera. [Proposed device time] PC system time. On clicking Apply the internal time of the camera will be changed to this time. [Select to change the time zone for the device location] choose proper time zone. [Daylight saving time]Daylight Saving Time (or summertime as it is called in many countries) is a way of getting more light out of the day by advancing clocks by one hour during the summer.

  • Page 53: Backup Or Reset

    Backup or Reset [Reset] Click Reset to initialize the camera to default factory setting. All users and settings will be lost, requiring you to reconfigure the camera. [Backup] Click Backup to backup the current configuration of the camera for future reference. [Browse...] Click Browse...

  • Page 54: Firmware Upgrade

    Firmware Upgrade From time to time a new firmware may be released. In order to upgrade your camera’s firmware you first need download this firmware from Network Camera Technical Support Site. 1. Click Continue. 2. Click Browse... to search for the newest Firmware you downloaded, and then click Upgrade. 3.

  • Page 55: Speedread Your Network Camera

    SPEEDREAD YOUR NETWORK CAMERA Wizard In order to facilitate the setup of the camera there is a Wizard that helps non technical users setup the camera easily. Click Wizard window launch wizard. The Quick setup interface will pop up. Follow the simple instructions on the screen and enter the required details, clicking next to proceed to the Next page.

  • Page 56: System

    System Click System to see over system information about your camera. The data of the software activity of the camera and recorded in this. It includes data that are useful when a problem occurs. Support Click Support to see the support information Reboot Click Reboot to restart the camera.

  • Page 57: Advanced Settings

    ADVANCED SETTINGS Port Forwarding The UPnP Setup of camera show a method of Port Forwarding s ee page 31 for details b ut some routers （ ） ， configure maybe can’t support UPnP Port Forwarding, therefore, users need to Port Forwarding manually. Firewall security features built into the router may prevent users from accessing the camera over the Internet.

  • Page 58: Proxy Server Setting

    Proxy Server Setting A proxy server may prevent you from connecting to the camera in some corporate environments. The web browser can set up the IP address communication without using a proxy server. Consult your ISP or network administrator for further details. Note: A proxy server is generally used to maintain security on a network when connected to the internet.

  • Page 59: Reset The Camera

    4. Click [OK] on all of the opened windows. Reset the camera There are two ways to reset the camera back to its factory defaults: 1. Press the Reset button on the side of the camera through the pin hole. 2.

  • Page 60: Default Settings

    DEFAULT SETTINGS Camera Camera Setup Privacy mode Moonlight mode Image rotation Light frequency 60Hz Microphone Enable Mic Volume Audio Bit Rate G. 726 (16kbps) Stream Setup Primary stream Enable Image size 1280 x 720 Frame rate 30fps H.264/MPEG4 bit rate 2048kbps MJPEG quality Snapshot quality...
  • Page 61 Default Gateway Blank Primary DNS IP Address Blank Secondary DNS IP Address Blank HTTP Port RTSP port RTP port range 30000—30200 Authentication method Basic PPPoE Setup PPPoE Dial-up Disable Service Name Blank User Name Blank Password Blank Re-type Password Blank DDNS Setup Disable Service provider...
  • Page 62 Image file name Suffix of file name Date time Effective period Always HTTP event alarm sending Disable HTTP server ID Sending URL Blank Use MAC address as URL Disable suffix Effective period Always Periodical Sending FTP periodical sending Disable Interval time 0H 1M 0S 0mS FTP server ID Remote path...

  • Page 63: Alarm Server

    Alarm Server FTP Server FTP server ID FTP Server Name Blank FTP Server Port Anonymous User Name Blank Password Blank Re-type Password Blank Passive Mode Keep alive 3600 e-Mail Server e-Mail server ID SMTP Server Name Blank SMTP Server Port Secure SSL connection Authentication User Name...

  • Page 64: Specifications

    SPECIFICATIONS...

  • Page 65: Frequently Asked Questions

    Frequently Asked Questions If the Network Camera is not working properly, these suggestions might help you identify the problem. If the problem persists check the support pages on Network Camera Technical Support Site. Problem Cause and Remedy 1. Use Camera Setup. 2.
  • Page 66 Yes. Open the browser, input the DDNS+/mobile, for Can the camera support viewing in example: 183.14.122.239:8150/mobile Windows mobile, Blackberry, Nokia? Now we can view videos or pictures. Because the Mac OS only support QuickTime player Why in Mac OS, the videos delay 2 in browsers.

  • Page 69: Glossary Of Terms

    GLOSSARY TERMS 1. Network Camera: A stand-alone device which allows users to view live, full motion video from anywhere on a computer network, even over the Internet, using a standard web browser. 2. JPEG: A standard image format, used widely for photographs, also known as JPG. 3.
