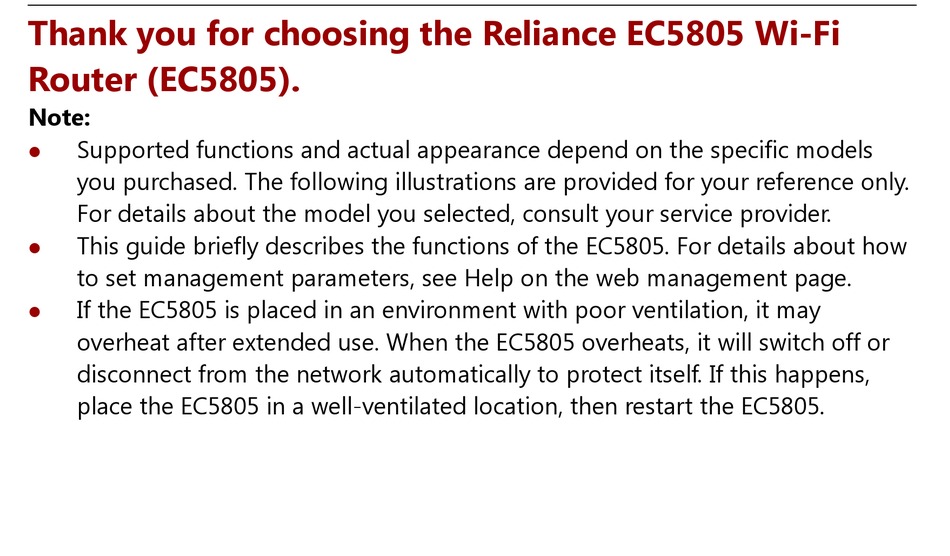

Thank you for choosing the Reliance EC5805 Wi-Fi
Router (EC5805).
Note:
Supported functions and actual appearance depend on the specific models
you purchased. The following illustrations are provided for your reference only.
For details about the model you selected, consult your service provider.
This guide briefly describes the functions of the EC5805. For details about how
to set management parameters, see Help on the web management page.
If the EC5805 is placed in an environment with poor ventilation, it may
overheat after extended use. When the EC5805 overheats, it will switch off or
disconnect from the network automatically to protect itself. If this happens,
place the EC5805 in a well-ventilated location, then restart the EC5805.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC5805 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reliance EC5805

Summary of Contents for Reliance EC5805

  • Page 1 The following illustrations are provided for your reference only. For details about the model you selected, consult your service provider. This guide briefly describes the functions of the EC5805. For details about how  to set management parameters, see Help on the web management page.

  • Page 2: Packing List

    Getting to Know Your EC5805 Packing List The package should contain the following items. If any of the items are missing or damaged, contact your local dealer immediately. Quick Start Guide Main unit Battery Data cable Charger Safety Information Some accessories are optional and are not provided with the modem. To purchase...

  • Page 3: Connection Scenarios

    Connection Scenarios A Wi-Fi device or computer can be connected to the Internet through the EC5805. The actual connection procedure depends on the operating system of the Wi-Fi device or computer. The connection scenarios illustrated here are for your reference.
  • Page 4 Scenario 3: Multi-device access via Wi-Fi and USB at the same time Game machine Smart phone Digital camera Laptop...
  • Page 5 Appearance Item Wi-Fi/WPS indicator Wi-Fi/WPS button Power button Power indicator Signal indicator USB connector Note: Wi-Fi: wireless fidelity  WPS: Wi-Fi protected setup ...

  • Page 6: Indicator Status

     Continuously on red: The signal is inexistent  Continuously on blue: The signal is existent.  Fast blinking blue: The EC5805 is dialing up to the Internet.  Signal Continuously on green: The EC5805 is connected to the ...

  • Page 7: Installing The Battery

    Installing the Battery Install the battery as shown. Installing the microSD Card Install the microSD card as shown. Note: The microSD card is an optional accessory. If a microSD card did not come with ...

  • Page 8: Charging The Battery

    If the battery has not been used for a long time, it must be charged first.  If the power indicator blinks red during the charging, you must wait for the  power indicator to blink green, and then use the EC5805.
  • Page 9 EC5805 to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product. Method 2: Connecting to a PC for charging Connect the EC5805 to a PC using a compatible data cable.

  • Page 10: Accessing The Internet Via Wi-Fi Connection

    Internet. For the details about how to set management parameters, see Help on the Web management page. Step1: Power on the EC5805. Step2: Establish a Wi-Fi Connection. Step3: Access the Internet. 1. Power on the EC5805 Press and hold power button until the indicators turn on. The EC5805 is powered...
  • Page 11 Note: Press and hold power button until the indicators turn off. The EC5805 is powered off. 2. Establish a Wi-Fi Connection (Take a computer with Windows XP operating system as an example) Make sure that the Wi-Fi/WPS indicator is continuously on green.
  • Page 12 Click View available wireless networks to display a list of wireless networks available. Select a network that has the same SSID as that of the EC5805, and then click . Note: If the encryption parameter is already set for the EC5805, the Wireless ...

  • Page 13: Access The Internet

    On Demand or Manual mode. The default mode is On Demand. Mode Operations After the EC5805 is powered on, it can automatically connect to Demand the network when data transmission is required. If no data transmission occurs over a certain period of time, the EC5805 automatically disconnects from the Internet.
  • Page 14 network, you can only establish a network connection manually.

  • Page 15: Accessing The Web Management Page

    Accessing the Web Management Page Make sure that the connection between the EC5805 and the client is a proper one. Start the Internet browser and enter http://192.168.1.1 in the address bar.
  • Page 16 Click the Login button on the upper-right corner of the page. To connect internet Click the ‘Connect’ button on index page. Enter the user name and password, and then click Login.
  • Page 17 Note: The default user name is admin，The default password is admin.

  • Page 18: Sharing Data Stored On The Microsd Card

    Sharing Data Stored on the microSD card After the microSD card is inserted, you can store data on the card or use the web management page to share data stored on the card. Insert the microSD card. Access the web management page. Click SD Card to manage the data stored on the microSD card.
  • Page 20 Please Note above details is for example purpose. Settings Setting > System > Device Information – All the information regarding the Device is provided . 10 Setting > System > network Settings – Preferred operating mode is shown, ideally the device should be kept in HYBRID (Broadband+ & High Speed 1x) .

  • Page 21: Daily Use

    If no operation is performed on the EC5805 for a while, the power indicator slowly blinks green, and all other indicators are off. The EC5805 is in standby state. If the EC5805 has not been accessed for 10 minutes (by default), it goes to deep sleep state and Wi-Fi is disabled.

  • Page 22: Establishing A Wps Connection

    Note: Press and hold the Wi-Fi/WPS button until the Wi-Fi/WPS indicator is off. Wi- Fi is now disabled. Establishing a WPS Connection If a Wi-Fi client connected to the EC5805 supports the WPS function, the EC5805 can generate a network key without manual input. To establish a WPS connection, perform the following steps: Power on the EC5805.

  • Page 23: Restoring Factory Defaults

    Note: Restoring factory defaults deletes all personal configuration settings and restores all web-based management settings and parameters to their default values. Tips If you are experiencing difficulties using the EC5805, try the following: See Help on the web management page.  Restart the EC5805.

  • Page 24: Example 1: Wi-Fi Connection To Game Machine (Sony Psp)

    Example 1: Wi-Fi Connection to Game Machine (Sony PSP) Make sure that the Wi-Fi of the EC5805 is enabled. Turn on the PSP WLAN switch. Select Settings > Network Settings. Select Infrastructure Mode to connect to your local Wi-Fi access point.
  • Page 25 Select the SSID the same way as you did for the EC5805. First press the ► button of your game machine to confirm the SSID and then press it again to input the Wi-Fi key. SSID: The Wi-Fi name of the EC5805.

  • Page 26: Example 2: Wi-Fi Connection To A Smart Phone (Iphone)

    If necessary, enter a password and tap Join. (Networks requiring a password appear with a lock icon.) Note: Some Wi-Fi clients such as iTouch, PS3 and NDS can also access the Internet via the EC5805. For details, see the user guides of the Wi-Fi clients.

  • Page 27: Frequently Asked Questions (Faq)

    What can I do if a client cannot access the Internet? Check that the client is properly connected to the EC5805. Check power status to ensure that the EC5805 is powered on. Check signal strength to ensure that the area is covered by the network.
  • Page 28 WEP type, and key. The SSID of the client must be set to ANY or to the same value as that of the EC5805. The WEP type and key of the client must be the same as that of the EC5805. Change the settings as needed.
  • Page 29 Version: V100R001_01 Part Number: 31010XXX...
