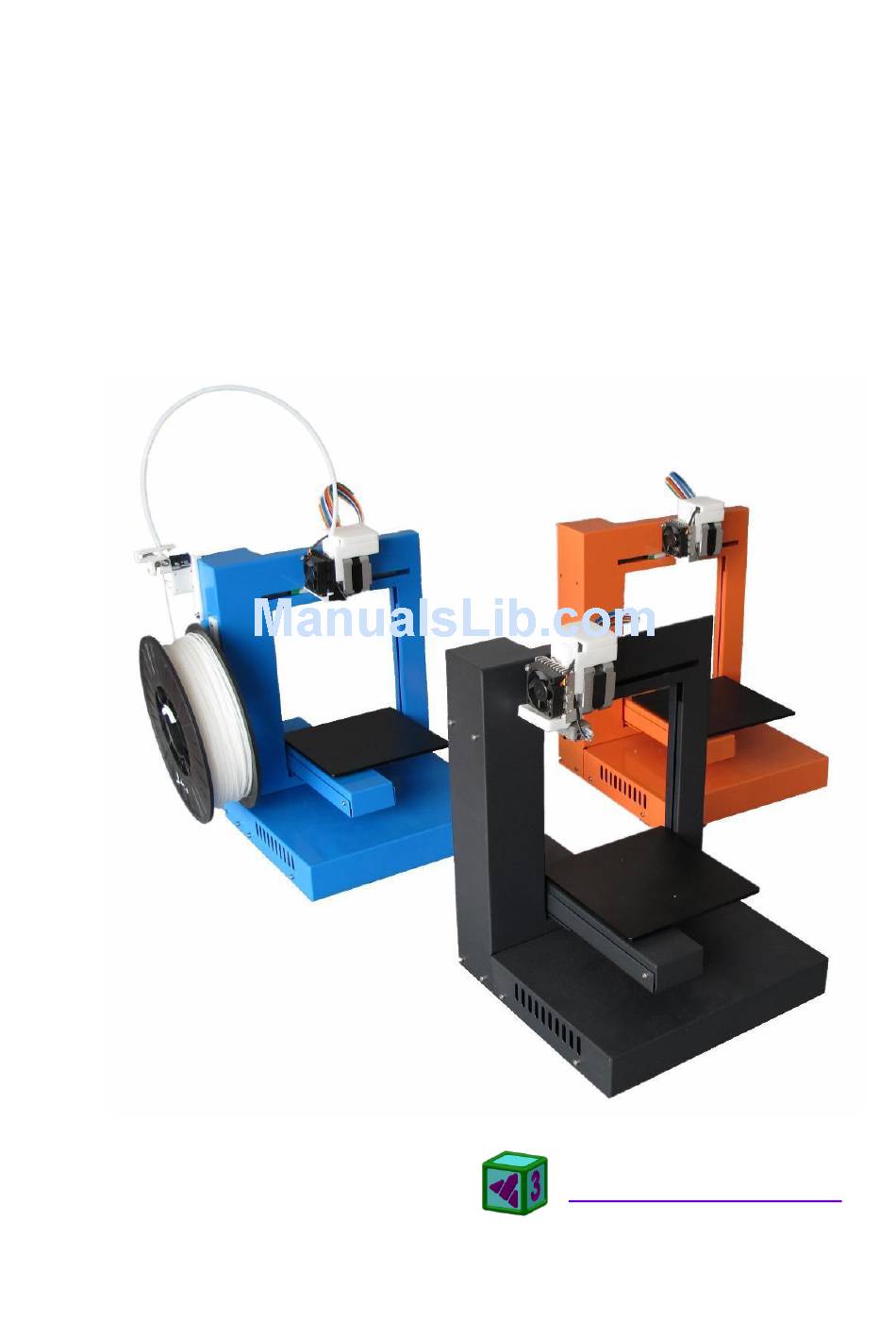

- Page 1 Personal Portable 3D Printer Quick Start Guide www.PP3DP.com...
- Page 2 Open the box, take out the printer and accessories. Assemble the parts contained in the box as following procedure: 1. Unscrew the M4 screw from the extruder, then fix the extruder on the holder. Please make sure the extruder is parallel with Extruder axis. PP3DP.com |...
- Page 3 ABS plastic spoon can be fixed on the printer tightly, and the filament supplier can work successfully. 3. Install the filament supplier. Unscrew the short M3 screw(M3X5) from printer, then fix the filament supplier with a long M3 screw(M3X8). PP3DP.com |...
- Page 4 Secondly, link the Power adapter (20 V) to the power line, then connect the 4-pin slug to the socket. Please note that the flat side of the 4-pin slug which is marked with an arrow should be upturned. PP3DP.com |...
- Page 5 Lastly, connect the printer to a computer by USB cable. You could not connect the USB cable temporarily, until successfully install UP! software on computer (If connected, Windows system will find a new hardware and ask for installing dirver). PP3DP.com |...
- Page 6 Please remember to thrust the ABS into a filament tube. 7. Install a platform. Raise the platform axis to a certain height where is proper to screw. Please note the screw under the platform heating bed, don’t screw it when take down the platform. PP3DP.com |...
- Page 7 Quick Start Guide PP3DP.com |...
- Page 8 Quick Start Guide 2. Installing the UP! software Start UP Setup.exe and install the software in the specified directory (Defaulted C:\Program files\UP), and create a desktop shortcut. The following are included: PP3DP.com |...
-
Page 9: Installing Drivers
USB cable. The system presents a new hardware is found and choose “No, not this time”. Choose “Install from a list or specific location (Advanced)”. After that, click on “Next”. Click on “Browse”, and choose “C:\Program Files\UP\Driver”. PP3DP.com |... - Page 10 Quick Start Guide Click on “Next” and the following dialogue box pops up. Choose “Continue Anyway” and the system is installed automatically. PP3DP.com |...
- Page 11 STL and UP3. UP3 is the compression format of STL). The model is presented on the screen. Unload the model Choose the model you want to unload and click on Save the model: Choose the model you want to save and click on PP3DP.com |...
- Page 12 Move: Press CTRL and middle mouse button at the same time and move, translation is achieved. Scale: Rotate the mouse wheel, the model can be zoom in or out. View: The system has 8 preset standard views. Click on “Fit” to choose. PP3DP.com |...
- Page 13 Rotate: Click on “Rotate” on the toolbar, choose or input the angle, and then choose the axis. Scale：Click on “Scale”, choose or input the scaling, and then choose the axis( ) or click solitary scale “Scale” again(uniform scale). PP3DP.com |...
- Page 14 Quick Start Guide Unit Conversion (from inch to mm): Magnify the whole model for 25.4 times. Procedures: Click on “Scale” on the toolbar. Choose25.4 (->mm), and then click on the “Scale” button again. PP3DP.com |...
- Page 15 (not released). Move the mouse and drag the model to the position. Moving through : Click on the button, choose or input the distance, and finally choose the axis. Note: When more than one model is displayed, the gap between each other is about 12mm to prevent adhesion. PP3DP.com |...
- Page 16 Status: Displaying the temperature of nozzle and platform, as well as if they are heated. Stop All Stopping heating and all other movement of the printer. Nozzle & Platform: Five buttons（FL, FR, Center, NL, NR） on the left control the position of the PP3DP.com |...
- Page 17 The best position of the platform is 0.2mm below the nozzle. Adjust the height of the nozzle by “To” until it is about 0.2 mm below the nozzle. Set to Nozzle Height: set current height value to nozzle height. PP3DP.com |...
- Page 18 Find a material lead-in tube on extruder, and put the ABS into it, Then press “Extrude” button in the maintain dialogue. When the printer beeps, push the filament into the hole with a little strength and the extruder will extrude material automatically. PP3DP.com |...
- Page 19 8. Click “Set to Nozzle Height” to set the current value as Nozzle Height, then click “bottom” button to drop the platform. The nozzle height should be reset after install new extruder. Once the distance is set, the system saves the height data automatically. It needs not to be set again. PP3DP.com |...
- Page 20 Base: the figure indicates the thickness of the raft. Nozzle The figure indicates the height of the nozzle. Fill: There are four ways to adjust the inner infilling density, including Solid, Loose, Hollow, and Big Hole. Click on Ok and the parameters are set. PP3DP.com |...
- Page 21 Hold the platform to prevent the crossbar from suffering strong press. Please remember to wear a pair of gloves. If the platform is pushed moving unintentionally, please initial the printer. When the model is removed, put a thin layer of coat in its place. PP3DP.com |...
