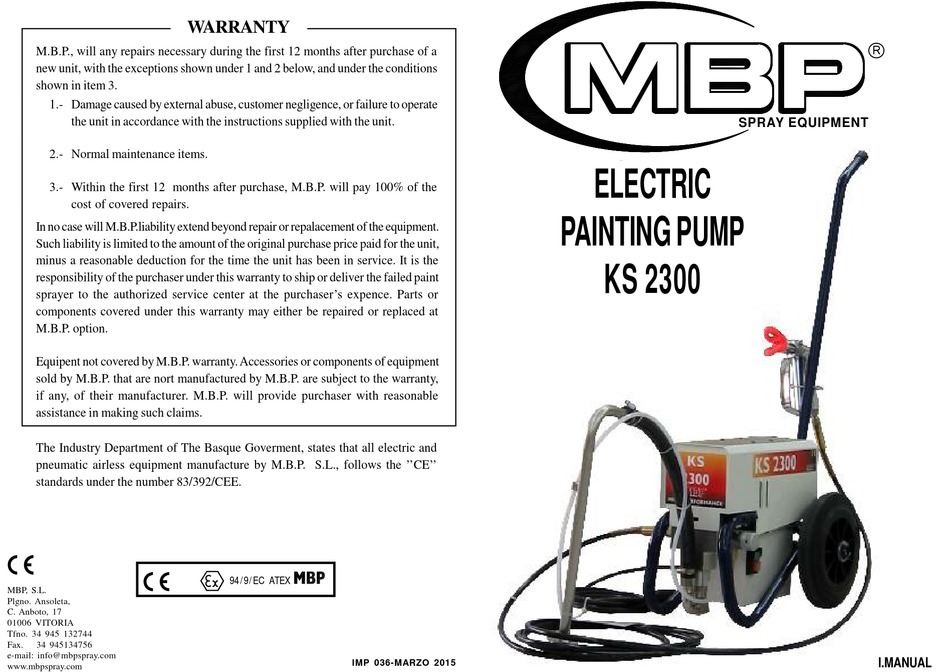

mbp KS 2300 User Manual

Electric painting pump

Advertisement

WARRANTY
M.B.P., will any repairs necessary during the first 12 months after purchase of a
new unit, with the exceptions shown under 1 and 2 below, and under the conditions
shown in item 3.
1.-
Damage caused by external abuse, customer negligence, or failure to operate
the unit in accordance with the instructions supplied with the unit.
2.-
Normal maintenance items.
3.-
Within the first 12 months after purchase, M.B.P. will pay 100% of the
cost of covered repairs.
In no case will M.B.P.liability extend beyond repair or repalacement of the equipment.
Such liability is limited to the amount of the original purchase price paid for the unit,
minus a reasonable deduction for the time the unit has been in service. It is the
responsibility of the purchaser under this warranty to ship or deliver the failed paint
sprayer to the authorized service center at the purchaser's expence. Parts or
components covered under this warranty may either be repaired or replaced at
M.B.P. option.
Equipent not covered by M.B.P. warranty. Accessories or components of equipment
sold by M.B.P. that are nort manufactured by M.B.P. are subject to the warranty,
if any, of their manufacturer. M.B.P. will provide purchaser with reasonable
assistance in making such claims.
The Industry Department of The Basque Goverment, states that all electric and
pneumatic airless equipment manufacture by M.B.P. S.L., follows the ''CE''
standards under the number 83/392/CEE.
MBP, S.L.
Plgno. Ansoleta,
C. Anboto, 17
01006 VITORIA
Tfno. 34 945 132744
Fax.
34 945134756
e-mail: info@mbpspray.com
www.mbpspray.com
9
/ 4 9
/
EC
ATEX
IMP 036-MARZO 2015
SPRAY EQUIPMENT
ELECTRIC
PAINTING PUMP
KS 2300
I.MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS 2300 and is the answer not in the manual?

Questions and answers

Summary of Contents for mbp KS 2300

  • Page 1 Such liability is limited to the amount of the original purchase price paid for the unit, minus a reasonable deduction for the time the unit has been in service. It is the KS 2300 responsibility of the purchaser under this warranty to ship or deliver the failed paint sprayer to the authorized service center at the purchaser’s expence.
  • Page 2 APPROVED BY AITOR ORTIZ FECHA / DATE MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad comercial. MBP, S.L. is registered in the Industrial Register of the Basque...
  • Page 3: Table Of Contents

    INDEX Pump components ....... Safety warnings ........Operating instructions ......Cleaning ........... Troubleshooting chart ......Parts drawing & list ......Wiring diagram ........Pressure control assy ......Shutdown and care ......Standard spray tips ......Accesories ........
  • Page 4 PUMP COMPONENTS ACCESORIES SIEVE PACKOIL REF. GR.70.70-70 MESH REF. GR.71.20-120 MESH REF: B.100.20 AIRLESS GUN FILTER REF. MESH COLOUR J.260.01 WHITE J.260.02 YELLOU J.260.03 J.271 J.272 J.275 TIP EXTENSIONS 90cms. 30cms. HP FILTER SCREEN REF: G.100.20-60 MESH REF: G.100.05-100 MESH REF: G.100.21-200 MESH...
  • Page 5: Pump Components

    SHUTDOWN AND CARE PUMP COMPONENTS Check the packing nut daily. First follow the Pressure Relief Procedure. Be sure the packing nut is 1/3 full of Oilpack at all times to help prevent fluid buildup on the piston rod and premature wear of packings. Pressure regulator.
  • Page 6: Pressure Control Assy

    SAFETY WARNINGS PRESSURE CONTROL ASSY ATTENTION This equipment generates very high fluid pressure. High pressure spray can cause serious injury. Read and understand all instructions before operating. Never point the spray gun at anyone or at any part of the body. Never put hand, fingers over the spray tip.
  • Page 7: Wiring Diagram

    WIRING DIAGRAM SAFETY WARNINGS FIRE OR EXPLOSION HAZARD BROWN BROWN Static electricity is created by the flow of fluid through the pump and hose. If every 220 V 50 Hz. part of the spray equipment is not properly grounded, sparking may occur and the BLUE BLUE system may become hazardous.
  • Page 8 102.320.00 Tube by clean water. Before using oil-case paint, flush with mineral spirits only. D.910.00 Strainer KIT 043: Includes packings (up & 10.- Fill the packing nut with MBP - Packoil down) packing glands and balls.
  • Page 9: Parts List

    PARTS LIST CLEANING Follow the Pressure Relief Procedure. If the sprayer has been used before, remove the filter bowl and screen. Clean the screen separately and install the bowl without the screen to Nº REF. DESCRIPTION flush it. 102.110.00 Motor CTB.003 Screw Close the pressure drain valve...
  • Page 10: Troubleshooting Chart

    TROUBLESHOOTING CHART TROUBLE CAUSE SOLUTION SOLUTION TROUBLE CAUSE Unit will not Dried out piston packings. Remove siphon tube and feel lower ball check Check for external leaks including hydraulic Unit will not prime Stuck valve balls. to be sure it is free to move off it is seat. Place fittings attached to pressure control build or Fuid leak.
