Summary of Contents for IMO Foto Frame Printer

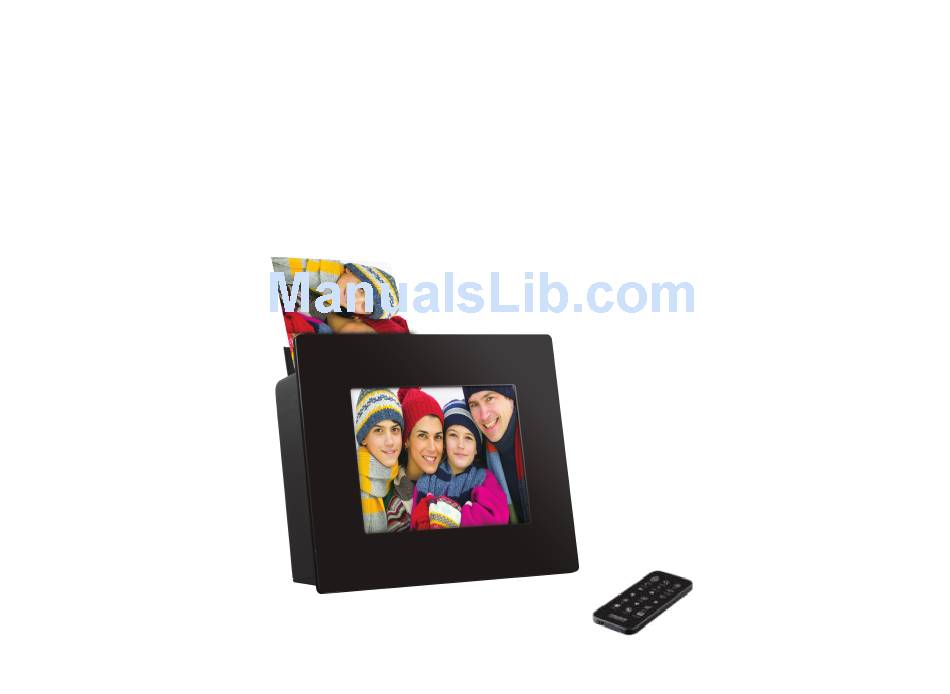

- Page 1 Photo Frame Printer User Manual...
-
Page 2: Important Safety Instruction
Important Safety Instructions CAUTION Your Photo Frame Printer is designed and tested to meet the latest standards for safety of information technology eq uipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the produc t and in the documentation are followed. -
Page 3: Power Cord Requirements
• Power Cord Requirements • The power cord set (wall plug, cable and AC adapter plug) you received with your printer meets the requirements for use in the country where you pu rchased your equipment. • Power cord sets for use in other countries must meet the requirements of the country where you use the printer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider. -
Page 4: Table Of Contents
Table of Contents Important Safety Instruction..............................2 • Power Cord Requirements..............................3 1. Getting Started..................................6 • What’s Included................................6 • Product View................................7 • Installing and Removing Cartridges…………………………………………………………..………………..…….………..7 • Connecting the Power Cord............................9 • Using Memory Cards..............................10 2. Remote Control & Instruction………………………………………………………………………………………………………11 • ... - Page 5 Table of Contents 5. Printing....................................24 • Printing From Memory Cards............................24 • Print All images…………………………………………………………………………………………………………………24 • Print single image……..............................25 6. Update Firmware…………………………………………………………………………………………………………………….26 7. Troubleshooting................................27 8. Maintenance of Printer..............................28 9. Technical Specifications and Recycling..........................29 • Technical Specification………………………………………………………………………………………………………...29 • CE Disclaimer................................29 • FCC Disclaimer................................29 10.
-
Page 6: Getting Started
1 Getting Started CONGRATULATIONS on your purchase of the Photo Frame Printer. You can print images with the photo frame printer di rectly memory card without connecting to a computer. Please read carefully and follow all instructions in the manual and tho se marked on the product before first use. -
Page 7: Product View
• Product View • Installing and Removing Cartridges Use only replacement parts and accessories recommended by manufacturer. • Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facili ties, oxygen rich environments, or industrial areas. CAUTION: Do not use sharp objects, such as a knife or scissors, to open the ribbon cartridge package. - Page 8 To Install the Cartridge To Install the Cartridge • Power off • After removing the package from the cartridge, rotate the roller counterclockwise to smooth out wrinkles • or uneven areas in the film by finger as the below drawing. If the film is not even, it could be damaged during installation. • ...
-
Page 9: Connecting The Power Cord
• Connecting the Power Cord To turn on the printer, you need the power cord and the power adapter. Connect the power adapter to the printer and conne ct the power cord to the wall outlet or other power source. CAUTION : Do not disassemble the printer when the printer is turned on. -
Page 10: Using Memory Cards
• Using Memory Cards This printer can read six kinds of memory cards. Insert one or multi memory card . Do not force a card into the memory card slot as this may cause damage to your printer. There are many kinds of memory cards, and each memory card has many dif ferent sub types. -
Page 11: Remote Control &Instruction
2. Remote Control &Instruction • Remote Control button Functions Instructions Remote Control Buttons Description Zoom In/Out Increase/ Decrease the current p hoto. Available in ID Photo only. Exit Exit current operation/window Volume Up/Down Adjust the volume as desired. Up/Down/ Move your selection up, down, le ft and right Left/Right Arrow Mute... -
Page 12: Replacing Battery
• Replace the remote control battery To remove the battery 1. T urn back the remote control. 2. P ush the lever right. 3. S lide the battery tray then release the lever to open the battery tray. 4. R emove the battery To install the battery 1. ... -
Page 13: System Setup
3. System Setup • Setup After the system is ready, you can set up system as follows: 1. Press the Exit button until Set up screen appear 2. Use the direction arrows on the remote control (Up, Down, buttons) or on the Photo Frame Printer to select a menu. 3. - Page 14 Set up Main Menu First Submenu Second Submenu Third Submenu 5 seconds Auto Slide 10 seconds 30 seconds 60 seconds Slide Show Curtain Slide Effect Shutter Wipe Background Sound Set Beep Sound Small Audio Setup Large Turn Off Speaker Sound Turn On Paper Full Print Setup...
- Page 15 Set up Main Menu First Submenu Second Submenu Third Submenu English Deutsch Dutch French Language Greek (Some Countries does Not support all langu Italian ages) Korean Portuguese System Setup Russian Spanish Format internal storage? Quick Format Yes/No Memory Format Format internal storage? Format Yes/No Setup Initialize...
-
Page 16: Dimmer
Set up Main Menu First Submenu Second Submenu Third Submenu Manufacture Print Version PFP/V System Info HW Version SW Version PFP-xV • Dimmer • Press Dim button on the top side of the unit or the remote control to adjust brightness/tint. • ... -
Page 17: F Ile Management
• F ile management • How to copy the file from the external memory to internal memory Insert external memory card into the slot In the select mode, Press “Exit” button to enter the Set up. Swing the Up or Down on the Unit ,or Press Up or Down buttons on the remote control to sel ect File management. - Page 18 • F ile management • How to copy the file from the external memory to internal memory 2. Copy folders including inside all files Swing the Up and Down on the Unit or Press Up and Down buttons on the remote control to select the folder which you want to copy.
-
Page 19: File Management
File management • How to delete the file from the internal memory In the select mode, Press “Exit” button to enter the Set up. Select and “Enter” the File management. 1. D elete files. Press “Enter” button on the file name which you want to delete. Press “Enter”... -
Page 20: The Select Modes
4. The Select Mode • Slide Show Mode 1. Simply press “Slide show” button on the remote control to select the Slideshow. and ▶ arrows on the remote control to select the Slideshow on Select Mode. 2. Press the 3. Swing the L and R on the Photo Frame Printer to select the Slideshow on Select Mode 4. ... -
Page 21: Id Photo Mode
• ID Photo Mode Do you find it troublesome to go to the photocopy studio for printing ID photos? ID Photo mode helps you to remove this barrier! Do you find it is interesting that parts of some photos are enjoyable? ID Photo mode help you realize it! Photo Frame Printer series su pports all kinds of ID photo format. You can enter ID Photo mode simply by pressing “ID Photo” on the remote control and ▶ on the remote control or swing the Left and Right on the Photo Frame Pr when the system is ready, pressing the inter to select ID Photo. -
Page 22: Music Mode
• Music Mode When the system is ready, and ▶ on the remote control press the Or swing the Left and Right on the Photo Frame Printer to select Music. Press the “Enter” button to select music to play. Press the on the remote control to select a music file to play. -
Page 23: Video Mode
Video Mode • When the system is ready, and ▶ on the remote control press the Or swing the Left or Right on the Photo Frame Printer to select Video. Press “Enter “button to select video to play Press the on the remote control to select a video file to play. -
Page 24: Printing
5. Printing • Printing From Memory Cards This Photo Frame Printer can print images from six kinds of memory cards. 1. I nsert the memory card. Details please refer To Insert an Memory Card on page 10. 2. S wing Left and Right buttons on the unit or and buttons on the remote control to SD/MMC. 3. ... -
Page 25: Print Single Image
• Print single image: At Photo mode, enter 12 photos thumbnail view and ▶ on the remote control to a 1. S wing left and right buttons to select an image, or , , ccess. 2. P ress “Enter” button to selected photo 3. ... -
Page 26: Update Firmware
6. Update Firmware 1. Power off the Printer. 2. Extract the attached file (pfp_x_vx.zip) 3. The extracted file name is "pfp_x_vxx.bin" 4. Save the extracted file to SD memory. ( Do not make a directory for saving this file.) 5. Insert the SD memory to SD memory slot and power on. 6. ... -
Page 27: Troubleshooting
7. Troubleshooting Symptoms Reasons Solution Error message of ‘No Cartridge’ 1) Cartridge is not loaded up; 1) Reload up a cartridge. is shown on the pop up windo 2) The paper and ribbon in a car 2) Check paper and ribbon in the cartridge. If they w while Print button is pressed. -
Page 28: Maintenance Of Printer
8. Maintenance of Printer Your Photo Frame Printer should only be operated within the following environment. • Temperature: 50°~ 89° Fahrenheit (10º~ 32º Celsius) • Humidity: 20~ 80% relative humidity, non condensing The life and the image quality may be impaired when the unit is operated beyond these conditions. Clean the Outside 1. ... -
Page 29: Technical Specifications And Recycling
9. Technical Specifications and Recycling • Technical Specifications Product 8” LCD Screen Photo Frame Printer Resolution 800 x 600 pixels Remote Control 1 Piece Input Power 100-240V Output Power 24V/2.5A AC Adapter 24V/2.5A Speaker 2 x 1.0W USB Host USB 1.1 Full Speed Input Formats Secure Digital™, Multi Media Card™, Compact Flash™, Memory Stick™, Memory Stick Pro™, Memory Stick Duo Card... - Page 30 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en couraged to try to correct the interference by one or more of the following measures: •...
-
Page 31: Index
10. Index Power Cord Requirements (p3) CE Disclaimer (p24) Product View (p7) Connecting the Power Cord (p9) Photo Mode (p16) Print all images (p24) Dimmer (p15) Printing (p19) Printing From Memory Cards (p19) FCC Disclaimer (p28) File copy (p17) Remote Control & Instruction (p11) File delete (p19) Slide Show Mode (p15) Getting Started (p6)
