PTZ 2

iew

Instruction Manual

PN: 8001

REV A 10/13

Table of Contents

Need help?

Do you have a question about the CamView PTZ 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Triplett CamView PTZ 2

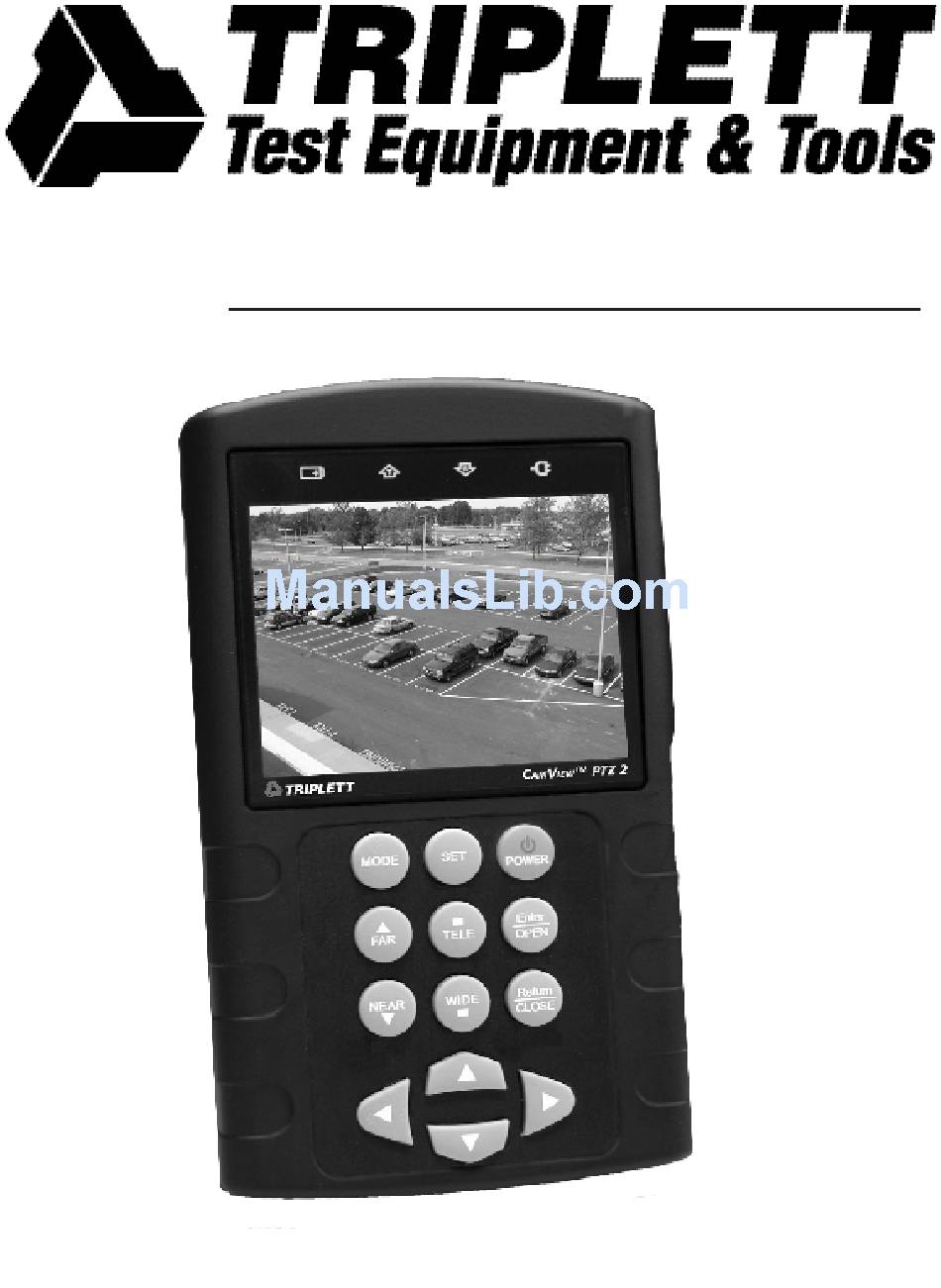

Page 1 PTZ 2 Instruction Manual PN: 8001 REV A 10/13...
Page 3 • Thank you for purchasing the Triplett CamView PTZ 2 CCTV Monitor with PTZ Controller. Please read the complete manual carefully before using the product. • To assure safe use of this product, please read the section on Safety carefully, and observe any Cautions or Warnings posted there and throughout this manual.
Page 4: Table Of Contents
Table of Contents Safety Information .......................1 Introduction ........................2 Features and Function ....................2.1 Included Items ......................2.2 Controls and Indicators ..................2.3 Connecting and Charging the Battery .............2.4 Using the Camview .....................3 General Instructions ....................3.1 Introduction to Menu and Functions ..............3.2 Video Monitor Mode / PTZ Controller Parameter Setting ......3.3 Setting PTZ Parameters (Overview) ..............3.3.1 Setting PTZ Parameters (Detail) ...............3.3.2 Using Presets ......................3.3.3...
Page 5: Safety Information
1 Safety Information • Use this product in accordance with any prevailing safety rules that may be imposed by local or federal authorized bodies. • Do not use this product if it is wet or in conditions where the humidity exceeds 95%. •...
Page 6: Introduction
2 Introduction The Triplett CamView PTZ 2 is a multi-function test tool designed to aid CCTV and Security electronics installers and maintenance technicians. A color LCD video monitor allows viewing of security camera images to verify their operation and setup. The CamView’s keyboard allows control and setup of the camera’s PTZ (Pan, Tilt, Zoom) functions (if so equipped) via a standard...
Page 7: Features And Function
2.1 Features and Function • Full Color 3.5” TFT-LCD Video Monitor • 12V 1A output to power cameras • OSD (On Screen Display) of all Modes, Functions, and Settings • Adjustable LCD Brightness / Contrast / Color Saturation • BNC connectors match professional CCTV equipment •...
Page 8: Included Items
2.2 Included Items The following items are included with your Triplett CamView PTZ. PTZ Cable Remote Terminator for LAN Cable Testing 12V/1A DC Output AC Power Pak Cable BNC to BNC Patch Cable Audio Input Cable Page 6...
Page 9 2.2 Included Items Cont. Shoulder Strap for Carrying Case Carrying Case Neck Strap for CamView Instruction Manual Page 7...
Page 10: Controls And Indicators
2.3 Controls and Indicators Page 8...
Page 11 2.3 Controls and Indicators AC Power Indicator. Lights when CamView is operating from AC power. Receive Indicator: Lights when PTZ signals are being Received. Transmit Indicator: Lights when PTZ signals are being Transmitted. Charge indicator: Lights while battery is charging. Turns off when battery is fully charged.
Page 12 2.3 Controls and Indicators UP Button : Tilt the controlled camera ‘up’ . Navigate upward on a menu. Change a parameter value. LEFT Button : Pan the controlled camera ‘left’ . Navigate left on a menu. Change a parameter value. RIGHT Button : Pan the controlled camera ‘right’...
Page 13 2.3 Controls and Indicators Press to Reset CamView to factory defaults. External power jack (5V, 2A): Use only the provided power adapter. UTP Cable Test jack (RJ-45): Use to test cables with RJ-45 plugs. RS232 Jack: Use for connection to PTZ cameras requiring an RS-232 control signal.
Page 14: Connecting And Charging The Battery
2.4 Connecting and Charging the Battery The CamView is shipped with the battery disconnected to prevent any battery drain that may reduce the battery life. Prior to the use of the instru- ment, the battery wires inside the battery compartment must be connected together.
Page 15 2.4 Connecting and Charging the Battery Cont. To turn the unit on, press for about 2 seconds and release when the POWER unit powers up. After depleting the battery, connect the supplied battery charger to the power jack (23). The red Charge Indicator should turn on.
Page 16: Using The Camview
3 Using the CamView 3.1 General Instructions To turn the unit on, press for about 2 seconds and release when the unit POWER powers up. To turn the unit off, press for about 2 seconds and release when the unit POWER powers down.
Page 17 3 Using the CamView Cont. Use the following diagram as a guide to connect the CamView to a PTZ camera. Connect the video output of the camera to the Video Input of the CamView. The Video Output of the CamView may be connected to the video input of an- other video monitor (such as the monitor in the video closet or the monitor at the guard station).
Page 18: Introduction To Menu And Functions
3.2 Introduction to Menu & Functions Pressing the button reveals the MODE main menu. By repeatedly pressing the button, the user can select any of MODE the CamView’s test functions or modes, such as: ‘PTZ controller’ , ‘Video setting’ , ‘Color bar generator’...
Page 19 3.2 Introduction to Menu & Functions Cont. 2. Video setting This mode is used to adjust the Cam- View’s LCD Brightness, Contrast, and Color Saturation. If a video signal is ap- plied to the Video Input connector, the video image will appear on this screen.
Page 20: Video Monitor Mode/ Ptz Controller Parameter Setting
3.3 Video Monitor Mode/ PTZ Controller Parameter Setting 5. Data Monitor The CamView will display incoming PTZ signals. This allows the user to verify that the PTZ control wires have a PTZ signal present. This is useful to determine if a non-responsive PTZ camera is actually receiving a PTZ control signal.
Page 21: Setting Ptz Parameters (Overview)
3.3 Video Monitor Mode/ PTZ Controller Parameter Setting Cont. 3.3.1 Setting PTZ Parameters (Overview) In the PTZ controller mode, press to access settings for the PTZ param- eters. Press to move the yellow cursor, selecting the desired parameter. Press to change the value of the parameter.
Page 22 3.3 Video Monitor Mode/ PTZ Controller Parameter Setting Cont. E. Pan speed Move the cursor to “Pan speed”. Select a value for the Pan speed from 0 to 63. Note: The range of adjustment can change depending on the camera. F.
Page 23 3.3.2 Setting PTZ Parameters (Details) Camera Information Detailed information about a PTZ camera must be known in order to set it up or test it. First, the PTZ protocol that the camera is set to must be known. Some cameras offer multiple protocols, and some manufacturers use the same proto- col for all of their cameras.
Page 24 3.3.2 Setting PTZ Parameters (Details) Cont. A. Connecting the CamView to an RS-485 PTZ Camera: Connect the video signal from the PTZ camera to the VIDEO IN jack of the CamView. This is usually accomplished with a coaxial cable with BNC connec- tors.
Page 25 3.3.2 Setting PTZ Parameters (Details) Cont. F. Testing PTZ communication If the PTZ setup is correct, and the camera is operating properly, it should respond to the buttons on the CamView keyboard. Set the CamView to the ‘PTZ controller’ mode. The video image from the camera should be visible on the LCD screen.
Page 26: Using Presets
3.3.2 Setting PTZ Parameters (Details) Cont. 3.3.3 Using Presets Presets’ are ‘pointing locations’ stored in the camera. The camera may be pointed at any object within its field of view, zoomed in, and focused. By assign- ing a ‘preset’ to this location, the camera remembers this specific setup and can go to it on command.
Page 27: Accessing A Ptz Camera Menu
3.3.4 Accessing a PTZ Camera Menu PTZ cameras have many functions that can be accessed from their main menu. When the menu is accessed, the camera inserts the menu information in the out- going video signal. This allows the user to see the menu on a video monitor (like the CamView) attached to the camera.
Page 28 Camera Menu (For reference only) MAIN MENU 1. DISPLAY SETUP 2. CAMERA SETUP 3. CONTROL SETUP 4. CAMERA MASK SET 5. PROGRAM 6. PAL CAMERA 7. CAM DEFAULT SET 8. DOME RESET 9. EXIT The meaning and available settings of the menu items are determined by the camera manufacturer.
Page 29: Video Setting
It is often possible to set the details of the Auto Scan in the camera menu. For example, the endpoints for the left/right pan and the up/down tilt can usually be set. To stop the Auto Scan, send the camera to any new com- mand…...
Page 30 The CamView PTZ automatically determines if the level is ‘Weak’ , ‘Normal’ or too strong (‘Exceed’) and displays a message below the level reading. Weak is displayed when the signal is 20% low, and Exceed is displayed when the signal is 20% too high. 112 IRE (0.8 Volts) and below = Weak 140 IRE (1.0 Volts) = Normal 168 IRE (1.2 Volts) = Exceed...
Page 31: Color Bar Generator
3.5. Color Bar Generator The ‘Color bar generator’ can generate a color bar signal in 7 different video formats. Select the format appropriate for the video equipment to be tested. In the USA, the common format is NTSC-M (RS170A). The color bar video signal can be used to test the connection between a camera and a monitor or other video equipment.
Page 32: Cable Testing
3.6 Cable Testing The CamView can test cables consisting of 2 to 8 wires. The ends of the cable must be terminated in RJ-45 plugs to match the jacks on the CamView and the Remote Terminator. Ethernet LAN cables are commonly terminated in RJ-45 connectors.
Page 33: Capturing Ptz Protocol
A standard LAN ‘crossover cable’ will display like this: Shorted or Open wires are indicated by a red ‘X’ on the screen. The cable in the following example is miswired and has Opens or Shorts on wires 1, 2, and 8. 3.7.
Page 34: Device Setting (User Settings)
Use the button to select ‘Data monitor’ . The ‘Data monitor’ screen will MODE appear, showing the current Port and Baud settings. If these do not agree with the Port on the CamView being used for the test, or the Baud Rate of the PTZ signal, the settings must be altered so that they do agree.
Page 35: Language
This feature is intended to preserve the charge on the battery if the prod- uct is unused for some period of time. The ‘Auto power off’ feature can be Disabled if desired. to move the cursor to ‘Auto power off’ . Then use select the desired ‘time-out’...
Page 36 re-initialized. To initialize the Address Search feature, select the Device set- ting menu, and use the arrow keys to select Address search and change its status from off to on. After pressing ENTER to apply the change, return to the main menu by pressing MODE.
Page 37: Specifications
4. Specifications Video Monitor Formats Supported NTSC and PAL (Auto Selected) Display 3.5 inch TFT-LCD ,960 x 240 resolution Display Adjustments Brightness, Contrast, Saturation (Color Level) Connections 1 BNC Video Input, 1 BNC Video Output (Loopthrough) Video Input Level 1.0 Vp-p into 75 Ohms PTZ controller Communication RS232, RS422 simplex and RS485...
Page 38 4. Specifications Cont. RJ-45 CABLE TEST Tests Performed Tests 2 to 8 conductors for Opens, Shorts, and Miswires. Connections Female RJ-45 on CamView, Female RJ-45 on Remote. Tested cable must have male RJ-45 connectors on both ends. Indications Pin to pin connections displayed, Opens and Shorts indicated with a red ‘X’...
Page 39 -30F to 160F Working Humidity 0%-90% RH Physical Dimensions 2” x 4” x 6” Weight 10oz (CamView only) Certifications CE and FCC Triplett Product Return Instructions In the unlikely event that you must fix your Triplett equipment please Call 1-800-TRIPLETT. Page 38...
Page 40 Accessories, including batteries and fuses, not of our manufacture used with this product are not covered by this warranty. To register a claim under the provisions of this warranty, contact Triplett’s Cus- tomer Service Department for a Return Authorization Number (RMA) and return instructions.
Page 41 No representative of Triplett / Jewell Instruments or any other person is authorized to extend the liability of Triplett in connection with the sale of its products beyond the terms hereof.
Page 42 The product will be reset to the factory defaults. Audio Input The CamView PTZ 2 has an audio input to allow it to monitor an audio source. The circuit is low power, has a fixed gain, and not intended to provide a loud sound.
Page 43 Notes...
