Page 1: User Guide

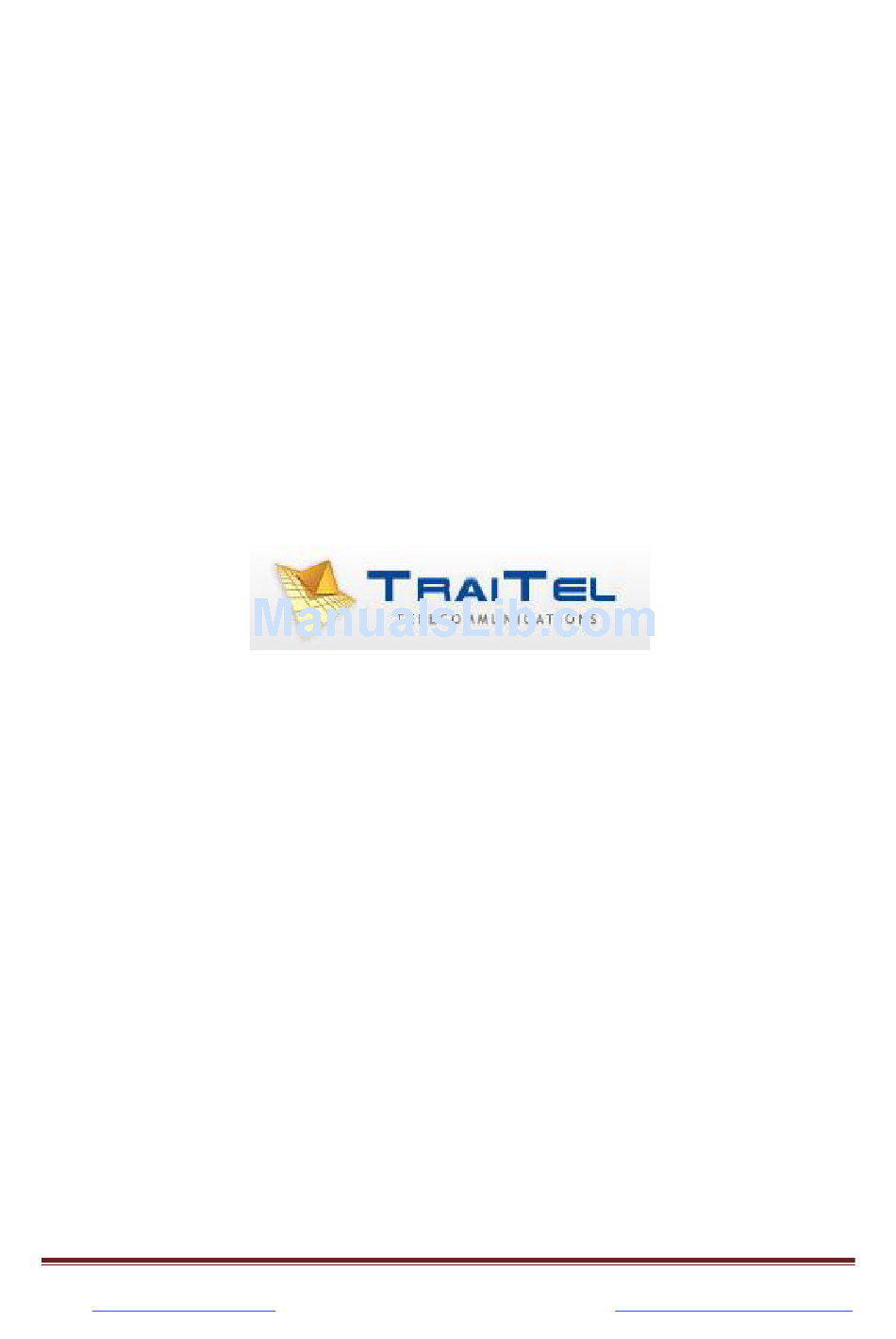

TT11 VoIP Router 2FXS TA User Guide ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 1... -
Page 2: Table Of Contents
5.24 Advanced – Firewall – MAC Filter ................. 29 5.25 Advanced – Firewall – IP Filter................29 5.26 Advanced – Firewall – Port Filter ................29 6.0 Troubleshooting .................. 30 Appendix: Product Specification............... 32 ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca... -
Page 3: Introduction
Voice over IP is a technology that allows anyone to make a telephone call over the Internet. This is a quick user guide for the TT11 VoIP Router 2FXS Telephone Adaptor. It is intended to help you configure this device and have it ready to run within a few minutes. -
Page 4: Summary Of Led & Connector Descriptions
LAN port is not connected Flash Packet transmit in LAN port WAN port is connected Green WAN port is not connected Flash Packet transmit in WAN port ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 4... -
Page 5: The Rear Ports
Reboot the system Reboot the system Restore to default setting Restore to default setting Restore to default setting ©Traitel Telecommunications Corporation 2014 ©Traitel Telecommunications Corporation 2014 ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Telephone: (1) (619) 3311913 Telephone: (1) (619) 3311913... -
Page 6: Installation
4.0 INSTALLATION Connecting the TT11 VoIP Router 2FXS TA to Your Network Connect the power adapter to this jack. The power LED will light to indicate proper operation. Connect an Ethernet cable to the WAN port when connecting to the Internet access device such as a Cable or DSL modem. -
Page 7: Using The Configuration Menu
5.0 USING THE CONFIGURATION MENU The configuration menu of TT11 VoIP Router 2FXS TA can be accessed using a convenient and user-friendly web browser. If you have an account with TraiTel, please log in at www.traitel.ca, select “Voice” then “Configure SIP device”. If you have multiple SIP devices, you must create a unique sub- account for each device. -
Page 8: Main Menu
Main Menu Once you have logged on to the TT11 VoIP Router TA through the web browser, you can begin the set up according to your requirements. On the configuration main menu, the left navigation panel links you to the set up pages directly. They include: ... -
Page 9: Status - Device Information And Line Status
IAX Register Status A hotlink to IAX settings status. Line 1 Status Shows line 1 register status (FXS). Line 2 Status Shows line 2 register status (FXS). ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 9... -
Page 10: Status - Lan
Default Gateway Shows the IP address of default gateway. DHCP Server IP Shows the DHCP server IP address. DNS Servers IP Shows the DNS server IP address. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 10... -
Page 11: System - Provision
IP, Port, Username, Password, Firmware Auto-provisioning is an advanced feature of the TT11VoIP Router TA. For further information on using this function, please contact your ISP. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca... -
Page 12: System - Firmware
Status Show status System – Restart Click Restart to update the modification. Restart Gateway with Select restart this gateway with Current Setting or Factory Default Settings. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 12... -
Page 13: System - Backup/Restore
Enter the admin ID. Admin Password Enter or change the admin password. Enter the guest ID. Guest ID Guest Password Enter or change the guest password. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 13... -
Page 14: Networks - Pppoe Wan Setting
Enter the primary DNS server IP address. Secondary DNS Enter the secondary DNS server IP address. Username PPPoE ID/username proved by your ISP. Password PPPoE password. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 14... -
Page 15: Networks - Static Wan Setting
Networks – DHCP WAN Setting Select DHCP as network connection type that allows the network administrator to distribute IP addresses when this gateway is plugged into a different place in the network. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca... -
Page 16: Networks - Lan Setting
The end IP address for the DHCP server’s IP assignment if this function is enabled. DHCP Client Lease Time The time period for the DHCP server to expire the IP that is assigned. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca... -
Page 17: Networks - Sntp Setting
Daylight Saving Enable or disable daylight saving. Sync Interval Show the periodic interval the gateway waits before it resynchronizes the gateway’s time with that of the specified SNTP server. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca... -
Page 18: Voip - Sip Settings
VoIP configuration goes here. Password User password to log in to the SIP server. Your TraiTel account main password goes here. Register Status The current status of the SIP registration. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca... - Page 19 2. When Full URI is selected, “Anonymous” is sent to the receiver’s device. It may display anonymous or nothing on the receiver’s device. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca...
- Page 20 VoIP services. Please contact your service provider for details. contact your service provider for details. contact your service provider for details. ©Traitel Telecommunications Corporation 2014 ©Traitel Telecommunications Corporation 2014 ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913...
-
Page 21: Voip - Line Settings
For example, if you are on the phone when another person tries to call you, an audible beep will inform you that someone is waiting on the other line. You can ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca... - Page 22 Enable/Disable T.38 support, normally for fax users. Choose “Talk after fax end” to resume the phone call after the fax process is finished. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca...
-
Page 23: Voip - Iax Settings
Password User password to log into the IAX server. Register Status The current status of the IAX Registration Port TT11 VoIP Router TA supports IAX2 protocol. Normally IAX2 uses Port 4569. Server The Asterisk server’s IP address Server Port The port number for the Asterisk server. Default is 4569... -
Page 24: Voip - Call Control
VoIP – Call Control Click Apply to update the modification. Dial Timeout The TT11 VoIP Router TA will automatically cancel a call out if the caller does not pick up the phone within the set time. ©Traitel Telecommunications Corporation 2014... - Page 25 Enable/Disable 3 way conference. Hook-flash to start. Call Transfer Enable to transfer the call after it hangs up from a 3 way conference. The TT11 must be the initiator of the 3 way conference call. Outgoing IP Call Enable/Disable outgoing IP call.
- Page 26 NAT traversal. NAT Keep Alive Time The time interval that the IP phone sends the keep- alive packet in order to ensure that NAT works properly. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca...
-
Page 27: Voip - Dialling Plan
(Current record is in a different color). [Append] Add a new record to the bottom of the list. [Delete] Delete the selected record. [Update] Modify the value of the selected record. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 27... -
Page 28: Voip - Cdr
Enable/Disable the DMZ function. DMZ IP Address Enter the IP address of a specific internal server which needs to be accessible from the external network. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca... -
Page 29: Advanced - Firewall - Mac Filter
Using your gateway’s port filter function, you can configure the switch to only accept traffic from specified machines, or else to block specific machines from accessing your LAN. Click Apply to update the modification. ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca... -
Page 30: Troubleshooting
6.0 Troubleshooting If your TT11 VoIP Router TA is not functioning properly, you can refer to this chapter first for sample troubleshooting before contacting TraiTel. This can save you time and effort but if the issues are not covered here please call or send an email to customer- service@traitel.com. - Page 31 Make sure you exit the Setting mode (phonebook, Now” on the screen when I click menu, speed dial...) before you click [Apply] in the [Apply] in the configuration configuration menu. menu? ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca...
-
Page 32: Appendix: Product Specification
FCC Part 15 Class B web) DHCP CE Class B Outbound Proxy (set from PPPoE VCCI Class B web) EN60950 ©Traitel Telecommunications Corporation 2014 Telephone: (1) (619) 3311913 Web: http://www.traitel.ca Email: customer-service@traitel.ca Page 32...
