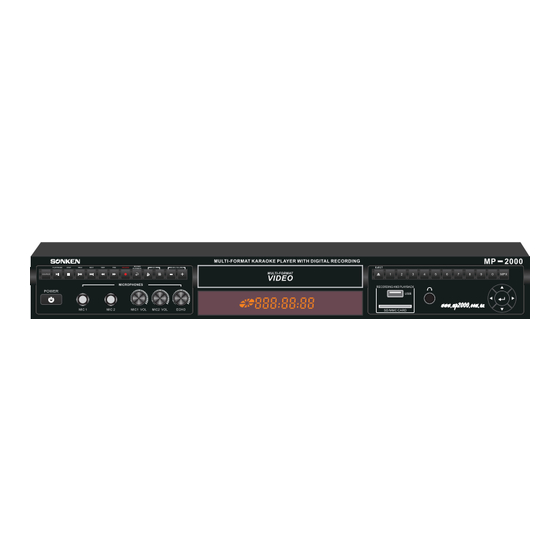

Sonken MP-2000 User Manual

Multi-format karaoke player with 4x cdg to mp3g converter with digital recording
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPEN
POWER
MUTE
CLOSE
2
3
1
ABC
DEF
6
4
5
GHI
JKL
MNO
7
8
9
PQR
STU
VWX
0
CLEAR
PROGRAM
YZ
REC
ENTER
MENU
TITLE
REC
-
RETURN
A B
REPEAT
PLAYBACK
SEARCH
AUDIO
STEP
MPX
SD
USB
DISC
SETUP
CARD
GUI
MUSIC
VIDEO
SWITCH
ZOOM
ANGLE
SUBTITLE
DISPLAY
DISC
/
P N
PBC
RIPPING
CREATE
-
CUE
VOL
SONGLIST
NAME
NUMBER
+
VOL
INDEX
INDEX

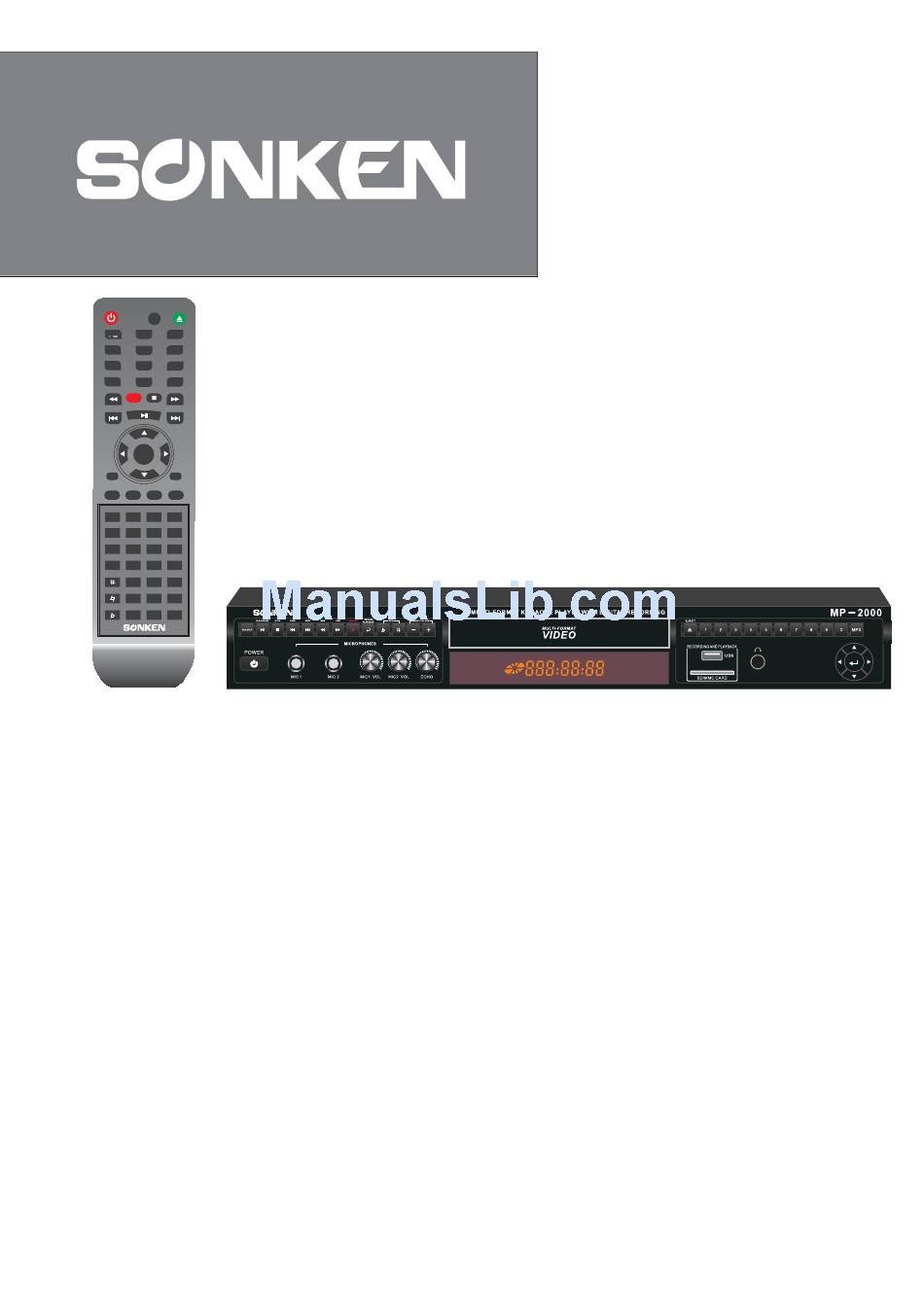

User Manual
NOTE: To ensure this system works safely and to its fullest potential, please read the User Manual
carefully before use and keep it handy for future reference.
For firmware updates and further information see www.mp2000.com.au
To learn about Karaoke MP3+G visit www.mp3g.com.au
To download Karaoke MP3+G songs visit www.picknmix.com.au
CAUTION:
To assure this player will work at its best, please
read this user's manual carefully before operation
and keep for future reference.
MP-2000
Multi-Format Karaoke Player
with 4X CDG to MP3G Converter with Digital Recording
v.1.1
www.mp2000.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sonken MP-2000

Summary of Contents for Sonken MP-2000

  • Page 1 MP-2000 Multi-Format Karaoke Player with 4X CDG to MP3G Converter with Digital Recording OPEN POWER MUTE CLOSE CLEAR PROGRAM ENTER MENU TITLE RETURN REPEAT PLAYBACK SEARCH AUDIO STEP DISC SETUP CARD MUSIC PHOTO VIDEO SWITCH ZOOM ANGLE SUBTITLE DISPLAY DISC...

  • Page 2: Table Of Contents

    Care and cleaning: Use a slightly damp cloth Basic Operation: Playback......9 to clean the front panel and other surfaces of the MP-2000. Do not use the device in areas Playback from USB and SD Cards ...9 that are wet or prone to dampness. Always Basic Operation: Karaoke.......10...

  • Page 3: Important Information Before You Start

    CD+Graphics, Audio CD, HDCD Power Cord: When you are away on travel or MP3, MP3+G, JPEG, Kodak, MPEG won't use the MP-2000 for an extended period of time, unplug the unit from the wall Above media is playable on the following discs: outlet.

  • Page 4: Compatible Video Formats

    Before Operation Notes Regarding Discs With some DVDs, the player starts playback automatically after inserting the disc, whether or not PLAYBACK CONTROL is on or off. The image may be poor, noisy or grainy due to defects on the actual disc, and some functions as described in this manual may not be possible on all discs.

  • Page 5: Front Panel Functions And Operations

    FRONT PANEL FUNCTIONS AND OPERATION: MP-2000 www.mp2000.com.au 1. POWER - Press the button to turn the unit on or off. 1. POWER - Press the button to turn the unit on or off. OPEN/CLOSE - Used to open and close disc tray.

  • Page 6: Remote Control Functions

    INDEX a text file for further use. Please redo this function whenever the contant has been changed(song add/delete) MP-2000 22.NATURAL BUTTON-Go back to original key tone. 23. NAME INDEX BUTTON - Use this button to do song search by song name in the DISC/USB/SD mode. There must be a name in the song name (ex: love from 1001_love.mp3) to make this function work.
  • Page 7 INDEX 41. MUSIC VOL - Adjust the volume of music audio output. MP-2000 42. NUMBER INDEX BUTTON - Use this button to do song search by song-number in the DISC/USB/SD mode. There must be a song number in the song name (ex: 1001 from 1001_love.mp3) to make this function...

  • Page 8: Player Connections

    USB & SD CARD see page 3 for supported files and formats when using the USB/SD CARD MODE. MP-2000 www.mp2000.com.au NOTE: Your MP-1000 has a variety of ways to provide you audio and video. The RCA Composite cable is included with the unit, and you can buy cables from www.mp2000.com.au to access the unit's S-...

  • Page 9: Power Connection

    OUTPUT VGA port does not Multi-For mat Karaoke Player SURROUND AUDIO OUTPUT & VIDEO AUDIO OUTPUT VIDEO support resolution Cb/Pb Cr/Pr Model:MP-2000 higher than 720i. Voltage:AC100~240V Power:15W VGA OUTPUT S/N:___________________ RISK OF ELECTRIC SHOCK DO NOT OPEN COAXIAL HDMI S-VIDEO...

  • Page 10: Basic Operation: Playback

    (each MP3G contains 2 files adding up to 4,000 files; The Disc will play automatically .cdg +.mp3 = MP3G). The MP-2000 may support 2.5” external hard drives that do not require an external power source but we cannot guarantee it will support all models. Sonken...

  • Page 11: Basic Operation: Karaoke

    Basic Operation Karaoke - USING MICROPHONE The system has 2 microphone inputs for connecting up to Karaoke - To recording singing(See Page12 - 2 microphones at once. 13): 1. Play MP3, CD,CDG,MP3G or VCD song from disc, or MP3, MP3G song from USB or SD card.

  • Page 12: Basic Operation: System Setup

    Basic Operation SYSTEM SETUP Unload the Disc then: Press to open the SETUP KEY Setup MENU. TV SYSTEM 1) Press ] to choose Direction KEY “TV SYSTEM” 2) Press ] to show Direction KEY Sub-MENU. 3) Press [ / ] to select the from [NTSC/ PAL/PAL60/AUTO] Direction KEY POWER RESUME...

  • Page 13: Basic Operation: Language Setup

    Basic Operation LANGUAGE SETUP Unload the Disc then: Press to open the SETUP KEY Setup MENU. Press ] to select the Direction KEY “LANGUAGE SETUP”. ub MENU: OSD LANGUAGE AUDIO LANGUAGE SUBTITLE LANGUAGE MENU LANGUAGE OSD LANGUAGE 1) Press ] to choose Direction KEY “OSD LANGUAGE”.

  • Page 14: Video Setup

    VIDEO SETUP Unload the Disc then: Press to open the Setup MENU. SETUP KEY Press ] to select the VIDEO SETUP. Direction KEY The Sub-MENU BRIGHTNESS - Select from level 0 ~12 CONTRAST - Select from level 0~12 HUE - Select from level -6~+6 SATURATION - Select from level 0~12 SHARPNESS - Select from level 0~8 SPEAKER SETUP...

  • Page 15: Recording & Cdg Disc Ripping

    BASIC RECORDING OPERATION FOR MP3+G WHAT IS MP3+G An MP3+G file is a karaoke-based file format that consists of two parts, an audio file in MP3 format and a graphics file that displays on-screen lyrics. These two files combined are called an MP3+G file. An MP3+G file will occupy about the same disc space required for a standard CD+G track.

  • Page 16: Ripping Cdg Disc Into Mp3G Files

    BASIC RECORDING OPERATION FOR MP3+G 4. Next, go to TRACKS, to select one or few or all tracks which you desire to transfer to MP3+G format. Click here if you want to check/uncheck all tracks 5. Go to START, you will see the ripping information. To start the ripping process, press ENTER. There are two status bars showing the progress while ripping.

  • Page 17: Other Advanced Operations

    Advanced Operations Playing From A Specific Position Repeating Playback Press REPEAT. If you press REPEAT in stop mode, Locating a desired scene from the DVD menu press PLAY to start playback. Each time you press DVD discs generally have their own menus showing the REPEAT , the repeat mode cycles among REP-ALL, REP- contents of the disc.

  • Page 18: Creating Song List

    Searching by name: Advanced Operations You can search songs by inputting a song name in USB/SD CARD mode after you create the song list file Create Song List: (see Page6, #43 for more detail) 1. In the Disc/USB/SD Card mode, you can have a create your own song list from current MP3/MP3G songs in the disc/USB/SD Card.

  • Page 19: Troubleshooting Chart 1

    Remember to troubleshoot your other connected components and any other electrical/electronic devices that you are using in concert with the MP-2000. If the trouble cannot be rectified even after exercising the steps listed in the Troubleshooting Charts (pages 18 and 19), contact Karaoke Home Entertainment www.khe.com.au...

  • Page 20: Troubleshooting Chart 2

    Troubleshooting Symptom Possible Causes Karaoke Operations 11. There's no sound from * Only RCA mix output will support Karaoke Output. See page 6. the microphone * You need to adjust the volume of microphone. 12. There's feedback and screeching * The microphones are too close to the speakers 13.

  • Page 21: Safety, Warnings And Precautions

    With the proper care and maintenance, your pinched, particularly where it is plugged in to an MP-2000 will give you years of dependable, enjoyable electrical socket and the point where it exits from the use. Make sure you are using proper power sources and rear of the device.

  • Page 22: Specifications

    Information SPECIFICATIONS Power Source 100V-240V~, 50/60Hz Power Consumption Video Component (Y, Cb, Cr), Composite Video, Choice of Screen Ratio (16:9/4:3), PAL/NTSC Disc Compatible, Progressive Scan (500-p) Audio Output level: 0Vrms~1.5Vrms DA Converter: 24 bit, Frequency Response: DVD (PCM 96Khz): 2~44Khz(+/- 0.5 dB) S/N ratio: 100 dB (DVD), above 98dB (CD), Total Harmonic Distortion: 0.003% Operating Temp...
