Fischer Amps In Ear Amp 8 Manual

Advertisement

Quick Links

FISCHER AMPS
Manual
In Ear Amp 8
[Art. No. 001123]
Dear customer:
You have decided to buy a Fischer Amps product. Thank you.
Please read this manual carefully prior to the first use, you will get important information for
use and safety of the unit. These safety and operating instructions should be retained for
future reference.
Should you have further questions, please do not hesitate to contact FISCHER AMPS.
Product Description:

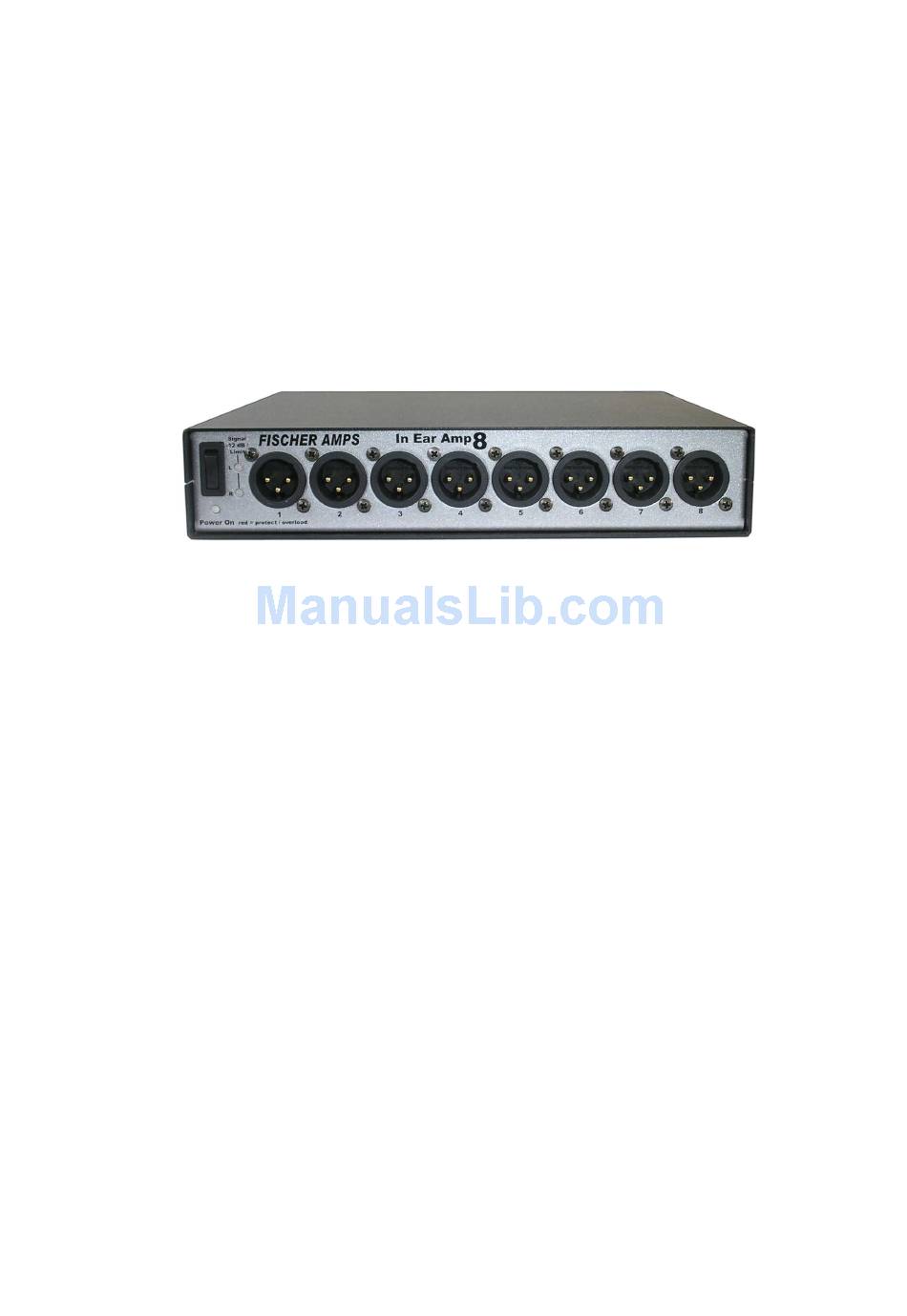

The perfect solution to provide up to eight musicians with an in ear mix. The half rack-space In Ear Amp 8 with
eight XLR outputs is based on the Fischer Amps In Ear Amp 2. Musicians can control their volume individually
with Fischer Amps Mini Body Packs with XLR input [Art. No. 001125]. The In Ear Amp 8 allows short cable
routes on stage and cabling with standard microphone cables. Thanks to the Class A MOSFET amplifier with
switchable output power, the unit can be used with high-impedance headphones as well as with low-impedance
in ear earphones. The XLR inputs have parallel XLR outputs so that the signals can be looped-through to the
next In Ear Amp. Using the In Ear Amp 8 is a simple but effective way to provide a stereo mix for a great
number of listeners, the optimum system for orchestras, studios, conference rooms and budget-conscious
productions.
Basic information on the use of in-ear monitoring systems:
CAUTION:
Using this system at too high sound levels may cause permanent hearing defects. Adjust the
volume so that you can hear sufficiently. Ringing in the ears can indicate that the adjusted
hearing level is too high. Use headphone systems with good fitting which suppress the
ambient noise well. This allows that the required listening volume can be low which is kind to
your ears.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the In Ear Amp 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fischer Amps In Ear Amp 8

  • Page 1 The XLR inputs have parallel XLR outputs so that the signals can be looped-through to the next In Ear Amp. Using the In Ear Amp 8 is a simple but effective way to provide a stereo mix for a great number of listeners, the optimum system for orchestras, studios, conference rooms and budget-conscious productions.
  • Page 2 Fischer Amps Mini Body Pack XLR. With standard microphone cables, up to eight musicians can be supplied with the stereo signal of the In Ear Amp 8. The headphone signal can also be transmitted by a multicore or sub- multicore without needing an adaptor.
  • Page 3 Fischer Amps Shaker Amp or the ButtKicker Amplifier BKA 1000-4 in combination with the Fischer Amps In Ear Amp 2, as these units have an integrated, controllable low pass. Ground Lift Button Separates the audio ground from the system and cabinet ground.
  • Page 4 Input Voltage Select 115V /230V Switch to adjust the appliance to the country’s supply voltage 230V AC or 115V AC. Before switchover, always switch off the appliance and disconnect the mains cable from the operating voltage. Doing so prevents overload of the internal PSU. It is not necessary to replace a fuse in the appliance for adjusting the operating current.
  • Page 5: Warranty

    FISCHER AMPS HANS-ULRICH-BREYMANN-STR. 3, D–74706 OSTERBURKEN TEL: +49 (0) 62 91-648 79 0, FAX: 648 79 19...
  • Page 6 Assembly of the brackets when using the single unit in a 19“ rack: side view side view supplied accessories Assembly of two Fischer Amps 9.5-inch Units into one 19” 1U: bottom view Connection of two units with connecting plate by means of 8 pcs.
  • Page 7 Notes: FISCHER AMPS Hans-Ulrich-Breymann-Str. 3, D-74706 Osterburken / Germany Phone +49 (0)6291–648 79-0, Fax 648 79-19 E-MAIL: , Internet: info@fischer-amps.de www.fischer-amps.de...
