  • Page 2: Table Of Contents

    APPENDIX D: CONTACTING KENWOOD SUPPORT... 50 Copyright 2001, Kenwood USA, Corp and PhatNoise, Inc. – All Rights Reserved. All trademarks, service marks and tradenames, including without limitation, KENWOOD, EXCELON, MUSIC KEG, are proprietary to Kenwood Corporation. All trademarks, service marks and tradenames, including without limitation and PHATNOISE, PHATNOISE MUSIC MANAGER, DPGT and DMS are proprietary to PhatNoise, Inc.
  • Page 3 Page 3 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 4: Getting Started

    Getting Started The Kenwood Music Keg is the most advanced automotive digital music jukebox available today. By offering one-touch access to an unlimited number of MP3s, WMA’s and other music files, it provides music lovers the ultimate in power and flexibility with seamless integration to Kenwood head units.

  • Page 5: Four Steps To A Quick Start

    Four steps to a quick start This manual contains step-by-step instructions for the operation of your Kenwood Music Keg, but as a quick overview we start with the four major steps: Step 1) Install the Music Keg in your car. For more information on how to install the Music Keg in your car, see section I.

  • Page 6: System Components

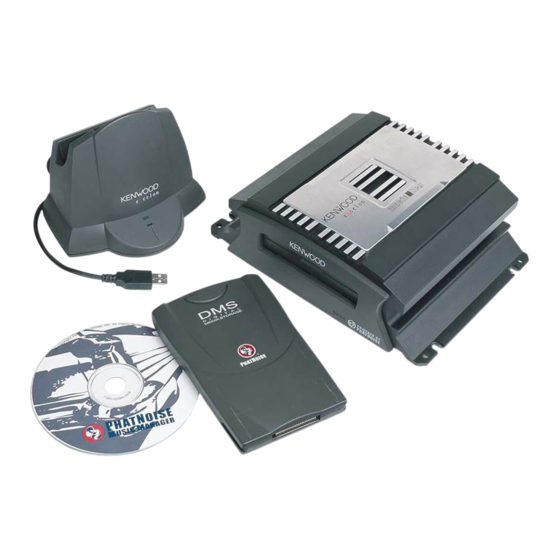

    System Components Please check to make sure your Kenwood Music Keg package is complete. In addition to this manual, you should have received all of the following parts: 1 Music Keg 1 Music Keg connector cable (6 meter) 1 DMS cartridge...
  • Page 7 USB Cradle power adaptor PhatNoise Music Manager software CD-ROM Page 7 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 8: Music Keg Overview

    A. Music Keg Overview The Music Keg is the central brain of the Kenwood Excelon Music Keg car audio system. It is a computer that you install permanently in your vehicle. The Music Keg software and the music files themselves are contained on a cartridge that is inserted into the Music Keg.

  • Page 9: Dms Cartridge Overview

    Music Keg. Do not open the DMS cartridge casing. Doing so will void your warranty. Only use the supplied cartridge with your Kenwood Music Keg—other cartridges with other drives inside will not work wit h your system.
  • Page 10 Important! Download and install the PhatNoise Music Manager software in your computer before you connect the USB cradle to your computer. Page 10 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 11: Safety And Handling Precautions

    Do not install the Music Keg in an area of high humidity or where large amounts of airborne dust/dirt are present. Page 11 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 12: Section I: Installation Guide

    Also, please note what is behind or under your mounting location. Avoid mounting the Music Keg where screws could hit wiring or fuel lines. Page 12 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 13: Connecting The Music Keg To Your Head Unit

    Note: The port on the Music Keg unit labeled "Power" is not used at this time. The Audio "R" and "L" outputs are used with particular head units and may not be necessary for your installation. Page 13 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 14: Wiring A Music Keg To Kenwood Head Units

    Wiring a Music Keg to Kenwood Head Units 1. Turn off the car and the radio. 2. Gain access to the rear portion of your car stereo head unit. Important note: This step may involve removing parts of the dashboard, depending on your car. If do not have experience installing car audio equipment, we recommend you seek the assistance of a professional car audio installer.

  • Page 15: Making The Final Connection

    4. Turn on your car stereo. 5. Switch to CD changer mode on your head unit. 6. Wait for a “Welcome to the Kenwood Music Keg Car Audio System” message to play. You may have to wait up to 15...
  • Page 16 1. Disconnect the cable from the Music Keg, wait about 1 minute, then reinsert it, or 2. Your cartridge may be corrupted. Please see Appendix D: Contacting Kenwood to get assistance. Page 16 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 17: Section Ii: Setting Up At Home

    Installing the Kenwood Excelon edition of the PhatNoise Music Manager software The Kenwood Excelon edition of the PhatNoise Music Manager software is included on the CD found in your package. You can use the software to create and manage playlists of MP3s, WMA and WAV files.
  • Page 18 7. Once rebooted, plug the power connector into the USB cradle. Make sure the cradle is plugged into a power suppl y before connecting it to your computer. Page 18 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 19 ‘slapping’ the cartridge into place. The green and red indicator lights should illuminate. The DMS cartridge will then be detected by the operating system. Page 19 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 20 3. Choose “Install the software automatically (Recommended)” 4. Click “Next” 5. A “Hardware Installation” warning box will appear 6. Click “Continue Anyway” 7. Click “Finish” Page 20 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 21 8. After an initialization period, an “Autoplay” dialog box will appear 9. Let the Autoplay feature complete Page 21 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 22 10. Dialogs will appear for PHTDTA and PHTSYS 11. For each dialog, select “Take No Action” and check “Always do the selected Action” Click “OK” 12. Your DMS is ready! Page 22 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 23: Section Iii: Creating And Managing Playlists

    Page 23 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 24: Launching The Music Manager

    “C:\Program Files\KaZaA\My Shared Folder”). Navigating the Program Each icon on the left of the application’s screen represents a different interface and part of the software. Playlist View Page 24 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 25 2. Insert the CD into the computer. Press the Load Button. 3. If the computer is connected to the Internet, the songs names will appear next to the track number as follows: Page 25 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 26 5. Edit the “Artist”, “Title”, “Genre” and “Year” information if it is missing or incorrect. 6. Choose the tracks to encode using the checkboxes. 7. Choose the file format to encode. Page 26 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 27: Creating And Managing Playlists

    9. Press the Start button in the Encode panel and the process will begin. Creating and Managing Playlists To create and manage your music playlists, click on the Playlist Manager button. The Playlist view appears. Page 27 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 28 Click the Create playlist button. Then change the name of the playlist to a name of your choice. 2. Adding songs to a static playlist 1. Click on the All Songs playlist. Page 28 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 29 2. Type a search query in the Search box. Page 29 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 30 Enter the number of most recent songs to add and press Add. Page 30 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc. (this does not need to be changed)

  • Page 31: Playlists To The Dms Cartridge

    The PhatNoise Car Audio System can handle as many as 999 separate playlists. The total number of songs on the DMS Cartridge must not exceed 30,000. Page 31 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 32: Transferring Mp3S And Playlists To The Dms Cartridge

    3. The Devices view appears: The Devices view is organized in two parts: The PhatNoise Music Manager Playlist and Windows Explorer panels The All Supported Devices panels. Page 32 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 33: Adding A Playlist To An Existing Disc On The Dms Cartridge

    1. Drag the playlist onto an existing disc. The target disc will take on the name of the playlist. Page 33 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc. “GO” button. to work with your head...

  • Page 34: Adding A Phatnoise Music Manager Playlist As A New Disc On The Dms Cartridge

    Additional DMS Features Creating a Blank Disc 1. You can create a blank disc as a ‘placeholder’ for future playlists. Page 34 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 35: Syncing Music

    If a disc has fresh content after syncing, the yellow star will turn blue and the new files will be highlighted. Be sure to click Save/Eject DMS to apply the changes. Page 35 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 36: Example Playlists

    ‘Music Keg DMS’. Here, the ‘Recent Hip Hop’ and ‘Recent Techno’ discs were created by this method. These were dragged right below the first disc, the Page 36 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 37 DMS cartridge. You can create a new disc for it just by dragging the artist to a blank space. Note these playlists are Dynamic as well. Page 37 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 38: Section Iv: Operating The Kenwood Music Keg With Your Kenwood Head Unit

    With Your Kenwood Head Unit The Music Keg is controlled through the CD changer controls of your existing Kenwood head unit. To the head unit, the Music Keg appears like a large CD Changer. Playback of MP3 files is controlled via the next/previous track and next/previous disc buttons on the head unit.

  • Page 39: Navigating The Playlists In The Music Keg

    Skipping from one playlist to the next is easy. Si mply press the next/previous disc buttons. Displaying information about your music Since most Kenwood head units display CD text the song and artist name from the MP3 ID3 tag will scroll across the head unit display. Special Notes...

  • Page 40: Appendix A: Updating The Firmware In Your Music Keg

    1. Insert the DMS cartridge into the USB Cradle. 2. Launch the PhatNoise Music Manager by double-clicking the icon on your desktop 3. Press the Device Manager button. Page 40 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 41 4. Click the text PhatNoise DMS and then press the “GO” button. 5. Press the Hardware Options button. 6. Make sure the ‘Installed Product’ is the Kenwood EXcelon Music Keg. Press the Start Wizard button to begin the update process.
  • Page 42 7. The wizard will begin. Press Next to skip the introductory screen. 8. Press the Check for Updates from PhatNoise Website button to load the latest set of head units. Page 42 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 43 9. Click on your specific head unit. 10. Press the Next button. The window will display the firmware version information. Page 43 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 44 Now the Music Keg can be updated using the following steps: 13. While your car radio is off, insert the DMS cartridge into your Music Keg. Page 44 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.
  • Page 45 17. When the Music Keg is done reprogramming, all the Music Keg lights will turn off. Now the Music Keg is ready for normal operation. Page 45 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 46: Appendix B: Troubleshooting

    USB cradle is not recognized properly. Page 46 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc. Cause/Solution - Adjust the volume of the head unit. - Make sure the Music Keg cable is correctly connected to the head unit.

  • Page 47: Appendix C: Warranty And Liability Policy

    Page 47 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc. Cause/Solution The PhatNoise Music Manager database files have been corrupted.

  • Page 48: Installation Precautions

    7. The only effective protection for data and other material stored on the DMS Cartridge is the regular backing up of that data by you, the consumer. Kenwood USA Corporation. shall not be responsible for the loss of any such data or other material.

  • Page 49: Music Keg Player And Usb Cradle Precautions

    7. Do not remove the DMS Cartridge from the USB Cradle until downloading is complete. Do not attempt to service any part of the product yourself. Servicing should only be done by qualified service personnel. Page 49 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc.

  • Page 50: Appendix D: Contacting Kenwood Support

    Phone: 1-800-KENWOOD (536-9663) Mailing Address: P.O. Box 22745 Long Beach, CA 90801-5745 Call center is available 8:30am – 5:00 PT Monday through Friday. Page 50 Kenwood Excelon Music Keg User Manual Copyright 2001 Kenwood USA Corporation & PhatNoise Inc. KHD-UM1...
