Summary of Contents for Lumina SL380J
-

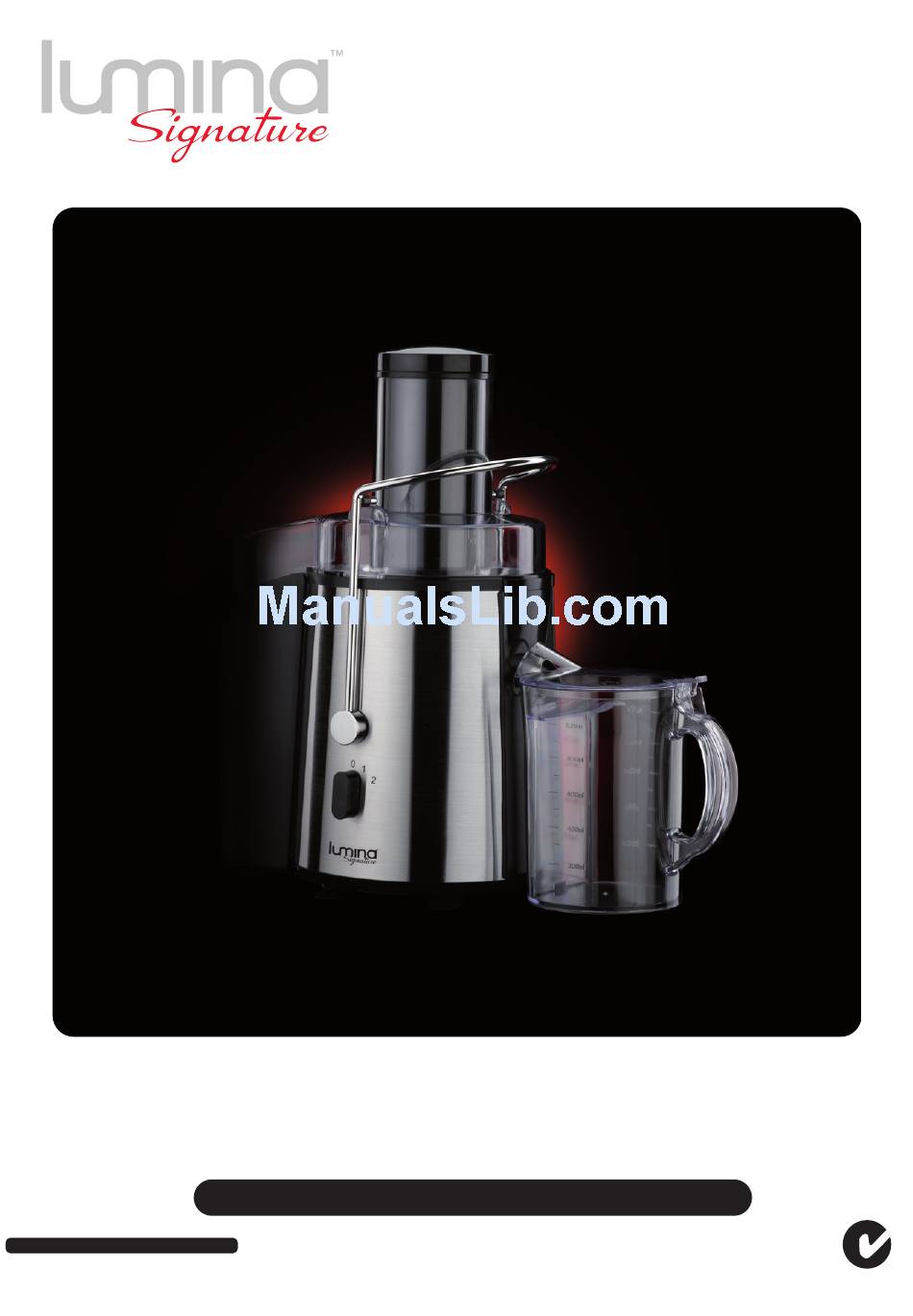

Page 1: Juice Extractor
Juice Extractor Model Number SL380J INSTRUCTION MANUAL After Sales Support Telephone: 1300 762 234 Email: australia@monolith-support.com N26968... -
Page 2: Table Of Contents
Contents Warranty Details 3 Welcome 4 General Safety Instructions 5 Proper Use of the Appliance 5 Safety Information 5 Parts List 7 Operation 8 Features 8 Tips for Use 8 Before Starting Up Your Appliance for the First Time 9 Preparing Fruit and Vegetables 9 ... -
Page 3: Warranty Details
Juice Extractor Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 4: Welcome
Welcome ® Congratulations on choosing to buy a Lumina Signature product. ® All products brought to you by Lumina Signature are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. -
Page 5: General Safety Instructions
General Safety Instructions These operating instructions are intended to enable you to use your new appliance with confidence. In order for you to gain the greatest possible enjoyment from your new product and to derive as much benefit as possible from it, we recommend that you read these instructions carefully before using the appliance for the first time. - Page 6 Mains connection: Only connect the appliance to sockets with the same AC voltage as indicated on the rating plate (220-240 V). Only use the appliance with the power cord supplied. Only operate the appliance using earthed sockets. ...
-
Page 7: Parts List
Parts List Figure 1: Appliance package contents 1. Mains plug 2. Juice container 3. Separating compartment 4. Safety clip 5. Switch 6. Central unit housing 7. Pulp container 8. Separating insert 9. Filter 10. Feed tube 11. Compressor 12. Brush After Sales Support Telephone: 1300 762 234... -
Page 8: Operation
Operation Features The appliance can be assembled in just a few steps. The juice extractor can only be operated once the safety clip (Part 4 - as seen on page 7) has been engaged. Compress the freshly prepared pieces of fruit and vegetable into the feed tube (Part 10 - as seen on page 7) using the compressor (Part 11 - as seen on page 7). -
Page 9: Before Starting Up Your Appliance For The First Time
Before Starting Up Your Appliance for the First Time 1. Check the contents of the package are complete. 2. Remove the packaging and all protective film. 3. Check the appliance and all accessories for any visible damage. If there is any kind of damage, do not use the appliance. - Page 10 3. Insert the separating insert (Part 8 - as seen on page 7) into the matching recesses in the central unit housing. Press the separating insert firmly downwards, in order to make contact with the motor. Figure 4: Inserting the separating insert CAUTION! Risk of injury Risk of cutting yourself from the sharp blades in the filter (Part 9 - as seen on page 7).
- Page 11 6. Fold the safety clip (Part 4 - as seen on page 7) firmly upwards until it engages in the two recesses on the feed tube. Figure 7: Folding the safety clip (4) upwards 7. Open the lid of the juice container (Part 2 - as seen on page 7) and insert the separating compartment (Part 3 - as seen on page 7).
-
Page 12: Shutting Your Appliance Down
10. Insert the mains plug (Part 1 - as seen on page 7) on the power cord into an earthed 220-240 V/50 Hz socket. 11. Drop the prepared pieces of fruit and vegetable in the feed tube (Part 10 - as seen on page 7). CAUTION! Risk of injury Risk of injuries during compression. -
Page 13: Serving The Juice
Serving the Juice 1. Remove the juice container (Part 2 - as seen on page 7). 2. Open the lid of the juice container and remove the separating compartment (Part 3 - as seen on page 7). 3. Stir the freshly pressed juice well with a spoon. 4. -
Page 14: Frequently Asked Questions
Frequently Asked Questions Which fruits and vegetables are suitable for use in the juice extractor? The following fruits and vegetables are most suitable for use in the juice extractor: pineapple, apple, melon, citrus fruits, cucumber, celery, carrot, spinach and tomato. Leafy vegetables (such as cabbage and spinach) should be shaped into balls before being placed in the appliance. -
Page 15: Cleaning
Cleaning Clean the appliance immediately after use. This makes it easier to remove fruit and vegetable remains. CAUTION! Electric shock Risk of electric shock. Disconnect the appliance from the power supply before cleaning. Wait until the appliance has cooled down. ... -
Page 16: Storing Your Appliance
Storing Your Appliance The appliance and all individual parts must be completely dried before storage. Always keep the appliance in a dry location. Protect the appliance from direct sunlight! Store the appliance so that it is not accessible to children, is safely put away and at a storage temperature of between + 5°C and + 20°C.
