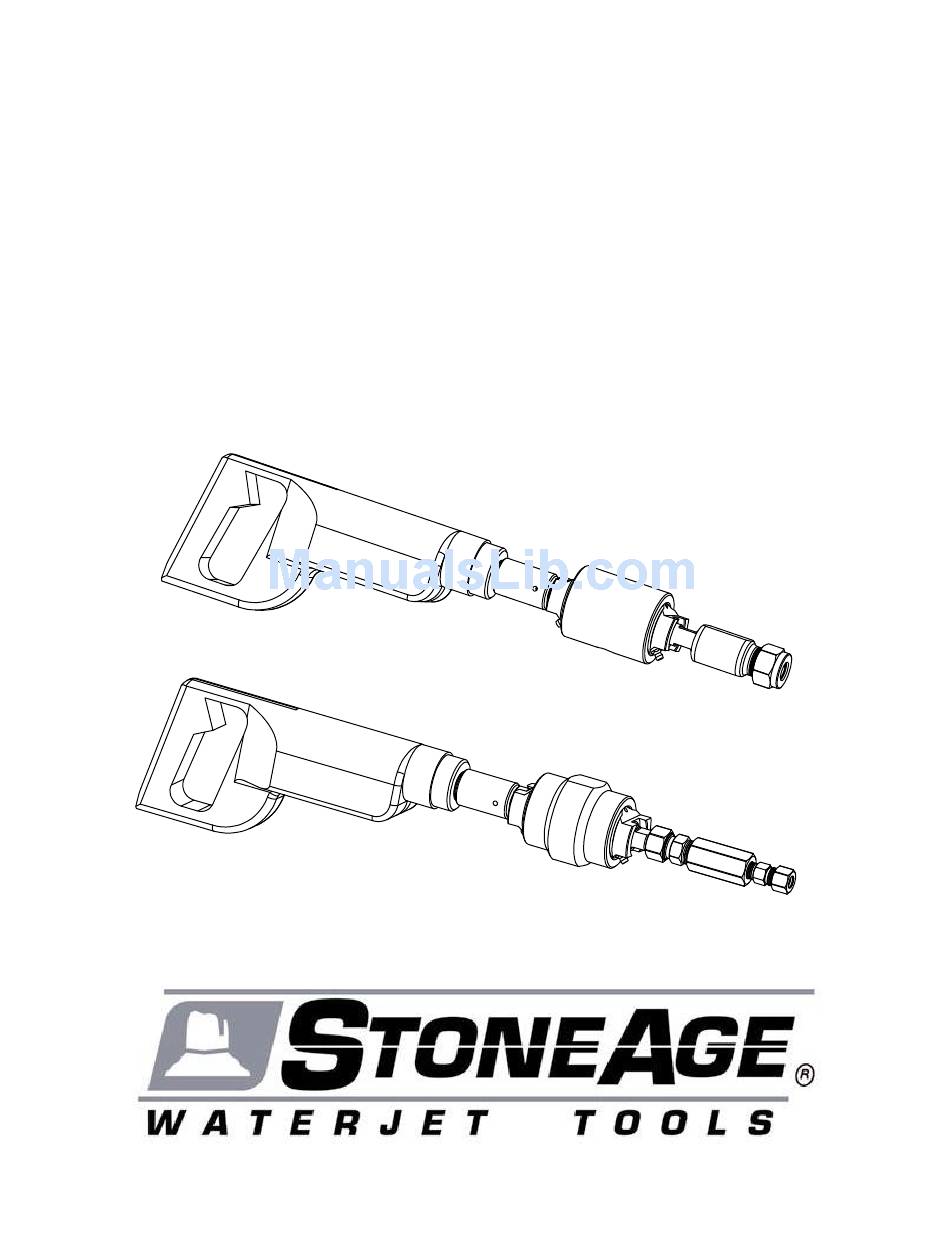

- Page 1 AIR POWERED ROTARY WATERBLAST TOOL SA 1900 and 1909 OPERATION AND MAINTENANCE MANUAL 466 S. Skylane Dr. Durango, Colorado 81303 (970) 259-2869 Phone (970) 259-2868 Fax www.stoneagetools.com sales@stoneagetools.com 05/04...
-
Page 2: Table Of Contents
If you have any questions or problems with this equipment, please contact the distributor you obtained the product from, or the manufacturer: StoneAge, Inc. 466 S. Skylane Dr. Durango, CO 81303 970-259-2869 Phone 970-259-2868 Fax www.stoneagetools.com... -
Page 3: Description
SA 1909 is female Autoclave Engineering 9/16 High Pressure, with an adapter to female 9/16 Medium Pressure. The output shaft for the SA 1900 is male 3/8 NPT thread. Adaptors for the SA 1900 are available to fit standard lance rods. The output shaft for the SA 1909 is male, Autoclave Engineering 9/16 High Pressure. -
Page 4: Parts List
PARTS LIST SA 1900 Part # Description SA 019 AIR MOTOR SA 040 SIOUX COUPLER HI P6-P6 HI-P ASSEMBLY SA 056 P6-S4 LANCE ADAPT 1/4 OD Optional SA 056-P6- -P2 LANCE ADAPT 1/8 Pipe SA 056-P6-P4 LANCE ADAPT 1/4 Pipe... -
Page 5: Assembly Drawings
5.0 SA 1900 EXPLODED ASSEMBLY DRAWING SA 019 AIR MOTOR HI-P6P6 ASSEMBLY GP 075-XXX COLLET SA 040 SHAFT COUPLING SA 056-P6-P4 LANCE ADAPTOR GP 076 COLLET NUT 12/06... - Page 6 5.1 SA 1909 EXPLODED ASSEMBLY DRAWING SA 019 AIR MOTOR AF 072-MP9 GLAND NUT AF 072-MP9 GLAND BODY SA 040 SHAFT COUPLING AF 071-MP6 COLLAR HI-MP9MP9 ASSEMBLY AF 072-MP6 GLAND NUT AF 072-MP9 GLAND COLLET AF 071-MP9 COLLAR AF 073-MP6MP9 LANCE COUPLER AF 072-MP6 GLAND BODY AF 072-MP6 GLAND COLLET 12/06...
-
Page 7: Maintenance
MAINTENANCE This tool has been designed to require a minimum amount of attention by the operator. However, some guidelines should be followed to obtain top performance and a long, useful life. This tool is capable of fairly high rpm, but it is recommended that a valve be installed in the airline to regulate the top speed. -
Page 8: Warranty
StoneAge, Inc. shall in no event be held liable for damages or delay resulting from or arising out of defective products nor for consequential damages or otherwise except for repair or replacement of items of defective material or workmanship aforesaid.
