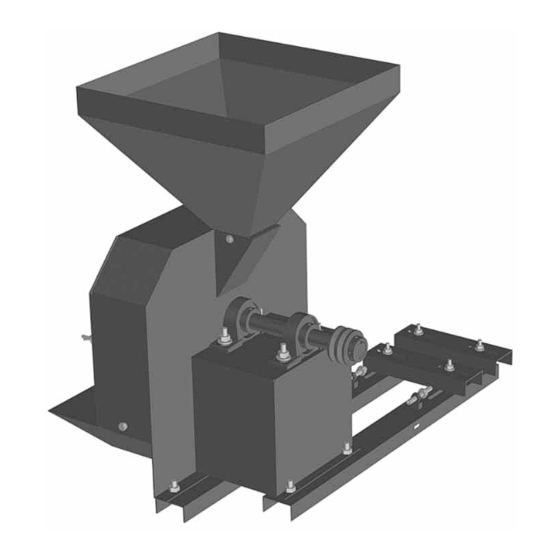

Farm King Hammermill FK354 Operator And Parts Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

OperatOr and parts Manual

Hammermill

122010

FK354

Table of Contents

Need help?

Do you have a question about the Hammermill FK354 and is the answer not in the manual?

Questions and answers

Summary of Contents for Farm King Hammermill FK354

Page 1 OperatOr and parts Manual Hammermill 122010 FK354...
Page 3: Table Of Contents
Table of Contents - Hammermill Table of Contents Introduction ..........................4 Safety ............................5 • Safety ..........................5 Assembly ............................6 • Assembly Instructions .....................6 Operation .............................7 • Operation Instructions .....................7 Maintenance ..........................8 • Maintenance ........................8 • Lubrication ........................8 • Vibration ...........................8 Bolt Torque ...........................9 • Checking Bolt Torque .......................9 Parts Drawings ...........................10 • Hammermill Assembly Drawing ...................10...
Page 4: Introduction
Introduction - Hammermill Introduction Farm King hammermills are designed to maximize the nutritional value of feed. Built with durable, heavy-gauge materials, Farm King hammermills deliver top-quality processed grain with minimum maintenance and low operating costs. Keep this manual handy for frequent reference. All new operators or owners must review the manual before using the equipment and at least annually thereafter.
Page 5: Safety
Safety - Hammermill Safety Safety Instructions Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions.
Page 6: Assembly
Assembly - Hammermill Assembly Instructions • Mount the motor on the motor mount and install the belts provided. Belts must be tight. • Hammermill can be driven in either direction. • Mount the pulleys and belts before attaching the guard. Slide the guard over the pulleys and belt.
Page 7: Operation
Operation - Hammermill Operation Instructions • The Model 60 Hammermill is a six-inch hammermill and is designed to run at the speed of 3600 rpm. • The power requirement for the mill is either a 3 hp or 5 hp electric motor, 3450 rpm A 3-1/2" pulley is required for the motor shaft.
Page 8: Maintenance
Maintenance - Hammermill Maintenance Maintenance • The hammers are 4-way reversible and made of high carbon steel to provide longlasting wear. • When reversing hammers, reverse the complete set or the rotation balance of the cylinder will be affected. Lubrication • Providing grease does not escape from bearings, they should be greased every 40 working hours.
Page 9: Bolt Torque
Bolt Torque - Hammermill Bolt Torque Checking Bolt Torque The tables shown below give correct torque values for various bolts and hex bolts. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide.
Page 10: Parts Drawings
Parts - Hammermill Hammermill Assembly Drawings...
Page 11: Hammermill Parts List
Parts - Hammermill When Ordering Parts Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part.
Page 12 Parts - Hammermill Item Part Number Description 968618 5/16" x 4 1/2" Key 968811 1-1/4" x 2" Key 968620 3 1/4" O.D. x 1-1/2" Bore Double Pulley 812490 3/8" x 3/8" Socket Set Screw 968624 B-57 Belts (Set of Two) 968659 Guard Weldment 968657...
Page 13: Shipping Kit And Bundle Numbers
Parts - Hammermill Shipping Kit and Bundle Numbers The following is a list of Kit Numbers for this product and the Bundle Numbers, Descriptions, and Quantities for each Kit. Quantity Bundle Number Description F5100 Hammermill F5101 Hopper F5103 Belt Guard Optional Bundle Numbers The following is a list of options available for the Kits listed above.
Page 14: Warranty
Repair Parts Limited Warranty Buhler Industries Inc. warrants Farm King replacement parts purchased after the expiration of the Buhler Industries Inc. Limited Warranty, and used and serviced as provided for in the Operator’s Manual, to be free from defects in materials or workmanship for a period of thirty (30) days from the invoice date for the parts.
Page 15 Warranty Requirements To be covered by warranty, each Farm King new product must be registered with Buhler Industries Inc. within thirty (30) days of delivery to original retail purchaser. If the customer decides to purchase replacement components before the warranty disposition of such components is determined, Buhler Industries Inc.
Page 16 Warranty - Hammermill (Note that some provinces or states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusion may not apply to you.) This warranty gives you specific legal rights and you may also have other rights, which vary from province to province or state to state.
Page 18 www.farm-king.com 301 Mountain Street South Morden, Manitoba Canada R6M 1X7 Ph.: 204.822.4467 | Fax: 204.822.6348 Toll Free: 888.524.1004 E-mail: info@buhler.com www.farm-king.com Equipment shown is subject to change without notice. ©2010 Buhler Trading Inc. Printed in USA. TSX:BUI a division of Buhler Industries Inc.
