Summary of Contents for GoShockFree GSFS16

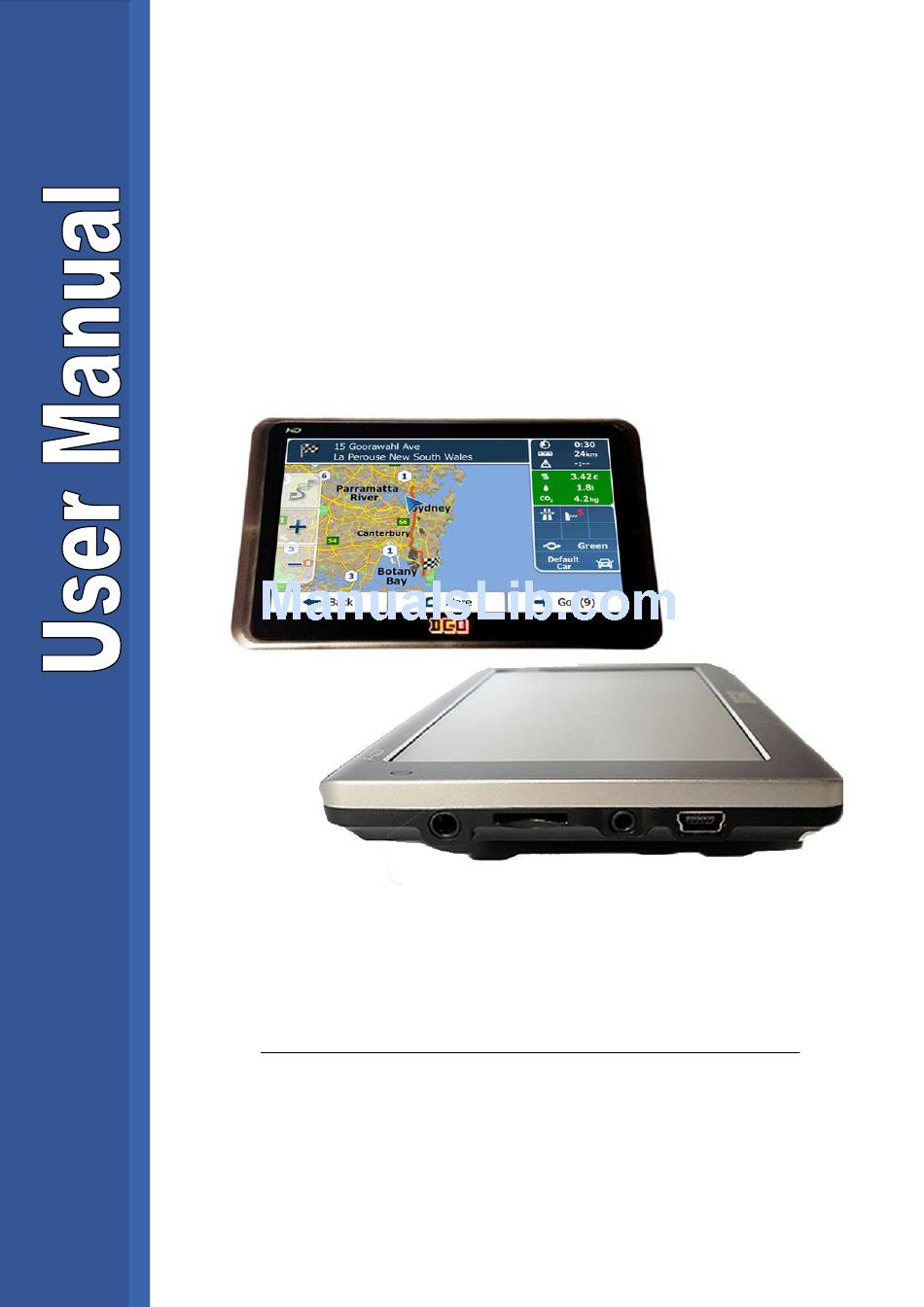

- Page 1 GSFS16 & GSFS18 The Traveler and Traveler+ http://stores.ebay.com.au/Goshockfree...
- Page 2 Thanks for purchasing this product. Please read the instructions carefully before using this product. • FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 Caution 1. Do not drop, puncture or disassemble the device; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Use the device with care. Avoid pressing hard on the device body. 4.
-
Page 4: Table Of Contents
Contents NTRODUCTION ................................4 NCLUDED CCESSORIES ETTING STARTED ................................5 OUNTING THE EVICE .................................. 6 RODUCT VERVIEW & C ................................ 7 OWER UPPLY HARGING .............................. 7 HARGING USING CONNECTION ............................... 7 HARGING USING THE HARGER ..................................8 ASIC ................................... 8 OWERING ON &... -
Page 5: Introduction
Introduction This device acts as both a ‘blackbox’ or Digital Video Recorder (DVR) and also a GPS navigation unit. It is controlled via the 5” touch screen. The unit features a wide 120° lens capable of recording in 720P. The device includes up to date Australian Maps with an option of having offroad maps installed. -
Page 6: Getting Started
Getting started. It is your sole responsibility to place, secure and use your Navigation unit in a manner that will not cause accidents, personal injury or property damage. Always observe safe driving practices. Do not mount your Navigation unit in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment. -
Page 7: Product Overview
Product Overview 1. Lock Key 6. VIDEO-IN Port 2. Power key 7. MINI USB Port 3. T-Flash slot for DVR only 8. Indicator light 4. Earphone Port 9. Microphone 5. T-Flash Port 10. Reset key Page 6... -
Page 8: Power Supply & Charging
Power Supply & Charging Charge the device with the charger before first use. This device can be powered by the built-in battery or external power supply. When the GPS navigator is unconnected to the charger, it is powered by the Li- polymer battery. -
Page 9: Basic Use
Basic Use Powering on Press the power key of the GPS navigator and let go after at least two seconds to power it on. Powering off & Sleep Press the power key and let go after at least two seconds to power off the GPS navigator. -
Page 10: System Main Interface And Major Functions
System Main Interface and Major Functions The system main interface is shown below. The icon are shortcuts to view system information and set time & date for the device. For details, please refer to relevant chapter and section. To rearrange icons at will, tap on an icon and stay until a four-way arrow appears at the upper left of it, and then drag the icon to a wanted place. -
Page 11: Navigator
To enter the Navigation app, select the GPS icon in the system main interface to start the navigation program. Please visit http://manuals.goshockfree.com/ for detailed navigator specific instruction If the navigator fails to load. See page 41 Navigation path. DVR Mode This section introduces the usage of the DVR. -
Page 12: Operation
Operation Interface of DVR。 Tap the icon in the system main interface to enter the DVR interface as follows: Turn Start-up & turn off video No/off Playback Player for the recorded video Lock Lock the recording video (Avoid erased during the period of cycling video) Setting Enter settings... -
Page 13: Settings Interface Of Dvr
Settings interface of DVR Select the icon in the DVR main interface to enter the setting interface. Formatting It is always recommended to format the card ensure complete compatibility with the unit Start video manner Tap and Save, it will running behind automatically when power on /Tap and Save, it will running by... -
Page 14: Playback Interface Of Dvr
Playback interface of DVR Tap the icon in the DVR main interface to enter the player interface as follows: Previous Play the previous video Play/ Pause Pause/continue playing Stop Stop playing the current video Next Play the previous video Lock Tap to lock &... -
Page 15: Playback On Computer
Playback on Computer Please insert the SD card into an external reader or the side slot of the device. Then connect the unit to the USB. AN exe file should exist on the SD card. This is the player which will also include all saved videos. Through this player you can view your saved files, see where your GPS location was at the time, and also export these files to be saved locally on your PC hard drive. -
Page 16: Other Functions
Other Functions Music Player The music player supports WMA9 and WAV files and also supports selection of play sequence. To use the function, please first insert a flash card with music files inside. 1. Tap the music icon in the system main interface to enter the Music Play interface as follows:... - Page 17 Icon Name Explanation Close Close the music player. Minimize Minimize the music player and return to the system main interface. Play Continue playing the paused/ stopped music. Pause Make the playing music pause. Stop Stop playing the music. play Select sequence, random or cycle play. sequence Previous Play the previous music.
- Page 18 2. Select in the Music Play interface to enter the Music list as follows: Icon Name Explanation Close Close the Music List. Scroll bar Drag it upward/ downward to view all music. Add one Add a piece of music on the left list to the play list on the right.
- Page 19 3 Tap in the Music Play interface to enter the Equalizer Setting interface as follows: Tick in on the upper left of the above interface, and then tap to select a music type or “User” from the drop-down menu. The music types include Pop, Rock, Metal, Dance, Electronic, Country, Jazz, Oldies, Blues, Nostalgia, Opera and speech.
-
Page 20: Video Player
Video Player The video player supports WMV, ASF and AVI files, full-screen play, progress selection and file selection. To use the function, please first insert a flash card with video files inside. 1. Select in the system main interface to enter the video player interface as follows: Icon Name... - Page 21 2. Tap in the Video Player interface to enter the video folder as follows: Icon Name Explanation Close Close the video folder. Scroll bar Drag the sliding block upward/ downward to view all the files under the folder. Video name & Video name and its format format Select a video file from the above video folder interface and then tap on it to...
-
Page 22: Photo Browser
Photo Browser The photo browser supports JPG, GIF, BMP and PNG files, photo rotation, zoom in/ out and auto play. To use the function, please first insert a flash card with photos inside. 1. Select the photo icon in the system main interface to enter the photo browser interface as follows. - Page 23 2. Select in the browser interface to enter the photo folder as follows: Icon Name Explanation Close Close the current folder. Return Return to the previous folder. Scroll bar Drag the sliding block to view all the photos. 3. Select to enter auto play interface as shown below.
-
Page 24: E-Book Reader
E-book reader The reader supports text files in .txt format, page turn and folder selection. To use the function, please first insert a flash card with text files inside. 1. Select the e-book icon in the system main interface to enter the reader interface as follows. - Page 25 2. In the reader interface, double tap the screen to enter to the full screen reading mode as follows: In the full mode reading interface, tap the upper part of the page to read the previous page, while tap on the lower part of the page to read the next page; tap to quit.
- Page 26 Icon Name Explanation Close Exit the setting interface. Save Save the settings. Theme Tap to select a theme for the e-book. Font to select a font for the e-book. Bold Tap to enable bold type. Tap it again to cancel. 4.
- Page 27 Tap “OK” to finish creating a bookmark or tap “Cancel” to quit the dialog. 6. Tap to view created bookmarks in the interface of Bookmark List as shown below. Drag the scroll bar and select a bookmark on the left list. Tap to go to the page with the bookmark or tap...
-
Page 28: Theme
Theme Tap the Theme icon to enter the following interface to set a style and theme for the system interface: to select a mode (from “Empty”, “Left” or “Bottom”) or a theme (5 kinds of themes in total), and tap to save the setting. -
Page 29: Wallpaper
Wallpaper Tap the Wallpaper icon to enter the following interface: 1. Set wallpaper with built-in wallpaper: Select built-in wallpaper from the above interface, and tap to get the following effect. 2. Set wallpaper with external image: Insert a T-flash card with images inside into the device, and tap “Browse” to select an image as follows: Page 28... - Page 30 Double tap on an image to add it to the “Wallpaper Setting” list, and then select the image and tap to set it as the wallpaper. [Note]: The built-in wallpapers cannot be deleted, while the added images can be deleted. To delete images, select an added image from the “Wallpaper Setting”...
-
Page 31: Favorites
Favorites in the system main interface to enter the Favorite interface as shown below. in the above interface to open the directory where the application to be added is, and then double tap the application to add it to the Favorite. To delete applications from the Favorite, select the application in the above interface and Select [Note]: While deleting the application, the shortcuts instead of application itself... -
Page 32: Explorer
Explorer Select the icon in the system main interface to popup the following dialog box indicating whether to enter the WINCE system: Select「OK」to enter the WINCE system as shown below while Select 「Cancel」to return to the system main interface. In the above interface, double tap the icon “GPS” and select “Yes” in the dialog box popped up to return to the GPS main interface. -
Page 33: Calendar
Calendar Select the icon in the system main interface to enter the Calendar setting interface as below If you want re-set the date and need enter into interface of setting→Date & Time for update (For detail please reference point 3.20 Date& Time System Resource Select the icon in the system main interface to enter the following interface:... -
Page 34: Calculator
Calculator Select in the system main interface to enter the calculator interface as follows: Unit Select in the system main interface to enter the unit converter interface as follows: Page 33... -
Page 35: Gps Info
GPS Info Select in the system main interface to view the GPS information as shown below. To reset the GPS satellite receiver, Select to prompt a dialog as below. Select OK to reset the GPS satellite or Select Cancel to exit. Page 34... -
Page 36: Volume
Volume Select in the system main interface to enter the volume setting interface as shown below. Close Exit the volume setting. Save Select to save the settings Volume Ten volume grades (from mute to maximum) available. decrease the volume by grade. Sounds Tap it to enable the function. -
Page 37: Backlight
Backlight Backlight setting includes backlight brightness adjustment and latency of backlight off. in the system main interface to enter the backlight setting interface as follows. Close Exit the backlight setting. Save Tap to save the settings Backlight Drag leftward to turn down or rightward to turn up the backlight. -
Page 38: Language
Language Select in the system main interface to enter the language setting interface as follows. Select to select a system language and Select to save the selection. Date& Time Select in the system main interface to enter the Date &Time setting interface as follows. -
Page 39: Calibration
Calibration Select in the system main interface to prompt the calibration dialog as follows. Select OK to execute calibration or Cancel to cancel calibration and go back to the system main interface. Select OK, and the following calibration interface is prompted. Click the center of cross cursor with the touch pen and the cursor shifts from the center, upper left, lower left, upper right and lower right to finish the calibration and the interface will be closed automatically to go back to the system main interface. -
Page 40: Restore Factory Setting
Restore Factory Setting Select in the system main interface to restore the factory setting. The following dialog will be prompted. Select OK to restore the default setting or Cancel to return to the system main interface. NOTE: if you restore back to factory setting, you need to set the NAV path again for the GPS application. -
Page 41: Usb Setting
USB setting Connect the GPS navigator to PC via the MINI USB port to transmit data, or back up data from the navigator data to PC. ◆ MASS STORAGE 1. Have the GPS navigator in operation status and the SD card plugged in the slot; 2. -
Page 42: System Info
System Info Select in the system main interface to view the system information as follows. The system information interface display information on hardware version, software version, platform identity, device identity and SD card identity. Navigation Path Select the "Nav Path" icon and enter into the following display interface: NOTE: Select the Auto Run Navigation, the device will run the Navigation software automatically when turning the device on. - Page 43 Page 42...
-
Page 44: Appendix Troubleshooting
Appendix Troubleshooting Please carry out the following operations in case of abnormal operation of the GPS navigator. Fault Reason Solution Startup failure Low battery Supply external power and charge the battery. System down Reset the GPS navigator. Sudden power cut Low battery Supply external power and charge the battery. - Page 45 Page 44...
