Summary of Contents for Meridian Yachts 411SB Sedan

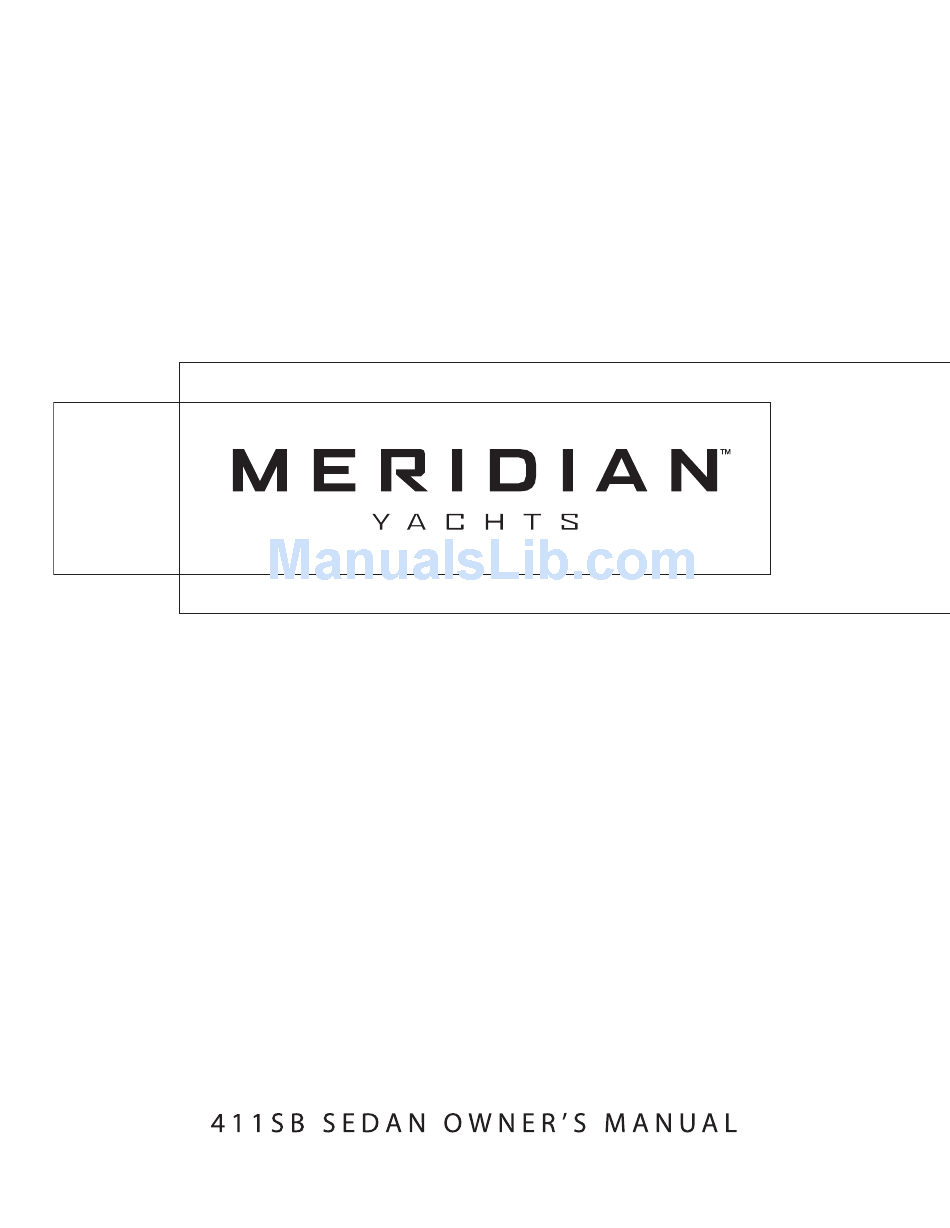

  • Page 3: Hull Identification Number

    Date of Purchase: _________________________________________ Port Engine Serial Number: _________________________________ Starboard Engine Serial Number: ____________________________ Hull Identification Number:__________________________________ Hull Identification Number • The Hull Identifica- tion Number (HIN) is located on the star- board aft corner of the hull. • Record the HIN (and the engine serial numbers) in the space provided...

  • Page 4: Table Of Contents

    CONTENTS Chapter 1: Welcome Aboard! Chapter 4: Controls & Gauges Dimensions & Tank Capacities 1 Steering 47 Hydraulic Steering System 47 Dealer Service 1 Rudder Stuffing Gland 47 Warranty Information 1 Autopilot (If Equipped) 48 Boating Experience 2 Shift/Throttle Controls 48 Qualified Maintenance 2 Engine Synchronization (If Equipped) 48 Structural Limitations 2...
  • Page 5 Chapter 7: Deck Equipment Chapter 11: Electrical Systems Cleats 66 12-Volt DC System 77 Batteries 77 Windlass 66 Battery Switches 77 Radar Wing 67 Emergency Battery Parallel Switch 78 Canvas & Vinyl Tops & Enclosures 67 Fuses & Circuit Breakers 79 Canvas Care 12-Volt DC Accessory Outlet(s) 79 Clear Vinyl Care 69...
  • Page 6 Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan- gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol- low all safety instructions.

  • Page 7: Chapter 1: Welcome Aboard

    411 Sedan • Owner’s Manual Chapter 1: Welcome Aboard! • This Owner’s Manual provides specific information about your yacht that is not covered in the Cruiser & Yacht Owner’s Manual Supplement. • The Cruiser & Yacht Owner’s Manual Supplement contains general information about safe operating practices, general boating regulations, and general maintenance techniques.

  • Page 8: Boating Experience

    Chapter 1: Welcome Aboard! 411 Sedan • Owner’s Manual Boating Experience WARNING! CONTROL HAZARD! An experienced operator MUST be in control of your yacht at ALL times. Do NOT operate your yacht while under the influence of alcohol or drugs. If this is your first yacht or if you are changing to a type of yacht you are not familiar with, for your own comfort and safety, get handling and operating experience before assuming command of your yacht.

  • Page 9: Engine & Accessory Guidelines & Literature

    411 Sedan • Owner’s Manual Chapter 1: Welcome Aboard! Engine & Accessory Guidelines & Literature NOTICE BEFORE starting or working on your engine(s), read the engine manual. NOTICE BEFORE using the accessories on your yacht, read the accessory manuals. NOTICE BEFORE storing your yacht, refer to your engine and accessory manuals for storage/ winterization instructions.

  • Page 10: Safety Standards

    Chapter 1: Welcome Aboard! 411 Sedan • Owner’s Manual Safety Standards DANGER! FALLING and ROTATING PROPELLER HAZARD! • NEVER allow anyone to ride on parts of your yacht NOT designed for such use. • Sitting on seat backs, lounging on the forward deck, bow riding, gun- wale riding or occupying the transom platform while underway is especially hazardous and WILL cause personal injury or death.

  • Page 11: Special Care For Moored Yachts

    411 Sedan • Owner’s Manual Chapter 1: Welcome Aboard! Special Care for Moored Yachts • Whether moored in saltwater or freshwater, your yacht will collect marine growth on its hull bottom. • This will detract from your yacht’s beauty, greatly affect its performance, and may damage the gel coat. •...

  • Page 12: Yacht Lifting

    Chapter 1: Welcome Aboard! 411 Sedan • Owner’s Manual Yacht Lifting WARNING! PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD! • Lifting slings can slip on the hull, which could cause serious injury or death. • Reduce the risk of sling slippage by ALWAYS securing the lifting slings together BEFORE lifting.

  • Page 13: Carbon Monoxide (Co)

    411 Sedan • Owner’s Manual Chapter 1: Welcome Aboard! Carbon Monoxide (CO) DANGER! • Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely dangerous. • ALL engines, generators, and fuel burning appliances produce CO as exhaust. • Prolonged exposure to low concentrations or very quick exposure to high concentrations WILL cause BRAIN DAMAGE or DEATH.

  • Page 14: Where & How Co Can Accumulate

    Chapter 1: Welcome Aboard! 411 Sedan • Owner’s Manual Where & How CO Can Accumulate Stationary conditions that increase CO accumulations include: A. Using engine, generator, or other fuel burning device when yacht is moored in a confined B. Mooring too close to another boat that is using its space.

  • Page 15: Co Checklists

    411 Sedan • Owner’s Manual Chapter 1: Welcome Aboard! CO Checklists Trip Checklist Educate all passengers about the symptoms of CO poisoning and where CO may accumulate. When docked, or rafted with another boat, be aware of exhaust emissions from the other boats. Make sure you know where the exhaust outlets are located on your yacht.

  • Page 16: Co Monitors

    Chapter 1: Welcome Aboard! 411 Sedan • Owner’s Manual CO Monitors DANGER! CARBON MONOXIDE POISONING HAZARD! • The house battery switch MUST be in the On position for the CO monitors to work. • If your yacht will be unattended for an extended period of time, turn Off the house battery switch or the CO monitors WILL drain the house battery.

  • Page 17: Chapter 2: Locations

    411 Sedan • Owner’s Manual Chapter 2: Locations Exterior Views Hull Views...

  • Page 18: Forward & Port Side Deck View

    Chapter 2: Locations 411 Sedan • Owner’s Manual Forward & Port Side Deck View...

  • Page 19: Aft & Starboard Side Deck View

    411 Sedan • Owner’s Manual Chapter 2: Locations Aft & Starboard Side Deck View...

  • Page 20: Command Bridge Helm Station

    Chapter 2: Locations 411 Sedan • Owner’s Manual Command Bridge Helm Station NOTE: TYPICAL HELM LAYOUTS SHOWN. ACTUAL LAYOUTS MAY VARY DEPENDING ON ENGINE & ACCESSORY OPTIONS. TACHOMETERS & PORT ENGINE STARBOARD ENGINE OIL PRESSURE HOURMETERS OIL PRESSURE PORT ENGINE PORT STARBOARD STARBOARD ENGINE...

  • Page 21: Lower Helm Station (If Equipped)

    411 Sedan • Owner’s Manual Chapter 2: Locations Lower Helm Station (If Equipped) NOTE: TYPICAL HELM LAYOUTS SHOWN. ACTUAL LAYOUTS MAY VARY DEPENDING ON ENGINE & ACCESSORY OPTIONS. HORN BILGE PUMPS LIGHTS WINDLASS TRIM TABS ACCESSORY ACCESSORY HIGH WATER ALARM TACHOMETERS &...

  • Page 22: Component Locations

    Chapter 2: Locations 411 Sedan • Owner’s Manual Component Locations 12-Volt DC Accessory Outlets: • One is located on the ignition switch panel at the command bridge helm. COMMAND BRIDGE HELM 12-VOLT DC ACCESSORY OUTLET • One is located on the ignition switch panel at the lower helm (if equipped).
  • Page 23 411 Sedan • Owner’s Manual Chapter 2: Locations • One is located inside the TV cabinet (if equipped) on the starboard side of 12-VOLT DC the guest stateroom. ACCESSORY OUTLET (IF EQUIPPED) TV CABINET (IF EQUIPPED) DRESSER NOTE: PHOTO SHOWN WITH TOP OF CABINET REMOVED 12-Volt DC Circuit Breakers: •...
  • Page 24 Chapter 2: Locations 411 Sedan • Owner’s Manual 110-Volt AC & 12-Volt DC Master Panels: 110-VOLT AC MAIN DISTRIBUTION PANEL Located inside the elec- trical cabinet in the starboard aft corner of the salon. 12-VOLT DC MAIN DISTRIBUTION PANEL ELECTRICAL CABINET Air Conditioner Seawa- ter Intake Seacock (If Equipped):...
  • Page 25 411 Sedan • Owner’s Manual Chapter 2: Locations Air Conditioners (If Equipped) (4 total): • Two are located behind the AIR CONDITIONERS command bridge dash. • Access through the hatch for- ward of the port lounge seat. HATCH COVER PORT LOUNGE SEAT •...
  • Page 26 Chapter 2: Locations 411 Sedan • Owner’s Manual Batteries: • All batteries except the bow thruster battery are located on the port side of the lazarette. • The bow thruster bat- tery is located forward of the water heater on the port side of the engine room.
  • Page 27 411 Sedan • Owner’s Manual Chapter 2: Locations Bilge Pumps (4 total): • One is located in the aft bilge area of the lazarette. BILGE PUMP AUTOFLOAT SWITCH • Two are located in the for- ward bilge area of the engine room.
  • Page 28 Chapter 2: Locations 411 Sedan • Owner’s Manual City Water Inlet: Located just above the swim plat- form on the port aft corner of the deck. CITY WATER INLET CO Monitors (3 total): • One is located above the nightstand on the forward wall of the guest stateroom.
  • Page 29 411 Sedan • Owner’s Manual Chapter 2: Locations • One is located above the hanging locker in the starboard aft corner of the master stateroom. STARBOARD CO MONITOR HANGING LOCKER Depth Finder Transducer: Located in the forward bilge area of the engine room.
  • Page 30 Chapter 2: Locations 411 Sedan • Owner’s Manual Engine Room: • Access by lifting the command bridge stairs. • There is additional access through the large floor hatch in the salon. Freshwater Fill Deck Fitting: Located on the starboard aft deck trail. Freshwater Pump: Located on the starboard aft FRESHWATER...
  • Page 31 411 Sedan • Owner’s Manual Chapter 2: Locations Freshwater Pump Switch: Located on the 12-volt DC main distribution panel inside the electrical cabinet in 12-VOLT DC MAIN DISTRIBUTION PANEL the starboard aft corner of the salon. FRESHWATER PUMP SWITCH Freshwater Tank: Located in the forward center area of the lazarette.
  • Page 32 Chapter 2: Locations 411 Sedan • Owner’s Manual Freshwater Washdown Faucets (2 total): • One is located inside the storage locker on the starboard side of the forward deck. • One is located inside the starboard transom hatch in the cockpit. AFT FRESHWATER WASHDOWN FAUCET Fuel Fill Deck Fittings: Located on the port and starboard aft corners of...
  • Page 33 411 Sedan • Owner’s Manual Chapter 2: Locations Fuel Tanks: Located on each side of the engine room. Fuel Transfer Pump (If Equipped): Located on the ceiling between the engines in the engine room. SALON FLOOR HATCH (SHOWN OPEN) FUEL TRANSFER PUMP (ON CEILING) PORT ENGINE...
  • Page 34 Chapter 2: Locations 411 Sedan • Owner’s Manual Generator: Located at the center aft end of the engine room. Generator Seawater Intake Seacock: Located aft of the starboard engine in the engine room. Heat Exchange Fan Switch (If Equipped): Located on the starboard side of the sink cabinets in the galley.
  • Page 35 411 Sedan • Owner’s Manual Chapter 2: Locations Holding Tank: • Located under the guest stateroom floor. • Access the tank fittings through the forward and aft floor hatches. AFT FLOOR FORWARD HATCH FLOOR HATCH Holding Tank Monitor: Located in the electrical cabi- ELECTRICAL CABINET net in the starboard aft corner of the salon.
  • Page 36 Chapter 2: Locations 411 Sedan • Owner’s Manual Hydraulic Steering Fluid Reservoir: Located on the steer- ing wheel column at the command bridge helm and lower helm (if equipped). Inverter (If Equipped): Located on the forward starboard wall of the lazarette. Lazarette: Access the lazarette through the cockpit floor hatches.
  • Page 37 411 Sedan • Owner’s Manual Chapter 2: Locations Macerator Switches (If MACERATOR PANEL Equipped): Located inside the ELECTRICAL CABINET electrical cabinet in the star- board aft corner of the salon. MACERATOR SWITCHES Macerator Underwater Discharge Sea- cock (If Equipped): Located forward of the port engine in the engine room.
  • Page 38 Chapter 2: Locations 411 Sedan • Owner’s Manual Oil Change System Shut- off Valves (3 total): • The engine oil change shut-off valves are STARBOARD PORT located along the inboard ENGINE ENGINE side of each engine. • The generator oil change shut-off valve is located on the port side of the generator.
  • Page 39 411 Sedan • Owner’s Manual Chapter 2: Locations Seawater Washdown Intake Seacock (If Equipped): • Located under the bottom step in the hallway. • Access by lifting the top of the step. Seawater Washdown Pump Switch ELECTRICAL CABINET (If Equipped): Located on the 12- volt DC main distribution panel 12-VOLT DC MAIN DISTRIBUTION PANEL...
  • Page 40 Chapter 2: Locations 411 Sedan • Owner’s Manual Spotlight Control Panel: Located at the upper helm and lower helm (if equipped). UPPER HELM LOWER HELM (IF EQUIPPED) SPOTLIGHT CONTROL PANEL Sump Pump & Box: • Located under the bottom step in the hallway. •...
  • Page 41 411 Sedan • Owner’s Manual Chapter 2: Locations Thruster Oil Reservoirs (2 total): • The bow thruster oil reser- voir is located under the STORAGE BOW THRUSTER bunk storage hatch in the HATCH OIL RESERVOIR master stateroom. • The stern thruster oil reservoir is located above the stern thruster in the lazarette.
  • Page 42 Chapter 2: Locations 411 Sedan • Owner’s Manual Trim Tab Hydraulic Fluid Reservoir and Pump: Located next to the stern thruster on a shelf above the center bilge area in the lazarette. STERN HYDRAULIC FLUID THRUSTER RESERVOIR & PUMP Wall Vacuum Unit (If Equipped): Located under the floor hatch in the hallway.
  • Page 43 411 Sedan • Owner’s Manual Chapter 2: Locations Windshield Washer Fluid Reservoir (If Equipped): Located on the forward wall of the engine room.

  • Page 44: Chapter 3: Propulsion & Related Systems Engines

    411 Sedan • Owner’s Manual Chapter 3: Propulsion & Related Systems Engines NOTICE Read the engine manual BEFORE starting or working on your engines. While the topics listed below may be included in this Owner’s Manual and in the Cruiser & Yacht Owner’s Manual Supplement, always refer to the engine manual first for specific information on these important subjects: •...

  • Page 45: Exhaust System

    411 Sedan • Owner’s Manual Chapter 3: Propulsion & Related Systems Exhaust System DANGER! CARBON MONOXIDE POISONING HAZARD! Leaking engine and/or generator exhaust is a source of dangerous carbon mon- oxide gas (CO). • Check ALL exhaust systems BEFORE each trip. •...

  • Page 46: Bilge Blower Systems

    Chapter 3: Propulsion & Related Systems 411 Sedan • Owner’s Manual Bilge Blower Systems WARNING! FIRE and EXPLOSION HAZARD! Fuel vapors can explode! BEFORE starting the engines: 1. Check the bilge areas for fuel vapors or leaking fuel. If you see leaking fuel or smell fuel vapors: a.

  • Page 47: Fuel System

    411 Sedan • Owner’s Manual Chapter 3: Propulsion & Related Systems Fuel System WARNING! FIRE, EXPLOSION and OPEN FLAME HAZARD! • It is very important that the fuel system be inspected thoroughly the first time it is filled and at each subsequent filling. •...
  • Page 48 Chapter 3: Propulsion & Related Systems 411 Sedan • Owner’s Manual...

  • Page 49: Fuel Fills & Vents

    411 Sedan • Owner’s Manual Chapter 3: Propulsion & Related Systems Fuel Fills & Vents • Depending on engine type, the fuel fill deck fittings are marked either GAS or DIESEL. • If you have problems filling either fuel tank, see if the fuel fill hose or fuel tank vent hose is kinked or collapsed. •...

  • Page 50: Fuel Filter/Water Separators (Diesel Engines Only)

    Chapter 3: Propulsion & Related Systems 411 Sedan • Owner’s Manual Fuel Filter/Water Separators (Diesel Engines Only) NOTICE Refer to the fuel filter/water separator manual for important service instructions. Fuel Transfer Pump (If Equipped) (Diesel Engines Only) CAUTION ENVIRONMENTAL HAZARD! •...

  • Page 51: Oil Change System (If Equipped) (Diesel Engines Only)

    411 Sedan • Owner’s Manual Chapter 3: Propulsion & Related Systems Oil Change System (If Equipped) (Diesel Engines Only) • The oil change system makes it easier to drain and refill the engine and generator oil. • Read the oil change system instructions for information on the use of this system.

  • Page 52: Shaft-Transmission Alignment

    Chapter 3: Propulsion & Related Systems 411 Sedan • Owner’s Manual Shaft-Transmission Alignment CAUTION SYSTEM DAMAGE HAZARD! • If you suspect a shaft-transmission alignment problem, have a trained mechanic inspect the alignment as soon as possible. • Continued use may lead to premature engine, transmission, shaft, shaft seal and/or hull damage! Alignment between the engine transmission output shaft and the propeller is critical.

  • Page 53: Chapter 4: Controls & Gauges Steering

    411 Sedan • Owner’s Manual Chapter 4: Controls & Gauges Steering Hydraulic Steering System • Your yacht features a hydraulic steering system. • Check the fluid level in the hydraulic steering reservoir at each helm every time you use your yacht. •...

  • Page 54: Autopilot (If Equipped)

    Chapter 4: Controls & Gauges 411 Sedan • Owner’s Manual Autopilot (If Equipped) WARNING! • NEVER leave the helm while the autopilot system is On! • An experienced operator MUST monitor the autopilot system at ALL times and keep a visual lookout for other marine traffic and other hazards.

  • Page 55: Trim Tabs

    411 Sedan • Owner’s Manual Chapter 4: Controls & Gauges Trim Tabs • Read the trim tabs’ owner’s man- ual before using the trim tabs. TRIM TAB COMMAND BRIDGE VIEW SWITCHES • The trim tabs are controlled by two rocker switches at the helm. •...

  • Page 56: Gauges

    Chapter 4: Controls & Gauges 411 Sedan • Owner’s Manual Gauges Cleaning the Gauges CAUTION PRODUCT or PROPERTY DAMAGE HAZARD! • Use ONLY mild soap and water to clean the gauge lenses and bezels. • Use of other cleaners, including common window cleaning solutions, may cause the lenses to crack.

  • Page 57: Chapter 5: Navigation & Communication Equipment

    411 Sedan • Owner’s Manual Chapter 5: Navigation & Communication Equipment Read the manuals for all navigation & communication equipment before using these systems. Compass NOTICE • Compass accuracy can be affected by many factors. • Have a trained technician calibrate your compass. •...

  • Page 58: Radar (If Equipped)

    Chapter 5: Navigation & Communication Equipment 411 Sedan • Owner’s Manual Radar (If Equipped) WARNING! • Radar is meant to help the navigator, NOT replace him/her. • The operator is responsible for keeping a visual look-out for possible collision situations. •...

  • Page 59: Chapter 6: Plumbing

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Bilge Pumps NOTICE Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Violators are sub- ject to legal action by the local authorities. • Your yacht has several bilge pumps for pump- ing water out of the bilge.

  • Page 60: Bilge Pump Testing

    Chapter 6: Plumbing 411 Sedan • Owner’s Manual Bilge Pump Testing • The bilge pumps are vital to the safety of your yacht. • Test the bilge pumps often to make sure they are working properly. 1. One at a time, turn On the bilge pump switches at the helm. 2.

  • Page 61: Seawater Systems

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Seawater Systems Seacocks WARNING! FLOODING and SWAMPING HAZARD! • Close the seacock(s) when leaving your yacht unattended for any length of time. • If a seacock is left open, a hose failure could flood the bilge, swamp the batteries and the engines, and even sink your yacht.

  • Page 62: Seawater Washdown (If Equipped)

    Chapter 6: Plumbing 411 Sedan • Owner’s Manual Seawater Washdown (If Equipped) WARNING! FLOODING and SWAMPING HAZARD! • NEVER leave your yacht unattended while the seawater washdown system is running. • Any leak or break in this system may allow large amounts of water to flood the bilge, which could swamp the batteries and the engines, and even sink your yacht.

  • Page 63: Freshwater System

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Freshwater System WARNING! • ONLY use safe drinking (potable) water in your yacht’s freshwater system. • ONLY use FDA approved "drinking water safe" hoses when filling the freshwater tank or connecting to city water. •...

  • Page 64: Transom Shower

    Chapter 6: Plumbing 411 Sedan • Owner’s Manual Transom Shower • Read the manufacturer’s instructions before using the transom shower for the first time. • To use the transom shower, your yacht must be con- nected to city water, or the freshwater pump switch must be turned On.

  • Page 65: Freshwater System Winterization

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Freshwater System Winterization 1. Turn Off the water heater breaker on the 110-volt AC master panel. 2. Turn On the freshwater pump switch. 3. Open all of the faucets and showers and let the freshwater system drain completely. 4.

  • Page 66: Water Heater

    Chapter 6: Plumbing 411 Sedan • Owner’s Manual Water Heater WARNING! SCALDING HAZARD! Water heated by the water heater can be hot enough to scald the skin. CAUTION WATER HEATER DAMAGE HAZARD! • Do NOT turn On the water heater electrical circuit on the 110-volt AC master panel until the water heater tank is COMPLETELY filled with water.

  • Page 67: Winterizing The Water Heater

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Winterizing the Water Heater CAUTION WATER HEATER DAMAGE HAZARD! • NEVER turn On the water heater breaker on the 110-volt AC master panel while the water heater tank is empty. • Even brief water heater operation with a dry tank WILL damage the heating elements. •...

  • Page 68: Preparing The Water Heater For Use After Yacht Storage

    Chapter 6: Plumbing 411 Sedan • Owner’s Manual Preparing the Water Heater for Use After Yacht Storage CAUTION WATER HEATER DAMAGE HAZARD! • Fill the water heater tank BEFORE turning On the water heater breaker on the 110-volt AC master panel. •...

  • Page 69: Drain Systems

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Drain Systems Deck Drains • Water on the deck is drained overboard through the deck drains. • Keep the deck drains free of debris. Gray Water Drain System • The galley sink, head sinks, and command bridge sink are above the waterline and are gravity drained overboard. •...

  • Page 70: Marine Heads & Holding Tank

    Chapter 6: Plumbing 411 Sedan • Owner’s Manual Marine Heads & Holding Tank NOTICE Check with local authorities about the legal use of marine head systems. Vacuum Flush Head System • Read the vacuum flush head’s operation and maintenance manual. •...

  • Page 71: Macerator (If Equipped)

    411 Sedan • Owner’s Manual Chapter 6: Plumbing Macerator (If Equipped) To use the macerator to pump waste directly overboard (where laws permit): 1. Open the underwater dis- charge valve. 2. Press both macerator switches at the same time to run the pump.

  • Page 72: Chapter 7: Deck Equipment

    411 Sedan • Owner’s Manual Chapter 7: Deck Equipment Cleats WARNING! PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD! NEVER lift your yacht using the cleats. Carefully read the section on towing in the Cruiser & Yacht Owner’s Manual Supplement before towing anything behind your yacht or having your yacht towed by another vessel.

  • Page 73: Radar Wing

    411 Sedan • Owner’s Manual Chapter 7: Deck Equipment Radar Wing CAUTION PRODUCT DAMAGE HAZARD! • When installing accessories on the radar wing, the maximum hole size diameter is 3/4 of an inch (0.75"). • Larger hole sizes will affect the structural integrity of the radar wing. Canvas &...

  • Page 74: Canvas Care

    Chapter 7: Deck Equipment 411 Sedan • Owner’s Manual Canvas Care (see also ‘Clear Vinyl Care’ on next page) • After each use, especially in saltwater, rinse the canvas with cold freshwater. • Before stowing, let the canvas air-dry completely. •...

  • Page 75: Clear Vinyl Care

    411 Sedan • Owner’s Manual Chapter 7: Deck Equipment Clear Vinyl Care CAUTION • NEVER store the clear vinyl pieces wet, as this will cause a milky film to develop. • NEVER fold or crease the clear vinyl pieces as cracking will occur. •...

  • Page 76: Chapter 8: Appliances & Entertainment Systems

    411 Sedan • Owner’s Manual Chapter 8: Appliances & Entertainment Systems NOTICE Always keep an approved ABC-type fire extinguisher in galley area. All appliances and entertainment systems installed on your yacht come with their own manuals. These manuals con- tain detailed instructions and important safeguards. Read these manuals before using your yacht’s appliances and entertainment systems.

  • Page 77: Audio & Visual Equipment

    411 Sedan • Owner’s Manual Chapter 8: Appliances & Entertainment Systems Audio & Visual Equipment NOTICE AM radio reception may be impaired anytime the engine is running. Dockside Television & Telephone Inlet Plug a dockside source into the TV/tele- phone inlet if you want to watch cable TV or use a telephone.

  • Page 78: Chapter 9: Lights

    411 Sedan • Owner’s Manual Chapter 9: Lights Care & Maintenance All of the lights installed on your yacht are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: 1. There may be a blown fuse - replace the fuse. 2.

  • Page 79: Chapter 10: Air Conditioning & Heating

    411 Sedan • Owner’s Manual Chapter 10: Air Conditioning & Heating Air Conditioner (If Equipped) DANGER! CARBON MONOXIDE POISONING HAZARD! • Dangerous carbon monoxide gas (CO) can be brought into your yacht through the air conditioning system. • Read the Carbon Monoxide (CO) section in Chapter 1 of this Owner’s Manual.
  • Page 80 Chapter 10: Air Conditioning & Heating 411 Sedan • Owner’s Manual • Read the air conditioner manual before using the air conditioning system. • Before using the air conditioning system, make sure the breakers on the 110-volt AC master panel are turned On and that the system’s seawater intake seacock is Open.

  • Page 81: Heat Exchanger Cabin Heat (If Equipped)

    411 Sedan • Owner’s Manual Chapter 10: Air Conditioning & Heating Heat Exchanger Cabin Heat (If Equipped) Your yacht may feature a heat exchanger cabin heater. This heater runs directly off the starboard engine. Before using the heat exchanger cabin heater: 1.

  • Page 82: Chapter 11: Electrical Systems

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems DANGER! EXTREME FIRE, SHOCK and EXPLOSION HAZARD! • NEVER install non-ignition protected switches or other arcing devices in the fuel compart- ments. • NEVER substitute automotive parts for marine parts. Marine electrical, ignition, and fuel system parts were designed and manufactured to comply with rules and laws that minimize the risks of fire and explosion.

  • Page 83: 12-Volt Dc System

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems 12-Volt DC System Batteries • The batteries supply electricity for lights, 12-volt accessories, engine starting and generator starting. • The Electrical section in Chapter 8 of the Cruiser & Yacht Owner’s Manual Supplement provides battery care and maintenance instructions.

  • Page 84: Emergency Battery Parallel Switch

    Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual Emergency Battery Parallel Switch COMMAND BRIDGE HELM • If an engine will not start because of a dead bat- tery, the battery parallel switch allows you to use the other batteries for engine starting.

  • Page 85: Fuses & Circuit Breakers

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems Fuses & Circuit Breakers The fuses and circuit breakers for the engines and main accessory power are on the following panels: 12-VOLT DC MAIN BATTERY MANAGEMENT PANEL DISTRIBUTION PANEL • 12-volt DC main distribution panel. •...

  • Page 86: Battery Charger Or Inverter/Battery Charger (If Equipped)

    Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual Battery Charger or Inverter/Battery Charger (If Equipped) CAUTION ENGINE and ELECTRICAL SYSTEM DAMAGE HAZARD! NEVER run your yacht’s engines and the battery charger at the same time. CAUTION • The battery charging systems (alternator and battery charger or inverter/battery charger) installed on your yacht are designed to charge conventional lead-acid batteries.

  • Page 87: 110-Volt Ac System

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems 110-Volt AC System WARNING! FIRE and ELECTRICAL SYSTEM DAMAGE HAZARD! If equipped with a generator, using both shore power and generator power at the same time WILL cause major electrical system damage and could start a fire! •...

  • Page 88: Shore Power

    Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual Shore Power DANGER! FIRE, EXPLOSION and SHOCK HAZARD! • Use ONLY compatible shore power connectors and NEVER alter the connectors. • Turn Off ALL breakers and switches on the 110-volt AC master panel BEFORE plugging in or unplugging the shore power cord.

  • Page 89: Connecting To Shore Power

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems • Your yacht is equipped with two (2) 110-volt/30-amp shore power inlets or one (1) 220-volt/50-amp shore power inlet. • The 110-volt/30-amp shore power inlets provide 110-volt/30-amp power to each shore power master breaker. The 220-volt/50-amp shore power inlet provides 110-volt/50-amp power to each shore power master breaker.

  • Page 90: Parallel Switch (If Equipped With Dual Shore Power)

    Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual Parallel Switch (If Equipped with Dual Shore Power) NOTICE • When using the parallel switch do NOT exceed 30 total amps. • The amperage of each component breaker is shown on the breaker itself. •...

  • Page 91: Generator

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems Generator DANGER! CARBON MONOXIDE POISONING HAZARD! • Generators are a source of dangerous carbon monoxide gas (CO). Check the generator exhaust system for leaks BEFORE each use. • Read the Carbon Monoxide (CO) section in Chapter 1 of this Owner’s Manual.
  • Page 92 Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual • When your yacht is not con- nected to shore power, the generator can supply 110- volt/60-hertz power. • Before using the generator, read the generator operation manual for pre-start checks and break-in procedures.

  • Page 93: Electrical Routings

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems Electrical Routings 12-Volt DC Deck Electrical Harnesses...

  • Page 94: 12-Volt Dc Hull Electrical Harnesses

    Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual 12-Volt DC Hull Electrical Harnesses...

  • Page 95: 12-Volt Dc Command Bridge Electrical Harnesses

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems 12-Volt DC Command Bridge Electrical Harnesses 12-Volt DC Radar Wing Electrical Harness...

  • Page 96: Batteries

    Chapter 11: Electrical Systems 411 Sedan • Owner’s Manual Batteries...

  • Page 97: 110-Volt Ac Electrical Harnesses

    411 Sedan • Owner’s Manual Chapter 11: Electrical Systems 110-Volt AC Electrical Harnesses...

  • Page 98: Important Records

    411 Sedan • Owner’s Manual Important Records Selling Dealer Plumbing Name Of Dealership Freshwater Tank Capacity Waste Holding Tank Capacity Address Key Numbers Phone/FAX/E-mail Cabin Ignition Sales Manager Other Other Service Manager Electronics Engines Manufacturer Model Name/Number Manufacturer Model Name/Number Serial Number Port Engine Serial Number Starboard Engine Serial Number...

  • Page 99: Float Plan

    411 Sedan • Owner’s Manual Float Plan Before leaving on each cruise, fill out a copy of this float plan (or similar) and leave it with a reliable person whom you can depend on to contact the Coast Guard or other rescue organization, if you do not return as scheduled. Description of Yacht Registration/Documentation Number Full Name...
  • Page 100 Float Plan 411 Sedan • Owner’s Manual Survival Equipment Number of PFDs Flares (Yes/No) Mirror (Yes/No) Stopover 4 Smoke Signals (Yes/No) Flashlight (Yes/No) Food (Yes/No) Arrive No Later Than: Date Arrive No Later Than: Time Water (Yes/No) Anchor (Yes/No) Raft/Dinghy (Yes/No) Stopover 5 Paddles (Yes/No) EPIRB (Yes/No)
  • Page 101 Owner’s Notes...
  • Page 102 Owner’s Notes...
