Summary of Contents for StarTech.com TV Jockey
-
Page 2: Table Of Contents
Table of Contents Introduction Installation Suggested Configuration Using the Remote Adjustment Mode Technical Specifications Technical Support Warranty Information... -
Page 3: Introduction

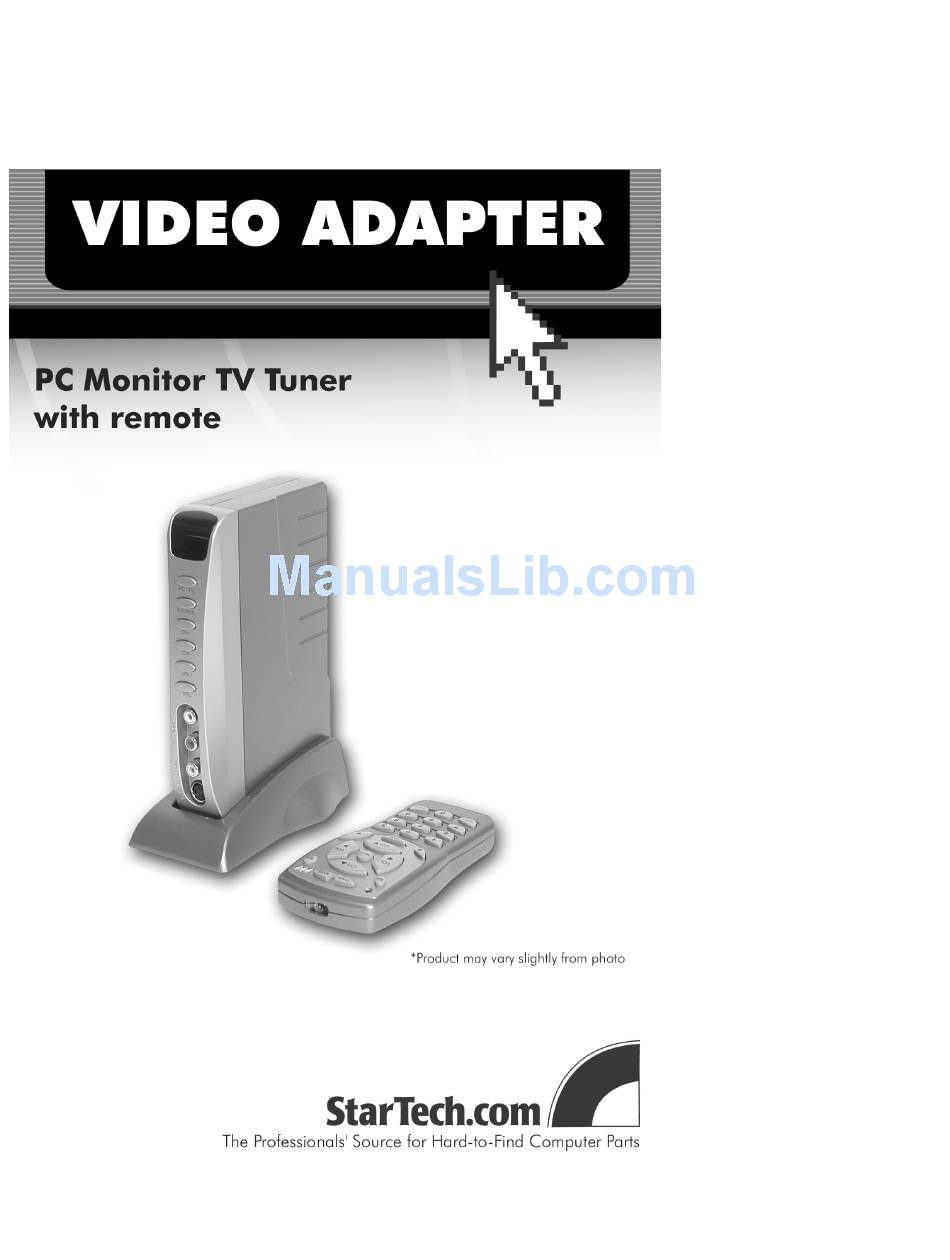

Introduction Thank you for purchasing a StarTech.com TV Jockey. Now you can turn your PC monitor into a multimedia TV capable of showing video from your cable/satellite/antenna TV feed, VCR, DVD player, camcorder, or game console. With the full 24-button remote control, you can easily flip between PC and video modes, change the channel, adjust the volume, or adjust your video settings with just the touch of a button. -
Page 4: Installation
Installation There are many different ways to configure your TV Jockey, depending on how you want to use it. Please use the diagrams below and the instructions on the following pages to assist you in your installation. Remote Control Indicators... -
Page 5: Suggested Configuration
Suggested Configurations Depending on what you want to do with your TV Jockey, you will be connecting your device in different ways. To watch TV on your monitor Connect your CATV or UHF/VHF antenna cable to the CABLE IN port on the back of the converter. -
Page 6: Using The Remote
Using the Remote Push this button to switch between Normal, SAP, and Stereo (optional) Press this button to bring PC/TV up the on-screen display Push this button to switch SOURCE between PC and TV modes Press this button to scroll between the video input options (AIR/CATV/S-Video/Video) Push these buttons to adjust the... -
Page 7: Adjustment Mode
LCD or CRT monitor. NOTE: If the quality of input is low, the TV Jockey may not work well with LCD monitors. If the input quality is low, consider using a CRT monitor. -
Page 8: Technical Specifications
Technical Specifications Tuner Philips F11236MK2 Tuner Freq. Range 55.25~801.25 MHz (NTSC) Channels TV/CATV Input: 2-69 off-air, 1-125 NTSC cable Input connectors 75 ohm Coaxial TV antenna/cable S-Video Composite video RCA Left/Right for audio in Signal connectors 3.5 mm jack for audio (stereo audio from sound card) 15-pin HD female connector (from VGA card) Output connectors Composite video (TV mode only) -
Page 9: Technical Support
We are constantly adding new information to the Tech Support section of our web site. To access this page, click the Tech Support link on our homepage, www.startech.com. In the tech support section there are a number of options that can provide assistance with this card.
