Summary of Contents for DOLE FREZE-CEL 5549

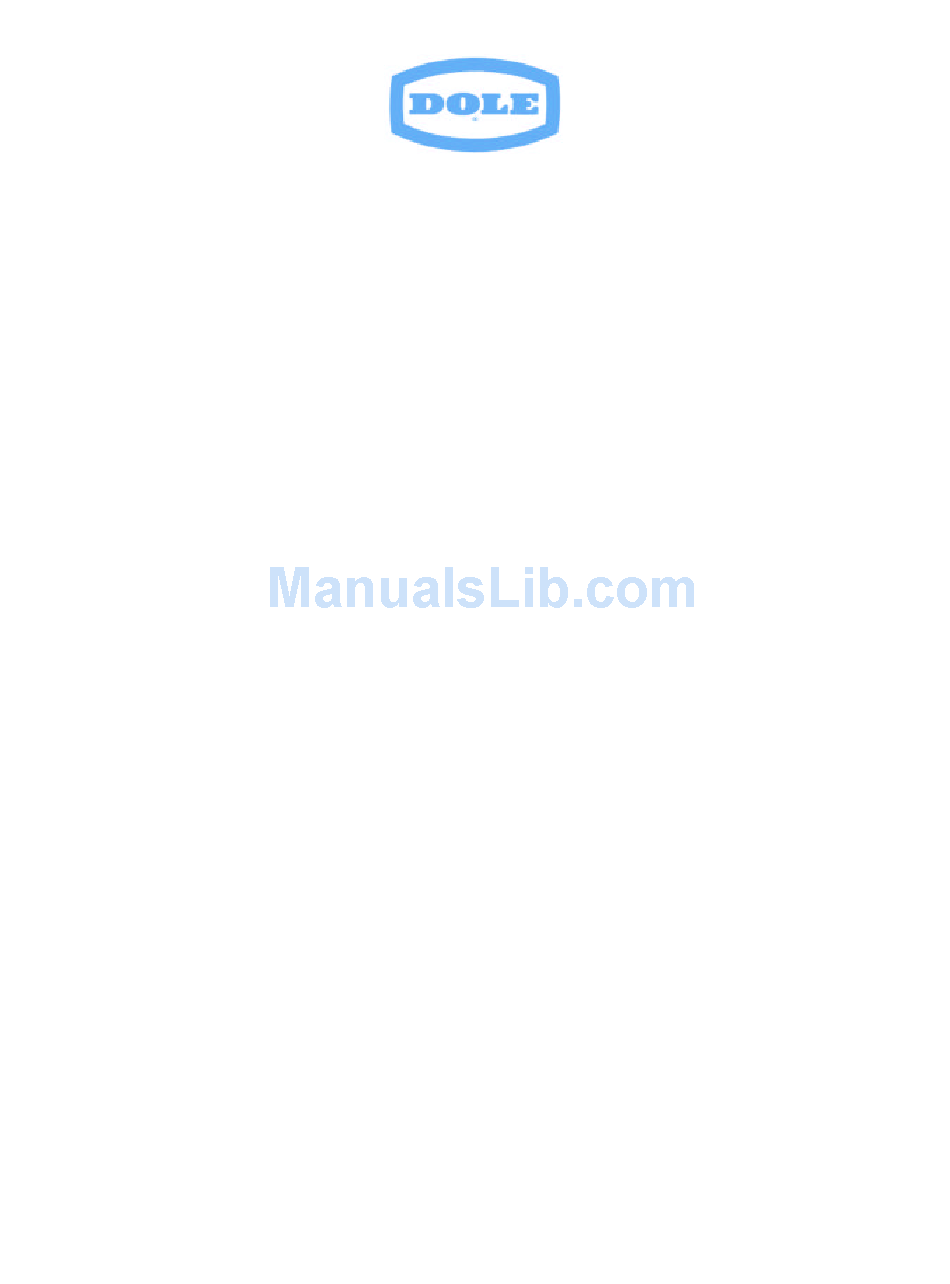

- Page 1 DOLE REFRIGERATING COMPANY 1420 Higgs Road • Lewisburg, Tennessee 37091 Phone (931) 359-6211 1-800-251-8990 www.doleref.com FREZE-CEL OPERATION & MAINTENANCE MANUAL MODELS 5549 & 6049 June 2002...
-
Page 2: Table Of Contents
Freze-Cel Table of Contents Page Table of Contents Introduction 1. General Description 1. Purpose of the Equipment 2. General Description A. Electrical Power B. Condensing Medium C. Stations 3. Detailed Description A. Cabinet B. Top Section C. Lower Section D. Refrigeration Cycle E. - Page 3 5. Refrigeration Mode 6. Product Loading 7. Liquid Refrigerant Level 8. Crankcase Oil Level 9. Setting Water Regulating Valve 10. Miscellaneous Maintenance 1. General Maintenance 2. Crankcase Oil Level 3. Oil Pressure Safety Control 4. Liquid Pumpdown Procedure 5. Crankcase Oil Charging Procedure 6.
-
Page 4: Introduction
Introduction 1. General This manual provides installation, operation and maintenance instructions for Freze-Cel Models 5549 (steel plates) and 6049 (aluminum plates). These freezers use hydraulics to raise and lower double-contact freezer plates to permit loading and unloading of product. Refrigerant is fed to the freezer plates though a Phillips injector nozzle, which provides a 2 to 1 liquid re-circulation rate. -
Page 5: Description
Description 1. Purpose of the Equipment The Freze-Cel is ideal in situations where freezing time is critical in preserving a product’s quality. In addition, since the product is held firmly between plates during freezing, package flatness and uniformity are assured. 2. -
Page 6: Lower Section
D. Refrigeration Cycle Refrigerants offered in the Freze -Cel are R -502, R-404A and R - 507. The refrigeration cycle is as follows: (Refer to Dole Drawing 7511-B100). The high-pressure liquid stored in the condenser flows through the filter/dryer, through the sub-cooling shell and tube heat exchanger, to the bottom of the injector distributor. -
Page 8: Electrical System
F. Electrical System The freezer is factory wired. The installer must provide the proper power source to the system’s electrical control panel. In some areas voltage can vary to such an extent that damage to a compressor can result if built in compressor protection devices fail to react fast enough. -
Page 12: Installation Instructions
Installation 1. Unpacking Freezer Remove wood crating, lumber skids and waterproof plastic cover. DO NOT REMOVE internal shipping and plate bracing until unit has been positioned and l eveled in its permanent location. 2. Locating Freezer The floor on which the unit is to be installed should be capable of supporting a 250-psi load. -
Page 13: Recommended Fuse Capacities
Connect power line (of proper size) to terminals L1, L2 and L3 and ground at top of terminal strip located in the electrical box within the machine compartment. B. Recommended Fuse Capacities 230/3/60 Unit – Fusetron FRN 125 or Std. 200 Amp 380/3/50 Unit –... -
Page 15: Operating Instructions
Operating Instructions 1. General Once water and electrical power have been connected, certain procedures should be followed to assure safe and efficient performance of the freezer. 2. Check of Electrical Power DO NOT OPERATE THE COMPRESSOR UNTIL POWER HAS BEEN ON FOR AT LEAST FOUR HOURS. -
Page 16: Product Loading
the “COMPRESSOR” switch has been in the “OFF” position for more than a day, observe the following: CAUTION: Do not operate the compressor until electrical power has been supplied to the freezer for a period of at least FOUR hours. The crankcase heater requires power for at least four hours to evaporate any liquid refrigerant that may have migrated since the unit had been shut down. -
Page 17: Crankcase Oil Level
DO NOT add refrigerant unless sight glass indicates in undercharge condition after running the compressor for at least two hours. 8. Crankcase Oil Level After the compressor has been in operation f o r at least two hours check the compressor crankcase oil level. The oil level in the crankcase oil sight glass should stabilize at the center of the sight glass, with compressor operating. -
Page 18: Maintenance
Maintenance General This section provides instructions on preventive maintenance, refrigerant charging, liquid pumpdown and compressor oil charging procedures. 1. General Maintenance Once a day during the normal operating cycle, with the COMPRESSOR RUNNING, the refrigerant level in the surge drum sight glass should be checked. -
Page 19: Crankcase Oil Charging Procedure
a. If the freezer has just completed a freezing cycle, turn off the compressor by positioning the “COMPRESSOR” switch to “OFF”. Let the unit sit overnight with the doors open and the MAIN POWER SWITCH on. This will insure that the crankcase heater remains energized to prevent refrigerant migration to the crankcase. -
Page 20: Refrigeration System Data
24.6 A. Refrigerant Charge Model 6049-6 6049-7 6049-8 6049-9 6049-10 R-404A (lbs) R-507 (lbs) Model 5549-6 5549-7 5549-8 5549-9 5549-10 R-404A (lbs) R-507 (lbs) B. Compressor Oil R-404A or R-507 Charge – Mobile Artic 22C Synthetic Refrigeration Oil #998-E022-01 Initial Charge: 160 ounces... -
Page 21: Oil Safety Control
C. Oil Safety Control 9 psi fixed differential 9-120 seconds time delay manual reset D. High Pressure Cut out/Cut in Cut out at 325 psig Cut in at 260 psig E. Low Pressure Control Cut out at +1 or –1 psig Cut in at +11 or –1 psig F. -
Page 22: Parts List
Parts List Dole Part No. Description 04-123 Copeland Compressor No. 6DT1-3000-TSK-200- 30HP with fan assembly (Copeland 230/3/60, 380/3/50, and 440/3/60 unit) 04-124 Copeland Compressor No. 6DT13000-TSE-200-30HP with fan assembly (Copeland 550/3/60 unit) 24-104 Copeland No. 018-0005-02 (Indeeco No. 40P6476-2) crankcase heater 10-162 Furnas No. - Page 23 Parts List (cont) Dole Part No. Description 10-405 Tranco Transformer 440-230, 5 amp (for 440 and 380 volt units) 10-403 Tranco Transformer 550-230, 5 amp (for 550 volt unit) 26-328 Liquid Hose Assy Set (6 station unit) 26-329 Suction Hose Assy Set (6 station unit)
-
Page 24: Limited Warranty
Dole . e. Normal service and maintenance costs. Dole shall not be liable for defects or damage which result from or are caused by: a. Improper installation, wiring, electrical current characteristics, or maintenance.
