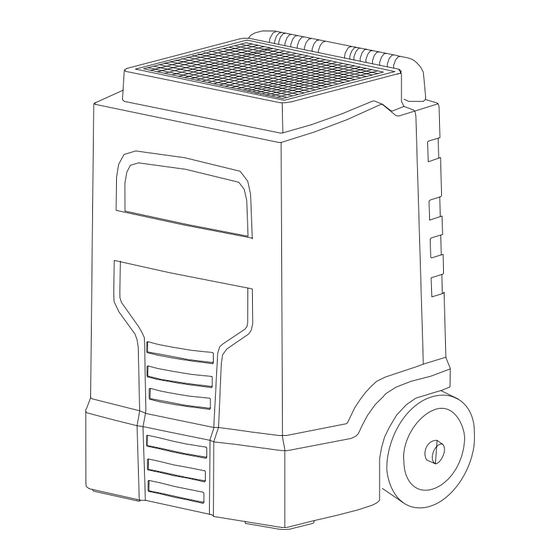

Summary of Contents for Century 400 Crusader 75 1.007-905.0

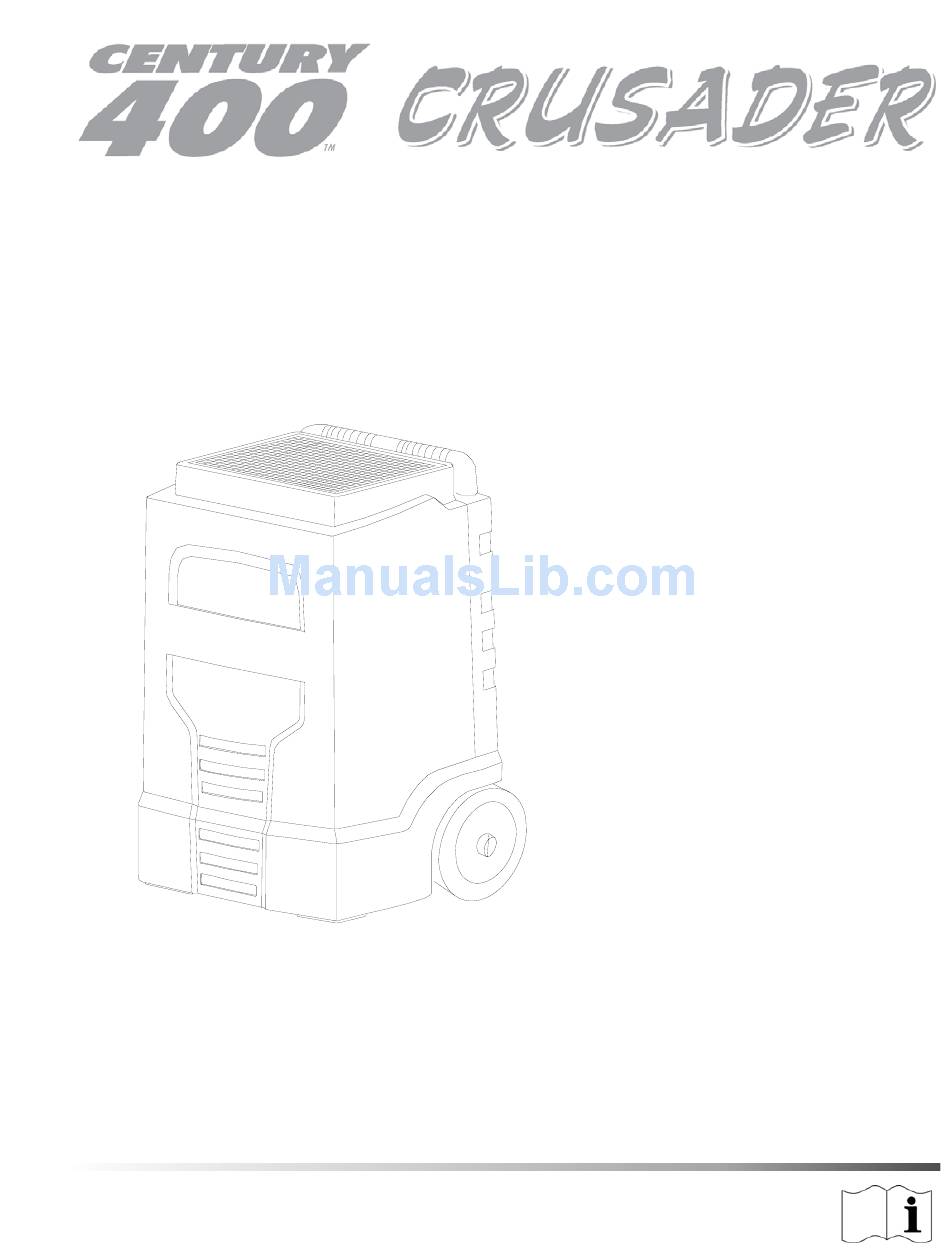

- Page 1 LGR DEHUMIDIFIER Operating instructions (ENG) MODELS: Crusader 75 1.007-905.0 Crusader 95 1.007-906.0 Read these instructions before using the machine. 86356330-B 11/22/11...
-
Page 2: Machine Data Label
Machine Data Label Overview The Crusader LGR Dehumidifier is intended for professional disaster restoration and remediation, but can also be used for construction, janitorial / sanitation or other professionals needing to control humidity in an area. Warranty Registration Thank you for purchasing a C400 product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. -
Page 3: Table Of Contents
Table of Contents Operations Machine Data Label ......2 Overview ........2 Components . -
Page 4: How To Use This Manual
How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •... -
Page 5: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain or water. Use only as described in this manual. -
Page 6: Consignes Importantes De Sécurité
Safety CONSIGNES IMPORTANTES DE SÉCURITÉ Lors de l'utilisation d'un appareil électrique, il faut toujours observer des précautions élémentaires, qui comprennent parmi celles-ci: LISEZ BIEN L'ENSEMBLE DES CONSIGNES AVANT D'UTILISER CET APPAREIL. Utilisez-le exclusivement dans des endroits fermés. Ne l'utilisez pas en plein air et ne le laissez pas sous la pluie. Utilisez-le exclusivement de la manière décrite dans ce manuel. -
Page 7: Hazard Intensity Level
Safety The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. -
Page 8: Degrés De Risques En Cas De Danger
Safety Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions: DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante: AVERTISSEMENT: AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner la mort. -
Page 9: 115V Grounding Instructions
Safety 115V Grounding Instructions ELECTRICAL: Grounding Pin In the USA this machine operates on a standard 15 GROUNDING CONNECTION amp 115V, 60 hz, A.C. power circuit. The amp, hertz, USING AN ADAPTOR and voltage are listed on the data label found on each Grounded machine. -
Page 10: Technical Specifications
Safety Technical Specifications ITEM MEASURE Height 37.7 In (96 cm) Length 24 In (61 cm) Width 22.8 In (58 cm) Weight Crusader 75 119 Lbs (54 kg) Crusader 95 126 Lbs (57 kg) Cord 25’ X 14 Gauge / 3 Wire Black Body Construction Rotationally Molded Polyethylene Frame Construction... -
Page 11: Operations
Operations Components 1. FILTER COVER 6. CORD STORAGE 2. FILTER 7. CONTROL PANEL 3. UPPER HOUSING 8. HANDLE 4. LOWER HOUSING 9. EXHAUST OUTLET 5. WHEELS 10. WATER OUTLET 86356330 Crusader Dehumidifier... -
Page 12: Controls
Operations Controls Drain ON/OFF 1. Humidity level 7. ON / OFF: Dehumidifier power switch. 2. Dehumidify 8. Humidity Up: When machine runs on dehumidify mode, each time the Humidity Up button is 3. Water Full pressed, it raises the humidity 1%. When the Humidity Up button is pressed for 2 seconds, 4. -
Page 13: Machine Function
Operations Machine Function How to Transport Dehumidifier The machine’s default humidity setting is 60%, and the 1. Wrap the power cord in provided storage area on machine's dehumidifying range is 30%-90%. Use back of machine. Humidity Down and Humidity Up buttons on panel to 2. -
Page 14: Operating Dehumidifier
Operations Operating Dehumidifier Purging Dehumidifier 1. After space reaches desired humidity level, press the drain button. This manually empties water from Never allow anything to block intake airflow. Be the condensate pump reservoir. careful of objects which could be drawn against intake. -
Page 15: Service Schedule
Maintenance Service Schedule Power Cord Daily Inspect for wear, fraying or cuts. Filter Daily Inspect, vacuum up to 3 times, replace as needed Coils Monthly Inspect, clean when visibly dirty Heat Exchange Block Monthly Inspect, clean with compressed air only when needed. Condensate Pump Monthly Inspect, clean when needed. -
Page 16: Replace Condensate Pump
Maintenance Replace Condensate Pump 4. Remove the filter to ease lifting the upper housing. Lift the upper housing up and forward. the sides of The condensate pump removes water that collects in the reservoir. the housing must be flared out to prevent interfer- ance with the cassette. -
Page 17: Troubleshooting
Maintenance Troubleshooting PROBLEM CAUSE SOLUTION Defective control board Replace control board. Nothing runs Loose connection in internal wiring Find and repair loose connection. Compressor is not running. See compressor doesn’t run. Coils don’t get hot and cold Leak in system / refrigerant gone. Find Leak, Repair, Recharge system. - Page 18 Notes: 86356330 Crusader Dehumidifier...
-
Page 19: Parts
Parts PARTS 86356330 Crusader Dehumidifier... -
Page 20: Parts List
Parts List 15 16 86356330 Crusader Dehumidifier... - Page 21 Parts List SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86356400 PVC FILM 86356410 DISPLAY PANEL BRACKET 86356420 DISPLAY BOARD 86356430 LOWER HOUSING 86356440 COMPRESSOR 75 PINT CRUSADER 75 ONLY 86356450 COMPRESSOR 95 PINT CRUSADER 95 ONLY 86356460 COPPER TUBE (CAPILLARY TUBE) 75 PINT CRUSADER 75 ONLY 86356470 COPPER TUBE (CAPILLARY TUBE) 95 PINT...
