RedPlate Savoy Operations Guide
Welcome to the RedPlate Family, thank you for your purchase of a RedPlate Savoy
amplifier. Please take a moment and review this manual for an understanding of all the
available features (or just put all the knobs at noon and play).
This Manual applies to Savoy models produced after 4/20/2014.

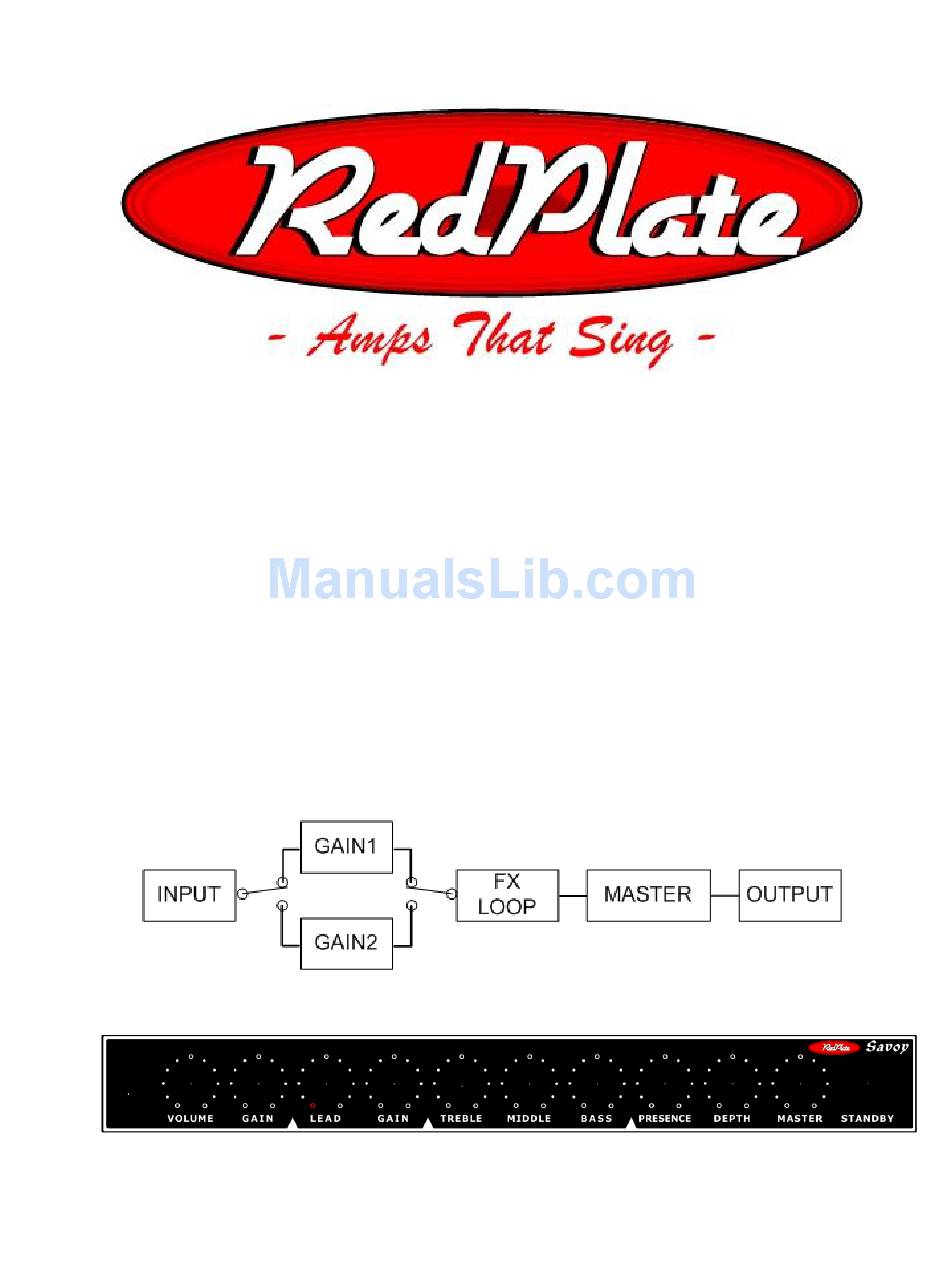

Signal Path Block Diagram:
FRONT PANEL:
Input Jack – Typical High impedance input to the amplifier. Designed to be "Pedal Friendly".
Savoy
Operations Manual
1
Advertisement
Related Manuals for RedPlate Savoy
Summary of Contents for RedPlate Savoy
- Page 1 Savoy Operations Manual Welcome to the RedPlate Family, thank you for your purchase of a RedPlate Savoy amplifier. Please take a moment and review this manual for an understanding of all the available features (or just put all the knobs at noon and play).
-
Page 2: Rear Panel Section
To access the fuse(s) use a small flat blade screwdriver in the notch at the side of the power cord inlet connector, the drawer snaps out in a rearward direction. The Savoy uses the smaller GMA or European (5mm X 20mm) fuses. A time delay variety (SLO-BLO) is recommended for the MAINS fuse observe back panel recommended fuse value. -
Page 3: Power On/Off Procedure
MAINTENANCE SECTION Your Savoy amp has been designed for years of trouble free operation. The vacuum tubes will need to be replaced over time. We recommend new output tubes every 160 - 240 hours and new preamp tubes every 320 - 480 hours. - Page 4 RedPlate Savoy Operations Guide TUBE CHART All tube brands are acceptable, a long plate is preferred in the V4 (Phase Inverter) position. Warning – No user serviceable parts inside so unless you know what you’re doing please refer to a qualified service person only.
-
Page 5: Bias Procedure
At RedPlateAmps we pride ourselves making products that are built to last. The workmanship in your RedPlate amplifier is warranted to be problem free for the lifetime of the original owner, or in the event of resale a onetime transfer to a new owner for coverage for 3 years from the original manufacture date (please inform us of an ownership change to insure coverage).
