Summary of Contents for K.M.E. DA 428
-

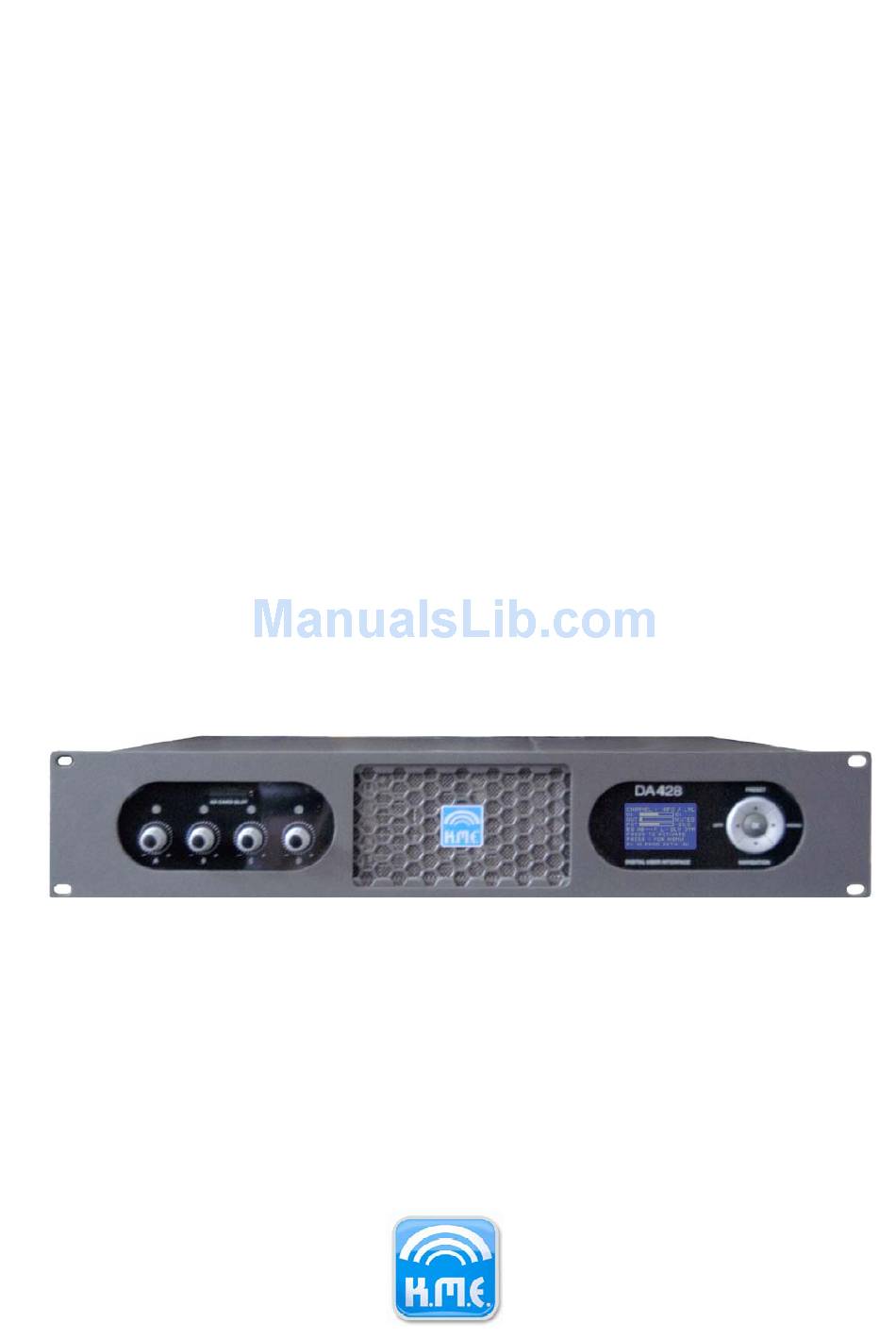

Page 1: User Manual
User Manual DA 428 completely digital 4-channel amplifier... -
Page 2: Table Of Contents
In this User Manual you will find some hints and warning notes for your new product with which a save use of the DA 428 is allowed. Please read this instructions before you switch on the unit for the first time, to get in touch with particular features of your new product. -
Page 3: The Completely Digital 4-Channel Dsp-Amplifier

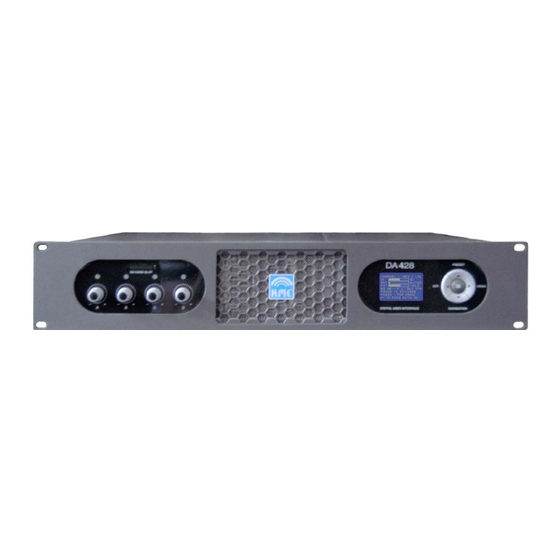

3. The completely digital 4-channel DSP-amplifier The DA 428 is a completely digital 4-channel amplifier with 700 W @ 4 ohm output power on each channel. This compact, light- weight 19"-2U device is equipped with comprehensive DSP features like matrix router, 6 fully parametric equalizers, two crossover networks, delay and dynamic processor per channel. -
Page 4: The Control- And Connection Panel
5. The control- and connection panel DA 28 3.RGB LED 4.LCD-display 2.SD-card reader 5.navigation pad 1.rotary encoder 8.ground/free- 10.link-output 11.module slot with switch RS/NC-Modul 9.LINE-input 7.mains fuse 12.speaker output 6.mains connector 13.M8 treads for rack m ounting... - Page 5 - signalized external access (is not used in this version) 4. LCD display - Is used as operation mode display of the DA 428. The arrows in the LCD display show the directions to navigate through the submenus (see navigation structure). All software parameters must be set on the unit itself.
-
Page 6: Powering Up / Down - 6.1 Choosing Preset - Play
To switch on / off your DA 428, please follow the instructions: 1. Apply power supply connection (90 - 250 Volt / 50 - 60 Hz) on DA 428 (if the unit is switched to power mode „Always On“, it is switched on now) – „lock“-function can be active! 2. -
Page 7: Navigation Structure On The Hardware Unit
7. Navigation structure on the hardware unit Main Menu Delay (Out A - D) Preset 0 ... 400 m Equalizer (Out A - D) EQ 1+ 6 Frequency 35 ... 12000 Hz 00.7 ... 12.5 Gain -12 ... +12 dB Shape PEQ / Shelf EQ 2 - 5... -
Page 8: Operation
[routing possibilities for each channel] A/d1(L), B/d2(L), C/d1(R), D/d2(R), C always, D always, A+B/d1(L+R), C+D/d2(L+R), C+D always, B+C+D, A+B+C+D/d1+d2 The routing of the DA 428 offers comprehensive possibilities for controlling the audio signal. You will find detailed information in the table on page 11. - Page 9 If you choose „Always On“, the DA 428 is always on. That means after apply power supply connection the unit is automatically on and ready to play (the “lock function” can be active!). If you choose „Last State“- mode, the DA 428 will always start in the last state of operating after power cycle the unit.
-
Page 10: Firmware Version
Source, A:C/d1, B:D/d2, A+B/d1 mono, C+D/d2 mono, C+D always, B+C+D, A+B+C+D The link mode of the DA 428 offers comprehensive possibilities for controlling the audio signal to analogue or digital systems. You will find detailed information in the table on page 12. -
Page 11: Routing Of Input Channels
You will drive a passively channelled PA system with two separately driven monitor systems (passive) with your DA 428. The input signal fort the PA is digital and the monitor systems are driven with two separately analogue input signals. Please plug in the digital input signal to input A of DA 428 and the monitor signals to input C + D. -
Page 12: Link Mode / Content Of Link Channels
This center-cluster consists also of 4 PANO Line Array elements. Please plug in the left input signal to input A and the right input signal to input B of the first DA 428. Now you have to route output A – output C of the first DA 428 to „A/d1(L)“ = left audio signal for the left 6 elements (connect always two together). -
Page 13: Specifications Da 428
11. Specifications DA 428 Electronic: Output power @ 4 / 8 Ohm 4 x 700 W / 400 W Amplifier four fully digital amplifiers with high efficiency, about 90 % Frequency range 20 Hz - 20 kHz S/N-ratio 100 / 95 dB... -
Page 14: The Most Important Menu Functions - 12.1 Mute-Function
Press for 1 second the encoder A / B / C or D to mute the channel. A repeated pressing of the particular encoder causes the deactivation of the „mute“-function (see display). If the „mute“- function was activated (before switching off the DA 428), the „mute“- function is after switching on the DA 428 again still activated. -
Page 15: Entering Password
12.3 Entering password To lock the DA 428 with a password (max. 8 digits) you have to enter it first. This password can be changed every time. Note! Keep in mind resp. note down the entered password because if you want to „unlock“... -
Page 16: System Operation And Extension
13. System operation and extension This overview shows you examples of using, combination and extension of passive PA components within using DA 428 as heart and control center, to adapt your reinforcement optimally on your audience. Monitor-mode four independently and free routable channel for monitoring – 4x passive monitors (min. - Page 17 example 3: actively channelled PA system – 2x or 4x top units (min. 350 W / 8 Ohm) + 2x subwoofers (min. 700 W / 4 Ohm) or 4x subwoofers (min. 400 W / 8 Ohm) example 4: free configurable, passively and actively channelled PA systems with bass extension (left drawing) or top extension (mid drawing) or monitor extension (lower drawing) Attention: Please mind nominal load and impedance of the passive loudspeaker(s) you connect.
- Page 18 example 5: directional dispersion of the subwoofers: 90° 120° 60° 150° 30° back front 180° 0° 330° 210° 300° 240° 270° free configurable, actively channelled PA systems with directional (cardioid) dispersion in the low frequency range (lower drawing) Attention: Please mind nominal load and impedance of the passive loudspeaker(s) you connect. For more information please contact your K.M.E.
-
Page 19: Ec-Declaration Of Conformity
Warranty claims please learn from the warranty card included. -
Page 20: Disposal Of Your Old Appliance
Deutsch Entsorgung von Altgeräten 1. Wenn dieses Symbol eines durchgestrichenen Abfalleimers auf einem Produkt angebracht ist, unterliegt dieses Produkt der europäischen Richtlinie 2002/96/EC. Klingenthaler 2. Alle Elektronik-Altgeräte müssen getrennt vom Hausmüll über dafür Musikelektronik GmbH staatlich vorgesehene Stellen entsorgt werden. Auerbacher Straße 268 08248 Klingenthal Germany 3.
