Summary of Contents for Destination Audio SWA200

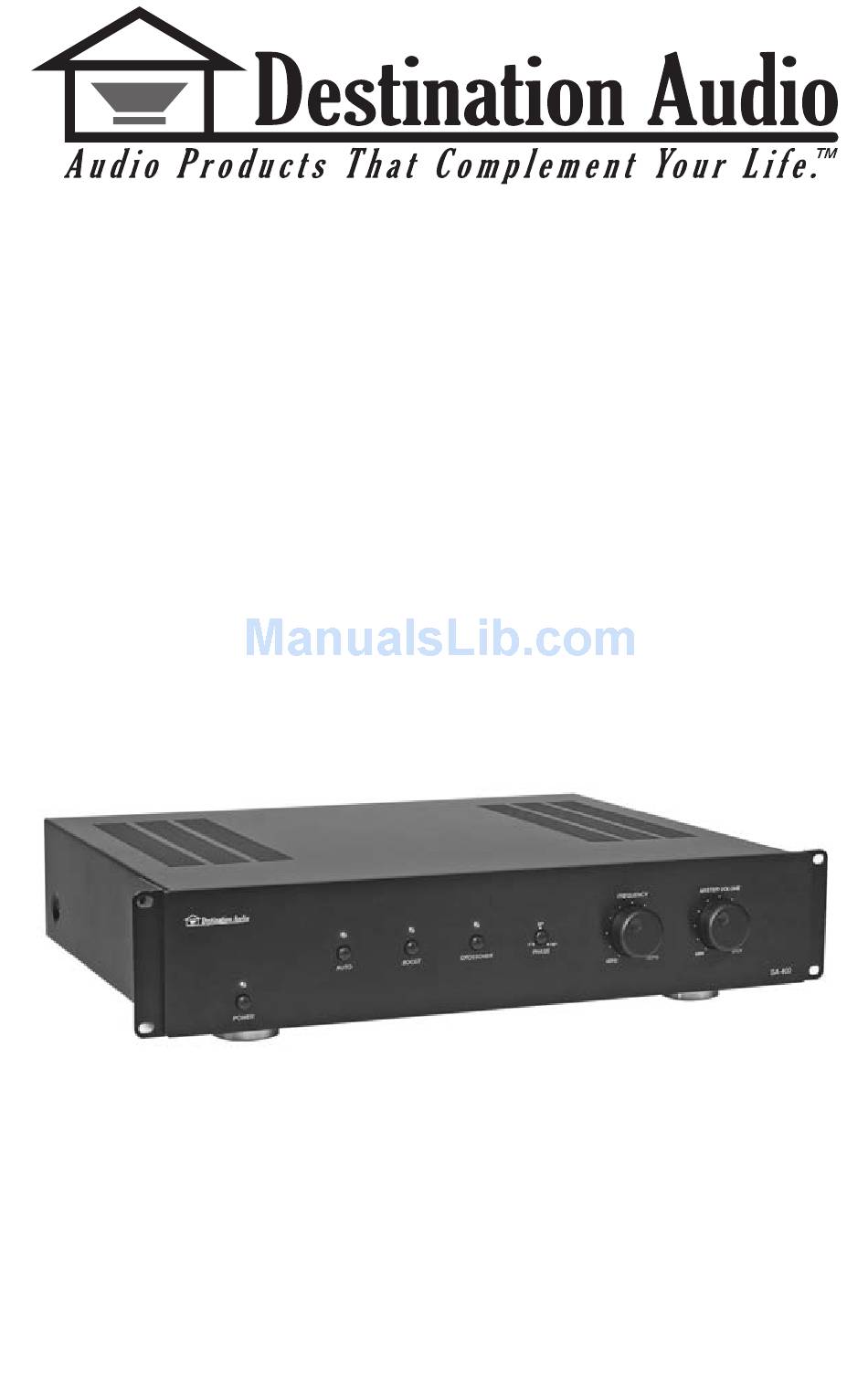

- Page 1 SWA200 SUBWOOFER AMPLIFIER I n s t a l l a t i o n & O p e r a t i o n M a n u a l...
-
Page 2: Front Panel
Introduction Congratulations on your purchase of an Destination Audio SWA200 subwoofer amplifier! Your subwoofer amplifier is the result of many years of research and development dedicated to producing high quality products for home audio and audio/video systems. This manual contains features, setup recommendations and specifications for the Destination Audio SWA200 subwoofer amplifier. - Page 3 Front Panel (continued) 5. Crossover: This button allows the amplifier’s internal low-pass filter to be defeated when using an external crossover, or when the crossover is not needed. When defeated (off), the subwoofer output will play the full-range of the audio signal. This button has no effect on the high level inputs and outputs shown in figure 2, #10 and #11.
-
Page 4: Rear Panel
Rear Panel The following describes the control functions of the rear panel of the amplifier (refer to figure 2). 8. Line/LFE Input: These RCA type terminals are for the pre-amp level input signals coming from a processor or preamplifier labeled “subwoofer”... - Page 5 Rear Panel (continued) 14. Fuse Access: This is the power fuse access. WARNING! In the event the fuse must be replaced, the replacement fuse must match exactly the original fuse value. If the replacement fuse is not of the same value, damage to the Subwoofer Amplifier may result. CAUTION! Before replacing the fuse, disconnect the power cord from the power receptacle. 15. Voltage Selector Switch: If your model features this capability, this switch allows you to select between 110V A/C (60Hz) or 220V A/C (50Hz).
- Page 6 Connections System One: Using line level inputs. NOTE: Speaker-level inputs are not used in this system. System Two: Using speaker level inputs. NOTE: Line level inputs are not used in this system. NOTE: This example is for speaker level input only. DO NOT connect the left and right satellite speakers to the amplifier if the line inputs are used.
-
Page 7: Troubleshooting
Troubleshooting Situation: Probable Cause: Solution: Amplifier is not connected to Make certain the amplifier is No sound from the constant A/C power outlet. subwoofer(s) plugged into an unswitchable A/C power outlet Subwoofer(s) is/are not Make certain that subwoofer(s) connected to the amplifier is/are connected properly (refer correctly to the connections section of this manual) Amplifier is not receiving an... - Page 8 Troubleshooting (continued) Situation: Probable Cause: Solution: Performance is less than The + and – polarity of the Check the entire system for expected subwoofer wire might be proper polarity reversed on the subwoofer Crossover frequency is not Adjust crossover frequency adjusted correctly by turning the Crossover Frequency Control clockwise until desired sound is obtained Crossover button is in the Check Crossover On/Off wrong position button for correct setting...
-
Page 9: Specifications
Specifications Model SWA200 Amplifier Type: Discrete Class A/B 200 Watts (RMS @ 4 Ohms) Recommended/Rated Power: Maximum Power Consumption: 400 Watts < .04% @ 1 Watt Distortion (THD): >82dB (without filter) S/N Ratio: 47 KOhms (line level) Input Impedance: 200 Ohms (speaker level) 80mV (line input) Input Sensitivity:... -
Page 10: Safety Instructions
CAUTION! DO NOT open the amplifier, attempt any modifications or re- pairs. There are extremely high voltages present and any servicing must be referred to Destination Audio or an authorized qualified technician. ATTENTION! Opening the amplifier will void warranty. WARNING! To prevent shock or fire hazard, never permit moisture or any liquid to get into the amplifier. -
Page 11: Warranty
Warranty Your SWA200 subwoofer amplifier is covered by a limited warranty against defects in materials and workmanship for a period of (1) one year. This war- ranty is provided by the authorized Destination Audio dealer where the speaker was purchased. Warranty repair will be performed only when your purchase receipt is presented as proof of ownership and date of purchase. - Page 12 382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 660-2400 • Fax: (801) 543-3300 www.destinationaudio.com It is Destination Audio policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. Copyright © 2010 Destination Audio. All Rights Reserved.
