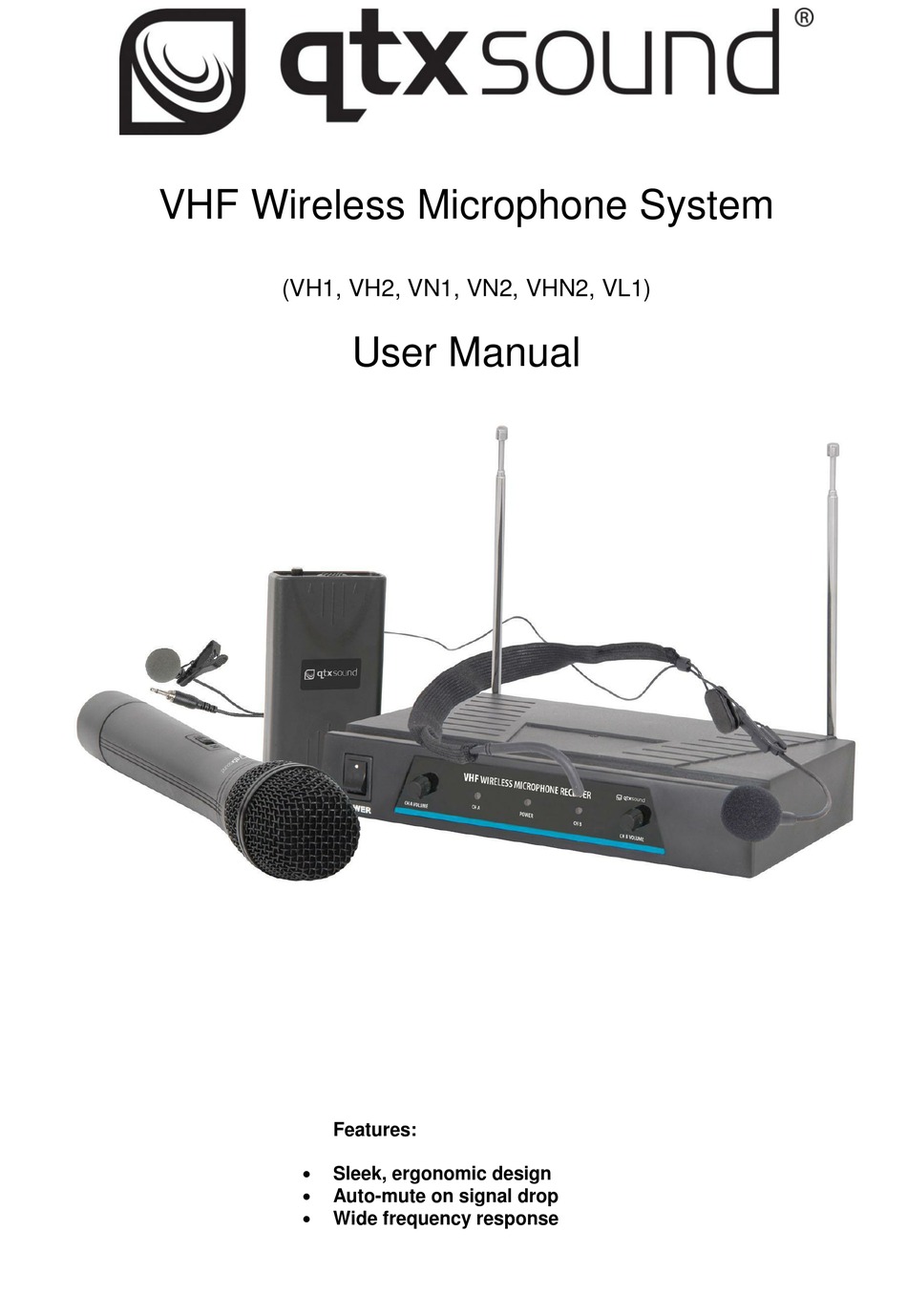

VHF Wireless Microphone System (VH1, VH2, VN1, VN2, VHN2, VL1) User Manual Features: Sleek, ergonomic design Auto-mute on signal drop Wide frequency response... -
Page 2: Handheld Transmitter
Introduction: Thank you for choosing the QTX Sound VHF-series wireless system. This professional wireless set provides a high quality microphone with VHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase. -
Page 3: Receiver Rear Panel
Receiver Rear Panel 1. Antennae 2. Power adapter input 3. Unbalanced 6.3mm jack output 4. Balanced XLR output Receiver Front Panel 1. Power ON/OFF switch 2. Channel A volume control 3. Channel A indicator LED 4. Power indicator LED 5. Channel B indicator LED 6. -
Page 4: Specifications
XLR (balanced), Jack (unbalanced) Controls Power On/Off, Mic. Volume(s) Indicators Power, Signal Dimensions 43 x 213 x 180mm Weight 340g HANDHELD TRANSMITTER (VH1, VH2, VHN2) Capsule type Dynamic - cardioid response Battery 9Vdc, PP3 Switch Power / Mute / On RF emission <10mW Dimensions 235 x 44mmØ... -
Page 5: Troubleshooting
Troubleshooting Ensure power adapter is connected to mains and working properly “POWER” LED does not light on receiver Ensure receiver is switched on Ensure transmitter is switched on “POWER” LED is lit but no “SIGNAL” LED Check that transmitter is not out of reception range Check that transmitter battery is good / charged Check if transmitter switch is in “MUTE”...
