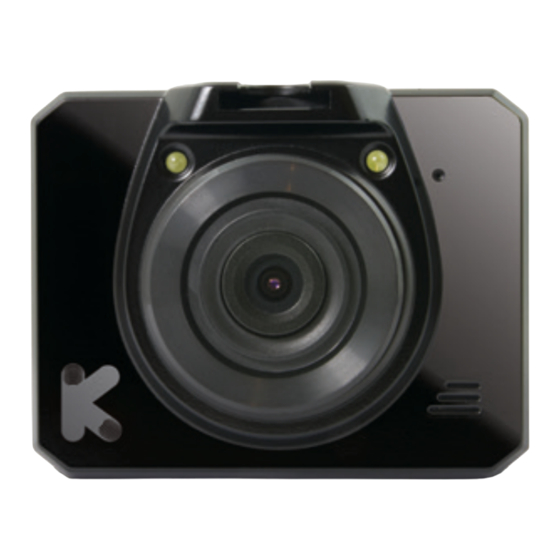

Contents Safety Precautions What’s in the Box Product Diagram Setting up the R10 Car DVR In Car Operation Computer Connection Interface Specifications Frequently Asked Questions Contact Us...
• Only use the provided power cables to charge the device. • Do not expose the R10 camera to water, dust, oil and temperatures over 70˚C. • Avoid leaving your R10 camera in direct sunlight for prolonged periods of time.
Product Diagram Wide Angle Lens Down Button (hold during recording for light on/off) Mounting Socket Micro SD Slot 2” Display HDMI Mini Port (adapter Power Button required for HDMI) Menu / Back Button AV Out Port Mode Button Micro USB Port Record /OK Button Reset Button Up Button...
• Switch the suction cap base latch into the lock position securing the mount to the windscreen. • Adjust the nut to ensure that the camera is correctly angled. • Finally connect the R10 to power using the USB Mini cable and the USB car charge adaptor. micro SD HDMI...
SOS file and will not be recorded over by regular footage. These files need to be manually deleted from your SD card manually by con- necting your R10 to your computer. For more information on the R10 interface please see section marked “Interface”.
Mac users may need to download a third party player such as ‘VLC’ to play these files as AVI is not natively supported on Apple computers. VLC can be found at www.videolan.org/VLC VLC is not a product of Kaiser Baas.
Interface Recording / View Finder Screen From this screen you can manually start and stop recording using the REC button, navigate to the menu screen using the MENU button and cycle through the Recording, Photo, Video Playback, and Photo Playback, modes using the mode key.
Page 13
Playback Video/Photo In these screens the up and down buttons are used to navigate media, the record button is used to playback media and the mode button is used to navigate back. SOS files will be indicated with a lock icon. For information on deleting media, see section Deleting Media.
Page 14
Menu The R10’s menu can be accessed by pushing the MENU button on the side of the device. The menu can then be navigated with the mode button to cycle through the different menus. The Up and Down buttons are used to navigate though the sub menus, and the REC and MENU buttons are used to select and navigate back.
Page 15
Computer Connect the R10 to your computer using the instructions in section Computer Connection. Once you have connected your R10 camera, files can be manually deleted from the 100_DSC file. Camera Interface In the R10’s Playback menu (Menu/Playback/Delete), this will open the option to delete one or delete all. If...
Specifications Dimension (L x W x H) 71 x 31 x 56 mm Weight Lens 120° Wide Angle Lens CMOS AR0330 300pixel Focus length 3.5M Aperture 2.0 inch Resolution • 1920 x 1080 FHD 30fps • 1280 x 720 HD 30fps • 1280 x 720 HD 60fps • 640 x 480 VGA 30fps Compresson format...
Page 17
Storage microSD CLASS 4 up max support 32GB Output AV OUT Voice recording On / off Operation Temperature -20°C - 65°C Storage Temperature -20°C - 75°C...
Frequently Asked Questions Q. The image is blurry A. Try repositioning the camera. For best results, try and aim the camera through a section of the windshield that is not overly curved or angled as this can cause a blurring effect with footage. Q.
Contact Us Having trouble setting your R10 Car DVR up? Please contact us. No question too big or small and we are more than happy to help. Please visit: www.kaiserbaas.com/support Or email: helpdesk@kaiserbaas.com For further information please visit: www.kaiserbaas.com Tech support: e: helpdesk@kaiserbaas.com...
