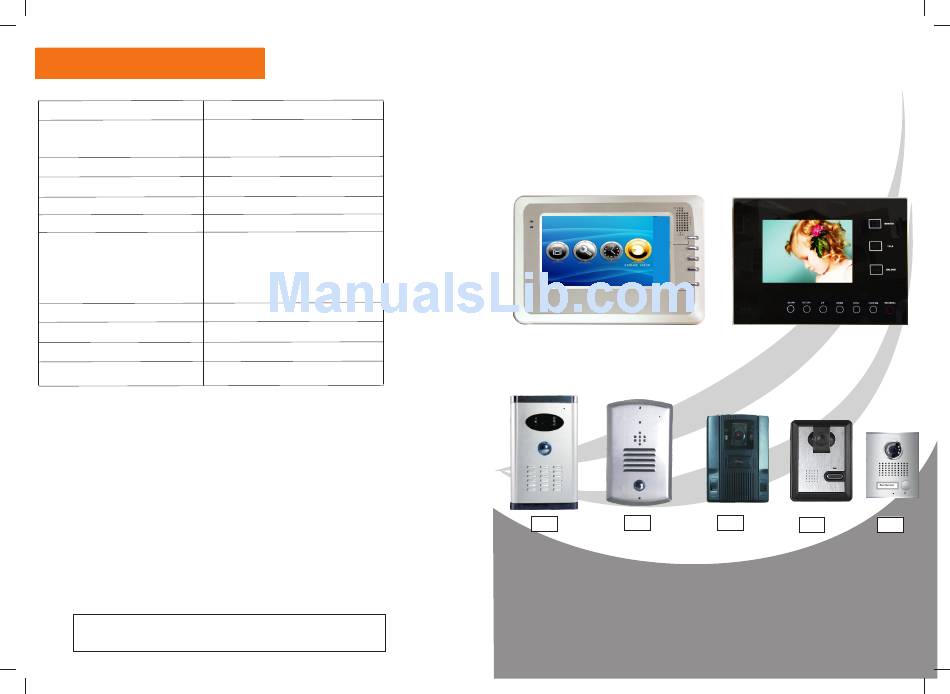

VIII.SPECIFICATIONS
Switch Power Supply(SMPS)
100V～240V(50Hz/60Hz)
Power Consumption
Operation:6.5W±0.5W
Standby:1.5W±0.5W
Chime Tones
Dingdong/ 8 Chord Melody Rings
Audio Communication System Duplex Hand-Free
Automatically Shutdown Time
60 Seconds
Unlock Signal Output
12V/2A～100ms
Cable between Monitor & Camera:
Wiring
Door Lock Wiring: 18AWG, 1.0mm
Video Format
ASF
Photo Format
JPG
Memory Storage
2 GB Maximum
Working Temperature
-10 C to +40 C
Designs Subject to Change Without Prior Notice.
2
<50m: 0.5mm
2
>50m: 1.0mm
五、安全注意事项
2
0
0
Video-Recording
Hand-Free Color Video Door Phone
enter
MONITOR
exit
left
right
MENU
INSTRUCTION MANUAL
Advertisement
Table of Contents
Summary of Contents for Video r VDP-C37DP
- Page 1 VIII.SPECIFICATIONS Video-Recording Hand-Free Color Video Door Phone Switch Power Supply(SMPS) 100V～240V(50Hz/60Hz) Power Consumption Operation:6.5W±0.5W Standby:1.5W±0.5W Chime Tones Dingdong/ 8 Chord Melody Rings Audio Communication System Duplex Hand-Free Automatically Shutdown Time 60 Seconds Unlock Signal Output 12V/2A～100ms enter Cable between Monitor & Camera: MONITOR Wiring exit...
-
Page 2: Functional Components
Please read the user manual before installing and wiring. Do retain it for future reference. Hope our product satisfies you mostly. Please check your kit with this manual we have option of Video/Photo Memory ⑧ for this product. □VDP-C37DP □VDP-C33DP Photo-Memory Only Video-Recording Only □VDP-C37DVR □VDP-C33DVR □VDP-C37VP... - Page 3 OUTDOOR STATIONS III.Operation Instruction of VDP-C37DVR Series 5 6 7 8 9 10 Screw Holes 1. Warning, Unlocking & Talking Press Call Button ODS-S □ ODS-5□ 8 9 10 Automatically Display Video Icon Time Close Monitoring(directly shut off the screen) 02/15/2010 14:53:02 0 0 : 0 0 : 1 6 Stop Video Recording...
-
Page 4: Video Recording
3. Video Recording 4.1.Video Playback After accessing to the menu, a group(4/group) of thumbnail images of video Press Record Button under monitoring or talking mode, video icon and files are showed on the screen. record time will be showed on the screen. It lasts 60 seconds if no action Recording Time of Selected Video operated on the door phone, you can also stop recording by pressing Video Series... -
Page 5: Video Playback
You can select ring chime tones and video/ 5. Computer Download 4.2. Function Setting （B） 铃 声 选 择( Ring Setting )： photo option here Connect the USB port with PC's with USB bridge cable to download the videos. Function setting Current Ring Save the Ring You Select and Return to Previous Menu... - Page 6 IV.Operation Instruction of VDP-C33DVR Series 3. Video Recording 1. Warning, Unlocking & Talking Touch “Recording” button to start recording (The recording button doesn’t work under standby and Menu-setting modes.) Tip: Under basic function mode, Video Icon(Normally it is in Green and it is in Red when memory is <30M) "Return, Up, Next, Menu and Memory is fnished(At this time, the system will automatically Confirm"...
-
Page 7: Function Setting
b.Videos Deleting 4.1 Video Playback In the thumbnails list of videos, touch Delete Button to delete the videos. After accessing to the menu, a group(4/group) of thumbnail images of video There are 2 options: Delete One and Delete All. files are showed on the screen. Video Series No.1 Delete One or Delete All Recording Time of Selected Video... -
Page 8: Outdoor Station
4.3 Time Setting Accessing to Time Setting then touch Select Button to set Outdoor Station “year, month, date, hour, minute and second” accordingly. 1. When a visitor presses Call Button, a confirming tone is heard which verifies Selected Part is Highlighted the call is going. - Page 9 1 ) ODS-S VDP-C37DVR Series ① Dig a square hole which is the same size of the Flush Box in the wall and drill a hole in the center for wiring and 2 small holes for plug bolts. ② Fix the plug bolts in the 2 small holes and put the Flush Box into the wall and fix with 2 self-tapping screws.
- Page 10 4) ODS-J ① Drill a hole in the center area of the bracket just big enough for the electrical wiring to pull through. And drill 2 small holes for the plug bolts. Put-in ② Insert and fix the plug bolts in the 2 small holes, then attach the mounting Cable bracket to the wall and fix with 2 self-tapping screws.
