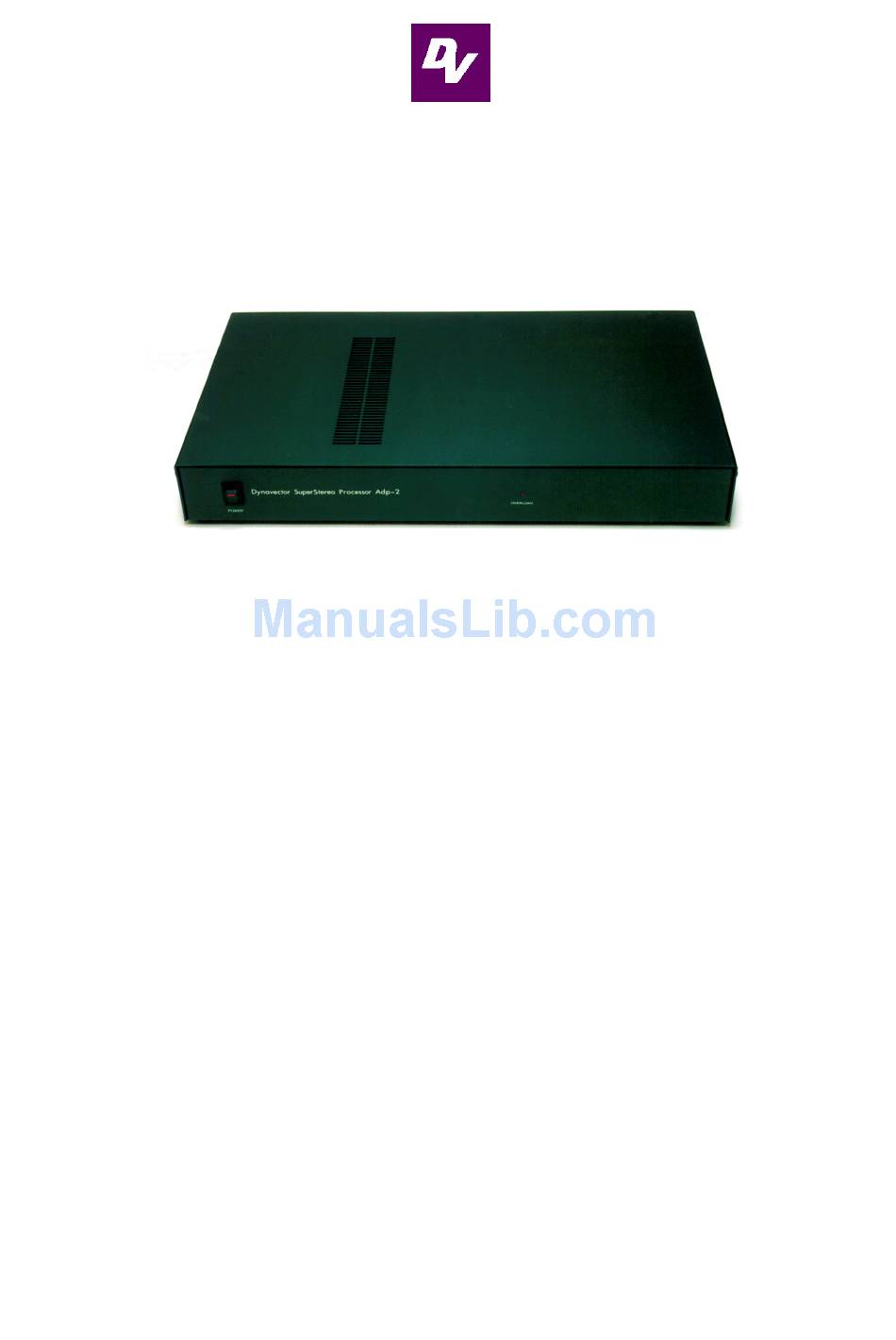

Dynavector SuperStereo Processor DV-SS-Adp-2
User Instructions and Installation Manual

Introduction

Dynavector SuperStereo has been highly acclaimed as the only system able to recreate
real music from the playback of recorded sound.
Because of the limitations inherent in conventional stereo systems, the music which
they reproduce, regardless of its scale or quality, lacks the sound of the original
performance. There is a missing link which has been the greatest problem affecting sound
reproduction. SuperStereo is the first system in the long history of recorded sound to
succeed in breaking through this difficult barrier.
The DV-SS Adp-2 is designed to be straightforward to install and use so that music
lovers who may not be especially familiar with audio equipment can enjoy in their homes
life-like reproduction from their CD's, records and tapes without difficulty.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV-SS Adp-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynavector DV-SS Adp-2

  • Page 1 SuperStereo is the first system in the long history of recorded sound to succeed in breaking through this difficult barrier. The DV-SS Adp-2 is designed to be straightforward to install and use so that music lovers who may not be especially familiar with audio equipment can enjoy in their homes...
  • Page 3 Installation Methods METHOD 1: CONNECTION OF THE ADP-2 TO A NORMAL STEREO SYSTEM CONSISTING OF A PAIR OF LOUDSPEAKERS IN FRONT AND AN INTEGRATED PRE-MAIN AMPLIFIER A small pair of extra speakers of good sensitivity and some speaker wire will be required. Ensure that your amplifier is switched off and unplugged from the wall socket.
  • Page 4 When the above steps have been carried out, the installation procedures are complete. It now only remains to adjust the controls of the Adp-2 and amplifier. To do this: a) Put the SP/ LINE switch on the rear panel of the Adp-2 ((5) in the accompanying illustrations) to the SP position.
  • Page 5 After listening for a little while, set the "SUB SPEAKER POLARITY" switch on the Adp-2 to either + or -, selecting the position which gives the most natural and deep bass. The volume control of the Adp-2 and the Popular/Rock/Classic switches can be adjusted to suit the nature of each recording.
  • Page 6 METHOD 3: WHERE A BIGGER SYSTEM NEEDS MORE POWER FOR SUB SPEAKERS Where a more powerful amplifier is needed to drive the sub speakers; 1) Follow steps 1) and 2) in Method 2. 2) Connect “PROCESSOR OUT” terminals of the Adp-2 to the input terminals of the second power amplifier, as shown in the illustration.

  • Page 7: Specifications

    AC220 – 240 volts 50/60Hz 70VA Dimensions 430Wx63Hx230Dmm Weight 3.5kg(approx.) Safety compliance Complies with EN 60065 : 1998 Country of origin Made in Japan Guarantee 12 months (parts and labour) return to supplier 16-15 Iwamoto-cho 2-chome Chiyoda-ku Tokyo 101-0032 Japan Phone 0081-3-3861-4341 FAX 0081-3-3862-1650 http://www.dynavector.co.jp/...

  • Page 8: Warranty Card

    Dynavector shall not be liable to repair or replace the processor under the terms of the guarantee where: the fault is judged to have been due to accidental use, misuse, power surges, damage in transit or where it has been used contrary to the manufacturer's introductions.
