Kenmore 153.33114 Use And Care Manual

Kenmore water heater user manual.
Hide thumbs

Advertisement

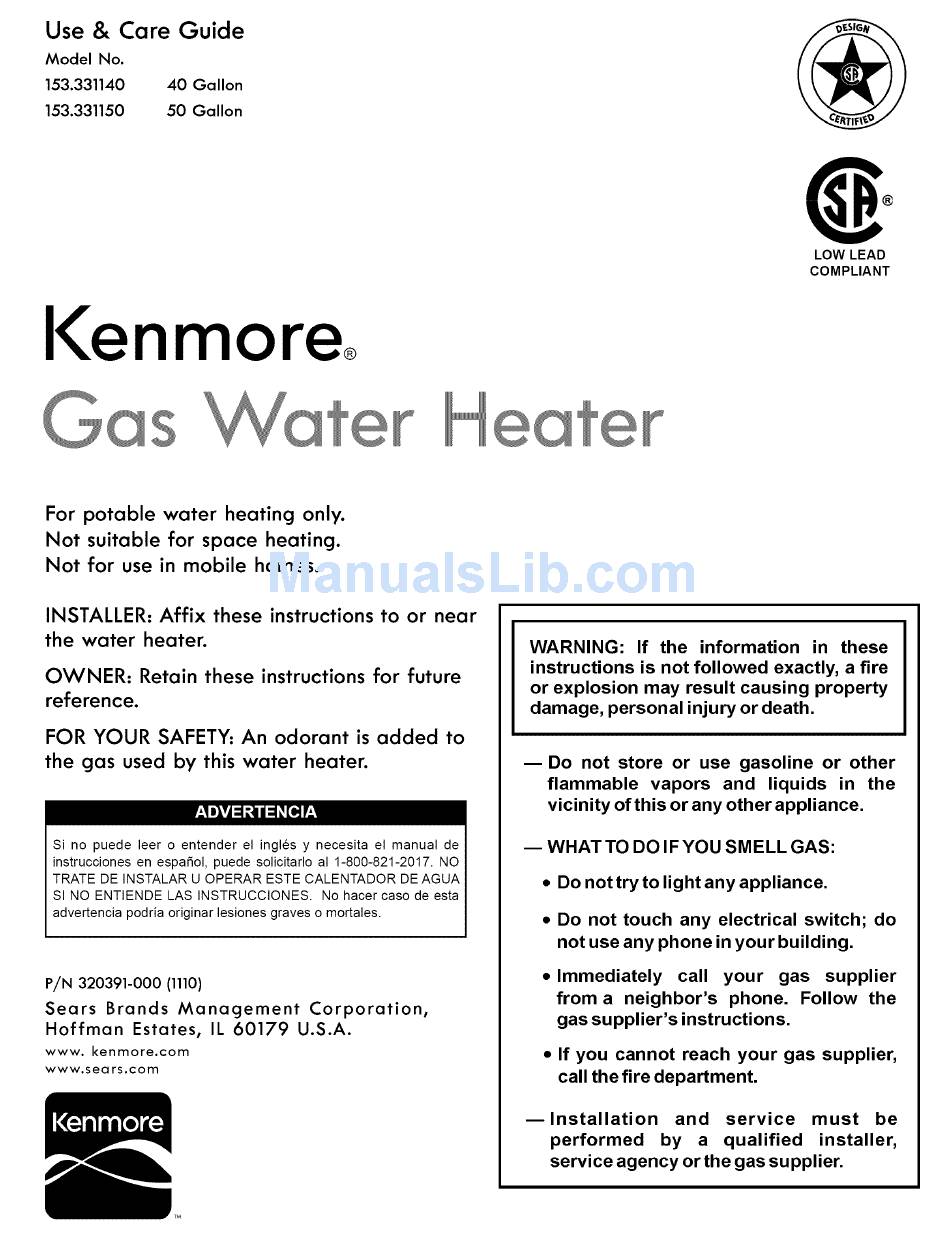

Use & Care Guide
Model
No.
153.331140
40 Gallon
153.331150
50 Gallon
I<enmore
L-oa of
LOW LEAD
COMPLIANT
For potable
water
heating
only.
Not suitable for space heating.
Not for use in mobile
homes.
INSTALLER: Affix these instructions to or near
the water heater.
OWNER:
Retain these instructions for future
reference.
FOR YOUR SAFETY: An odorant
is added
to
the gas used by this water
heater.
Si no puede leer o entender
el ingles y necesita
el manual de
instrucciones
en espaSol, puede solicitarlo
al 1-800-821-2017.
NO
TRATE DE INSTALAR U OPERAR ESTE CALENTADOR
DE AGUA
SI NO ENTIENDE
LAS INSTRUCCIONES.
No hacer caso de esta
advertencia podria originar lesiones graves o mortales.
P/N 320391-000
(1110)
Sears
Brands
Management
Corporation,
Hoffman
Estates,
IL 60179
U.S.A.
www.
kenmore.com
www.sears.com
WARNING:
If the
information
in these
instructions
is not followed
exactly, a fire
or explosion
may result causing
property
damage,
personal
injury or death.
m Do not store
or use gasoline
or other
flammable
vapors
and
liquids
in the
vicinity of this or any other appliance,
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch
any electrical
switch;
do
not use any phone in your building.
• Immediately
call
your
gas
supplier
from a neighbor's
phone.
Follow
the
gas supplier's
instructions.
• If you cannot
reach
your gas supplier,
call the fire department.
m lnstallation
and
service
must
be
performed
by
a
qualified
installer,
service agency or the gas supplier.
