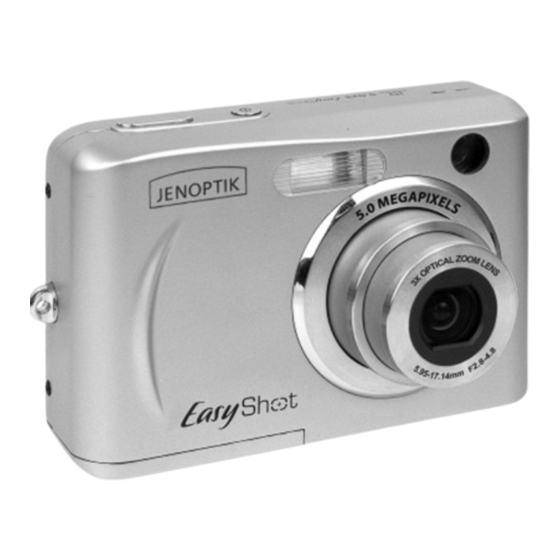

JD easy shot 5.0z3 User Manual
  1. Manuals
  2. Brands
  3. JD Manuals
  4. Digital Camera
  5. easy shot 5.0z3
  6. User manual

JD easy shot 5.0z3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
User's Guide
www.jenoptik-camera.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the easy shot 5.0z3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JD easy shot 5.0z3

Summary of Contents for JD easy shot 5.0z3

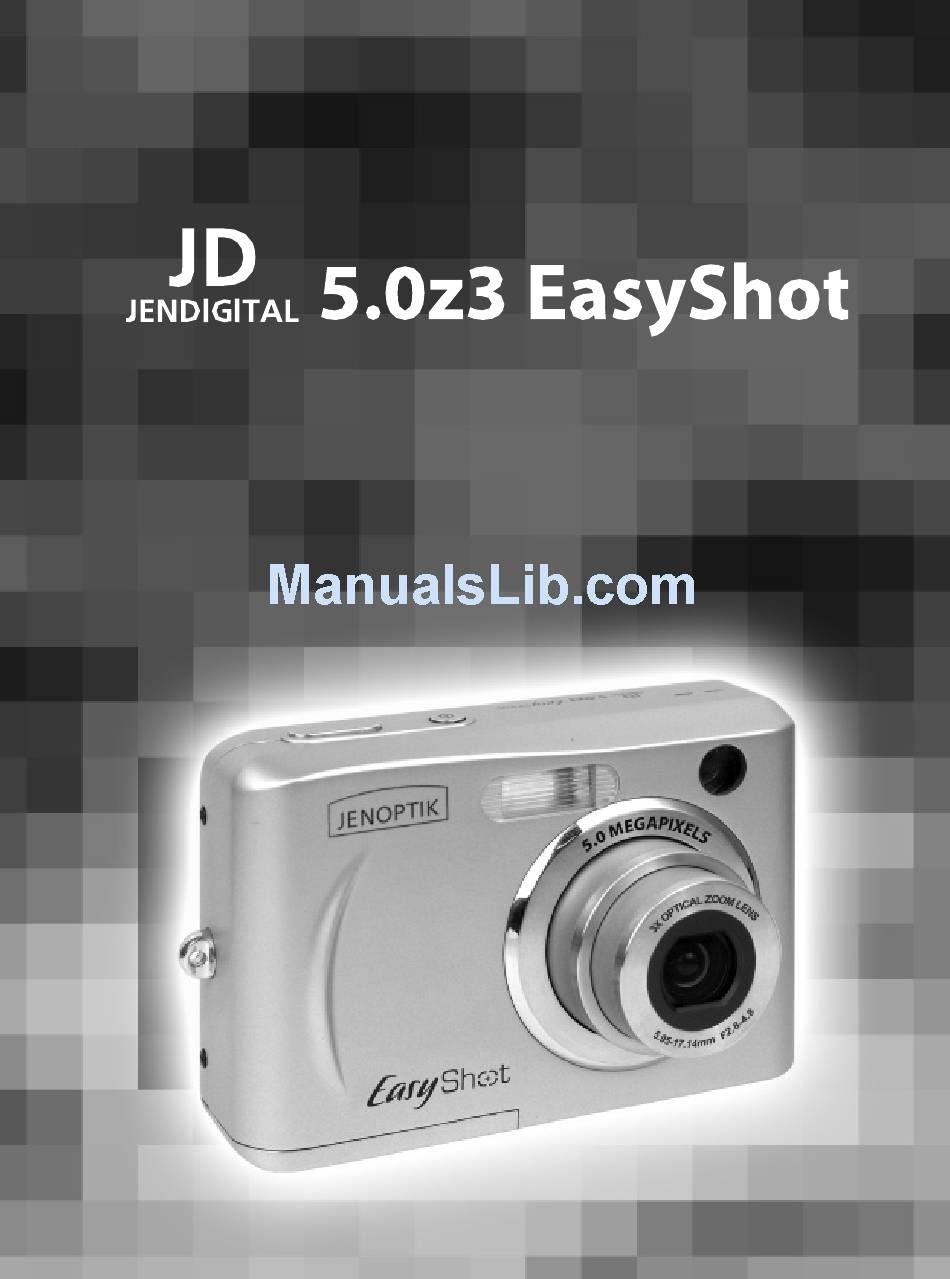

  • Page 1 User’s Guide User’s Guide www.jenoptik-camera.com...

  • Page 2: Table Of Contents

    ENGLISH Table of Contents GETTING STARTED ......................3 STANDARD ACCESSORIES ......................3 Attaching the Wrist Strap ......................3 Using the Soft Case ........................4 NAMES OF PARTS ........................... 4 INSERTING THE BATTERIES ......................5 Low Battery Indicator ......................... 5 INSERTING A MEMORY CARD ....................... 5 About Camera Memory ......................
  • Page 3 Using the Thumbnail ........................ 18 Magnifying Still Images ......................18 Playing Back Movie Clips ......................18 PLAYING BACK SOUNDS ......................19 Recording a Voice Memo ......................19 Playing Back a Voice Memo ....................19 DELETING FILES ........................... 19 Deleting a Single File ....................... 19 Deleting All Files ........................

  • Page 4: Getting Started

    GETTING STARTED GETTING STARTED STANDARD ACCESSORIES Camera USB Cable Video out Cable Soft Case Strap 2 x AA Batteries Software Installation CD-ROM Quick Start Guide Attaching the Wrist Strap Attach the wrist strap to your camera as shown. Note: Do not swing the camera when carrying by the wrist strap.

  • Page 5: Using The Soft Case

    GETTING STARTED Using the Soft Case When not using the digital camera, keep it in the soft case for protection. NAMES OF PARTS Front Shutter button Flash Self-timer lamp Speaker Lens Strap ring Microphone Power button Bottom Back Zoom W button Battery/card (Thumbnail) chamber cover...

  • Page 6: Inserting The Batteries

    GETTING STARTED INSERTING THE BATTERIES The camera is powered by two AA-size alkaline batteries or rechargeable Ni-MH (min. 1000 mAh / 1.2V) batteries. 1. Slide the battery cover open. 2. Insert two AA-size alkaline batteries with the positive(+) and negative(-) poles matching the directions indicated inside the battery room.

  • Page 7: About Camera Memory

    GETTING STARTED To remove the memory card, gently press on the edge of the card and release it. Pull the card out and close the battery cover. About Camera Memory The digital camera is equipped with internal memory. If the memory card is not inserted in the camera, all images and movie clips recorded by the camera will be stored in the internal memory.

  • Page 8: Basic Operations

    BASIC OPERATIONS BASIC OPERATIONS Power button TURNING THE POWER ON AND OFF 1. Press the POWER button to turn on the camera in the Record mode. Or you can press the button to turn on the camera in the Playback mode. 2.

  • Page 9: Using The Menus

    BASIC OPERATIONS USING THE MENUS Recording Menu / Playback Menu When a menu screen is displayed, the arrow button and the SET button are used to make the desired settings. 1. Press the MENU button to display the menu. • The menu displays depends on whether you are in the Record mode or the Playback mode.

  • Page 10: Adj. Menu

    BASIC OPERATIONS ADJ. Menu You can quickly adjust the White Balance “ISO” Exposure in Record mode. 1. Press the SET button to display the menu. • When movie recording, only White Balance can be adjusted. 2. Press to select a menu item. 3.

  • Page 11: Using The Lcd Monitor

    BASIC OPERATIONS USING THE LCD MONITOR The LCD monitor is used to compose images while recording, adjust settings and replay images. LCD Screen Indicator In Recording 1 Mode icon 11 Aperture value 2 Flash 12 Shutter speed 3 Macro 13 Metering 4 Self-timer / Burst 14 Exposure 5 Zoom indicator...

  • Page 12: Recording

    RECORDING RECORDING RECORDING STILL IMAGES 1. Hold the camera with both hands and make sure the camera is stable. 2. Set the camera to the Record mode. 3. Aim the focus area to the subject that you want to take and press the shutter release button halfway.

  • Page 13: Using The Flash

    RECORDING Using the Flash Press the flash button cycles your camera through the various flash modes. A symbol appears on the LCD screen to indicate the flash mode. The flash cannot be used when movie recording. 1. Set the camera to the Record mode. •...

  • Page 14: Using The Macro Mode

    RECORDING Display Option Description Single shot Record a single image. The shutter release will be 2-SEC delay for 2 seconds. The shutter release will be 10-SEC delay for 10 seconds. Record two images in a shot after pressing the shutter Double release button 10 and 12 seconds.

  • Page 15: Recording Movie Clips

    RECORDING RECORDING MOVIE CLIPS Your camera can record movie clips with audio. 1. Set the camera to the Record mode . • The LCD monitor displays the available recording time. 2. Press the shutter to start recording. 3. Press the shutter again to end recording. •...

  • Page 16: Setting The Resolution And Quality

    RECORDING Display Option Description Program All settings can be changed in this mode. Portrait Blurring the background to focus on the subject. Landscape Used for the wide scenic views. Shooting the subject while keeping the Night Scene background night scenery. Kids Take a still image to capture moving kids.

  • Page 17: Setting The Movie Size

    RECORDING Setting the Movie Size Movie clips can be shot with different size. Option Description 640x480 - Suitable for viewing on TV. 320x240 - Suitable for viewing on PC. 160x128 - Suitable for attaching to e-mails or using in websites. Setting the White Balance Adjust the white balance to match different light sources such as sunlight, incandescent (tungsten) lighting or, fluorescent lighting.

  • Page 18: Setting The Exposure

    RECORDING Setting the Exposure Set the exposure value manually to compensate for unusual lighting conditions such as indirect indoor lighting, dark backgrounds, and strong backlighting. Setting the Metering There are 3 different light metering options available on your camera. Option Description Light is measured from the entire shooting screen, but gives more importance to the values near the center.

  • Page 19: Setting Date Stamp

    PLAYBACK Setting Date Stamp The Date Stamp function can be used to add a date to your pictures as you take them. Option Description Do not add the recorded date & time to printed images. Date Only add the recorded date to printed images. Date &...

  • Page 20: Playing Back Sounds

    PLAYBACK PLAYING BACK SOUNDS 1. Set the camera to the Playback mode . 2. Press to select the audio clip that you want to playback. 3. Press the SET button to start playing the audio clip. 4. Press the MENU button to stop the audio clip, or press the SET button to pause it. •...

  • Page 21: Deleting All Files

    PLAYBACK 5. Press the SET button to delete the image or press the MENU button to cancel. 6. Repeat step 4~5 to delete images. Hint: • To quickly delete the current display image 1. Select the image you want to delete. 2.

  • Page 22: Editing Images

    PLAYBACK EDITING IMAGES Rotating Still Images The still images can be rotated by various degrees. 1. Set the camera to the Playback mode . 2. Press to select the image you want to rotate. 3. Press the MENU button, then press to select ROTATE 4.

  • Page 23: Setting The Dpof

    PLAYBACK SETTING THE DPOF The Digital Print Order Format (DPOF) setting allows you to select images on the memory card for printing and specify the number of print copies in advance using the camera. This is extremely convenient for sending the images to a photo developing service or for printing on a direct print function compatible printer.

  • Page 24: Copying The Files

    ADVANCE SETTINGS COPYING THE FILES You may want to copy the data from the camera’s internal memory to the memory card for convenience. 1. Be sure you had inserted a memory card to your digital camera. 2. Set the camera to the Playback mode . 3.

  • Page 25: Setting The Language

    ADVANCE SETTINGS Option Description 1 min. The power will turn off automatically after 1 minute. 3 min. The power will turn off automatically after 3 minutes. 5 min. The power will turn off automatically after 5 minutes. SETTING THE LANGUAGE The camera can display menus and other information in a number of different languages.

  • Page 26: Setting The Tv Out

    ADVANCE SETTINGS SETTING THE TV OUT Your camera can be connected to a TV allowing you to preview images and movie clips on the television screen. TV Out should be set to either NTSC or PAL depending on your region. Option Description NTSC...

  • Page 27: Formatting The Memory

    MAKING CONNECTIONS FORMATTING THE MEMORY To erase all data stored in the memory card if you are using a card, or all data stored in the internal memory if there is no card inserted. 1. Set the camera to the Setup Menu . 2.

  • Page 28: Connecting The Camera To A Pc

    MAKING CONNECTIONS CONNECTING THE CAMERA TO A PC There are two ways to download files from the camera’s internal memory or memory card to a computer: • by inserting the memory card into a card reader • by connecting the camera to a computer using the included USB cable Using the Card Reader 1.

  • Page 29: Software Installation

    SOFTWARE INSTALLATION(FOR WINDOWS USERS) SOFTWARE INSTALLATION(FOR WINDOWS USERS) SYSTEM REQUIREMENTS Windows: • PC with processor better than MMX Pentium 233 MHz • Windows XP/2000/ME/98SE • Minimum 32 MB RAM • USB port • CD-ROM drive • 800x600 pixels, 16-bit color display compatible monitor Macintosh: •...

  • Page 30: Installing Your Camera Driver

    SOFTWARE INSTALLATION(FOR WINDOWS USERS) INSTALLING YOUR CAMERA DRIVER Step 1 Make sure that your camera is not connected to the computer. Step 2 Make sure the computer is powered on and Windows 98SE/ME/2000/XP is running. Step 3 Close any other applications or software you may be running. Insert the supplied CD-ROM into the CD-ROM drive.

  • Page 31: Installing Xvid Codec

    SOFTWARE INSTALLATION(FOR WINDOWS USERS) Click [Next]. Step 8 Step 9 Install progress bar. To ensure the complete installation and enable the camera to function well, please do select “restart your computer”. Step 10 INSTALLING XVID CODEC Note: To ensure the video clips can be played, please install XviD Codec. Step 1 Make sure that your camera is not connected to the computer.
  • Page 32 SOFTWARE INSTALLATION(FOR WINDOWS USERS) The installation screen will appear. Click on Install XviD Codec. Step 6 Select the language. Click[OK]. Step 7 Click [Next>]. Step 8 Select “I accept the agreement” then click [Next>]. Step 9 Click [Next>]. Step 10...
  • Page 33 SOFTWARE INSTALLATION(FOR WINDOWS USERS) Click [Next>]. Step 11 Click [Next>]. Step 12 Click [Next>]. Step 13 Click [Install]. Step 14...

  • Page 34: Installing Windows Media Player 9

    SOFTWARE INSTALLATION(FOR WINDOWS USERS) Step 15 Install progress bar. Click [Finish]. Step 16 INSTALLING WINDOWS MEDIA PLAYER 9 Step 1 Make sure that your camera is not connected to the computer. Step 2 Make sure the computer is powered on and Windows 98SE/ME/2000/XP is running. Step 3 Close any other applications or software you may be running.
  • Page 35 SOFTWARE INSTALLATION(FOR WINDOWS USERS) Read the License Agreement, then click “I Accpet”. Step 8 Step 9 The screen shows installing progress bars. When the installing is complete, the screen shows welcome page. Click “Next”. Step 10 Choose the privacy options according to your preference, then click “Next”. Step 11 Select or dis-select the file types that will use the Windows Media Player as default player.

  • Page 36: Installing Arcsoft Photoimpression

    SOFTWARE INSTALLATION(FOR WINDOWS USERS) The screen shows the Windows Media Player window. Step 13 Close the Windows Media player by clicking on the “X” on the left top corner or clicking “File Exit”. Step 14 Note: If you have downloaded the video clips recorded with the camera onto your computer, you can click “File Open ...”...
  • Page 37 SOFTWARE INSTALLATION(FOR WINDOWS USERS) Click [Next >]. Step 7 Click [Yes]. Step 8 Click [Next >]. Step 9 Make sure the two applications are checked and then click [Next >]. Step 10...

  • Page 38: Installing Adobe Acrobat Reader

    SOFTWARE INSTALLATION(FOR WINDOWS USERS) Click [Next >]. Step 11 Step 12 The screen will show the status of the installation Click [Finish]. Win 98 SE will request for restart. Step 13 Win 98SE Win 2000/ME/XP INSTALLING ADOBE ACROBAT READER (OPTIONAL) Step 1 Make sure your camera is powered off and not connected to the computer.
  • Page 39 SOFTWARE INSTALLATION(FOR WINDOWS USERS) The installation screen will appear, Click on Install Adobe Acrobat Reader 6. Step 6 “Recomposing data ...” status bar appear. Note for Win 98 SE users: As Adobe Reader 6 requires Internet Explorer 5.01 or greater, you may see below information: Note for Win 2000 users: As Adobe Reader 6 need the support of Win 2000 SP2, you may see below...
  • Page 40 SOFTWARE INSTALLATION(FOR WINDOWS USERS) Click [Next >]. Step 9 Click [Next >]. The files will be saved into C:\Program Files\Adobe\Acrobat 6.0 automatically. You may change the default folder by clicking [Change Destination Folder...] and selecting a different folder in your computer. Step 10 Click [Install] to start install the Adobe Reader 6.

  • Page 41: Using Arcsoft Photoimpression

    3. When the Application opens, click on the Camera/Scanner button.(Pic 2) Pic 1 Pic 2 4. Click on the drop-down list under Select Source and choose Jenoptik JD 5.0z3 EasyShot. 5. Click on the Camera/ Scanner Icon ( • A second window will appear showing the contents (pictures) in the memory, and options on how to handle them.

  • Page 42: Appendix

    APPENDIX APPENDIX TROUBLESHOOTING Problem Cause Solution Battery is inserted in the wrong Reload battery in the correct direction. direction. Power does not turn Batteries are dead. Replace or recharge batteries. The battery compartment door Make sure the battery compartment door is open.

  • Page 43: Specifications

    APPENDIX SPECIFICATIONS Sensor 5.02 Mega Pixels CCD / Size : 1/2.5 inch Focal Length : f=5.95 ~17.14mm , Lens 3X optical zoom, 4X digital zoom LCD monitor 2.4” TFT color LCD Normal: 80cm ~ Infinity Focus Range Macro: (W) 5cm ~ 1m / (T) 50cm ~1m Aperture F/2.8 ~ 4.8 Shutter...

  • Page 44: Getting Help

    APPENDIX GETTING HELP You can get help from the troubleshooting section, FAQ or Customer Support on our website. Troubleshooting Section in this User’s Guide Please refer to the Troubleshooting section first, as it contains some of the most common problems that users encounter.

  • Page 45: Safety Tips And Maintenance

    APPENDIX SAFETY TIPS AND MAINTENANCE Cleaning the camera body Please use a soft dry cloth to clean the camera. Cleaning the lens and LCD 1. Blow off dirt or dust with a blower or canned air. 2. Gently wipe the lens and/or LCD with a micro-fiber cloth. 3.
  • Page 46 APPENDIX temperatures may adversely affect the camera’s internal components and could cause a fire. • Always use the camera and its accessories in a well-ventilated area. • Allowing dust to accumulate in the camera over a long period of time is hazardous and in extreme circumstances may cause a fire.

  • Page 47: Regulatory Information

    APPENDIX REGULATORY INFORMATION INFORMATION FCC WARNING: This equipment meets the limits for a Class B digital device, pursuant to Part 15 of FCC rules. Only the cable supplied with the camera should be used. Operation with other cables is likely to result in interference to radio and TV reception and could void the user’s authorization to operate this equipment.
  • Page 48 Visit Concord on the Internet www.jenoptik-camera.com JD 5.0z3 EasyShot User’s Guide Version 1.0 Copyright 2005 Concord Camera Corp. 584368-00...
