Protech Systems PS-8851A Quick Reference Manual

PROTECH SYSTEMS PROTECH SYSTEMS
It's a right choice
PS-8851A
Quick
Reference
Guide

Specifications

CPU VIA Eden mBGA 1GHz (optional 733MHz)
Chipset VIA CLE266+VT8235
Memory 1 x 184-pin DDR DIMM up to 1GB
Cache Built-in CPU
BIOS Phoenix-Award PnP, Flash ROM
I/O Chipset Winbond (W 83697 uF)
IDE Interface 1 x EIDE(UDMA-33/66/100/133)
Serial Port 4 x serial, COM1/2: D-sub 9-pin connector,
COM3/4: RJ45 connector, all with 5V/12V power
Parallel Port 1 x parallel (SPP/EPP/ECP)
CMOS Built-in VT8235 with battery backup
Keyboard PS/2 (Mini DIN connector)
Mouse PS/2 (Mini DIN connector)
VGA Built-in CLE266 support LVDS (TFT panel)
LAN VT6103PHY, 10/100 Mbps Ethernet
Sound AC '97 Codec, with Line-Out, audio jack
USB 2 x USB2.0
LCD Display 15" TFT LCD panel
Touch Screen Analog resistive
Drive Bay 1 x 3.5" HDD
MSR Card Reader Optional
Solo Display Optional
Power Supply External DC-in +24V adaptor
System Weight 9.5Kg (20.9lb)
Operation System Support Windows 98/2000/XP
Dimension 365 x 378 x 306 mm (14.3" x 14.9" x 12")
Manual ver Q1
All Right Reserved Copyright 2005
PS-8851A

Packing Checklist

If you discover any item below was damaged
or lost, please contact your vendor.
PS-8851A
This Quick Reference Guide
AC Power Cord (Optional)
Driver CD
Card Reader (Triple Track) (Optional)
Solo Display (Tube=120mm) (Optional)
Solo Display (Tube=180mm) (Optional)

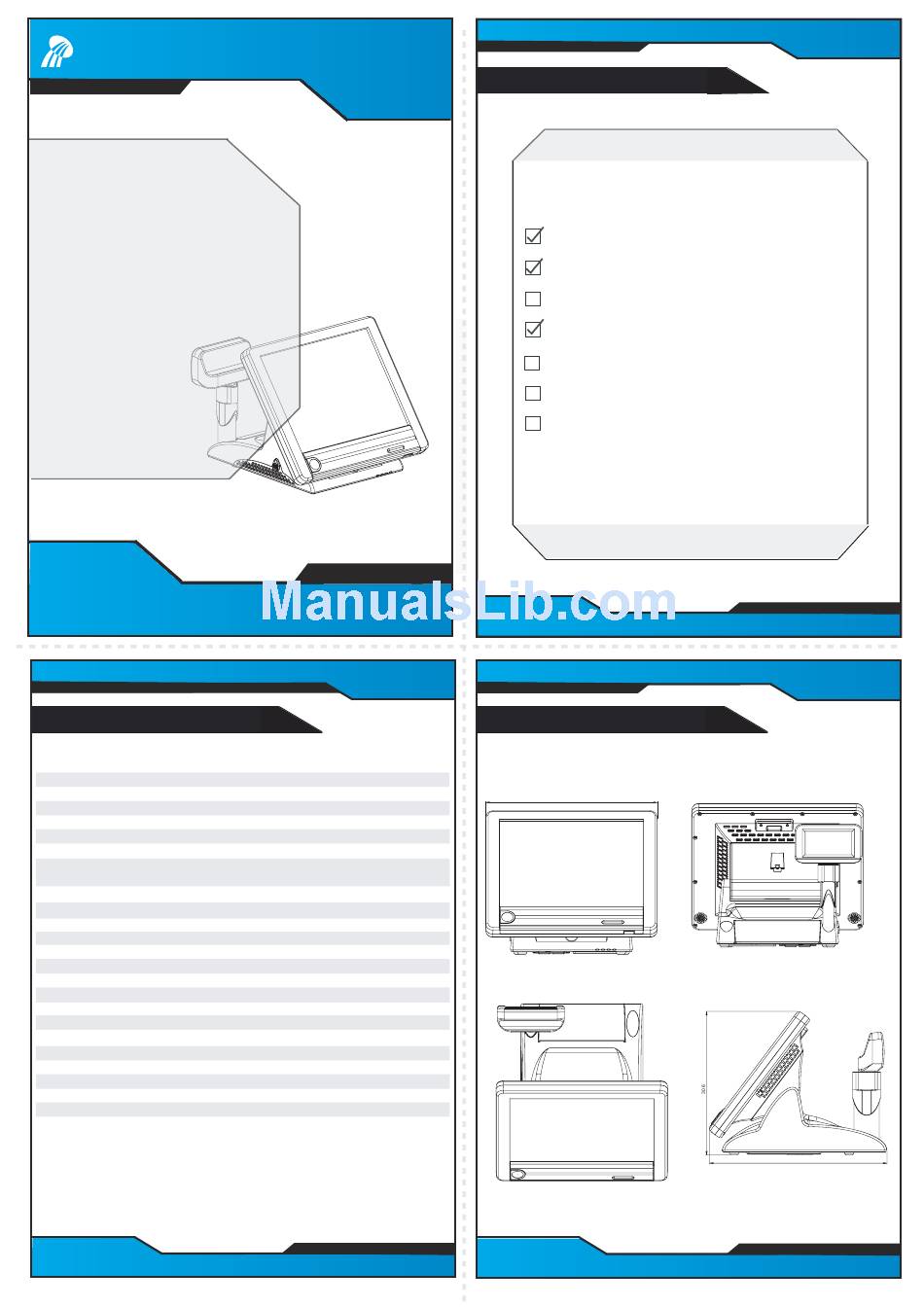

System View

Front View

365

Top View

PS-8851A
X1
X1
X1
X1
X1
X1
X1
PS-8851A
PIP1230

Rear View

Side View

377.6
Unit: mm
