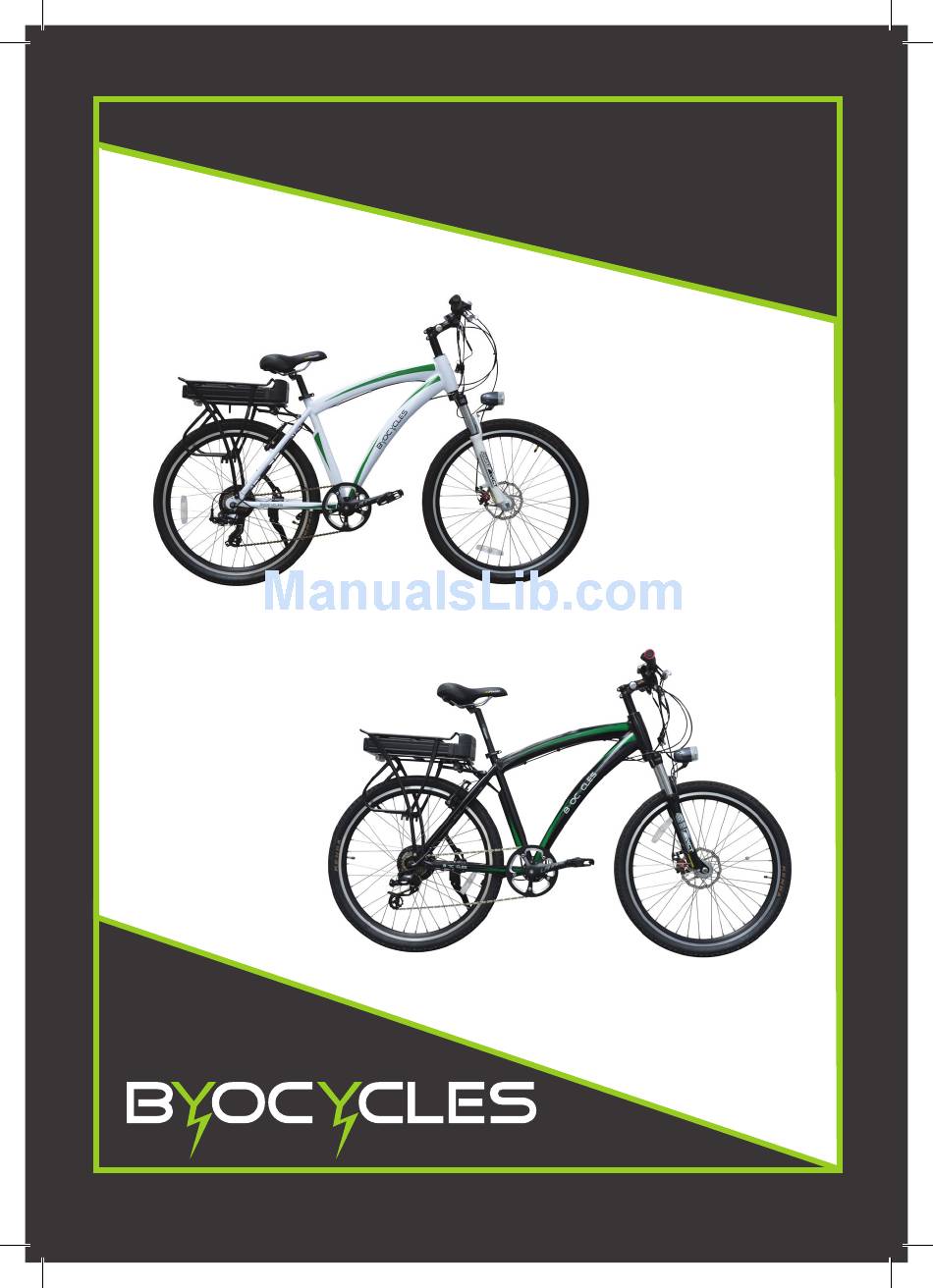

- Page 1 IBEX Range OWNERS MANUAL 2015 IBEX Product Code: BYO-2014IBX IBEX PLUS Product Code: BYO-2014IBX+...
- Page 2 By following the steps laid out in the manual, you will prolong the usage of your Byocycle as well as increasing your overall enjoyment. We wish you many happy miles of cycling. Regards The ByoCycles Team Page 2...
-
Page 3: Package Contents
Owners Manual Contents 1. Package Contents 5. Battery 15-16 On/Off 2. Quick Start Display Charging Charging Operation Cleaning Battery Fitting & Removal Storage/Transport Parts Identification Maintenance Disposal 3. Looking After Your Byocycle 9-12 Copacity/Range/Usage Before The 1St Ride Pre Ride Checks 6. - Page 4 Page 4...
-
Page 5: Quick Start
2. Quick Start Charging The Battery Before using your ByoCycle, we advise that you charge the battery fully. This is done by firstly connecting the supplied charger to the battery then connecting the charger to the mains socket. By connecting the charger in this sequence it minimizes the chance of short circuiting the system. - Page 6 2. Quick Start Cont. The bike has two modes of operation, ‘Pedelec’ mode and ‘Automatic’ mode. These work in tandem with each other so there is no need to select one or the other (as on previous ByoCycle systems). The ‘Pedelec’ function means the motor assistance will activate when one rotation of the cranks has been achieved, it will then continue to provide assistance as you pedal.
- Page 7 2. Quick Start Cont. Parts Identification Your ByoCycle comprises of various components you should take note of. These vary from items that affect safety to the bike’s operational features. The images below lists the equipment for the various styles of ‘LED and the LCD’ Specification’ bikes. IBEX MODEL Brake Lever LED Display - Assistance Level...
- Page 8 2. Quick Start Cont. Handle Bar Adjustment System Quick Release Seat LED Display IBEX (Left Clamp Lever Hand Side Of Handlebars) Battery Saddle Throttle Control LCD Display IBEX PLUS ONLY Pannier Rack Stem Height Adjusting System Seatpost Rear Light Front Light Gear Cable Motor (Rear Wheel Only)
-
Page 9: Looking After Your Byocycle
3. Looking After Your Byocycle Before The 1 Ride Before you embark on your 1st journey aboard your ByoCycle, we strongly recommend you familiarise yourself with the bike and its controls. Ensure your bicycle is ready to use and adjusted to fit your body. That Means: •... - Page 10 3. Looking After Your Byocycle Cont. To ensure your tyres are at the appropriate pressure, seek the information on the side walls of the tyre. This will give you a guide for the correct pressure, personal preference will play its part here. Check your tyres for any wear marks, such as cracking in the side walls, cuts, embedded debris such as glass and/or stones, and also the general...
- Page 11 3. Looking After Your Byocycle Cont. Weekly Checks Each week your bicycle should be inspected. This will ensure that you achieve the safest riding experience possible. In the event you find the bicycle to be in need of a service please seek the advice from your ByoCycle specialist.
- Page 12 3. Looking After Your Byocycle Cont. Water Resistance Your ByoCycle is designed to be ridden in all weather conditions, this includes wet weather. The bicycle and it’s electrical components are splash resistant. However leaving your bicycle to endure the elements, without appropriate cover or protection, will cause corrosion, especially in coastal areas where salt and grit is most common.
-
Page 13: Controls & Equipment
4. Controls & Equipment IBEX LED Display The LED display fitted to your ByoCycle is fitted to the lefthand side of the handlebars and serves multiple functions. The display will allow you to operate the front light as well as the power input from the motor. - Page 14 ByoCycle, as well as the moving the saddle fore and aft. 4.8.1 Handlebar Adjustment We recommend that you refer to your Byocycles Specialist to adjust the handlebars for comfort and safety before leaving the premises if an ajustment is required. 4.8.2 Saddle Adjustments To adjust the height of the saddle, release the seat post quick-release lever, lift the saddle to the correct height and tighten the quick-release lever.
- Page 15 5. Battery When removing the motor wheel ensure you disconnect the motor wire at the junction point half way between the wheel and the control box. Battery On/Off To turn the battery on, simply press the REP switch to position (1). This will make the bycycle’s electrical system live.
- Page 16 5. Battery Cont. Cleaning When cleaning your battery, do not use any corrosive solvents or cleaners. Ensure that the connections are free from water at all times. Storage & Transport When storing your battery, whether it is for the short term or the long term, store in a dry & warm environment.
-
Page 17: Troubleshooting
6. Troubleshooting Fault Possible cause Action Bike seems • Battery charge is low Recharge Battery underpowered • Display Issue Contact ByoCycle Specialist • Motor Issue Contact ByoCycle specialist Power on but no drive from • Motor connection Check motor connection is the motor loose secure... -
Page 18: Declaration Of Conformity
7. EG Declaration Declaration of Conformity The Manufacturer: ByoCycles Ltd 53 Kent Road Southsea Hampshire PO5 3HU United Kingdom of Great Britain Tel: +44 (0) 2392 88362 Hereby confirms for the products: Chameleon/Chameleon LS/ Product name: Chameleon XL/Zest/Zest+/Ibex/ Ibex+ Year of construction:... -
Page 19: Legal Regulations
8. Legal Regulations Use On Public Roads Before riding your ByoCycle, ensure you are familiar with the road laws of your specific country, observing the highway code at all times. Pedelecs fall under the jurisdiction of the same EU laws as bicycles. Pedelecs are also subject to the same laws as bicycles when using cycle paths. -
Page 20: Warranty
In the event a warranty claim needing to be made, please contact the ByoCycle specialist you originally purchased the bike from. ByoCycles do not contribute to the collection and delivery charges incurred during a warranty claim. These must be covered by the claimant. All decisions on warranty claims are made solely by ByoCycles Ltd. -
Page 21: Technical Specification
10. Technical Specification IBEX Frame Byocycles Aluminium IBEX Fork Sr Suntour Xct 40Mm Suspension Product Code: BYO-2014IBX Mud Guards None Wheel Set Henli 26” Double Wall Rim, Stainless Steel Spokes Tyre Kenda Mtb 26” X 1.95 Handle Bar Tubro Aluminium Flat 600Mm Wide... -
Page 22: Pre-Delivery Inspection
After sales service is dealt with by your ByoCycle specialist. However if you are unable to contact your ByoCycle specialist or wish to receive further advice about your bicycle, please contact the: BYOCYCLE LTD TEAM Address: ByoCycles Ltd 36 New Lane Havant Hampshire PO9 2JL... -
Page 23: Service Schedule
12. Service Schedule Service To Be Completed Annually Or Every 1,000 Miles Which Ever Is Achieved Earliest: Initial inspection 1st Service 2nd Service (After approx 100 miles) (After approx 1,000 miles) (After approx 2,000 miles) Work Completed: Work Completed: Work Completed Parts Used: Parts Used: Parts Used:... - Page 24 What’s in your ebike? For Further Details Please Contact Us On Find us on Follow Us On 02392 488362 http://www.facebook.com/Byocycles http://twitter.com/byocycles Email: sales@byocycles.com Website: www.byocycles.com...
