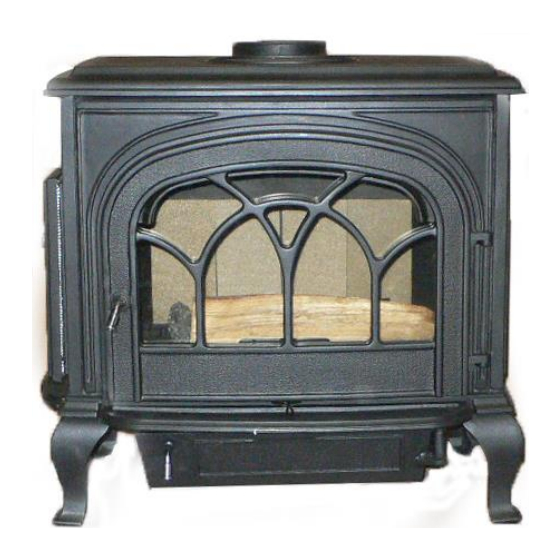

- Page 1 GloFire 737 Wood Stove Installation and Operating Instructions Save These Instructions Tested to UL 1482 & ULC S627 by Intertek U.S EPA Phase II Certified Stove Henan Hi-Flame Metal Co. Ltd., Yugang Ave., Airport District, Zhengzhou, Henan, China 451163...
-
Page 2: Safety Notices
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. Safety Notices When this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. -
Page 3: Installation
INSTALLATION Assembling the GloFire 950 1. Open the door and unfasten the wire on the fire fence. It is used to ensure that the fire glass does not break during transportation. 2. Take the packet containing the spare parts and screws from the ash pan. 3. -
Page 4: Floor Protector
Floor Protector If the stove is to be installed on a combustible floor, it must be placed on an approved 1” (25mm) non-combustible hearth pad with k = 0.42 (BTU)(in)/(ft )(hr)( F). In the US, the floor protector must extend 8” beyond each side of the flue loading and ash removal opening and 16”... -
Page 5: How To Determine If Alternate Floor Protection Materials Are Acceptable
How to determine if alternate floor protection materials are acceptable. All floor protection must be non-combustible (i.e., metals, brick, stone, mineral fiber boards, etc.). Any organic materials (i.e., plastics, wood paper products, etc.) are combustible and must not be used. The floor protection specified includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity). -
Page 6: Installation Clearances
Installation Clearances One of the necessary precautions when installing a wood stove is to leave sufficient space between the stove and combustible materials or any other material that can catch fire. It is extremely important that you respect required installation distances and that you respect local installation regulations. -
Page 7: Chimney Connection
Chimney connection The chimney connector is a single walled pipe used to connect the stove to the chimney. For use with the appliance the chimney connector MUST be 6” in diameter, with a minimum thickness of 24 gauge black steel or 26 gauge blued steel. Aluminium and galvanized steel pipe is not acceptable for use with the appliance. -
Page 8: Factory Built Chimney
Chimney DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM. This room heater must be connected to a 6” factory built UL 103 HT chimney (ULC S629, in Canada) or a code-approved masonry chimney with a flue liner. Factory Built Chimney When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. -
Page 9: Masonry Chimney
Masonry Chimney Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 10: Masonry Fireplace
Masonry Fireplace There are listed kits available to connect a stove to a masonry fireplace. The kit is an adapter that is installed at the location of the fireplace damper. The existing damper may have to be removed to allow installation. Chimney Height A masonry chimney or a listed factory-build chimney must be the required height above the roof and any other nearby obstructions. -
Page 11: Combustible Wall Chimney Connector Pass-Throughs
Combustible Wall Chimney Connector Pass-Throughs Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent. -
Page 12: Operation
Operation Use clean and dry wood only. Chemical treated wood, painted, varnished etc. or saltwater driftwood will harm the stove over time. Pile and store wood outdoors under cover. Do not place or store wood within stove installation clearances or within the space required for charging and ash removal. -
Page 13: Maintenance
Maintenance The GloFire 950 requires little maintenance, however the flue and oven base should be periodically checked for cleaning. Inside the oven is a removable base plate. This plate should be lifted off and any soot underneath it removed. You can also remove the hotplates on cooking surface of the appliance and scrape the sides of the oven. -
Page 14: Spare Parts
Spare Parts Name Flue collar Hob blanking plate with lugs Stove body Cast steel hinge Left side brick φ12 sealing rope Width 10mm sealing tape Glass clip Refractory glass Door catch Refractory handle Bolt (M8*75) Spin valve Door Ashpan Bottom air inlet control Grate Grate frame Baffle... - Page 15 The Retailer does not have the authority to alter this warranty. For further information, contact: Henan Hi-Flame Metal Co. Ltd. Yugang Ave., Airport District, Zhengzhou, Henan China 451163 Page 14...
