Digital Angle Finder

Item No.

25814

INSTRUCTION MANUAL

Please read and retain for future reference.

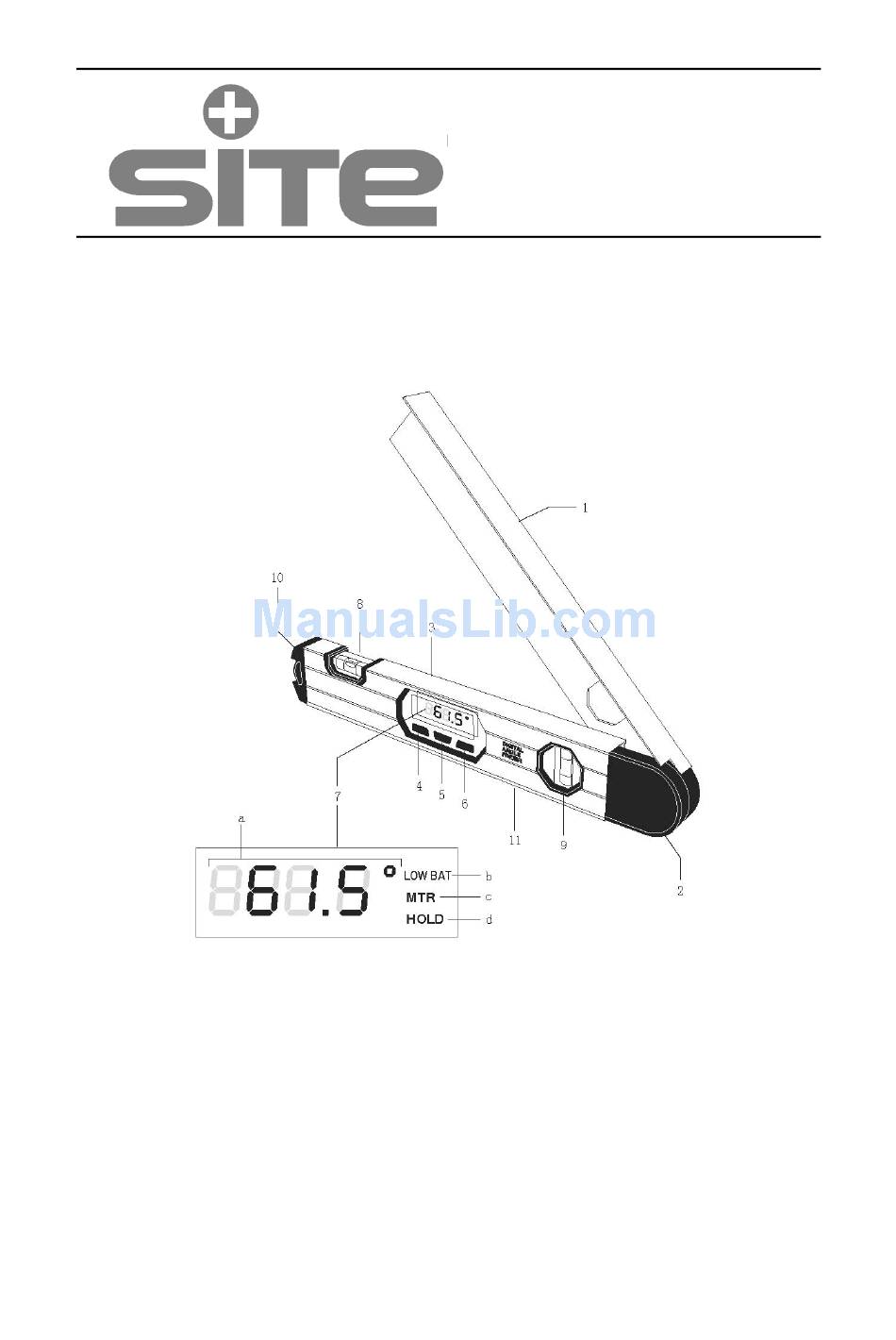

FIG. 1

1. Fold-out leg

10. End cap/battery lid

2. Joint cover

11. Contact edge

3. Base leg

DISPLAY ELEMENTS

4. "ON/OFF" button

a. Reading

5. "Mitre" button

b. Low battery indicator

6. "HOLD" button

c. Mitre(MTR) indicator

7. LCD Display

d. Hold(HOLD) indicator

8. Spirit level for horizontal alignment

9. Spirit Level for vertical alignment

Table of Contents

Need help?

Do you have a question about the Digital Angle Finder and is the answer not in the manual?

Milo o shea

July 25, 2025

Can you calibrate the angle finder

Page 1 Digital Angle Finder Item No. 25814 INSTRUCTION MANUAL Please read and retain for future reference. FIG. 1 1. Fold-out leg 10. End cap/battery lid 2. Joint cover 11. Contact edge 3. Base leg DISPLAY ELEMENTS 4. “ON/OFF” button a. Reading 5.
Page 2: Technical Data
Safety Rules for Digital Angle Finder Warning: avoid sharp edges. Be careful in handling, may cause laceration. Caution: the angle finder is a precision measuring instrument. Dropping or banging the device may result in impaired function or future inaccurate readings.
Page 3 battery will corrode or discharge itself over long periods. FIG. 2 SWITCHING ON AND OFF Press the “ON/OFF” button (4) to turn the measuring tool on or off. After approximately 5 minutes without the button activation or angle change, the measuring tool shuts off automatically to preserve battery life.
Page 4 This measurement is what you need to set your mitre saw in order to create the correct cut. FIG. 4 Maintenance and Service For safe and proper working, always keep the measuring tool clean. Do not immerse the measuring tool into water or other fluids. Wipe off debris using a moist and soft cloth.
Page 5 Declaration of Conformity SITE (UK) Ltd., BA22 8RT Declare that the product (Digital Angle Finder, EPT-DAF) complies with the essential health and safety requirements of the following Directives: (EMC Directive 89/336/EEC) Standards and technical specifications referred to: (EN61326/A3:2003) Authorised Signatory...
