Summary of Contents for Argos MDT-10DMN3

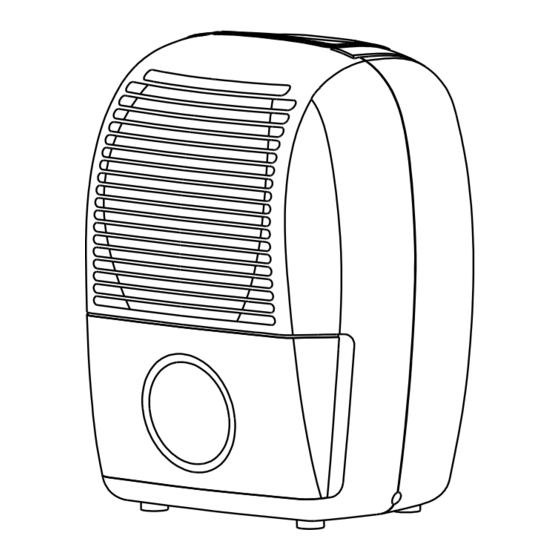

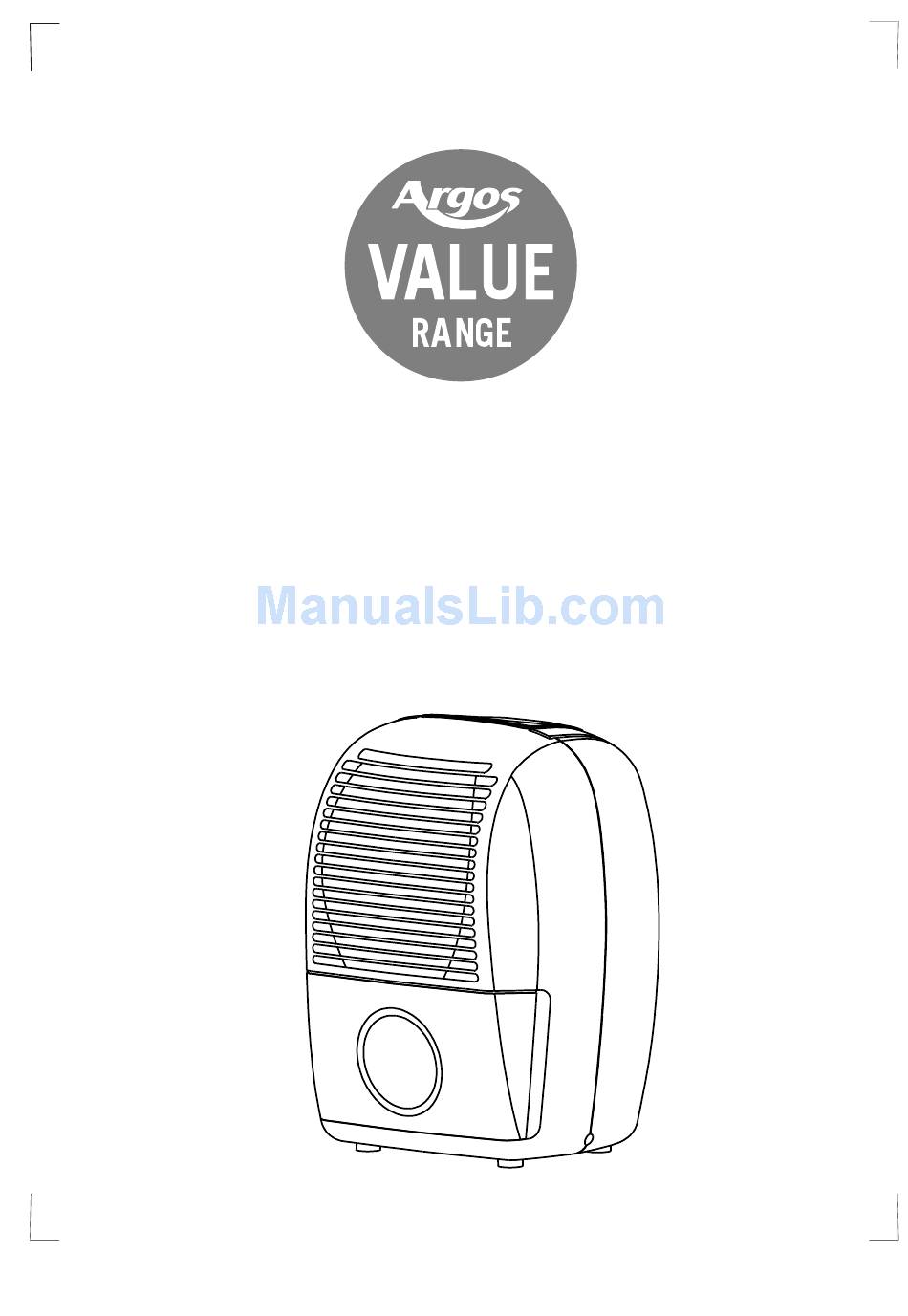

- Page 1 10 L Dehumidifier Instruction Manual...
-
Page 4: Control Panel
CONTROL PANEL ON/OFF Switch 1.ON/OFF Switch & Power On indicator light Press the ON/OFF button once to start the operation of the unit. The power on indicator light [3] will be illuminated. Press the button again to switch the unit off. 2. - Page 5 PARTS Front Rear Control panel Air intake grille Handle Air Outlet grille Continuous drainage port Water tank Power cord hook (Used only when storing the unit.) Water level Air filter window (behind the air intake Power Plug grille) Power Cord Placement A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area,...
-
Page 6: Operation
OPERATION When using the unit When first using the dehumidifier, operate the unit continuously 24 hours. This unit is designed to operate with a working environment between 5 C and 35 C. If the unit has been switched off and needs to be switched on again quickly, allow approximately three minutes for the correct operation to resume. -
Page 7: Setup Continuous Drainage
CONTINUOUS DRAINAGE Please follow the steps to setup the continuous drainage. 1. Switch off the unit and remove the plug from the mains. 2. Remove the rubber plug from the back of the unit. 3. Insert the drain tube (12mm outer diameter - not included) to the continuous drainage port. - Page 8 3. Clean the air filter The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary. NOTE: DO NOT RINSE OR PUT THE FILTER IN AN AUTOMATIC DISHWASHER. To remove: Pull the water tank out as shown in Fig.A.
-
Page 9: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please check the points below : Problem What to check Make sure the dehumidifier s plug is pushed completely into the Unit does not start outlet. Check the house fuse/circuit breaker box. Dehumidifier has reached its preset level or bucket is full. Water tank is not in the proper position. -
Page 10: Technical Data
TECHNICAL DATA Model MDT-10DMN3 Power Supply 220-240VAC 50Hz Power consumption Dehumidifying capacity L/24h (at 30 C, 80%RH) Water Tank Refrigerant R134A Recommend room size Up to 18 Working temperature 5 to 35 Dimension W X D X H 330 X 260 X 420... -
Page 12: Product Guarantee
Specifications are subject to change without notice. The manufacturer disclaims any liability for the incidental or consequential damages. The guarantee is in addition to, and does not diminish your statutory or legal rights. Guarantor: Argos Ltd 489 - 499 Avebury Boulevard Central Milton Keynes...
