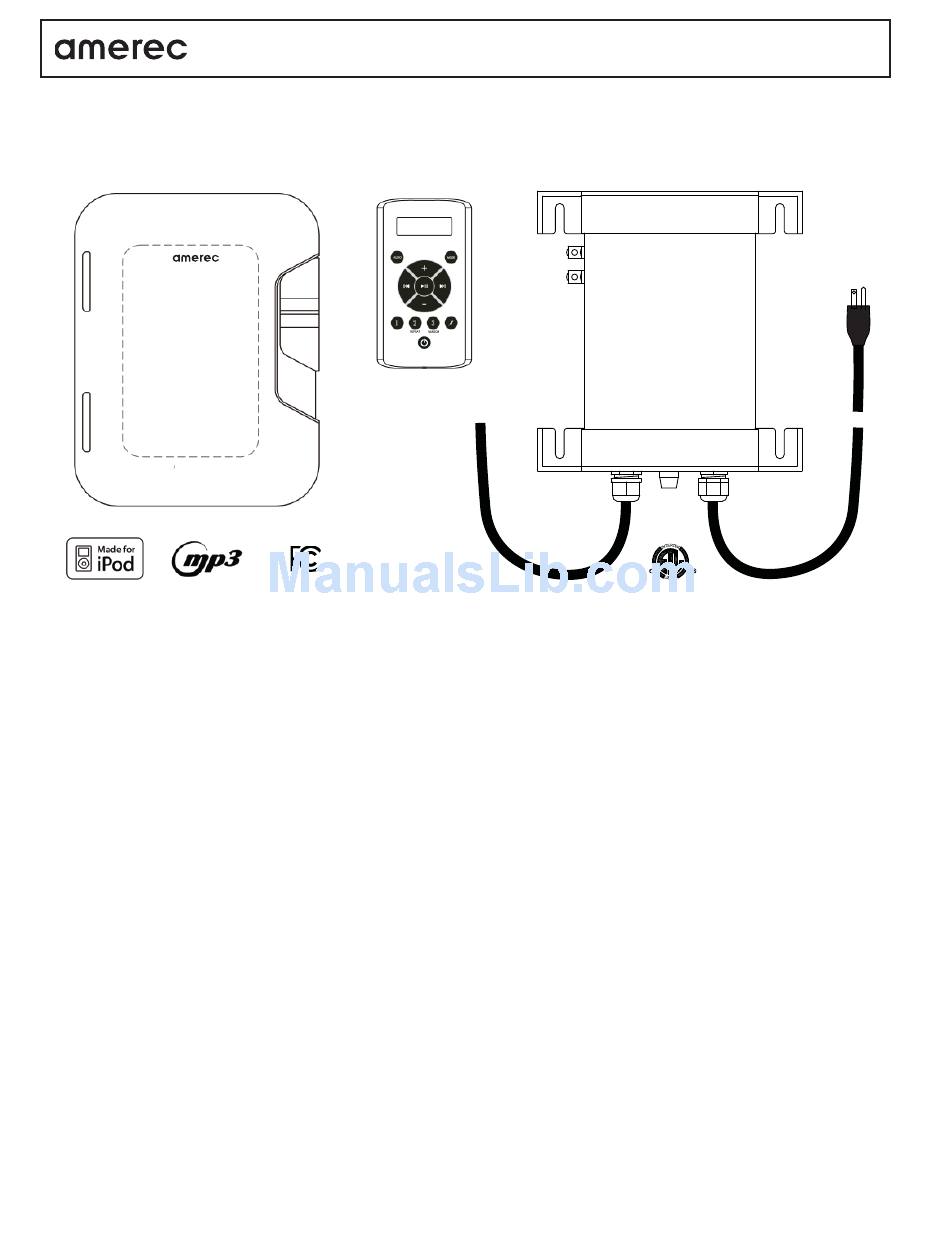

iPOD DOCK, INSTALLATION AND OPERATING INSTRUCTIONS
WATER AND DUST PROOF iPOD DOCK AND DIGITAL MEDIA LOCKER™
with FLOATING 2-WAY WIRELESS REMOTE CONTROL
The iPod Dock is water proof, intended for installation inside or outside you steam bath. It is the heart of a sound system providing 2 front
and 2 rear channels, a built in stereo FM radio, connection to audio devices such as an MP3 player and a connection for charging and
listening to an iPod. A wireless remote controls system on/off, volume, tone, balance, and sound source. Three built in equalizer settings
are provided and three FM radio station pre-sets are available.
Your sound system comes with:
• an iPod Dock
• a 2-way RF wireless Remote control with a CR2430 battery (installed)
• a 9 inch long audio cable (3.5mm plug to 3.5mm plug)
• an FM antenna
• Six (6) Stainless Steel mounting screws
• a 12VDC, 5A Power Supply
• Two in-wall water proof speakers
• This owners manual
You may also want extra speakers. A total of 8 speakers may be connected to the iPod dock, 2 per channel (see dock Wire Harness Con-
nections, page 4).
4211-41 08-24-12
CM
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iPOD DOCK and is the answer not in the manual?

Questions and answers

Related Manuals for Amerec iPOD DOCK

Summary of Contents for Amerec iPOD DOCK

  • Page 1 FLOATING 2-WAY WIRELESS REMOTE CONTROL The iPod Dock is water proof, intended for installation inside or outside you steam bath. It is the heart of a sound system providing 2 front and 2 rear channels, a built in stereo FM radio, connection to audio devices such as an MP3 player and a connection for charging and listening to an iPod.
  • Page 2 DOCK, INSTALLATION AND OPERATING INSTRUCTIONS The low voltage dock and Remote are tested and approved per FCC Part 15 and Industry Canada requirements. The power supply is ETL Listed for the US and Canada, with CE, and selectable for use with 110VAC or 220V~ single phase line voltage.
  • Page 3 DOCK CONNECTIONS 1. 12-pin Watertight Harness This harness (1) supplies power and ground connections to the iPod Dock and four (4) speaker channel output connections from the Dock. A mating harness is supplied (see drawing, page 4). Make all connections to the mating harness. Do Not Cut or modify the wire harness attached to the Dock or warranty will be void.

  • Page 4: Wire Harness Connections

    DOCK, INSTALLATION AND OPERATING INSTRUCTIONS 12 Pin Harness connections: Speaker DC Ground (Pin 10) RR (Pin 11) (Black) (Purple/Black Stripe) Right Rear RR (Pin 12) (Purple) RF (Pin 8) (Gray/Black Stripe) Right +12VDC, Triggered (Pin 6) (Blue) Front RF (Pin 9)

  • Page 5: Operation

    2. Once the mounting hole is complete, make sure the outside surface is clean and clear of debris. The iPod Dock has an external water/dust gasket, but this requires a clean surface for best performance. 3. The Dock is supplied with six(6) mounting screws. Drive the 6 screws using a screw driver.
  • Page 6 DOCK, INSTALLATION AND OPERATING INSTRUCTIONS OPERATION: WIRELESS REMOTE CONTROL: KEY FUNCTIONS Function Keys Battery Door Buttons Music mode FM Radio Mode Power Press once; Turn Remote and audio on/off Press once: Turn Triggered 12V on/off 12V Trigger Press and hold: No change...
  • Page 7 DOCK, INSTALLATION AND OPERATING INSTRUCTIONS OPERATION (continued) Before using your sound system, press the ON/OFF switch inside the Dock to turn it on. Its red LED light should turn on. When the LED is lit, and the audio system off, the Dock is in standby and ready for use. The LED should remain lit while the Dock is on or in Standby.

  • Page 8: Light Options

    Remote to turn this line on or off. Connect the 12V device to this line and to ground from the power supply (see Dock drawing and iPod Dock Con- nections item 5 on page 3). This line might be used to turn on a Chromatherapy system, for instance, and cycle through its colors using the Remote.

  • Page 9: Troubleshooting

    DOCK, INSTALLATION AND OPERATING INSTRUCTIONS TROUBLESHOOTING ! Be sure the dock is sealed against the wall surface! ! Keep the inside of the dock clean and dry! ! Moisture can severely damage the wall or electrical connections! If the following steps do not correct your problem, contact Technical Support at 1-800-363-0251 for assistance.
  • Page 10 DOCK, INSTALLATION AND OPERATING INSTRUCTIONS 12 Pin Wire Harness FM Radio Antenna Jack Auxillliary Device Input Jack Fuse Holder (+12VDC, Red Wire) 12 Pin Wire Harness Left Audio (White) Right Audio (Red) Auxilliary Output RCA Jacks External +12VDC, Triggered...
  • Page 11 DOCK, INSTALLATION AND OPERATING INSTRUCTIONS DOCK MOUNTING TEMPLATE 1 Determine the location where the Dock will be mounted. This drawing may be used as a template or use the instructions on the next page. Make sure the mounting is level and plumb!
  • Page 12 DOCK, INSTALLATION AND OPERATING INSTRUCTIONS DOCK MOUNTING TEMPLATE 2 Determine the location where the Dock will be mounted. This drawing may be used as a template or drill holes as shown then connect the large corner holes by cutting straight lines from the outside edges of each hole as shown. The 1/2” hole at the bottom is needed to ptovide clearance for the iPod cable at the bottom of Dock.
