Summary of Contents for Viliv N5

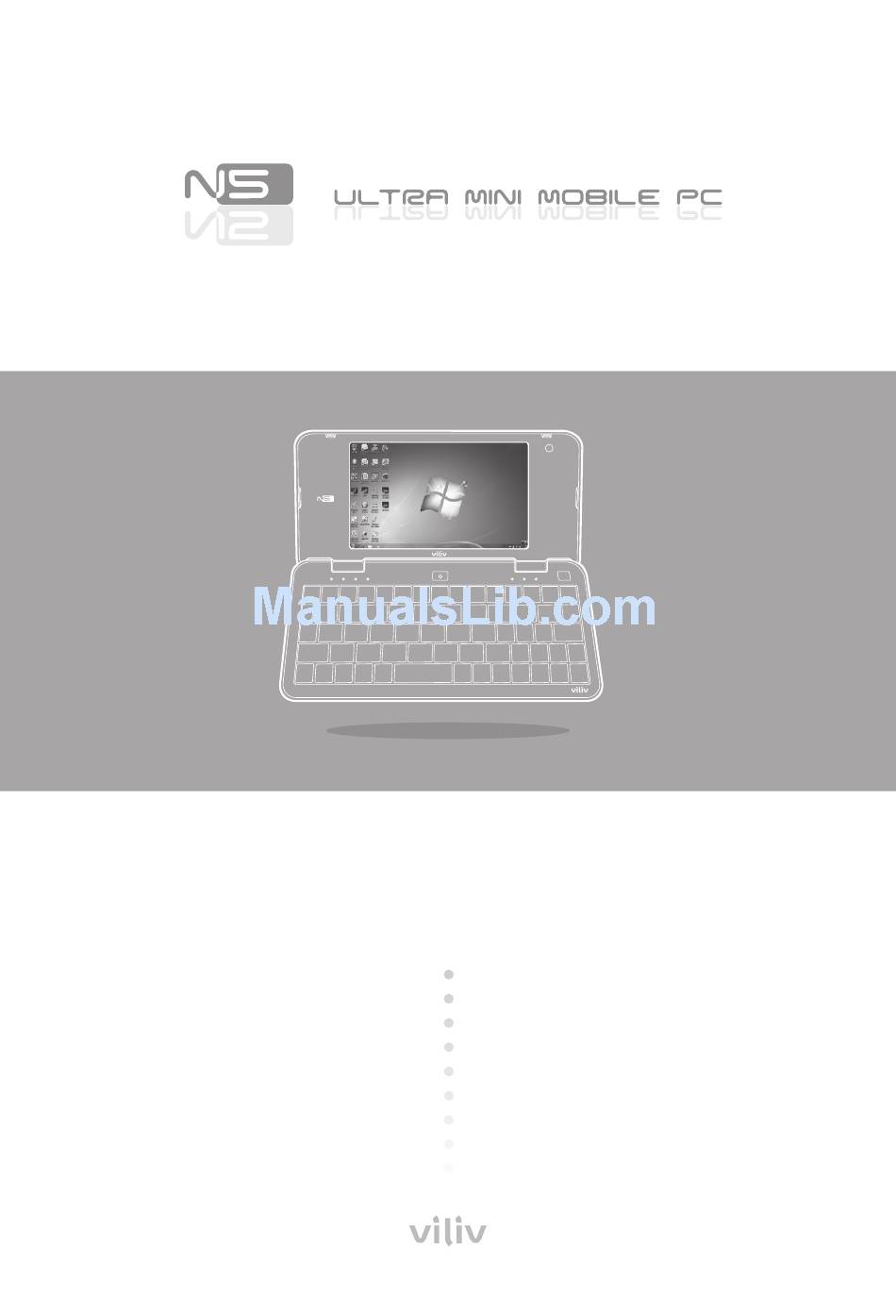

- Page 1 Thanks for purchasing viliv. Please read the precautions throughly before using the product.
-
Page 2: Registered Trademark
Grade B Device (Broadcast Communication Device for Residential Area) Registered Trademark viliv is the registered trademark of Yukyung Technologies Corp. Windows7, Windows Vista, Windows XP, Windows 2000, Windows CE are the registered trademarks of Microsoft Corporation. Liability Disclaimer Infringement of Intellectual Property Rights: Playing, copying or distributing any part or all of any copyrighted contents such as software, music or video with this device may infringe on a third party’s... -
Page 3: Table Of Contents
Separating Battery ......................16 Attaching Battery ......................17 Basic Operation ..................18 Turning the Power On/Off ....................18 Touch Screen ........................18 Set Up for viliv Manager ....................19 Recovery Solution (AMI Rescue) Guide .........20 Way to Use Recovery Solution (AMI Rescue) ............20 Specifications ..................21 General Specifications ....................21... -
Page 4: Safety Precautions For Use
‘N5’ , or result in violation of FCC regulations. ‘N5’ was tested for typical body-wom operation using the optional belt-clip / holster placed touch(0cm) from the body. The use of non-tested accessories or other body-wom operations may not comply with FCC exposure requirements and should be avoided. - Page 5 Safety Precautions for Use The precautions below are provided to prevent bodily injury or property damage by using this product correctly. Please observe the precautions. Precautions on Power Do not touch the power adaptor with wet hands. ■ Plug the power cord into an outlet with grounded jack. ■...
- Page 6 Safety Precautions for Use The device functions vary depending on model. Read the relevant precautions for the provided function before using the device. Precautions for GPS When initially operating this device, it is recommended you warm it up for over 15 minutes ■...
-
Page 7: Names Of Parts
Names of Parts The appearance of the components below may differ from the actual components and some components are subject to change. Basic Components Main Body Battery Hand strap AC/DC Power Adaptor User’s Manual English... -
Page 8: Front View
Names of Parts Front View WEBCAM Equipped with webcam. TFT LCD/Touch Screen Users can operate the device using the touch screen. Speaker Speaker is built in. Power Button/Power Lamp For turning the power on/off, and checking the status of power. Optical Joystick For moving the mouse pointer. -
Page 9: Keyboard
Names of Parts Keyboard The keyboard may be different for each country. In order to use the orange colored keys on the keyboard, press the keys and the Fn key together. Optical Joystick Key Use these keys for left or right mouse click. Esc Key It is usually used for terminating or interrupting programs. -
Page 10: Left / Right View
Names of Parts Left / Right View USB HOST Port For connecting to external devices with USB port. MicroSD Port This port is for using MicroSD memory device. Power Adaptor Port For connecting power adaptor or charging the battery. Antenna This antenna is for 3G. (3G model only ) Battery Removal Button Press this button to remove the battery. -
Page 11: Lower Side
Names of Parts Lower Side Earphone Port For connecting earphone Built-in Microphone Internal microphone is built in. Hand Strap Loop Rear View The figure below shows the rear side of the main body without the battery. (Refer to Page 16~17 for Separating/Attaching battery.) Battery Charging Port Connection part of battery terminal. -
Page 12: Installation And Cable Connection
Installation and Cable Connection Connecting Earphone Insert the earphone to the earphone port on the lower side of the handset. USB HOST Connection This is used for the connection of external devices, such as digital camera, external HDD, etc. English... -
Page 13: Power Connection (Charging Adaptor)
Installation and Cable Connection Power Connection (Charging Adaptor) The charger is connected to the power adaptor terminal on the left side of the station. Notice Battery charging status indicator While charging (using AC adaptor) Red: charging / Blue: fully charged English... -
Page 14: Inserting · Extracting Microsd Memory Card
Installation and Cable Connection Inserting · Extracting MicroSD Memory Card How to Insert : Align the rear face of the MicroSD memory card toward the MicroSD memory slot and push it in until you hear a clicking sound. (Do not use excessive force as it could damage the MicroSD memory card) How to Extract : Press the tip of the MicroSD memory card gently and it will be removed... -
Page 15: Inserting · Extracting Usim Card (Optional)
Installation and Cable Connection Inserting · Extracting USIM Card (Optional) How to Insert : Let the front of a USIM card face the USIM card slot and then push it in the arrow direction until a click sound is heard. (If, however, you push the USIM card using too much force, the card may be damaged.) How to Extract : Since this device adopts a one-touch method, you may gently press on the... -
Page 16: Separating · Attaching Battery
Separating · Attaching Battery Separating Battery How to Remove the Battery Press the Battery Open button on the right side of the handset Push the button in the direction of the arrow. Hold the tip of the battery and lift it up. Notice To avoid electric shock, make sure to turn the power off first and then separate the battery. -
Page 17: Attaching Battery
Separating · Attaching Battery Attaching Battery How to Insert the Battery Push the battery in the direction of the arrow. Notice If the battery is misaligned with the groove and you attempt to mount the battery, the device may be damaged. -
Page 18: Basic Operation
Basic Operation Turning the Power On/Off Turning the Power On Depress the power button for about two seconds to turn on the power. The LCD screen turns on and the main screen is displayed. Turning the Power Off Use the Shutdown menu in the Start Menu to turn off the device while Windows is running. -
Page 19: Set Up For Viliv Manager
Basic Operation Set Up for viliv Manager viliv Manager is executed by double touching vilivManager on the screen. Wireless LAN Power Activate the wireless LAN. Bluetooth Power Activate the Bluetooth function. Camera Power Activate the webcam. Modem Power Activate the Modem function. -
Page 20: Recovery Solution (Ami Rescue) Guide
F10 key 1-2 times. As the logo disappears, Pre-Boot Menu window appears. ◆ In order to use F10 key in N5, press F10 key while pressing the Fn key on the lower right side of the keyboard. Pre-Boot Menu When selecting Normal Boot, booting proceeds to Windows. -
Page 21: Specifications
Specifications The specifications below may be changed for enhancement of product performance without prior notice. General Specifications Product Name CPU & Chipset Intel® Atom 1.33 (Z520) + SCH US15W 4.8-type WSVGA (1024 x 600) / Touch Panel Storage SSD 16GB, 32GB, 64GB IEEE 802.11b/g WWLAN (Optional) WiMAX, HSDPA... - Page 22 Memo English...
- Page 23 Memo English...
- Page 24 Memo English...
