Summary of Contents for the t.amp tt.amp E4-130

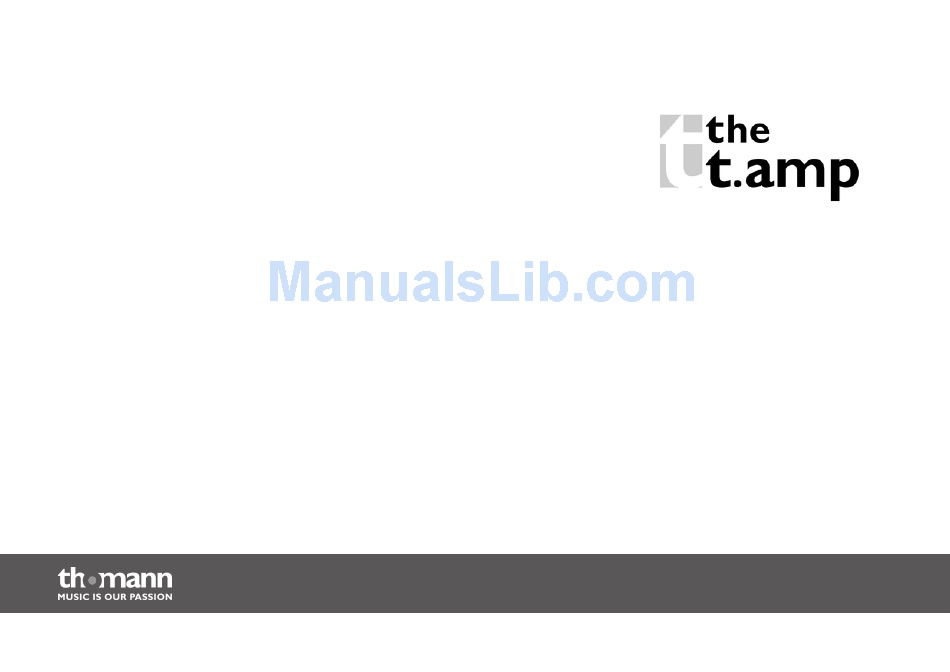

- Page 1 E4-130, E4-250 power amplifier user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 30.10.2014, ID: 348232, 348233...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety notes..............................8 Features............................... 13 Installation and operation........................14 Connections and operating elements................... 18 Technical specifications........................24 Plug and connection assignment.................... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Notes
Safety notes Safety notes Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety notes DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 10 Safety notes CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety notes NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
- Page 12 Safety notes NOTICE! Magnetic fields The device generates strong magnetic fields that can interfere with the function of poorly shielded devices. The strongest magnetic fields are directly above and below the power amplifier. Therefore, never place sensitive devices such as pre- amplifiers, radio transmission systems, or tape decks directly above or below the power amplifier.
-
Page 13: Features
Features Features Low mounting depth of only 408 mm Output power – the t.amp E4-130 (item no. 348232): 4 × 130 W @ 4 Ω, 2 × 200 W @ 8 Ω – the t.amp E4-250 (item no. 348233): 4 × 250 W @ 4 Ω, 4 × 400 W @ 8 Ω Inputs: XLR Outputs: NL4 (speakON) connectors for speakers Protection circuits: DC, short circuit, overtemperature, limiter, soft start... -
Page 14: Installation And Operation
Installation and operation Installation and operation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 15 Installation and operation NOTICE! Magnetic fields The device generates strong magnetic fields that can interfere with the function of poorly shielded devices. The strongest magnetic fields are directly above and below the power amplifier. Therefore, never place sensitive devices such as pre- amplifiers, radio transmission systems, or tape decks directly above or below the power amplifier.
- Page 16 Installation and operation Possible operation modes Depending on the individual application, the amplifier can be used in different operation modes: Stereo mode The two amplifier channels operate independently of one another, either channel (A and B) is amplified and connected to loudspeakers, the volume can be controlled separately for the two outputs.
- Page 17 For detailed information related to this topic please refer to our Online Guide ‘PA Speakers’ (www.thomann.de). Rack mounting The device has been designed for rack mounting in a standard 19-inch rack; it occupies two rack units.
-
Page 18: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel power amplifier... - Page 19 Connections and operating elements 1 [POWER] Mains switch. Turns the device on and off. The corresponding LED lights up green when the device is turned on. In standby mode, the LED lights red. As soon as the unit receives a signal, it switches back to normal mode and the LED will light up green again.
- Page 20 Connections and operating elements 6 [CLIP] Lights under the following conditions: Channel overload. Reduce in this case the volume until the LED goes out. Output short circuit. Turn off the device immediately, correct the short circuit and turn on the device again. 7 [PRO] Lights under the following conditions: Three to five seconds after switching on or off when the device is in an unstable condition.
- Page 21 Connections and operating elements Rear panel E4-130, E4-250...
- Page 22 Connections and operating elements 8 IEC chassis connector for the power supply of the device. 9 [BREAKER] Resettable electronic fuse. If the fuse is triggered, fix the cause and then push the button to reset the fuse. 10 [INPUT] XLR chassis sockets as inputs for channels 1 to 4 11 [OUTPUT] speakON chassis connectors as speaker outputs (1+, 2+: positive;...
- Page 23 Connections and operating elements 14 [Gnd / Lift] Ground / lift switch. If hum is caused by a ground loop, you can use this switch to disconnect the connection between the earth pin of the device and the signal ground of the device. 15 [Stand-by ON | OFF] On / off switch for standby function.
-
Page 24: Technical Specifications
Technical specifications Technical specifications the t.amp E4-130 (item no. 348232) the t.amp E4-250 (item no. 348233) Output power (RMS), stereo, 8 Ω 4 × 130 W 4 × 250 W Output power (RMS), stereo, 4 Ω 4 × 200 W 4 ×... - Page 25 Technical specifications the t.amp E4-130 (item no. 348232) the t.amp E4-250 (item no. 348233) Slew rate 15 V / µs Inputs XLR sockets Input impedance 20 kΩ (balanced), 10 kΩ (unbalanced) Outputs speakON chassis connector Operating supply voltage AC 230 V , 50 Hz Dimensions (W ×...
-
Page 26: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 27 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding...
- Page 28 Plug and connection assignment NL4 mounting connectors 1, + Signal 1 (in phase) 1, – Signal 1 (180 degree phase shift) 2, + Signal 2 (in phase) 2, – Signal 2 (180 degree phase shift) power amplifier...
-
Page 29: Cleaning
Cleaning Cleaning Fan grids The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. E4-130, E4-250... -
Page 30: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 32 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
