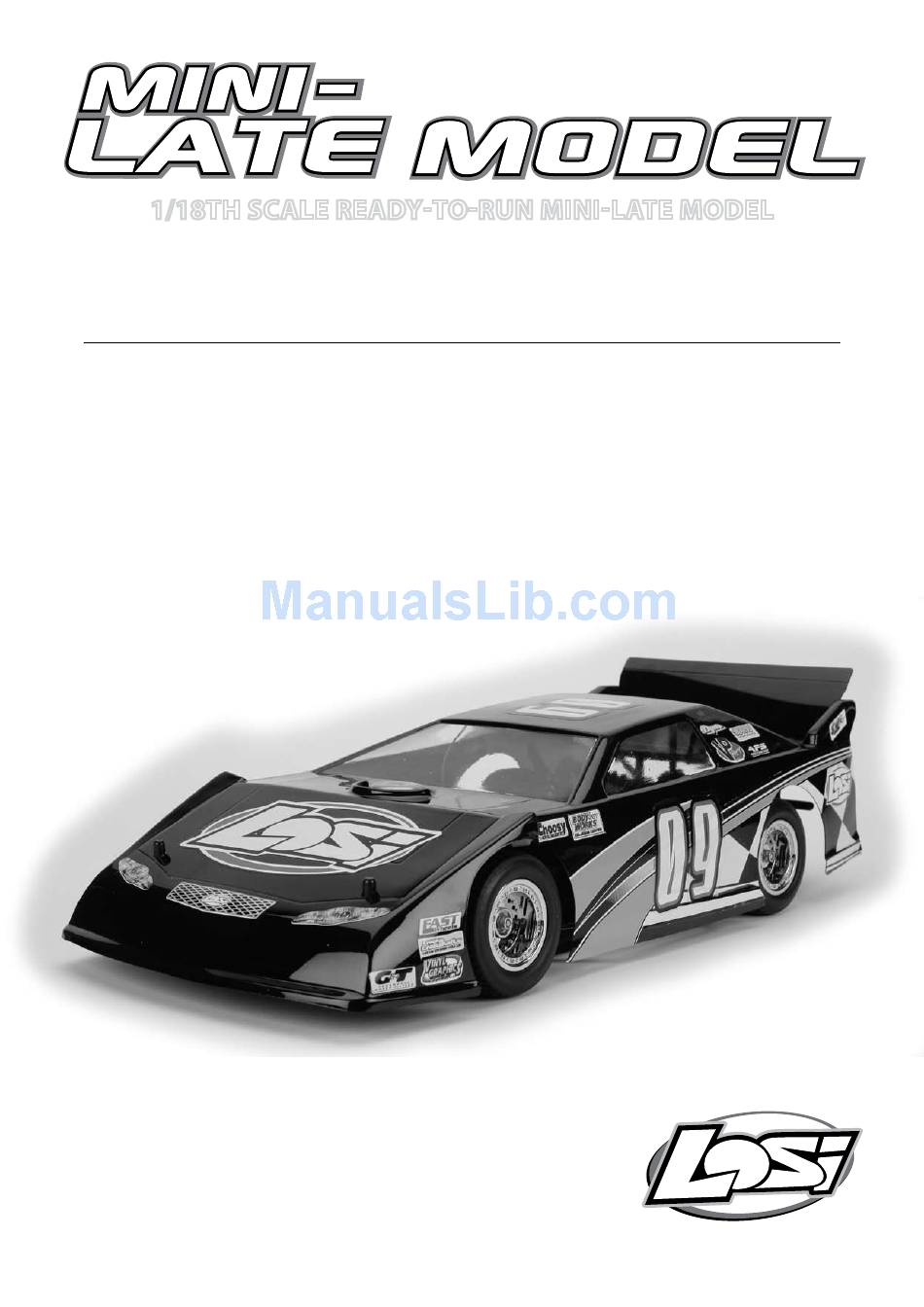

1/18th scale ready-to-run

Advertisement

Quick Links

1/18th scale ready-to-run mini-late model
Thank you for choosing the Mini-Late Model from Losi. This guide contains the basic instructions for operating your new
Mini-Late Model. While the Mini-Late Model is great for first-time RC drivers, it does require some mechanical experience and/
or parental supervision for drivers under 14. It is critical that you read all of the instructions in order to operate your model
correctly and avoid unnecessary damage. Please take a moment to look over all the printed materials before operating your
new Mini-Late Model.
Owner's Manual
Not responsible for errors. All prices subject to
change without notice.
Losi, a Division of Horizon Hobby, Inc.
TM

Advertisement

Table of Contents
loading

Summary of Contents for Team Losi Mini-Late Mode

  • Page 1 1/18th scale ready-to-run mini-late model Owner’s Manual Thank you for choosing the Mini-Late Model from Losi. This guide contains the basic instructions for operating your new Mini-Late Model. While the Mini-Late Model is great for first-time RC drivers, it does require some mechanical experience and/ or parental supervision for drivers under 14.
  • Page 2: Safety Precautions

    Safety Precautions This is a sophisticated radio controlled model that must be operated with caution and common sense. Failure to operate your Mini-Late Model in a safe and responsible manner could result in damage to the model and property. The Mini-Late Model is not intended for use by children without direct adult supervision.
  • Page 3 The Transmitter 1. Steering Wheel: Controls direction (left/right) of the model. 2. Throttle Trigger: Controls speed and direction (forward/reverse) of the model. Antenna: Transmits signal to the model. 4. On/Off Switch: Turns the power on for the transmitter operation. 5. Indicator Lights: Green (top) light indicates adequate battery power. Red (bottom) light indicates signal strength. 6. Steering Trim (ST. TRIM): Adjusts the “hands off” direction of the model. 7. Throttle Trim (TH. TRIM): Adjusts the motor speed to stop at neutral. 8. Steering Rate: Adjusts amount front wheels move when the steering wheel is turned left or right. 9. Steering Reverse Switch (ST. REV): Reverses the function of the steering when the wheel is turned left or right. 10. Throttle Reverse Switch (TH. REV): Reverses the function of the speed control when pulled back or pushed forward.
  • Page 4: Chassis Tuning

    Resetting the ESC The ESC comes from the factory pre-set and ready for use. If for some reason you should need to reset the ESC, use the following instructions. 1. Turn on the transmitter and ESC. Press the setup button—both the RED and GREEN LEDs will come on. 2. Pull the throttle trigger all the way back (full speed) and press the setup button once—only the GREEN LED will come on. 3. Push the throttle trigger full forward (brake/reverse) and push the setup button once—only the RED LED will come on. 4. Let the throttle trigger return to the neutral (center) position and press the setup button once more to save the program and exit setup mode—only the GREEN LED will be on. Notes: A: If the receiver does not receive a signal from the Transmitter, the ESC will not enter the Program mode. While in Program mode, the motor will not run. C: I f the setup button is not pressed for 20 seconds while in the Program mode, the ESC will exit the Program mode and the data will be saved. Chassis Tuning The Mini-Late Model has several adjustments available to you for tuning the performance for your needs. Although there are multiple shock positions and camber link locations provided, we have built the model with the best overall settings.
  • Page 5 Camber Camber is the angle of the tires to the racing surface when viewed from the front or rear of the vehicle. You want to keep both the front and rear tires straight up and down or leaning in at the top very slightly. If you are running on carpet or similar high-traction surfaces, you may find leaning the tires in a bit more helps.
  • Page 6: Changing The Spur Gear

    Rebuilding the Differential The gears in the differential will wear over time. The same is true for the outdrives, driveshafts and rear axles. We suggest using a small rag or paper towel to lay out the parts you remove to make it easier to reassemble. To Remove Gear Cover Disassembly 1. Unplug the motor. 2. Remove the gear cover (three screws). 3. Remove the two screws at the extreme rear bottom of the chassis. 4.
  • Page 7 Steering Servo Installation/Removal Unplug the servo lead from the receiver. Remove the four small screws that secure the servo mount/chassis brace to the chassis. Use a screwdriver or Servo Removal small pliers to pop the steering link off of the servo, so it can be removed. Remove these four screws There is no need to remove the servo mounts on either side as all service can be done with them on.
  • Page 8: Losi Dsm Radio System

    LOSI DSM Radio System This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400 GHz to 2.4835 GHz frequency range.
  • Page 9: Instructions For Disposal Of Weee By Users In The European Union

    Questions, Assistance, and Repairs Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assembly, setup or use of the Product has been started, you must contact Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please direct your email to productsupport@horizonhobby.com, or call 877.504.0233 toll free to speak to a service technician.
  • Page 10: Troubleshooting Guide

    troubleshooting guide • Doesn’t operate Battery not charged or plugged in Charge battery / plug in Receiver switch not “On” Turn on receiver switch Transmitter not “On” or low battery Turn on / replace batteries • Motor runs but rear wheels Pinion not meshing with spur gear Adjust pinion/spur mesh don’t move Pinion spinning on motor shaft Replace pinion gear on motor Slipper too loose Check & adjust slipper Transmission gears stripped...
  • Page 11 use this page to record building and operating notes Page 11...
  • Page 12 Losi A Division of Horizon Hobby, Inc. 4105 Fieldstone, Champaign, IL 61821 www.Losi.com 1-877-504-0233 13117A...
