Signal Audio Workshop Gainrider Owner's Manual

Vacuum tube dynamic range controller

Advertisement

Quick Links

Gainrider Vacuum Tube
Dynamic Range Controller
OWNER'S MANUAL
Signal Audio Workshop
53
Abarbanel ST.
Tel Aviv 66089 Israel
P.O.B 5169 TLV 61051
Office: 972-3-6820892
Fax: 972-3-6824716
www.signal-audio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gainrider and is the answer not in the manual?

Questions and answers

Summary of Contents for Signal Audio Workshop Gainrider

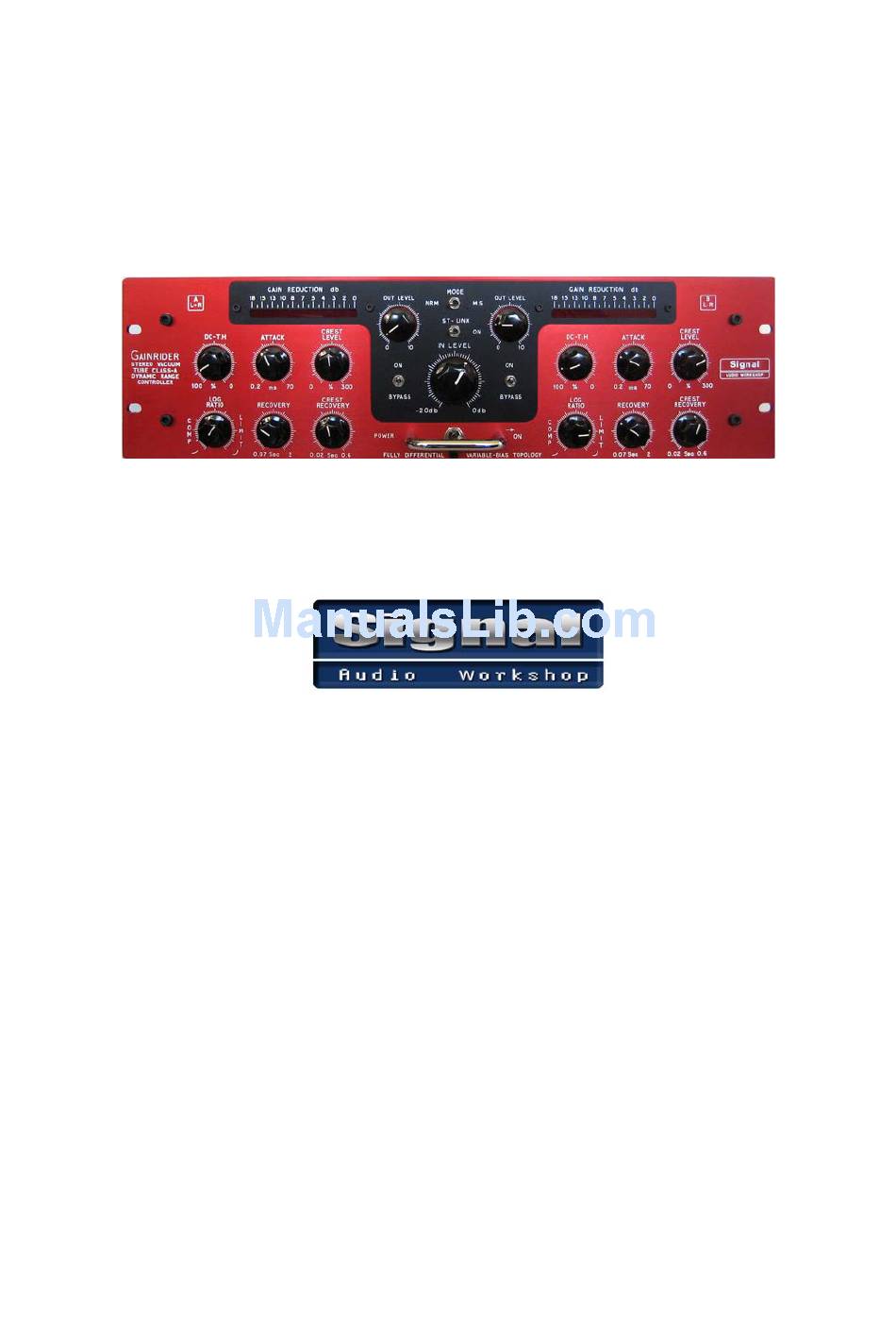

  • Page 1 Gainrider Vacuum Tube Dynamic Range Controller OWNER’S MANUAL Signal Audio Workshop Abarbanel ST. Tel Aviv 66089 Israel P.O.B 5169 TLV 61051 Office: 972-3-6820892 Fax: 972-3-6824716 www.signal-audio.com...
  • Page 2: Table Of Contents

    Front Panel Controls __________________ Signal Chain ______________________________ Side Chain __________________________ RMS Detector _______________________ _ Crest Detector ____________________________ Tips & Tricks ____________________________ Installation _________________________ Maintenance & Calibration ________________ 10-11 Gainrider PCB top view ______________________ Specifications _______________________ Warranty and Registration Form __________ 14-15 www.signal-audio.com...
  • Page 3: Preface

    All the signal path stages are pure CLASS-A tubes circuitry and 3 transformers for each channel takes this uncompromising structure to the highest level of sonic excellence. I hope you will enjoy working with the Gainrider as much as we enjoyed making it for you! With Honor...
  • Page 4: Front Panel Controls

    Front Panel Controls 1. DC-T.H=DC-THRESHOLD: The input signal exceeded above this controlled threshold level goes into compression. 2. LOG-RATIO: Being a variable bias compressor means that the ratio of the signal being compressed gets higher with the amount of gain reduction. Therefore this knob adjusts the ratio’s slope angle (from soft compression - to hard limiting).
  • Page 5: Signal Chain

    Signal Chain This chapter details the signal chain structure in order to help you better understand the Gainrider capabilities. DUAL IN LEVEL: This is a variable input attenuator for both sides, ranging from -20db to 0db. It enables you to set compression amounts to both sides simultaneously or altering the amount of signal to drive into the Gainrider tubes.
  • Page 6: Side Chain

    We implemented the 0-300% scale on the CREST LEVEL knob in order to enable high levels of CREST material to mix with the RMS. In this instance, the Gainrider can generate a rhythmic effect caused by CREST signals taking control over the slow movements of the RMS material.
  • Page 7: Rms Detector

    RMS Detector In order to better understand the dynamic behavior of the Gainrider we need to understand the way it is developing Gain reduction in comparison to the input signals envelope. The above drawing shows an envelope of signal before compression (RED).
  • Page 8: Tips & Tricks

    Therefore the name Gainrider. The results of such mechanism are a much more natural and musical VCA’s behavior and with much more proximity then other tools.
  • Page 9: Installation

    4. Do not expose the unit to heat sources and unventilated places. Connections: All audio connections are transformer floating balanced through XLR connectors with the following pin list: PIN 1 PIN 2 PIN 3 COLD Signal Audio Workshop is not responsible for damages created by improper installation.
  • Page 10: Maintenance & Calibration

    Maintenance & Calibration Cleaning: Do not clean the unit with water or with water soaked cloth. Cleaning is best made with dry dusting brush and vacuum cleaner. Dust and moisture are the primer enemy of switches and contacts within this unit. Avoiding them as much as you can will prolong the unit’s life significantly.
  • Page 11 RATIO, CREST LEVEL, CREST RECOVERY: fully counter clockwise. IN LEVEL: set to 12:00 o’clock. ST-LINK: off. BYPASS: IN. Connect DVM between chassis ground and test point C-IN-A located on left of main board. Turn trimmers P1 and P2 located on S.C. pcb of channel A to get minimum readings TYPICAL READING -0.8V.
  • Page 12: Gainrider Pcb Top View

    Gainrider PCB top View...
  • Page 13: Specifications

    0.07 to 2 sec Operating Voltage: 230Vac @ 50Hz / 115Vac @ 60Hz Power consumption: 40watts Dimensions: H=3 Rack Units, W=19” ,D=13.4” All spec’s at RL=600Ohm. Info subject to change without prior notice. © All legal rights reserved to Signal Audio Workshop.
  • Page 14: Limited Warranty

    (1) year from the date of purchase as shown on the purchaser’s receipt. The obligation of Signal Audio Workshop under this warranty shall be limited to repair or replacement (at our option), during the warranty period of any part which proves...
  • Page 15: Warranty And Registration Form

    Warranty Registration Form Please take the time to fill out this registration Form and send it to the address mentioned below. Or send this page threw e-mail to: info@signal-audio.com Signal Audio Workshop Abarbanel ST. Tel Aviv 66089 Israel P.O.B 5169 TLV 61051...
