Page 1: Elliptical Trainer

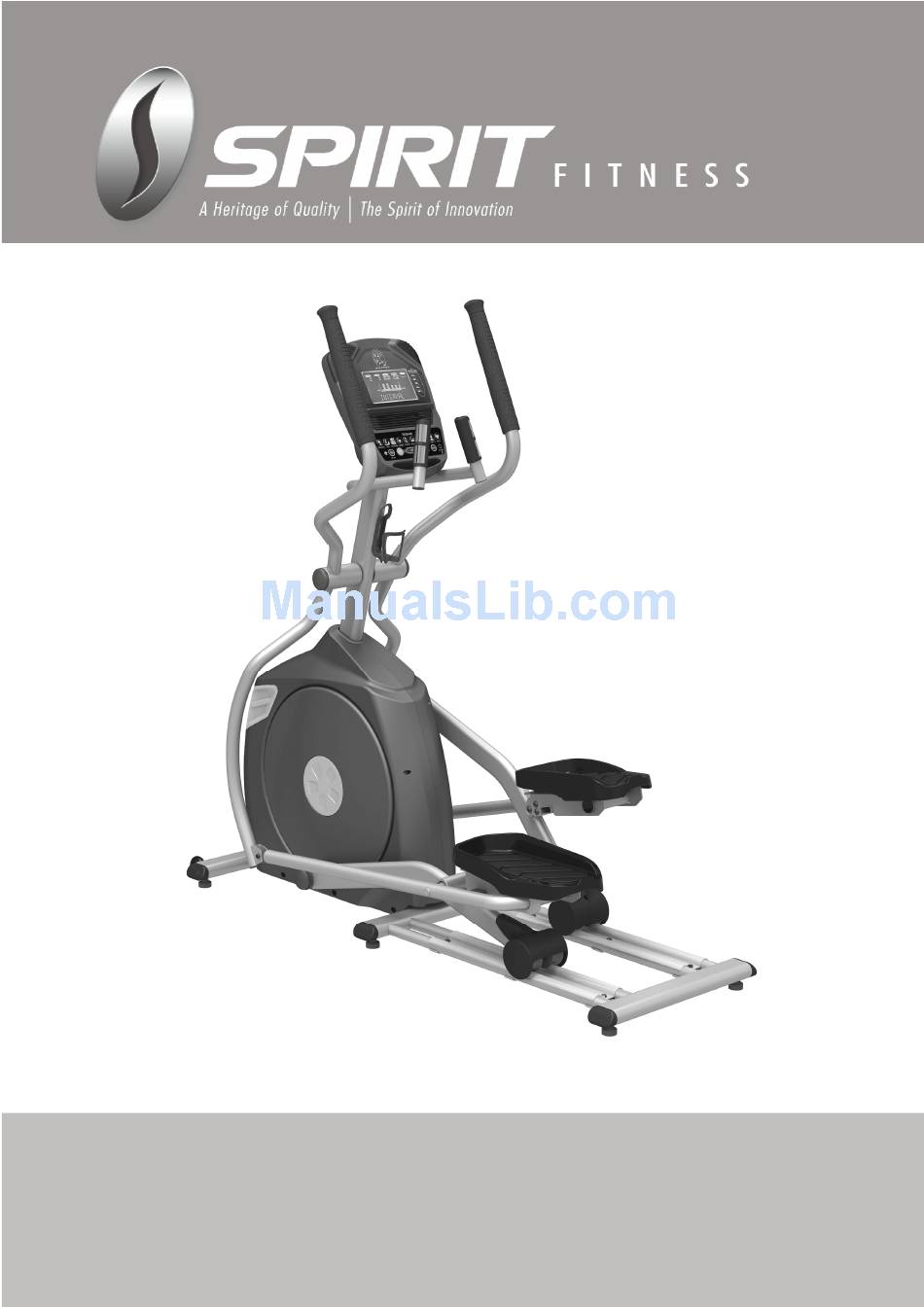

ELLIPTICAL TRAINER OWNER’S MANUAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR ELLIPTICAL! OPERATING YOUR ELLIPTICAL! -
Page 2: Table Of Contents
Table Of Contents Important Safety Instructions……………………………………………...3 Important Electrical Instructions…………………………………………..4 Important Operation Instructions………………………………………….4 Assembly Instructions…………………………………………....6 Getting on / off your elliptical.…………………….……………………….13 Operation of Your Console……..…………………………………………15 Programmable Features…………………………………………………..18 Using A Heart Rate Transmitter…………………………………………..25 General Maintenance……………………………………………………... Exploded View Diagram…………………………………………….……..28 Parts List…………………………………………………………………….29 ATTENTION This elliptical is intended for residential use only and is warranted for this application. Any other application voids this warranty in its entirety. -
Page 3: Important Safety Instructions
4. Keep hands away from all moving parts. 5. Never operate the elliptical trainer if any of the parts are damaged. If the elliptical trainer is not working properly, call your dealer. 6. Do not operate where aerosol spray products are being used or where oxygen is being administered. -
Page 4: Important Electrical Instructions
Important Electrical Instructions WARNING! Be aware that the generator is producing A.C. power while the elliptical trainer is being used. Do not service the elliptical trainer while the generator is spinning; serious electric shock could occur. NEVER expose this elliptical trainer to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment. -
Page 5: Assembly Instructions
Assembly Instructions PRE-ASSEMBLY Using a razor knife (Box Cutter), cut the banding straps that wrap around the carton. Reach under the bottom edge of the carton and pull it away from the cardboard underneath, separating the staples that join the two together. Lift the box over the unit and unpack. - Page 6 1. Gather HARDWARE FOR STEP 1. 2. Tilt the elliptical trainer to one side (you may want to place a piece of Styrofoam or a block under the unit for support). Install the 3 LEVELERS (81) to the underside of the unit.
- Page 7 STEP 2 1. Gather HARDWARE FOR STEP 2. 2. Unwind the COMPUTER CABLE (27) from the frame bracket and run it through the CONSOLE MAST COVER (38). Use the twist tie at the bottom of the CONSOLE MAST TUBE (2) and wrap around the computer cable. Feed the computer cable up through the MAST (2) and pull through the top of the mast.
- Page 8 STEP 3 1. Gather HARDWARE FOR STEP 3. 2. Plug the COMPUTER CABLE (27) and the HANDPULSE W/ CABLES (29) into the backside of the console. 3. Secure the CONSOLE (26) to the CONSOLE MAST with 4 SCREWS (55). Tighten with the SCREW DRIVER.
- Page 9 STEP 4 1. Gather HARDWARE FOR STEP 4. 2. Remove the foam from the console mast axles and the plastic ties from the swing arm tube. 3. The swing arms will be labeled “L” for left and “R” for right. Slide the LEFT SWING ARM (5) onto the left console mast axle.
- Page 10 STEP 5 1. Gather HARDWARE FOR STEP 5. 2. Take the LEFT CONNECTING ARM (9) and slide the axle through the rotation tube on the left pedal arm. 3. Secure the LEFT CONNECTION ARM (9) in place with the 5-WAY PIPE FIXING PLATE (15) and 3 KEY HEAD SOCKET BOLTS (91).Tighten with the 5mm L WRENCH.
- Page 11 STEP 6 1. Gather HARDWARE FOR STEP 6. 2. Install the FOOT PEDALS (L 47) (R 48) with 8 PHILIPS HEAD SCREWS (55). Tighten with the SCREW DRIVER. HARDWARE #55. M5 × 10m/m Phillips Head Screw (8pcs)
-
Page 12: Getting On / Off Your Elliptical
Getting on / off your elliptical IMPORTANT The elliptical comes with two Dual Action Handles and a Stationary Handlebar. Always hold the Stationary Handlebar when getting on and off the elliptical. First time users should familiarize themselves with using the elliptical by using the Stationary Handlebar first and then progressing to the Dual Action Handles. - Page 13 Correct Position Your body should be in an upright position so that your back is straight. Keep your head up to minimize neck and upper back strain. Always try and use the elliptical in a rhythmical and smooth motion. If you find yourself feeling uncomfortable, or experience a surging type feeling, there is probably too much tension.
-
Page 14: Operation Of Your Console
Operation Of Your Console GETTING FAMILIAR WITH THE CONTROL PANEL Integrated Speakers for MP3 Player Muscle Activation Profile Large LCD with scrolling feedback and scrolling message center Heart Rate % Profile Swivel Fan to keep you cool Ten innovative programs offer a variety of work-outs Convenient cargo Easy-Touch... - Page 15 Dot Matrix Center Display Twenty columns of boxes (8 high) indicate each segment of a workout. The boxes only show an approximate level (resistance) of effort. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity. In Manual Operation the resistance dot matrix window will build a profile “picture”...
- Page 16 There is an anatomical figure located at the top of the console. This figure will light all areas that are activated when using the elliptical trainer. These will light up during any of the programs. You can control which muscles are activated by customizing the resistance profile during the set up phase of console programming.
-
Page 17: Quick Start
As you increase the work load more rows will light indicating a harder workout. The elliptical trainer will get harder to pedal as the rows increase. There are 40 levels of resistance available for plenty of variety. The first 10 levels are very easy workloads and the changes between levels are set to a good progression for de-conditioned users. - Page 18 If you enter your Age and Weight the first time you use the elliptical trainer, you will not have to enter it ever y time you work out unless either your Age or Weight changes,...
-
Page 19: Programmable Features
Programmable Features MANUAL The Manual program works as the name implies, manually. This means that you control the workload and not the computer. To start the Manual program, follow the instructions below or just press the Start key. 1. Press the Manual key, then press the Enter key. 2. - Page 20 Calorie Program 1. Press the Calorie key. Press Enter to select the program. The display will prompt you through the programming. 2. If Enter was pressed, the Message Center will now be blinking a value, indicating your Age (default is 35). Entering your correct age affects the heart rate Bar Graph Display and the Heart Rate programs.
- Page 21 You will need a pair of objects that can be comfortably held in your hands (dumbbells, water jugs, soup cans, etc.) for 4 of the 5 strength exercises performed in this program 1.
- Page 22 The last 2 segments of the program are a Cool Down • User exits the elliptical trainer to perform the strength phase with the user pedaling @ Level 1.This can be by- exercise. The user now performs 8-20 repetitions (each passed by pressing Enter to end the program.
- Page 23 Programming Preset Programs 1. Select the desired program key then press the Enter key. 2. The Message Center will ask you to enter your Age. You may adjust the age setting, using the Level Up/Down keys, then press the Enter key to accept the new number and proceed on to the next screen.
- Page 24 Custom User Defined Programs There are two customizable User programs that allow you to build and save your own workout. The two programs, User 1 and User 2, operate exactly the same way so there is no reason to describe them separately. You can build your own custom program by following the instructions below or you can save any other preset program you complete as a custom program.
-
Page 25: Preset Programs
Preset Programs The elliptical has five different programs that have been designed for a variety of workouts. These five programs have factory preset work level profiles for achieving different goals. Hill This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you chose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of resistance back to approximately 10% of maximum effort... - Page 26 Strength This program has a gradual progression of resistance up to 100% of maximum effort that is sustained for 25% of workout duration. This will help build strength and muscular endurance in the lower body and glutes. A brief cool down follows. Interval This program takes you through high levels of intensity followed by recovery periods of low intensity.
- Page 27 Heart Rate Programs Before we get started, a word about Heart Rate: The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
-
Page 28: Rate Of Perceived Exertion
Rate Of Perceived Exertion Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout. -
Page 29: Using A Heart Rate Transmitter
Using A Heart Rate Transmitter (OPTIONAL) How to wear your wireless chest strap transmitter: Attach the transmitter to the elastic strap using the locking parts. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. - Page 30 Heart Rate Program Operation Note: You must wear the heart rate transmitter strap for these programs Both programs operate the same, the only difference is that HR1 is set to 60% and HR2 is set to 80% of the maximum heart rate. They both are programmed the same way. To start an HR program follow the instructions below or just select the HR1 or HR2 program, then the Enter button and follow the directions in the Message Center.
-
Page 31: General Maintenance
General Maintenance 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: I. The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible. -
Page 32: Exploded View Diagram
Exploded View Diagram... -
Page 33: Parts List
Parts List KEY NO. DESCRIPTION Q'TY Main Frame Console Mast Cross Bar Swing Arm (R) Swing Arm (L) Pedal Arm (L) Pedal Arm (R) Connecting Arm (R) Connecting Arm (L) Console Holder Assembly Idler Wheel Assembly Crank Axle Axle Stopper 5-way Pipe Fixing Plate(L) 5-way Pipe Fixing Plate(R) Retaining Bracket, Aluminum Track... - Page 34 KEY NO. DESCRIPTION Q'TY Side Case (R) Round Disk Round Disk Cover Side Case Plate(L) Side Case Plate(R) Slide Wheel Cover End Cap Pedal (L) Pedal (R) Pedal Foam (L) Pedal Foam (R) M10_Bushing washer 3/8" × 3/4"_Hex Head Bolt M8 ×...
- Page 35 KEY NO. DESCRIPTION Q'TY Ø35 × 10m/m_Rubber Foot Handgrip End Cap Drink Bottle Holder 5/16" × 18 × 1.5T_Flat Washer M8 × 15L_Hex Head Bolt 5/16" × 23 × 1.5T_Curved Washer 5/16" × 9T_Nyloc Nut M10 × 1.5 × 20m/m_Socket Head Cap Bolt 5/16"...
