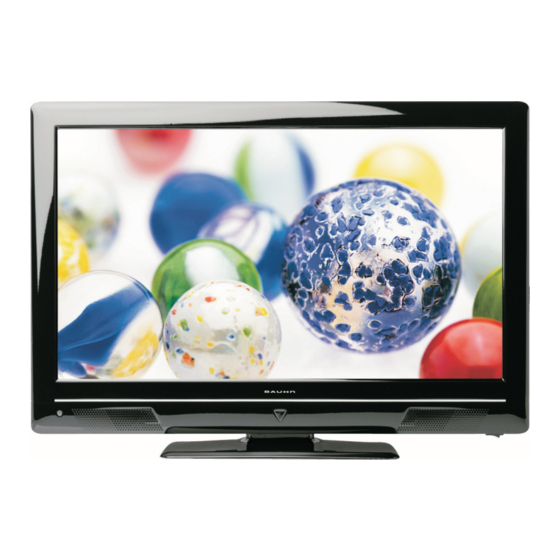

- Page 1 58 cm (23") Full High Definition LED LCD TV with inbuilt DVD Player Instruction Manual MD 21067 After Sales Support N26968 TEL: 1300 884 987...
- Page 2 58 cm (23") Full High Definition LED LED LCD TV with Inbuilt DVD Player and HD Tuner What Your 2 Year Warranty Means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first two years after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
-
Page 3: Table Of Contents
Contents Safety Instructions ..................... 5 Operational Safety ............................5 Setup Location ..............................5 Repairs ................................6 Operational Environment ........................... 7 Power Supply ..............................7 The DVD Player ............................... 8 Notes on Conformity ............................ 8 ... - Page 4 DVD Mode ......................... 20 Changing from TV Mode to DVD Mode ....................20 Inserting a DVD ............................20 Operation through the LED Button Panel ..................21 Operation through the Remote Control .................... 21 DVD Menu System ............................23 ...
- Page 5 Connecting a Camcorder ......................... 41 With a Stereo Cinch Cable and a Video Cinch Cable .............. 41 Device with HDMI or DVI Output ......................42 Connecting an External Device with HDMI Output ..............42 Connecting an External Device with DVI Output ..............42 ...
-
Page 6: Safety Instructions
Safety Instructions Operational Safety Children should be supervised to ensure they do not play with this unit. This unit is not intended for use by people (including children) with reduced physical, sensory or mental abilities or for those without experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed on its use. -
Page 7: Repairs
Not standing your LED LCD TV on cloth or other materials placed between your television and supporting furniture. Educating children about the dangers of climbing on furniture to reach the television or its controls. In the first hours of operation, new devices may emit a typical, unavoidable but completely harmless smell, which will decline increasingly in the course of time. -
Page 8: Operational Environment
Operational Environment The device can be operated at an ambient temperature of +5° C to +35° C and a relative humidity of 20% - 85% (non-condensing). In the switched-off state the LED LCD TV can be stored from -20° C to +60° C. ... -
Page 9: The Dvd Player
The DVD Player The DVD player is a first class laser product. The unit has a safety system that prevents dangerous laser rays from escaping from the unit during normal use. In order to avoid eye injuries, never manipulate or damage the security system of the device. -
Page 10: Battery Handling
Battery Handling Batteries can contain combustible materials. If not handled correctly batteries can leak, become very hot, ignite or even explode, which could damage your device or/and your health. Please ensure compliance with the following advice: Keep batteries away from children. Contact your doctor immediately if a battery is swallowed. -
Page 11: What Is In The Box
What is in the Box? Unpacking Select a suitable place for setting up the device. Open the box very carefully to avoid damaging the device. (The device could be damaged if you use a knife with a long blade to open the box.) ... -
Page 12: Device Overview
Device Overview LED LCD TV Front and Right-Hand Side View LED LCD Display LED LCD TV Mode indicator: orange when the device is in standby mode; blue when the device is switched on. Infrared sensor: reception field for the infrared TV signals. EJECT Eject the disk Disk: Start or pause replay... -
Page 13: Rear View / Connectivity
Rear View / Connectivity DVD Player ANT. Connection using an antenna (analogue or DVB-T) USB ports for MP3 and JPEG playback / PVR function AUDIO IN L/R Audio inputs (red/white) for Video input 1 (yellow) YPbPr IN 3.5 mm jack component input for the connection of devices with a component output (use the YPbPr adapter) Connectivity for headphones with 3.5mm jack VGA connection: to connect a PC or Notebook... -
Page 14: Remote Control
Remote Control After Sales Support TEL: 1300 884 987... - Page 15 POWER, i.e. switch off the LED LCD TV temporarily Open favourites list FAV- Previous favourites station FAV+ Next favourites station P.MODE Choose picture mode S.MODE Choose sound mode Numeric TV: Channel selection buttons -/-- Without function INPUT Select input signal of connected devices INFO Display information, such as current channel number and picture format...
- Page 16 REPEAT DVD: Setting the playback mode Yellow button DVD: Setting the AB repeat Blue button DVD: Previous title/previous section DVD: Next title/next section REVEAL DVD: Fast rewind SUBPAGE DVD: Subtitle function for DVD player SUBTITLE DVD: Fast forward TV/RADIO DVB-T: Switch between TV and radio stations D.MENU DVD: Open and close DVD menu DVB-T: Digital TV guide for television and radio programmes...
-
Page 17: Getting Started
Getting Started Before starting up please make sure that you read the "Safety instructions" section on page 5ff. Inserting the Batteries into the Remote Control Open the battery compartment cover on the back of the remote control. Insert two R03 (AAA) 1.5-V batteries in the battery compartment of the remote control. Check the battery polarity (inscribed on the bottom of the battery compartment). -
Page 18: First Time Usage
POWER Press the button to switch the device over to standby mode again. The unit continues to consume power in this mode. Press the mains switch at the back of the unit to switch it off completely. First Time Usage After switching on the device for the first time, you will be guided through the initial installation process: First Time... -
Page 19: Channel Selection
Channel Selection CH+/– To select a TV channel, either press the buttons (on the device or on the remote control) or select the channel directly by pressing the appropriate numbers. Enter the numbers directly in sequence for a two-digit or three-digit number. ... -
Page 20: Displaying Information
You can also change these settings in SETUP > Aspect Ratio. Note: Please note that not all picture formats will be available depending on the image source setting. Displaying Information INFO Press the button to display the following current settings: –... -
Page 21: Dvd Mode
DVD Mode The inbuilt DVD player is managed via DVD Mode. Changing from TV Mode to DVD Mode AV/INPUT Call up the selection list of the sources with the button. with the direction buttons. Go to Confirm your selection with the OK button. -
Page 22: Operation Through The Led Button Panel
Operation through the LED Button Panel The following functions will be available through the operating buttons on the LED LED LCD EJECT Eject button Eject the DVD from the slot PLAY/PAUSE button; start or pause the replay You will have to use the remote supplied with the device to enter additional functions or commands. - Page 23 POWER, i.e. switch off the LED LCD TV temporarily Direction buttons Confirm selection in specific menus. Also used as ENTER LANG DVD: Language selection in DVD playback ANGLE DVD: Select camera position (angle) in DVD playback ZOOM DVD: Zoom function for DVD player D.DISPLAY DVD: Displays information on DVD currently inserted, e.g.
-
Page 24: Dvd Menu System
DVD Menu System DVD SETUP You will call up the DVD menu system with the button. SYSTEM SETUP Menu Menu Point Setting Setting of the TV system. Possible settings: NTSC (e.g. for the USA) , TV SYSTEM (Germany and other European countries), AUTO TV TYPE Setting of the picture format. -
Page 25: Language Setup Menu
LANGUAGE SETUP Menu Menu Point Setting Select the language of the OSD menu. It will be changed immediately. OSD LANGUAGE You will set the language of the DVD through this, if it has a choice of AUDIO LANG several languages. You will switch on the sub-titles of the DVD through this, if it has them. -
Page 26: Media Mode
Media Mode The LED LCD TV comes with 2 USB ports (rear) that can be accessed via Media mode. Media Mode and USB Connectivity ► Plug in your external USB device (USB stick, external hard disk drive) into the USB port of the TV. -
Page 27: Pvr Function & Recording
Recording via record button (PVR or red button) While watching DTV programs, press the PVR button (red button) on the remote control. A symbol for recording will be shown in the upper left-hand corner of your screen. Make sure that the allocated capacity for the recording is sufficient to complete the recording of the program you want to safe. -
Page 28: Time Shift Function
Time Shift function ► During any recording, you can press the “Play” button to start watching the program that is being recorded. The recording itself will continue in the background while you can watch the recorded program from the start. ►... -
Page 29: Switching Between Tv Mode And Media Mode
Switching between TV Mode and Media Mode AV/INPUT to call up the source selection list. Use the direction buttons to go to Media. Confirm your selection by pressing OK. Repeat this process to return to TV mode but, instead of selecting Media, choose the option, depending on the aerial signal. -
Page 30: Basic Osd Menu Settings
Basic OSD Menu Settings You can customise certain functions of the OSD (On-Screen Display) menu. Navigating within the Menu MENU Press the button to activate the OSD. The available options are displayed on the lower edge of the screen. ... -
Page 31: Menu System
Menu System CHANNEL Menu Menu item Setting Perform the search here. Auto Tuning DVB-T Manual You can program individual channels in DTV mode manually here. Tuning You can program individual channels in ATV mode manually here. ATV Manual Tuning Current CH Use this to select the channel you would like to address. - Page 32 Rename Select the transmitter that you wish to rename and press the green [INTRO] key. Now, you will be able to change the first letter; you will be able to scroll up and down through the letters with the direction keys. Move to the next drive letter with ...
-
Page 33: Picture Menu
PICTURE Menu Menu Item Setting Select picture mode: Standard, Soft, Personal, Dynamic. This Picture Mode P.MODE function corresponds to the button. Personal setting lets you set the Contrast, Brightness, Colour, Tint Sharpness yourself. The other parameters are defined. Increase or decrease contrast (on a scale of 0 – 100). Contrast Brightness Increase or decrease brightness (on a scale of 0 –... -
Page 34: Sound Menu
SOUND Menu Menu Item Setting Select audio mode: Standard, Music, Movie, Sports, Personal. This Sound Mode S.MODE function corresponds to the button. Personal setting lets you set the Treble, Bass Balance yourself. The other parameters are defined. Treble Increase or decrease treble (on a scale of 0 – 100). Increase or decrease bass (on a scale of 0 –... -
Page 35: Time Menu
TIME Menu Menu Item Setting Time display. No setting possible. Clock Time Zone This lets you set the time zone. This option is only available in DTV mode. Select a time after which the device should switch itself off automatically. Sleep Timer Select to end the function. -
Page 36: Lock Menu
LOCK Menu Menu Item Setting This is used to unlock the settings Lock System Block Program, Parental Guidance Lock. To do so, enter the password. Delivery state: 0000. Set Password An input field for entering the passwords will appear. Use the number buttons to enter the existing Please enter old password password. -
Page 37: Setup Menu
SETUP Menu Menu Item Setting Select the language of the OSD menu or of the TT language. It will OSD Language change immediately. The default setting is West. If you are in a different language area, TT Language you can change the language setting. If the station transmits special audio signals for the hearing Hearing Impaired impaired, you can set the setting to... -
Page 38: Epg - Programme Guide
EPG - PROGRAMME GUIDE Open the Electronic Programme Guide with the button. This function will only be available to you in the in the Mode. You will see the current and the next station in the Table. Select a programme with . ... - Page 39 Yellow Button Shows the list of the programmes that have been Schedule [REPEAT] programmed by the Memory function. See the next point for the programming of a memory. You can delete a programme from the timetable with the red [PROGRAM] button. Blue button Puts the selected programme into the timetable.
-
Page 40: Connecting External Devices
Connecting External Devices Connecting Headphones The headphones are connected via headphone socket. Caution! Using headphones at high volume generates excessive acoustic pressure and can result in permanent hearing damage. Before pressing play, set the volume to the lowest setting. Start playback and increase the volume to a comfortable level. Changes to the basic equaliser settings can increase the volume and thus damage your hearing permanently. -
Page 41: Hdmi Cable
3. HDMI Cable If your device has a HDMI output, connect a HDMI cable (not supplied) to the HDMI input of the LED LCD TV and to the HDMI output of the external device. Connecting a Video Recorder (VCR) ... -
Page 42: Connecting A Set Top Box (Sat, Dvb-T, Decoder, Etc.)
Connecting a Set Top Box (SAT, DVB-T, Decoder, Etc.) There are different options for connecting a receiver (e.g. SAT receiver, DVB-T receiver, decoder, set-top box) to your LED LCD TV. 1. Stereo Cinch Cable and a Video Cinch Cable Connect a video cinch cable (yellow jack) between the video input on the LED LCD TV and the video output on the external device. -
Page 43: Device With Hdmi Or Dvi Output
Device with HDMI or DVI Output HDMI ("High Definition Multimedia Interface") in consumer electronics is the only interface that transmits audio and video data simultaneously. It handles all image and sound formats currently in use, including HDTV (High Definition TV), which means it can also display resolutions of 1080i without any loss in quality. -
Page 44: Troubleshooting
Troubleshooting Malfunctions can sometimes have quite trivial causes, but on other occasions they are the result of defective components. We would like to give you a few options for rectifying your problem. If these tips don’t do the trick, then we’ll be more than pleased to help you out. Just give us a call! You’ll find the phone numbers on the back inside cover, under the warranty conditions. -
Page 45: Do You Need More Help
Fault Solution There are stripes on the Is there interference from another device? display or the colours Transmission antennae on radio stations, ham radios and are faded. portable phones can also cause interference. Operate the device as far as possible from the device that might be causing the interference. -
Page 46: Led Lcd Tv Pixel Faults
LED LCD TV Pixel Faults Despite the most modern production methods, the highly complex technology involved in producing this type of device means there may be individual or multiple pixel drop-outs (dead pixels). This is rare, however. For active matrix TFTs with a resolution of 1920 x 1080 pixels, which are each made up of three sub-pixels (red, green, blue), there are a total of approx. -
Page 47: Cleaning
Cleaning You can increase the lifespan of your device as follows: Caution! Always unplug the unit and disconnect all cables before cleaning. To protect the TV from scratches, protective film has been applied to the high-gloss finish. Remove the films after you have set up the TV set correctly. ... -
Page 48: Disposal
Disposal Packaging Your device has been packaged to protect it from sustaining damage in transit. The packaging is made of environmentally-friendly material which can be recycled. Device At the end of its service life, the device should not be disposed of with the household rubbish. -
Page 49: Technical Specifications
Technical Specifications Model number: P14063 (MD 21067) Nominal voltage 220-240 V ~ 50/60 Hz Screen size: 58 cm (23") LED LCD, 16:9 Display Power consumption: max. 48 Watt Power consumption on standby: < 1 W Physical resolution: 1920 x 1080 TV system: PAL, SECAM, B/G, D/K, K’, I/I, L/L’... - Page 50 Laser performance of the DVD player Laser Class 1 Pay attention to the imprint, if you use audio CDs. Please pay attention to the following: There are many, partly non-standardized CD recording processes and copy protection processes, and different CD-R and CD-RW blanks today. Input errors or delays can arise in individual cases because of this.
- Page 51 After Sales Support TEL: 1300 884 987...
