Summary of Contents for Loctite 1167593

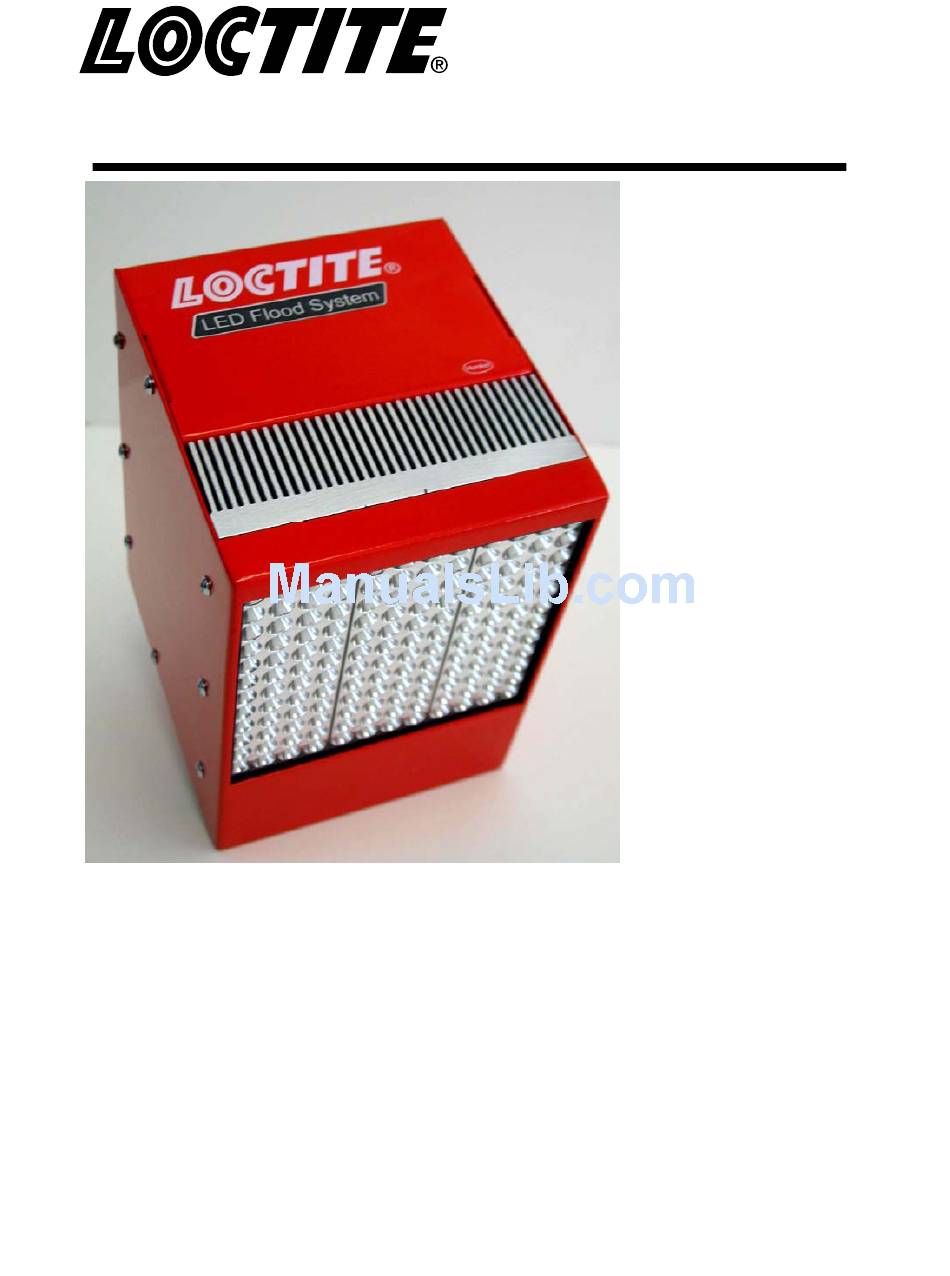

- Page 1 EQUIPMENT Operation Manual ® Loctite LED Flood System Part Numbers: 1167582 UVA nm Array 1167593 405 nm Array 1167589 Indigo™ Array...
- Page 2 Allow at least six inches from the fan and heat sink to any obstructions. 1.4 Field of Application, (Intended Usage) The Loctite LED Flood Systems, UVA, 405 and Indigo™ are designed to be used with Loctite® UV Curing products, UV/VIS curing products and Indigo products,...
-
Page 3: Operating The Unit
The wavelengths available are: UVA (Part # 1167582) Intended for use with Loctite® UV curing products 405 nM (Part # 1167593) Intended for use with Loctite® UV/VIS curing products Indigo (Part # 1167589) Intended for use with Loctite® Indigo™ product line The curing process begins when the adhesive is placed under the LED’s. -
Page 4: Trouble Shooting
3.2 Curing Procedure Having determined the irradiance necessary to cure the adhesive, fixture the reflector housing over the work surface at the proper height. The M5 threaded inserts located in the top of the reflector housing are intended for this purpose. When the cure cycle is initiated from the controller, the LED’s will light immediately. - Page 5 UVA LED Flood System Item # 1167582 S/N: XXXXX FOR SPARE PARTS, MANUALS, REPAIRS, OR TECHNICAL ASSISTANCE: Visit us at equipment.loctite.com or call Henkel Corp. at: LED Flood System USA - (1) 860-571-5174 Germany - (49) 89-9268-0 Singapore - (65) 6266-0100...
- Page 6 WARRANTY Henkel expressly warrants that all products referred to in this Instruction Manual for the LED Flood Systems (hereafter called “Products”) shall be free from defects in materials and workmanship. Liability for Henkel shall be limited, as its option, to replacing those Products which are shown to be defective in either materials or workmanship or to credit the purchaser the amount of the purchase price thereof (plus freight and insurance charges paid therefore by the user).
- Page 7 Madison Heights, MI 48071 Diadema/SP, Brazil www.loctite.com Loctite is a trademark of Henkel Corporation, U.S.A. © Copyright 2004. Henkel Corporation All rights reserved. Data in this operation manual is subject to change without notice. Manual P/N: 8901873, Rev B, Date: 12/2009...
